Scout Light Parts
Scout, Traveler, Terra and Travelall are trademarks of the International Truck & Engine Corporation.
Their use has been licensed under Scout/Light Line Distributors, Inc.
Scout Connection is a Scout/Light Line Authorized Dealer.

Front Axles, Rear Axles & Wheels
"Thanks for the great parts and service!” Eric Monse, TX


We have the largest inventory of N.O.S. (New Old Stock) parts in the United States! Our 1200 square foot parts, sales and accessories showroom is big and bright with a varied inventory and wide selection of new, used and NOS parts and accessories for your IH vehicle. We are a Scout Light-Line Dealer. Browse our digital parts book for all your IH needs! Give a call for medium-duty truck needs (LoadStar, FleetStar, CargoStar, S-Series). Contact us for your L, R, S truck needs, we have a small selection of used parts and ability to source many N.O.S. and reproduction parts. To Order Call: 319.372.3272.

Diagrams may not be actual representations of part image.
front axle Assembly
2 wheel drive
1971-80
scout ii/terra/traveler

front axle assembly
dana 30 & dana 44
1971-80
scout ii/terra/traveler

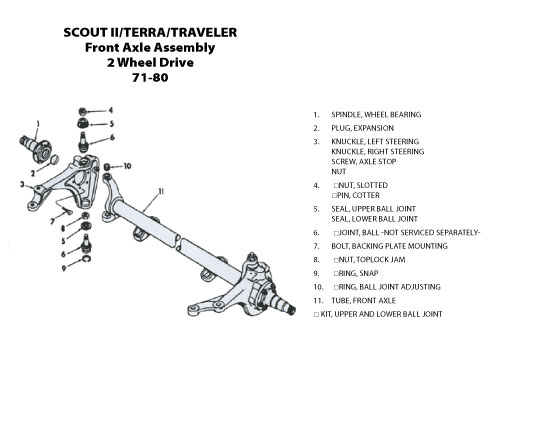

Front Axle Assembly
Click Image for Larger View
  1. Spindle, Wheel Bearing
  2. Plug, Expansion
  3. Knuckle, Left Steering
    Knuckle, Right Steering
    Screw, Axle Stop
    Nut
  4. *Nut, Slotted
    *Pin, Cotter
  5. Seal, Upper Ball Joint
    Seal, Lower Ball Joint
  6. *Joint, Ball -Not Serviced Separately-
  7. Bolt, backing Plate Mounting
  8. *Nut, Toplock Jam
  9. *Ring, Snap
  10. *Ring, Ball Joint Adjusting
  11. Tube, Front Axle

* Kit, Upper and Lower Ball Joint

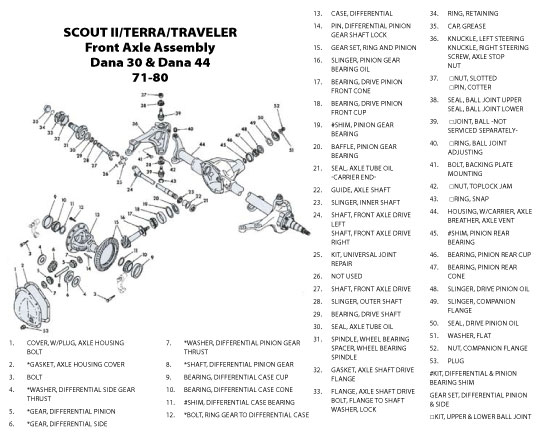

 Front Axle Assembly
Click Image for Larger View
  1. Cover, w/Plug, Axle Housing
    Bolt
  2. *Gasket, Axle Housing Cover
  3. Bolt
  4. *Washer, Differential Side Gear Thrust
  5. *Gear, Differential Pinion
  6. *Gear, Differential Side
  7. *Washer, Differential Pinion Gear Thrust
  8. *Shaft, Differential Pinion Gear
  9. Bearing, Differential Case Cup
  10. Bearing, Differential Case Cone
  11. #Shim, Differential Case Bearing
  12. *Bolt, Ring Gear to Differential Case
  13. Case, Differential
  14. Pin, Differential Pinion Gear Shaft Lock
  15. Gear Set, Ring and Pinion
  16. Slinger, Pinion Gear Bearing Oil
  17. Bearing, Drive Pinion Front Cone
  18. Bearing, Drive Pinion Front Cup
  19. #Shim, Pinion Gear Bearing
  20. Baffle, Pinion Gear Bearing
  21. Seal, Axle Tube Oil -Carrier End-
  22. Guide, Axle Shaft
  23. Slinger, Inner Shaft
  24. Shaft, Front Axle Drive Left
    Shaft, Front Axle Drive right
  25. Kit, Universal Joint Repair
  26. Not Used
  27. Shaft, Front Axle Drive
  28. Slinger, Outer Shaft
  29. Bearing, Drive Shaft
  30. Seal, Axle Tube Oil
  31. Spindle, Wheel Bearing
    Spacer, Wheel Bearing Spindle
  32. Gasket, Axle Shaft Drive Flange
  33. Flange, Axle Shaft Drive
    Bolt, Flange to Shaft
    Washer, Lock
  34. Ring, Retaining
  35. Cap, Grease
  36. Knuckle, Left Steering
    Knuckle, Right Steering
    Screw, Axle Stop
    Nut
  37. *Nut, Slotted
    *Pin, Cotter
  38. Seal, Ball Joint Upper
  39. Seal, Ball Joint Lower
  40. *Joint, Ball -Not Serviced Separately-
  41. *Ring, Ball Joint Adjusting
    Bolt, Backing Plate Mounting
  42. *Nut, Toplock Jam
  43. *Ring, Snap
  44. Housing, w/Carrier, Axle
    Breather, Axle Vent
  45. #Shim, Pinion Rear Bearing
  46. Bearing, Pinion Rear Cup
  47. Bearing, Pinion Rear Cone
  48. Slinger, Drive Pinion Oil
  49. Slinger, Companion Flange
  50. Seal, Drive Pinion Oil
  51. Washer, Flat
  52. Nut, Companion flange
  53. Plug

#Kit, Differential & Pinion Bearing Shim
Gear Set,

Differential Pinion & Side

*Kit, Upper & Lower Ball Joint

Return to Top

front wheel
11 x 2 drum brake
1971-74
scout ii		 front wheel disc
2 wheel drive w/front disc brakes
1971-80
scout ii/terra/traveler

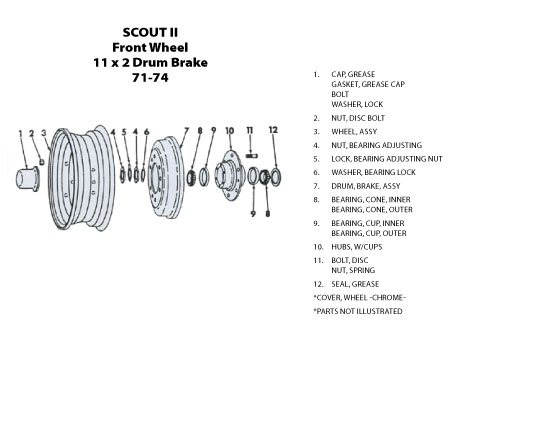

Front Wheel
Click Image for Larger View
  1. Cap, Grease
    Gasket, Grease Cap
    Bolt
    Washer, Lock
  2. Nut, Disc Bolt
  3. Wheel, Assy
  4. Nut, Bearing Adjusting
  5. Lock, Bearing Adjusting Nut
  6. Washer, Bearing Lock
  7. Drum, Brake, Assy
  8. Bearing, Cone, Inner
    Bearing, Cone, Outer
  9. Bearing, Cup, Inner
    Bearing, Cup, Outer
  10. Hubs, w/Cups
  11. Bolt, Disc
    Nut, Spring
  12. Seal, Grease

*Cover, Wheel -Chrome

*Parts Not Illustrated

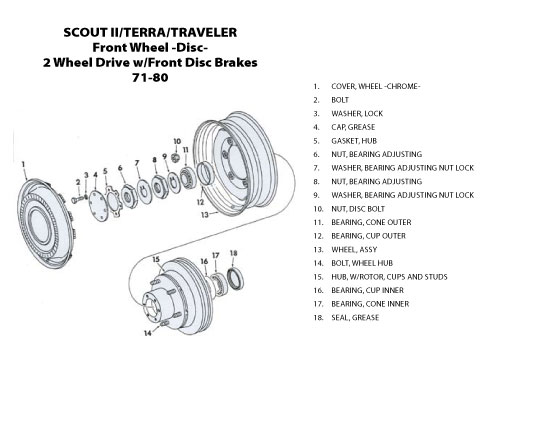

 Front Wheel Disc
Click Image for Larger View
  1. Cover, Wheel -Chrome-
  2. Bolt
  3. Washer, Lock
  4. Cap, Grease
  5. Gasket, Hub
  6. Nut, Bearing Adjusting
  7. Washer, Bearing Adjusting Nut Lock
  8. Nut, Bearing Adjusting
  9. Washer, Bearing Adjusting Nut Lock
  10. Nut, Disc Bolt
  11. Bearing, Cone Outer
  12. Bearing, Cup Outer
  13. Wheel, Assy
  14. Bolt, Wheel Hub
  15. Hub, w/Rotor, Cups and Studs
  16. Bearing, Cup Inner
  17. Bearing, Cone Inner
  18. Seal, Grease

Return to Top


front wheel disc
4 wheel drive w/disc brakes
1971-80
scout ii/terra/traveler

front wheel locking hub
lock-o-matic
1971-77
scout ii/terra/traveler

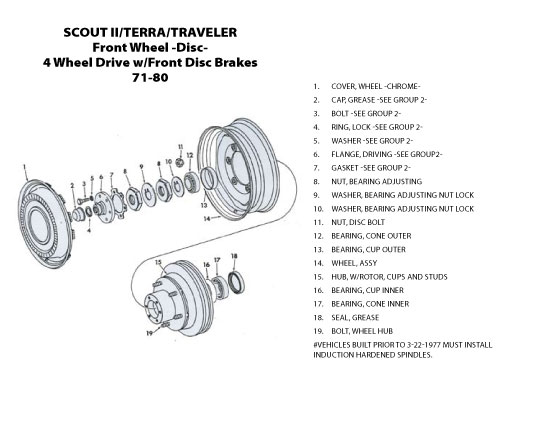

Front Wheel Disc
Click Image for Larger View
  1. Cover, Wheel -Chrome-
  2. Cap, Grease -See Group 2-
  3. Bolt -See Group 2-
  4. Ring, Lock -See Group 2-
  5. Washer -See Group 2-
  6. Flange, Driving -See Group2-
  7. Gasket -See Group 2-
  8. Nut, Bearing Adjusting
  9. Washer, Bearing Adjusting Nut Lock
  10. Washer, Bearing Adjusting Nut Lock
  11. Nut, Disc Bolt
  12. Bearing, Cone Outer
  13. Bearing, Cup Outer
  14. Wheel, Assy
  15. Hub, w/Rotor, Cups and Studs
  16. Bearing, Cup Inner
  17. Bearing, Cone Inner
  18. Seal, Grease
  19. Bolt, Wheel Hub

#Vehicles Built Prior to 3-22-1977 Must Install Induction Hardened Spindles.

 Front Wheel Locking Hub Lock-O-Matic
Click Image for Larger View
  1. Nut, w/Lock, Front Wheel Bearing Adjuster
    Body, Automatic Locking Hub, Assy
    *Gasket, Hub Body Flange
  2. Clutch, Automatic Locking Hub, Assy
    *Washer, Hub Bolt Lock

* Kit, Locking Hub Mounting

Return to Top


front wheel locking hub
lock-o-matic
1977-80
scout ii/terra/traveler

 front wheel locking hub
manual hub
1971-80
scout ii/terra/traveler

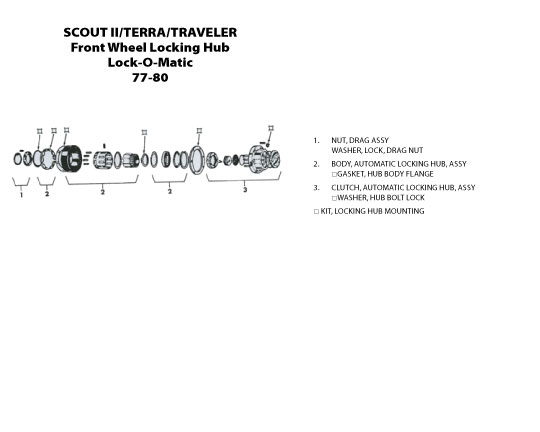

Front Wheel Locking Hub Lock-O-Matic
Click Image for Larger View
  1. Nut, Drag Assy
    Washer, Lock, Drag Nut
  2. Body, Automatic Locking Hub, Assy
    *Gasket, Hub Body Flange
  3. Clutch, Automatic Locking Hub, Assy
    *Washer, Hub Bolt Lock

* Kit, Locking Hub Mounting

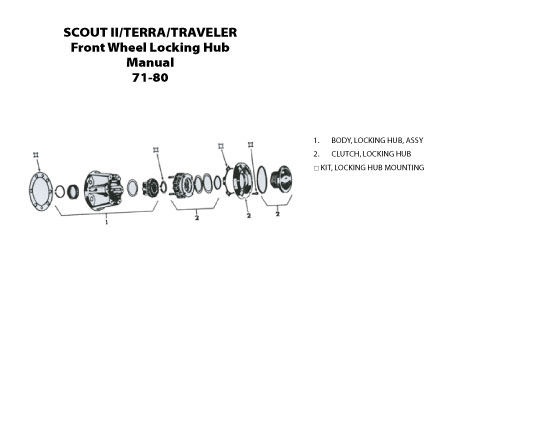

 Front Wheel Locking Hub
Click Image for Larger View
  1. Body, Locking Hub, Assy
  2. Clutch, Locking Hub

* Kit, Locking Hub Mounting

Return to Top

front wheel locking hub
dualmatic
1971-80
scout ii/terra/traveler		 rear axle assembly
open differential
1972-80
scout ii/terra/traveler

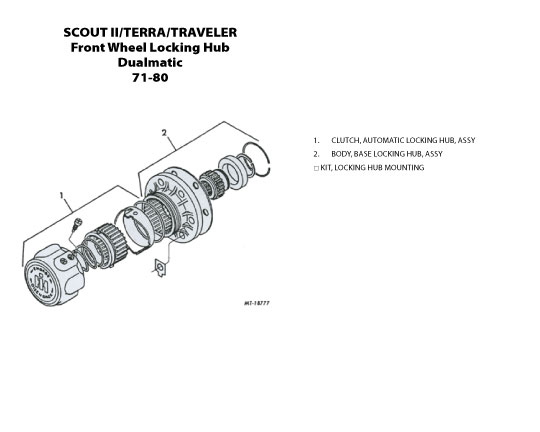

Front Wheel Locking Hub Dualmatic
Click Image for Larger View
  1. Clutch, Automatic Locking Hub, Assy
  2. Body, Base Locking Hub, Assy

* Kit, Locking Hub Mounting

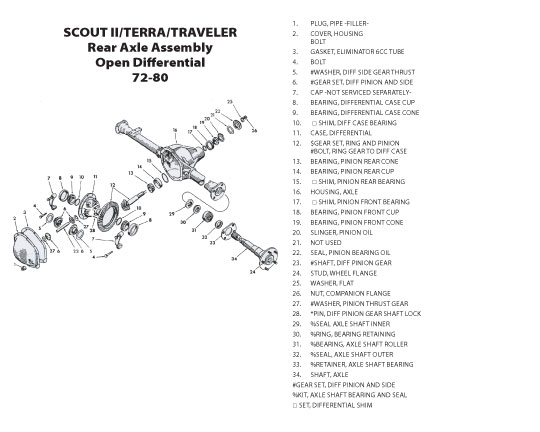

 Rear Axle Assembly Open Differential
Click Image for Larger View
  1. Plug, Pipe -Filler-
  2. Cover, Housing
    Bolt
  3. Gasket, Eliminator 6CC Tube
  4. Bolt
  5. #Washer, Diff Side Gear Thrust
  6. #Gear Set, Diff Pinion and Side
  7. Cap -Not Serviced Separately-
  8. Bearing, Differential Case Cup
  9. Bearing, Differential Case Cone
  10. @ Shim, Diff Case Bearing
  11. Case, Differential
  12. $Gear Set, Ring and Pinion
    #Bolt, Ring Gear to Diff Case
  13. Bearing, Pinion Rear Cone
  14. Bearing, Pinion Rear Cup
  15. @ Shim, Pinion Rear Bearing
  16. Housing, Axle
  17. @ Shim, Pinion Front Bearing
  18. Bearing, Pinion Front Cup
  19. Bearing, Pinion Front Cone
  20. Slinger, Pinion Oil
  21. Not Used
  22. Seal, Pinion Bearing Oil
  23. #Shaft, Diff Pinion Gear
  24. Stud, Wheel Flange
  25. Washer, Flat
  26. Nut, Companion Flange
  27. #Washer, Pinion Thrust Gear
  28. *Pin, Diff Pinion Gear Shaft Lock
  29. %Seal Axle Shaft Inner
  30. %Ring, Bearing Retaining
  31. %Bearing, Axle Shaft Roller
  32. %Seal, Axle Shaft Outer
  33. %Retainer, Axle Shaft Bearing
  34. Shaft, Axle

#Gear Set, Diff Pinion and Side

%Kit, Axle Shaft Bearing and Seal

@ Set, Differential Shim

Return to Top


rear axle assembly
posi differential
1972-80
scout ii/terra/traveler

rear wheel
11 x 1 3/4 brakes
1971-74
scout ii

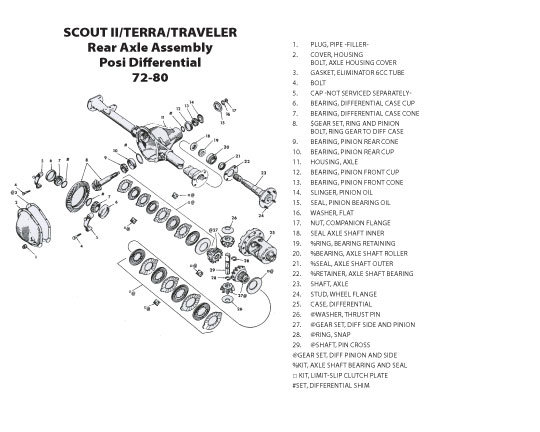

Rear Axle Assembly Posi Differential
Click Image for Larger View
  1. Plug, Pipe -Filler-
  2. Cover, Housing
    Bolt, Axle Housing Cover
  3. Gasket, Eliminator 6CC Tube
  4. Bolt
  5. Cap -Not Serviced Separately-
  6. Bearing, Differential Case Cup
  7. Bearing, Differential Case Cone
  8. $Gear Set, Ring and Pinion
    Bolt, Ring Gear to Diff Case
  9. Bearing, Pinion Rear Cone
  10. Bearing, Pinion Rear Cup
  11. Housing, Axle
  12. Bearing, Pinion Front Cup
  13. Bearing, Pinion Front Cone
  14. Slinger, Pinion Oil
  15. Seal, Pinion Bearing Oil
  16. Washer, Flat
  17. Nut, Companion Flange
  18. Seal Axle Shaft Inner
  19. %Ring, Bearing Retaining
  20. %Bearing, Axle Shaft Roller
  21. %Seal, Axle Shaft Outer
  22. %Retainer, Axle Shaft Bearing
  23. Shaft, Axle
  24. Stud, Wheel Flange
  25. Case, Differential
  26. @Washer, Thrust Pin
  27. @Gear Set, Diff Side and Pinion
  28. @Ring, Snap
  29. @Shaft, Pin Cross

@Gear Set, Diff Pinion and Side

%Kit, Axle Shaft Bearing and Seal

* Kit, Limit-Slip Clutch Plate

#Set, Differential Shim

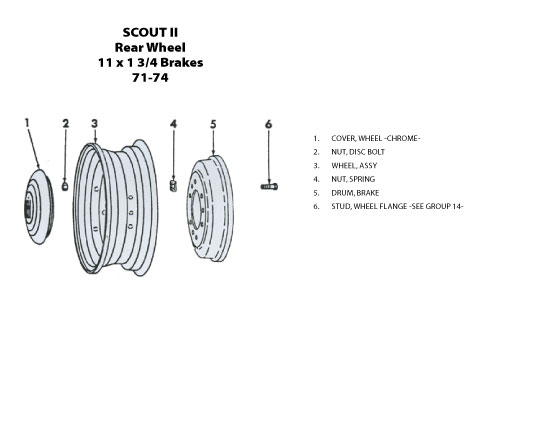

 Rear Wheek
Click Image for Larger View
  1. Cover, Wheel -Chrome-
  2. Nut, Disc Bolt
  3. Wheel, Assy
  4. Nut, Spring
  5. Drum, Brake
  6. Stud, Wheel Flange -See group 14-

Return to Top

rear wheels
11 x 2 1/4 rear brakes
1976-80
scout ii		 skid plate
1971-80
scout ii/terra/traveler

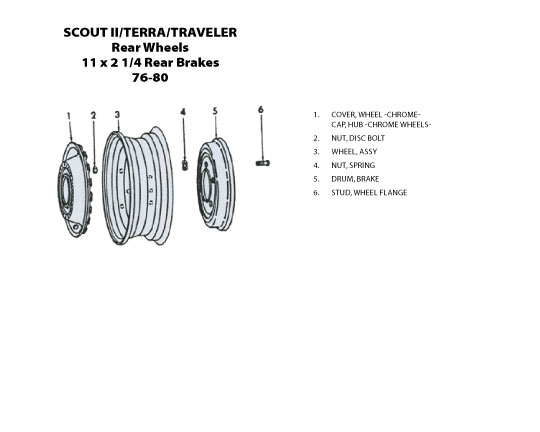

Rear Wheels
Click Image for Larger View
  1. Cover, Wheel -Chrome-
    Cap, Hub -Chrome Wheels-
  2. Nut, Disc Bolt
  3. Wheel, Assy
  4. Nut, Spring
  5. Drum, Brake
  6. Stud, Wheel Flange

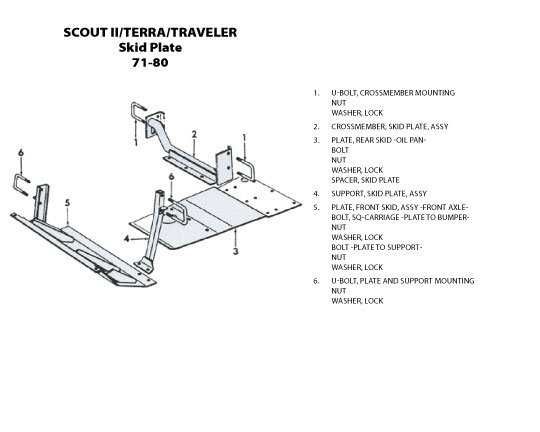

 Skid Plate
Click Image for Larger View
  1. U-Bolt, Crossmember Mounting
    Nut
    Washer, Lock
  2. Crossmember, Skid Plate, Assy
  3. Plate, Rear Skid -Oil Pan-
    Bolt
    Nut
    Washer, Lock
    Spacer, Skid Plate
  4. Support, Skid Plate, Assy
  5. Plate, Front Skid, Assy -Front Axle-
    Bolt, SQ-Carriage -Plate to Bumper-
    Nut
    Washer, Lock
    Bolt -Plate to Support-
    Nut
    Washer, Lock
  6. U-Bolt, Plate and Support Mounting
    Nut
    Washer, Lock

Return to Top


tie rod assembly
1971-80
scout ii/terra/traveler

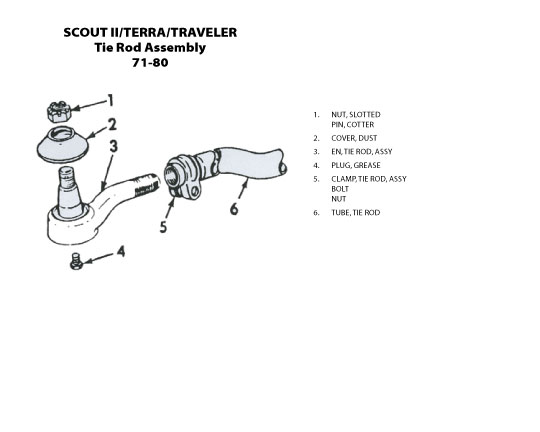

Tie Rod Assembly
Click Image for Larger View
  1. Nut, Slotted
    Pin, Cotter
  2. Cover, Dust
  3. End, Tie Rod, Assy
  4. Plug, Grease
  5. Clamp, Tie Rod, Assy
    Bolt
    Nut
  6. Tube, Tie Rod


Return to Top


Return to Parts Page
