Scout Light Parts
Scout, Traveler, Terra and Travelall are trademarks of the International Truck & Engine Corporation.
Their use has been licensed under Scout/Light Line Distributors, Inc.
Scout Connection is a Scout/Light Line Authorized Dealer.

Brakes
"Thanks for the great parts and service!” Eric Monse, TX


We have the largest inventory of N.O.S. (New Old Stock) parts in the United States! Our 1200 square foot parts, sales and accessories showroom is big and bright with a varied inventory and wide selection of new, used and NOS parts and accessories for your IH vehicle. We are a Scout Light-Line Dealer. Browse our digital parts book for all your IH needs! Give a call for medium-duty truck needs (LoadStar, FleetStar, CargoStar, S-Series). Contact us for your L, R, S truck needs, we have a small selection of used parts and ability to source many N.O.S. and reproduction parts. To Order Call: 319.372.3272.

Diagrams may not be actual representations of part image.
brake control valve
disc brake
1971-80
scout ii		 brake hydraulic hose & piping
drum brake
1971-74
Scout ii

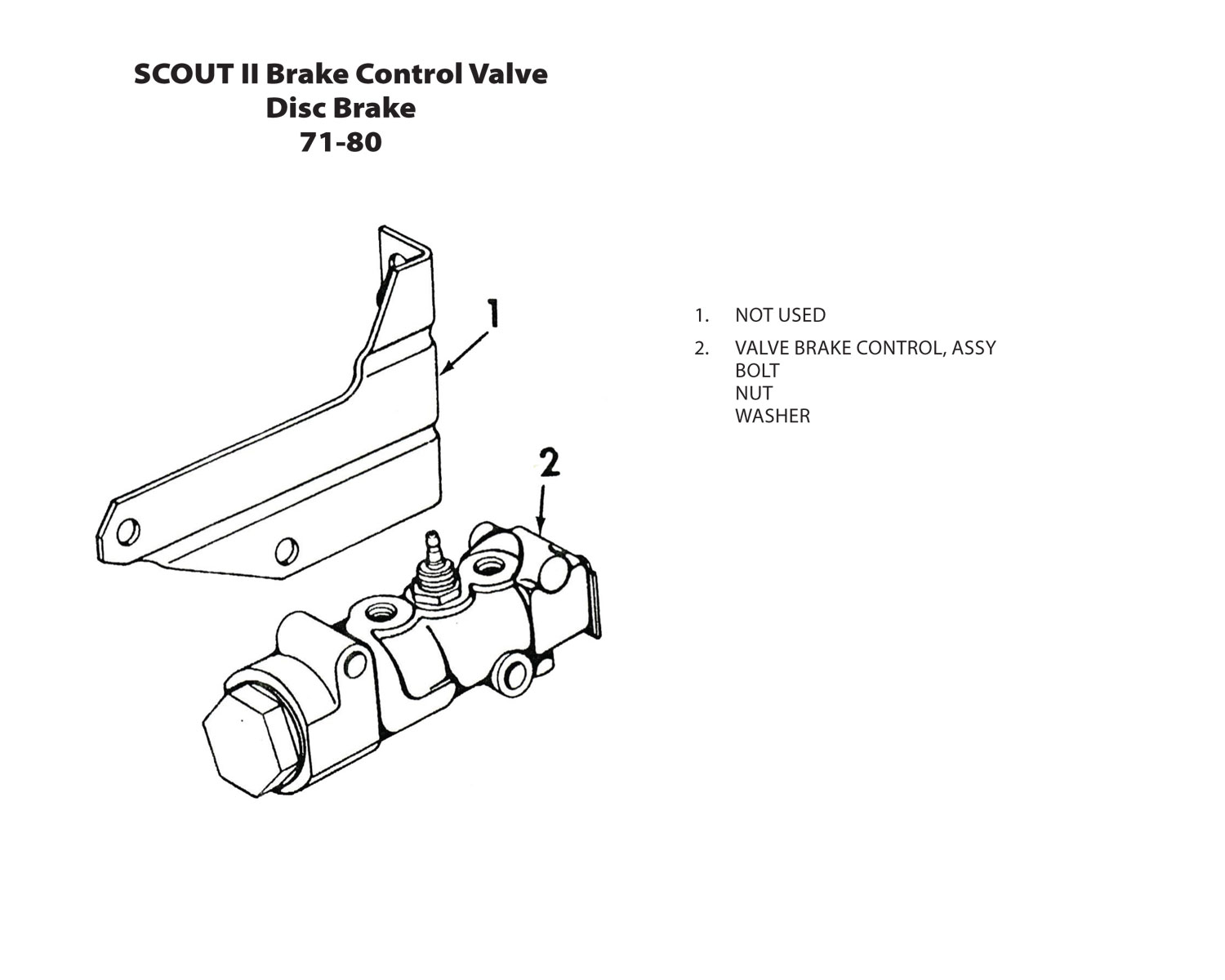

Brake Control Valve
Click Image for Larger View
  1. Not Used
  2. Valve Brake Control, Assy
    Bolt
    Nut
    Washer

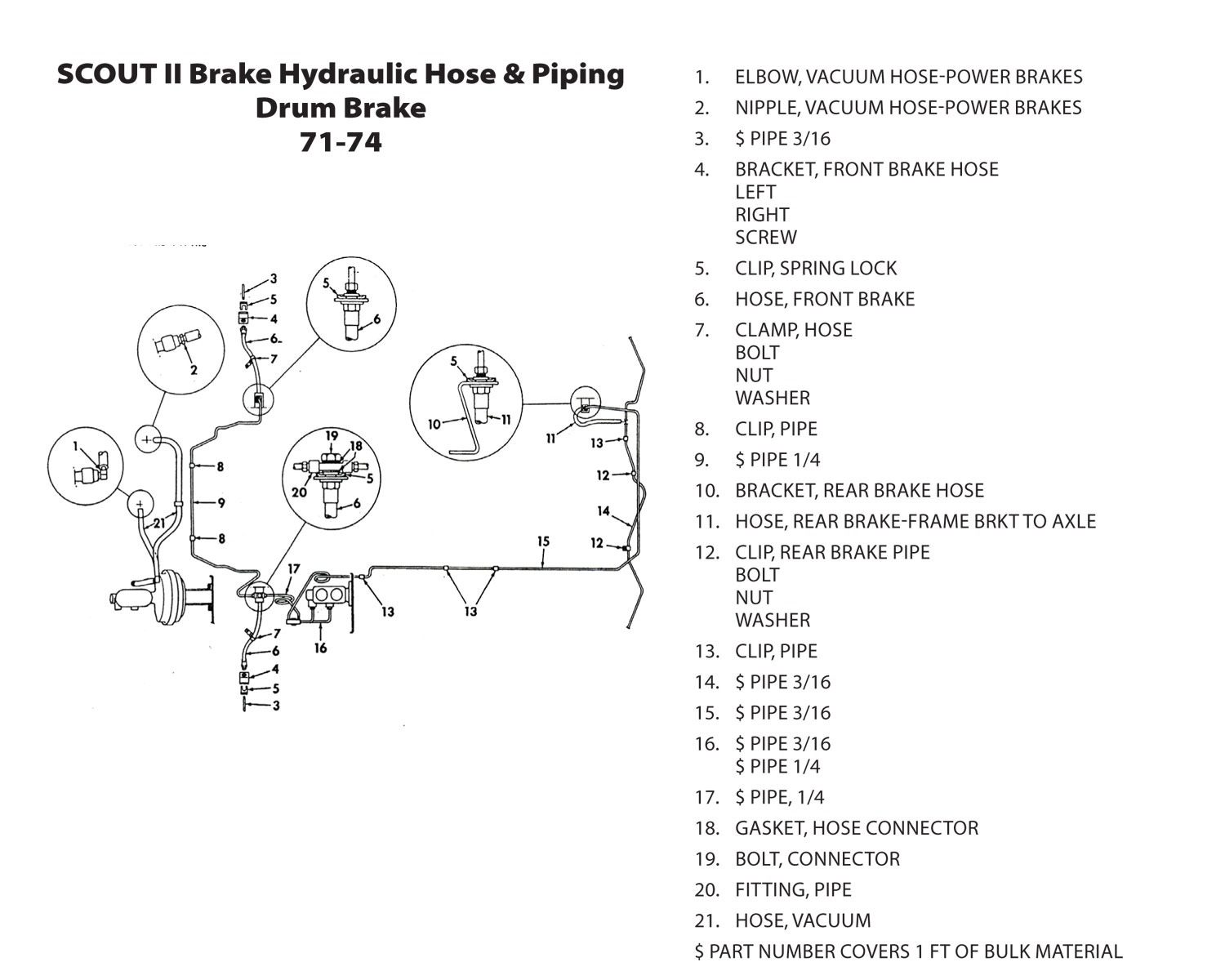

 Brake Hydraulic Hose & Piping
Click Image for Larger View
  1. Elbow, Vacuum Hose-Power Brakes
  2. Nipple, Vacuum Hose-Power Brakes
  3. Pipe 3/16
  4. Bracket, Front Brake Hose
    Left
    Right
    Screw
  5. Clip, Spring Lock
  6. Hose, Front Brake
  7. Clamp, Hose
    Bolt
    Nut
    Washer
  8. Clip, Pipe
  9. Pipe 1/4
  10. Bracket, Rear Brake Hose
  11. Hose, Rear Brake-Frame Bracket to Axle
  12. Clip, Rear Brake Pipe
    Bolt
    Nut
    Washer
  13. Clip, Pipe
  14. Pipe 3/16
  15. Pipe 3/16
  16. Pipe 3/16
    Pipe 1/4
  17. Pipe, 1/4
  18. Gasket, Hose Connector
  19. Bolt, Connector
  20. Fitting, Pipe
  21. Hose, Vacuum
  • Part Number Covers 1 ft. of Bulk Material

Return to Top

brake hydraulic hose & piping
disc brake
1971-80
scout ii/terra/traveler		 brake master cylinder assy
drum brake
1971-74
scout ii

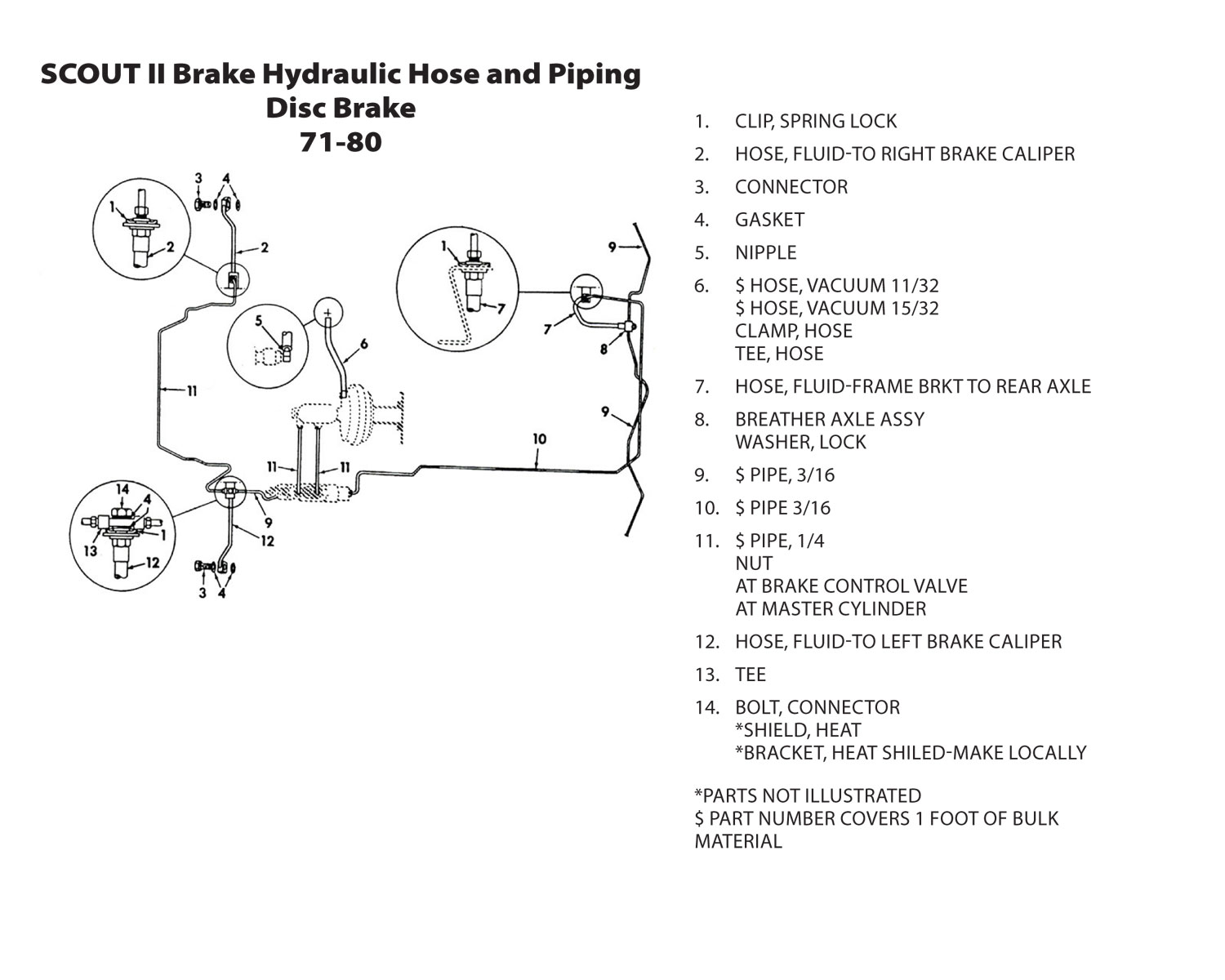

Brake Hydraulic Hose and Piping
Click Image for Larger View
  1. Clip, Spring Lock
  2. Hose, Fluid-To Right Brake Caliper
  3. Connector
  4. Gasket
  5. Nipple
  6. $ Hose, Vacuum 11/32
    $ Hose, Vacuum 15/32
    Clamp, Hose
    Tee, Hose
  7. Hose, Fluid-Frame Bracket to Rear Axle
  8. Breather Axle Assy
    Washer, Lock
  9. $ Pipe, 3/16
  10. $ Pipe 3/16
  11. $ Pipe, 1/4
    Nut
    At Brake Control Valve
    At Master Cylinder
  12. Hose, Fluid-To Left Brake Caliper
  13. Tee
  14. Bolt, Connector
    *Shield, Heat
    *Bracket, Heat Shield-Make Locally
  • *Parts Not Illustrated
  • $ Part Number Covers 1 Foot of Bulk Material

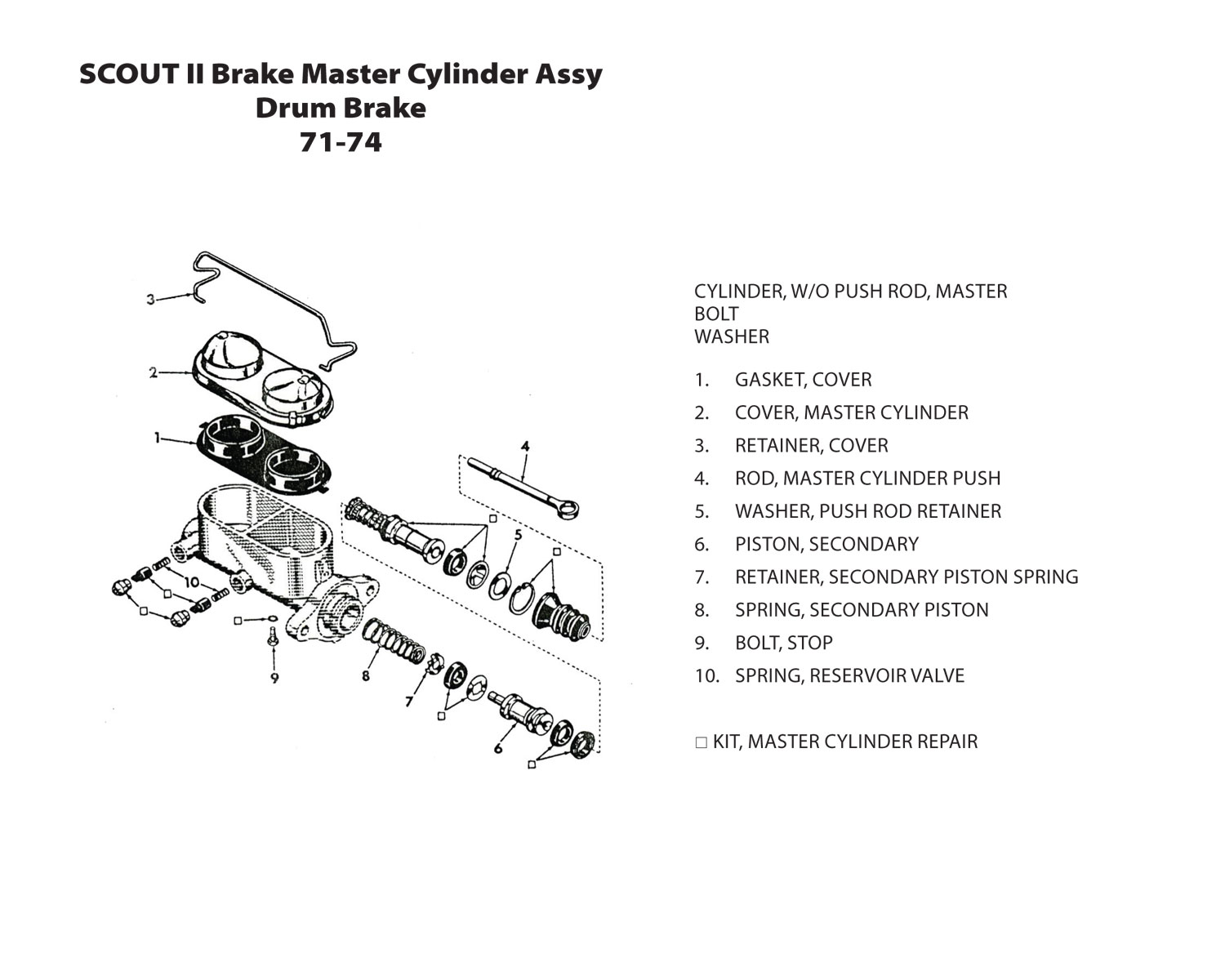

 Brake Master Cylinder Assy
Click Image for Larger View
  • Cylinder, w/o Push Rod, Master
    Bolt
    Washer
  1. Gasket, Cover
  2. Cover, Master Cylinder
  3. Retainer, Cover
  4. Rod, Master Cylinder Push
  5. Washer, Push Rod Retainer
  6. Piston, Secondary
  7. Retainer, Secondary Piston Spring
  8. Spring, Secondary Piston
  9. Bolt, Stop
  10. Spring, Reservoir Valve
  • Kit, Master Cylinder Repair

Return to Top

brake pedal & linkage
1971-80
scout ii/terra/traveler		 front wheel brake 11 x 2
1971-74
scout ii

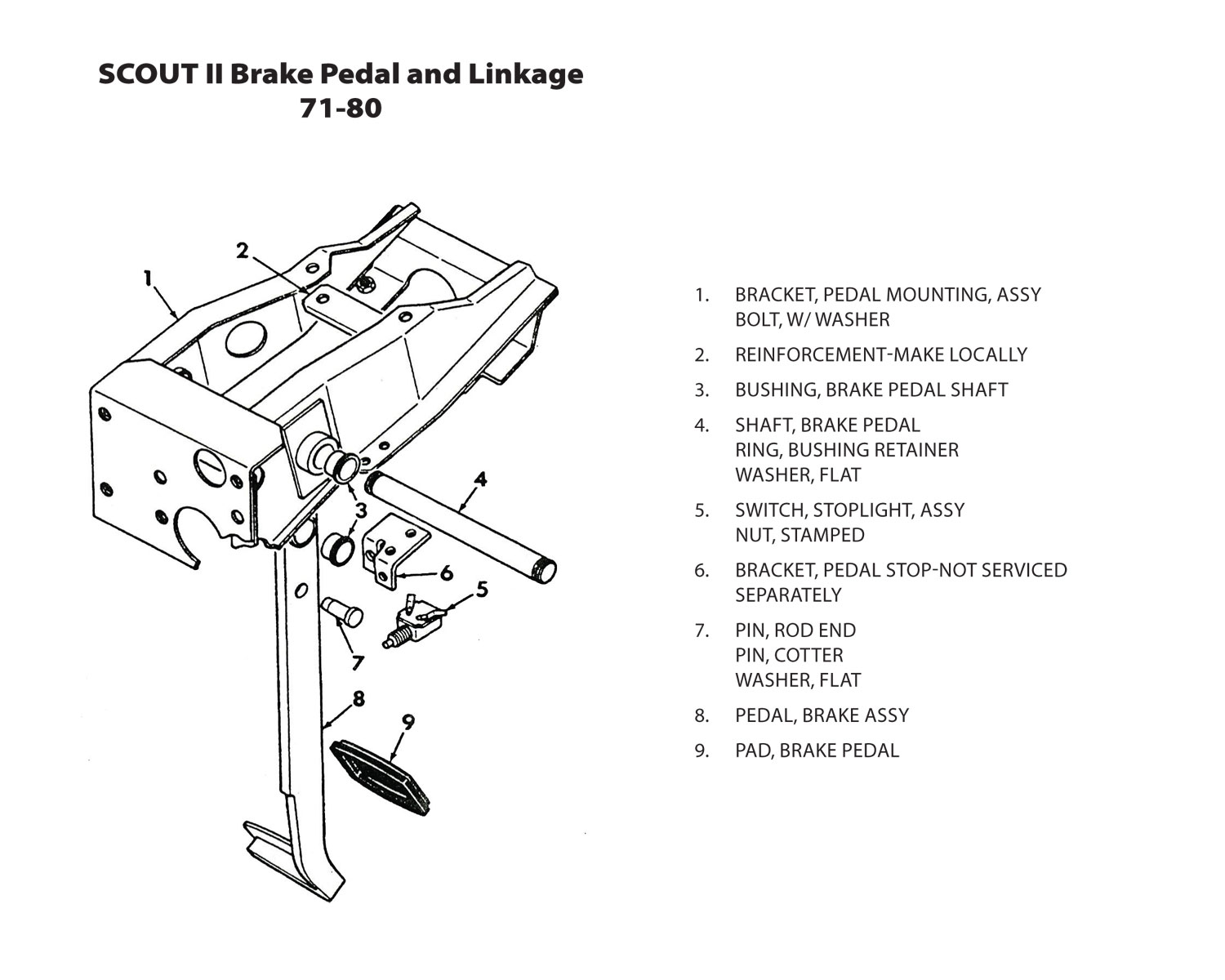

Brake Pedal and Linkage
Click Image for Larger View
  1. Bracket, Pedal Mounting, Assy
    Bolt, w/ Washer
  2. Reinforcement-Make Locally
  3. Bushing, Brake Pedal Shaft
  4. Shaft, Brake Pedal
    Ring, Bushing Retainer
    Washer, Flat
  5. Switch, Stoplight, Assy
    Nut, Stamped
  6. Bracket, Pedal Stop-Not Serviced Separately
  7. Pin, Rod End
    Pin, Cotter
    Washer, Flat
  8. Pedal, Brake Assy
  9. Pad, Brake Pedal

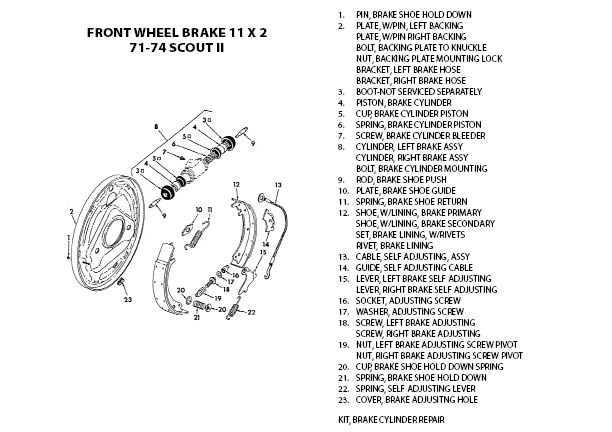

Front Wheel Brake Schematic
Click Image for Larger View
  1. Pin, Brake Shoe Hold Down
  2. Plate, w/Pin, Left Backing
    Plate, w/Pin Right Backing
    Bolt, Backing Plate to Knuckle
    Nut, Backing Plate Mounting Lock
    Bracket, Left Brake Hose
    Bracket, Right Brake Hose
  3. Boot-Not Serviced Separately
  4. Piston, Brake Cylinder
  5. Cup, Brake Cylinder PIston
  6. Spring, Brake Cylinder Piston
  7. Screw, Brake Cylinder Bleeder
  8. Cylinder, Left Brake Assy
    Cylinder, Right Brake Assy
    Bolt, Brake Cylinder Mounting
  9. Rod, Brake Shoe Push
  10. Plate, Brake Shoe Guide
  11. Spring, Brake Shoe Return
  12. Shoe, w/Lining, Brake Primary
    Shoe,w/Lining,Brake Secondary
    Set, Brake Lining, w/Rivets
    Rivet, Brake Lining
  13. Cable, Self Adjusting, Assy
  14. Guide, Self Adjusting Cable
  15. Lever, Left Brake Self Adjusting
    Lever, RIght Brake Self Adjusting
  16. Socket, Adjusting Screw
  17. Washer, Adjusting Screw
  18. Screw, Left Brake Adjusting
    Screw, Right Brake Adjusting
  19. Nut, Left Brake Adjusting Screw Pivot
    Nut, Right Brake Adjusting Screw Pivot
  20. Cup, Brake Shoe Hold Down Spring
  21. Spring, Brake Shoe Hold Down
  22. Spring, Self Adjusting Lever
  23. Cover, Brake Adjusting Hole
  • Kit, Brake Cylinder Repair

Return to Top

front wheel disc brake
1971-80
scout ii		 master cylinder assembly
disc brake
1971-80
scout ii

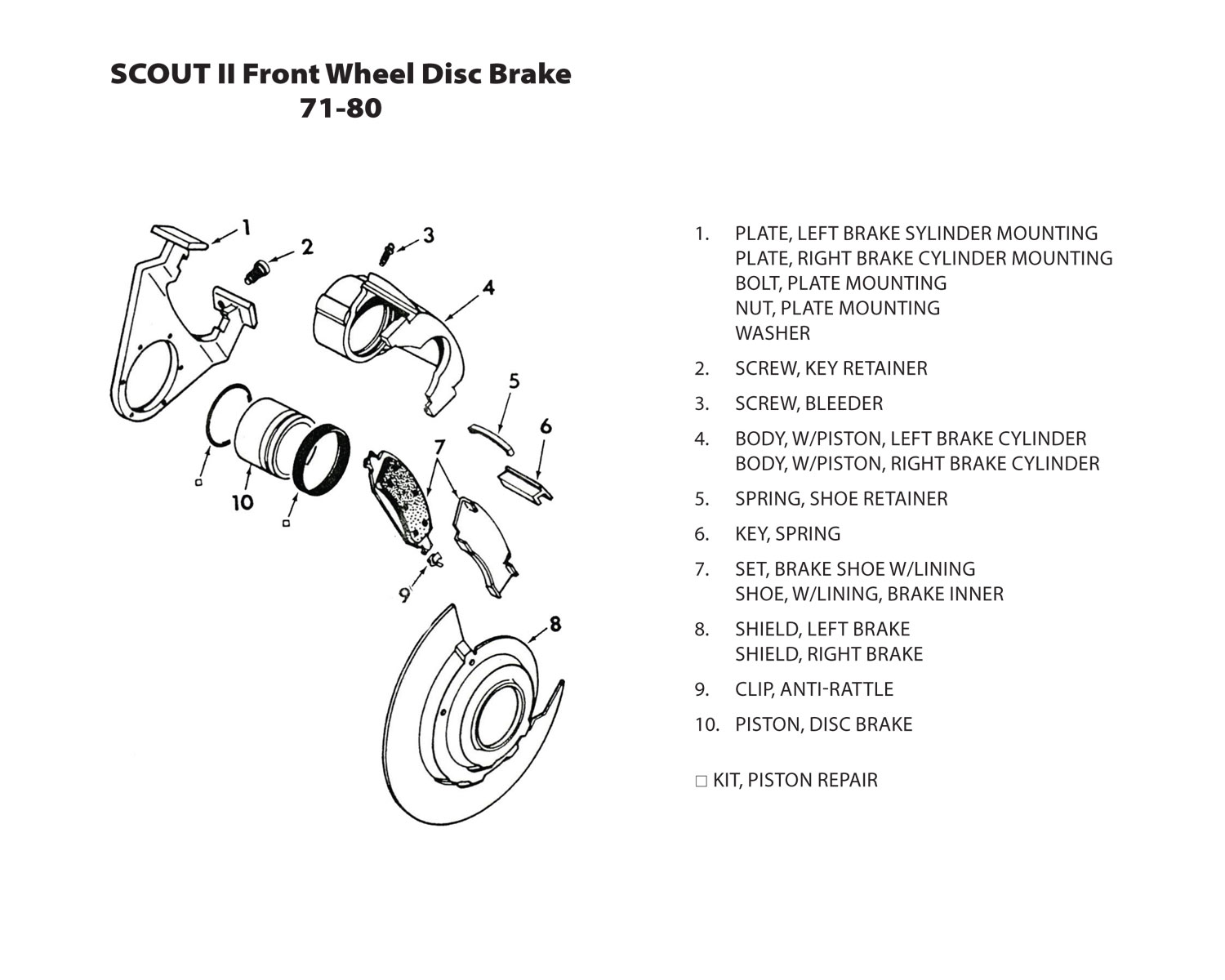

Front Wheel Disc Brake
Click Image for Larger View
  1. Plate, Left Brake Cylinder Mounting
    Plate, Right Brake Cylinder Mounting
    Bolt, Plate Mounting
    Nut, Plate Mounting
    Washer
  2. Screw, Key Retainer
  3. Screw, Bleeder
  4. Body, w/Piston, Left Brake Cylinder
    Body, w/Piston, Right Brake Cylinder
  5. Spring, Shoe Retainer
  6. Key, Spring
  7. Set, Brake Shoe w/Lining
    Shoe, w/Lining, Brake Inner
  8. Shield, Left Brake
    Shield, Right Brake
  9. Clip, Anti-Rattle
  10. Piston, Disc Brake
  • Kit, Piston Repair

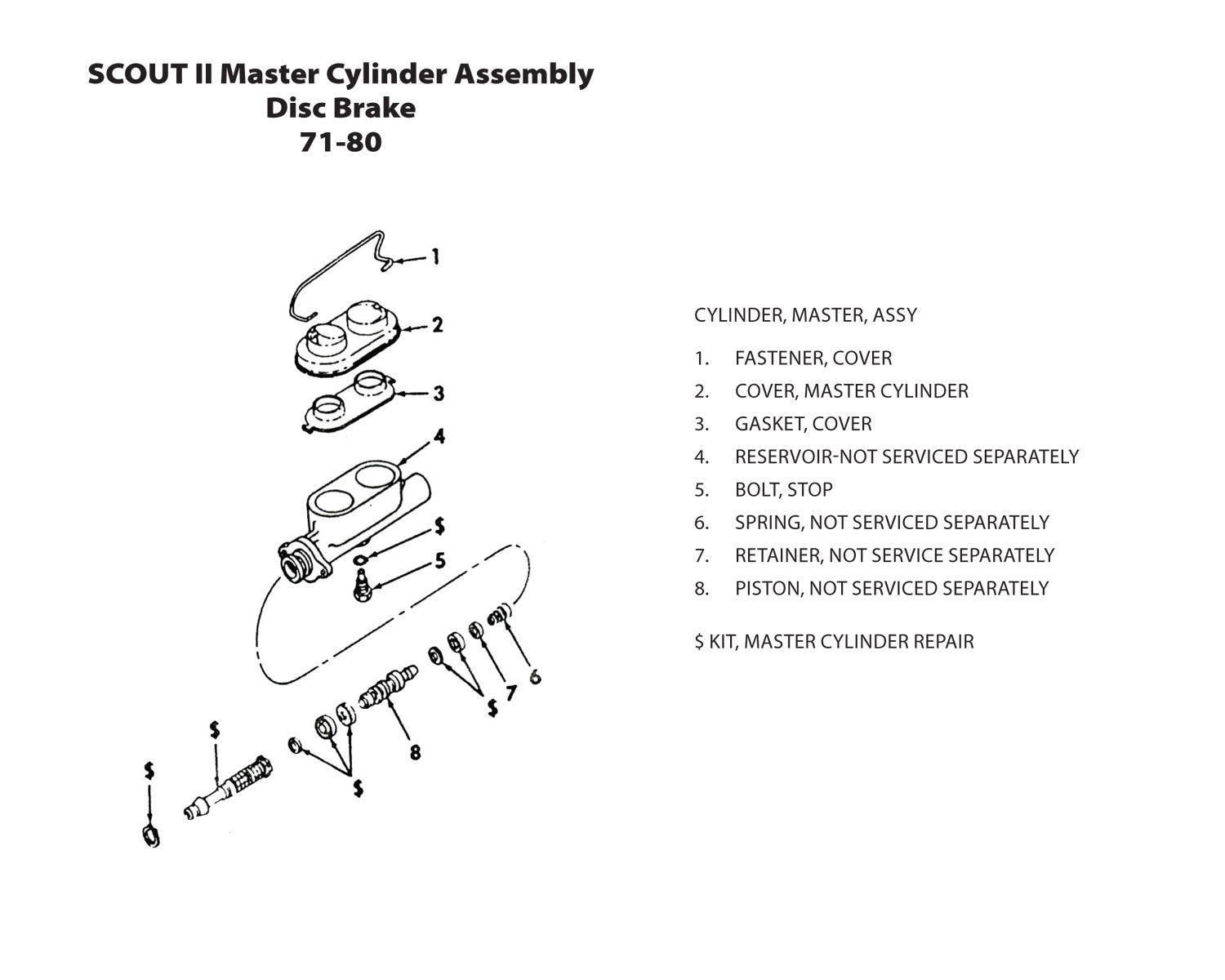

 Master Cylinder Assembly
Click Image for Larger View
  • Cylinder, Master, Assy
  1. Fastener, Cover
  2. Cover, Master Cylinder
  3. Gasket, Cover
  4. Reservoir-Not serviced Separately
  5. Bolt, Stop
  6. Spring, Not Serviced Separately
  7. Retainer, Not Service Separately
  8. Piston, Not Serviced Separately
  • $ Kit, Master Cylinder Repair

Return to Top

mastervac assembly
1971-80
scout ii		 parking brake control cable
1971-80
scout ii

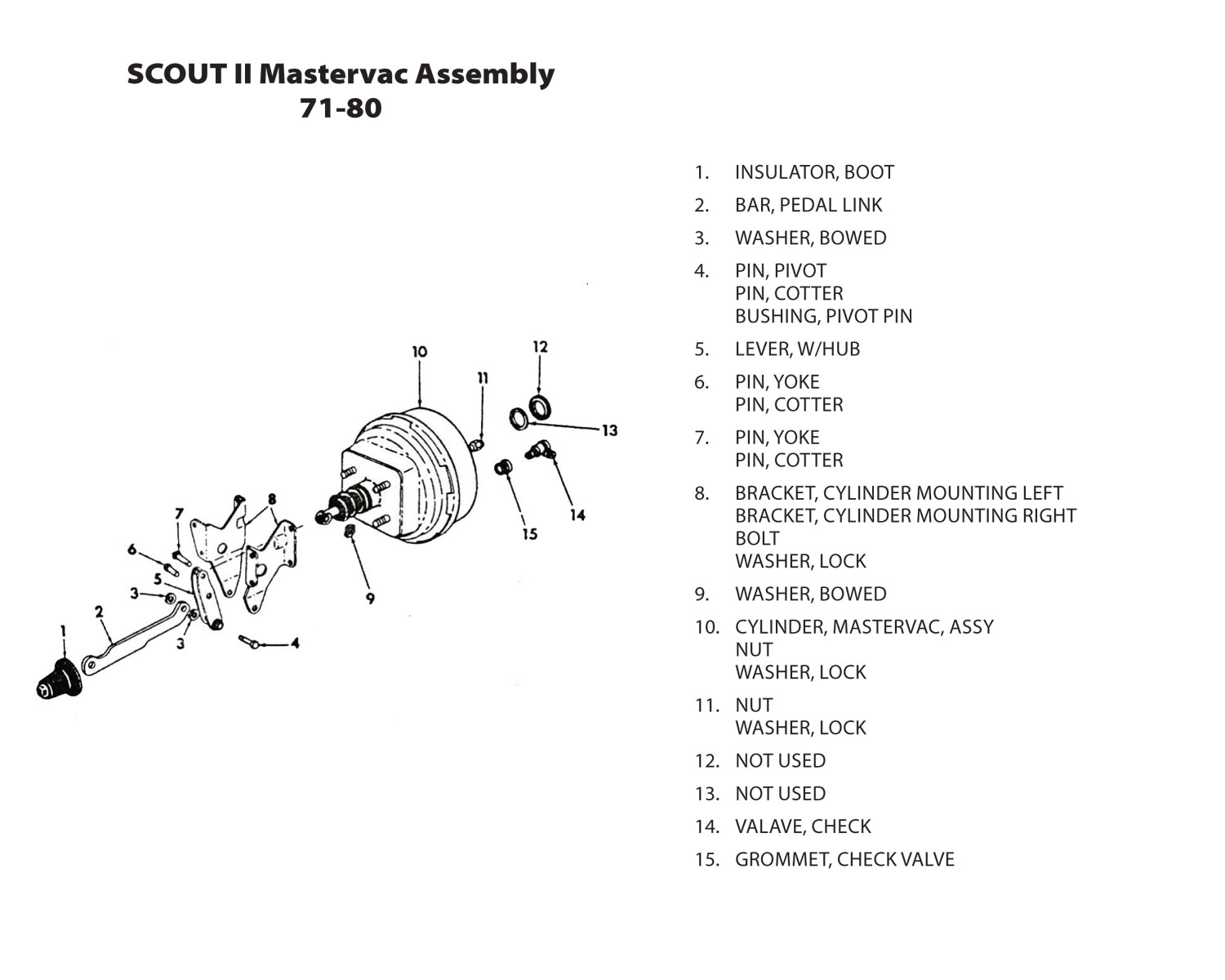

Mastervac Assembly
Click Image for Larger View
  1. Insulator, Boot
  2. Bar, Pedal Link
  3. Washer, Bowed
  4. Pin, Pivot
    Pin, Cotter
    Bushing, Pivot Pin
  5. Lever, w/Hub
  6. Pin, Yoke
    Pin, Cotter
  7. Pin, Yoke
    Pin, Cotter
  8. Bracket, Cylinder Mounting Left
    Bracket, Cylinder Mounting Right
    Bolt
    Washer, Lock
  9. Washer, Bowed
  10. Cylinder, Mastervac, Assy
    Nut
    Washer, Lock
  11. Nut
    Washer, Lock
  12. Not Used
  13. Not Used
  14. Valve, Check
  15. Grommet, Check Valve

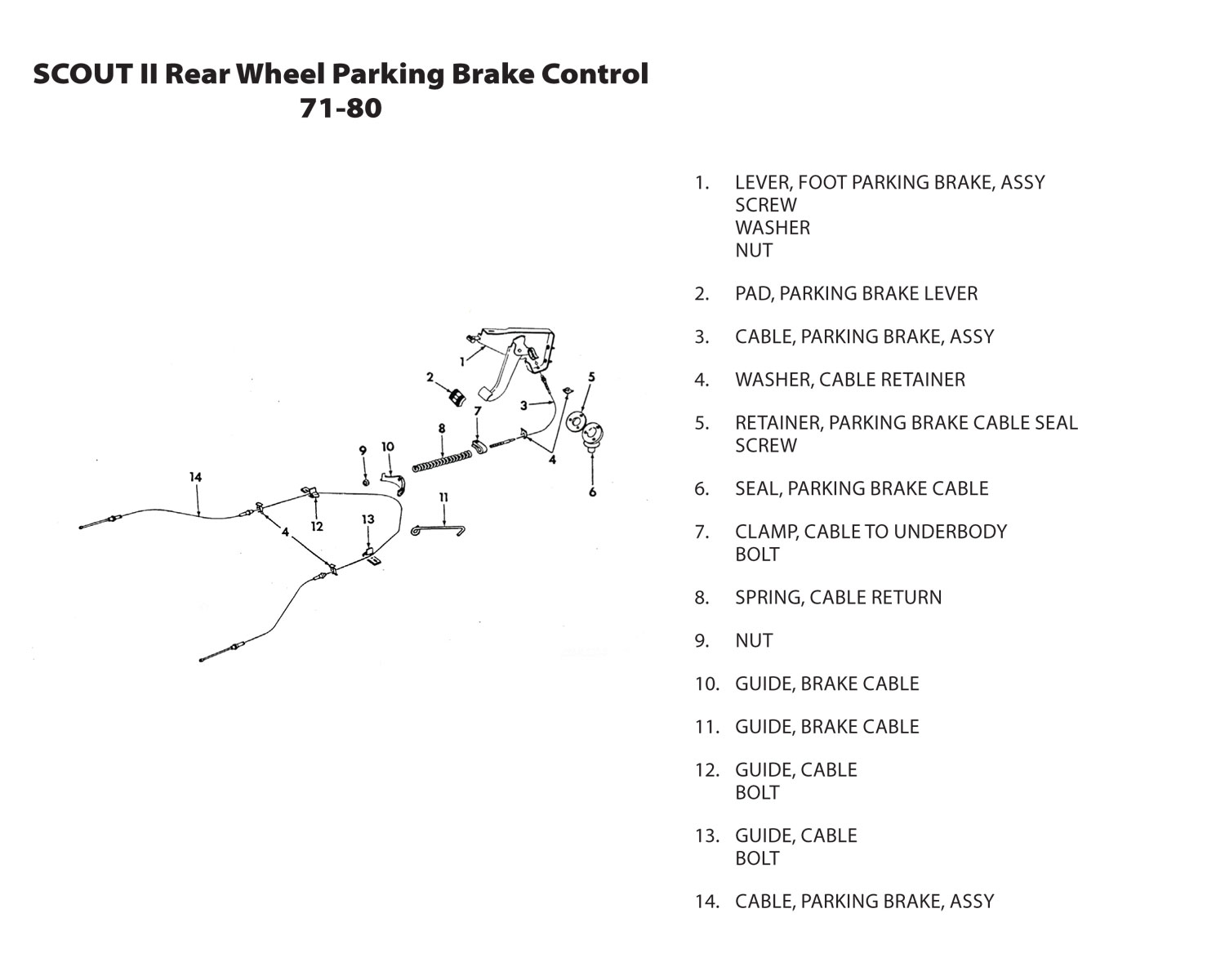

 Rear Wheel Parking Brake Control
Click Image for Larger View
  1. Lever, Foot Parking Brake, Assy
    Screw
    Washer
    Nut
  2. Pad, Parking Brake Lever
  3. Cable, Parking Brake, Assy
  4. Washer, Cable Retainer
  5. Retainer, Parking Brake Cable Seal
    Screw
  6. Seal, Parking Brake Cable
  7. Clamp, Cable to Underbody
    Bolt
  8. Spring, Cable Return
  9. Nut
  10. Guide, Brake Cable
  11. Guide, Brake Cable
  12. Guide, Cable
    Bolt
  13. Guide, Cable
    Bolt
  14. Cable, Parking Brake, Assy

Return to Top

rear wheel brake
11 x 2 1/4 & 11 x 1 3/4
1971-80
scout ii

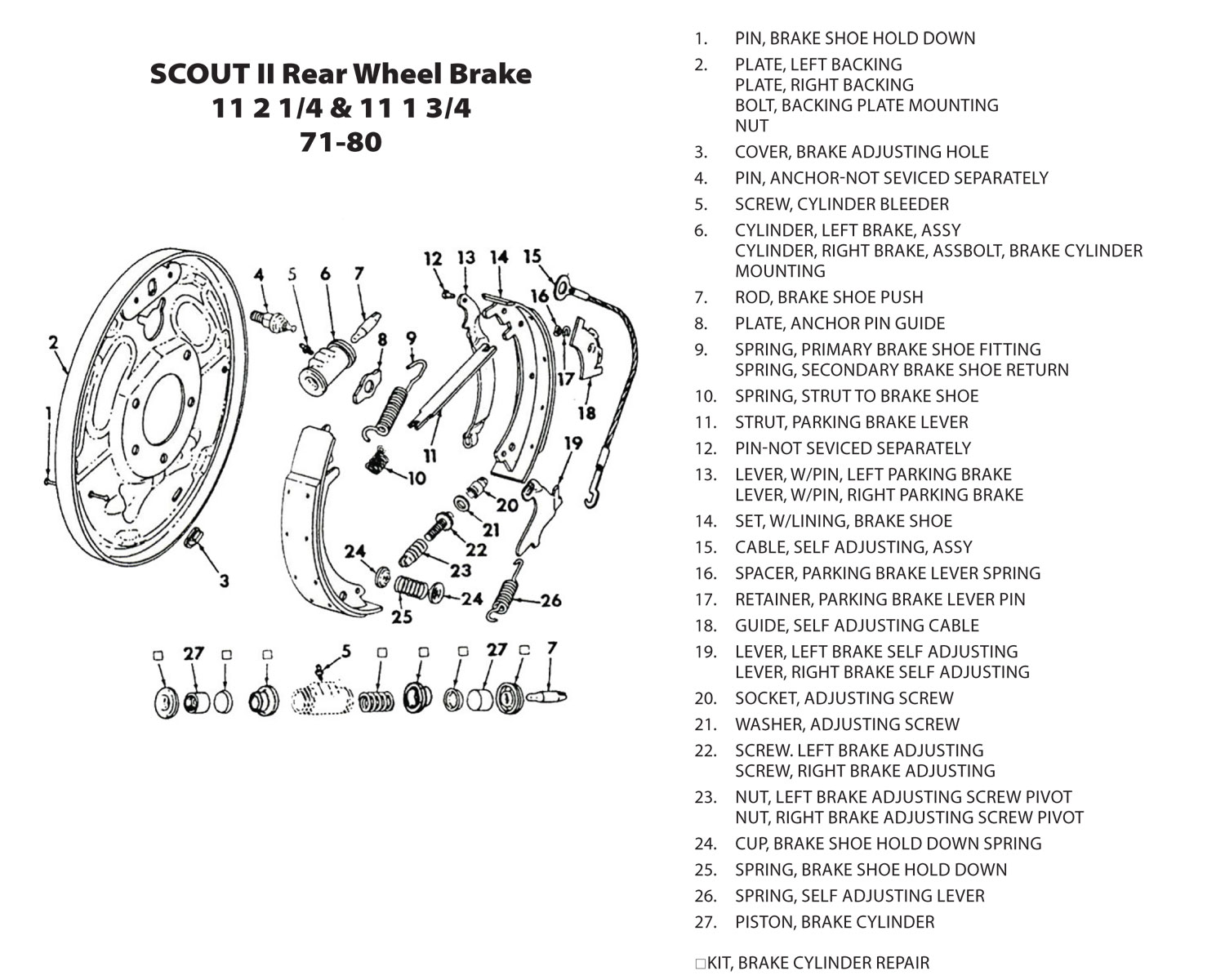

Rear Wheel Brake
Click Image for Larger View
  1. Pin, Brake Shoe Hold Down
  2. Plate, Left Backing
    Plate, Right Backing
    Bolt, Backing Plate Mounting
    Nut
  3. Cover, Brake Adjusting Hole
  4. Pin, Anchor-Not Serviced Separately
  5. Screw, Cylinder Bleeder
  6. Cylinder, Left Brake, Assy
    Cylinder, Right Brake, Assy Bolt, Brake Cylinder Mounting
  7. Rod, Brake Shoe Push
  8. Plate, Anchor Pin Guide
  9. Spring, Primary Brake Shoe Fitting
    Spring, Secondary Brake Shoe Return
  10. Spring, Strut to Brake Shoe
  11. Strut, Parking Brake Lever
  12. Pin-Not Serviced Separately
  13. Lever, w/Pin, Left Parking Brake
    Lever, w/Pin, Right Parking Brake
  14. Set, w/Lining, Brake Shoe
  15. Cable, Self Adjusting, Assy
  16. Spacer, Parking Brake Lever Spring
  17. Retainer, Parking Brake Lever Pin
  18. Guide, Self Adjusting Cable
  19. Lever, Left Brake Self Adjusting
    Lever, Right Brake Self Adjusting
  20. Socket, Adjusting Screw
  21. Washer, Adjusting Screw
  22. Screw. Left Brake Adjusting
    Screw, Right Brake Adjusting
  23. Nut, Left Brake Adjusting Screw Pivot
    Nut, right Brake Adjusting Screw Pivot
  24. Cup, Brake Shoe Hold Down Spring
  25. Spring, Brake Shoe Hold Down
  26. Spring, Self Adjusting Lever
  27. Piston, Brake Cylinder
  • Kit, Brake Cylinder Repair


Return to Top
