Scout Light Parts

Cab, BODIES & Front Sheet Metal

"Thanks for the great parts and service!” Eric Monse, TX


We have the largest inventory of N.O.S. (New Old Stock) parts in the United States! Our 1200 square foot parts, sales and accessories showroom is big and bright with a varied inventory and wide selection of new, used and NOS parts and accessories for your IH vehicle. We are a Scout Light-Line Dealer. Browse our digital parts book for all your IH needs! Give a call for medium-duty truck needs (LoadStar, FleetStar, CargoStar, S-Series). Contact us for your L, R, S truck needs, we have a small selection of used parts and ability to source many N.O.S. and reproduction parts. To Order Call: 319.372.3272.

Diagrams may not be actual representations of part image.

air conditioner assembly
1979-80
scout ii
air conditioner assembly
1971-80
scout ii

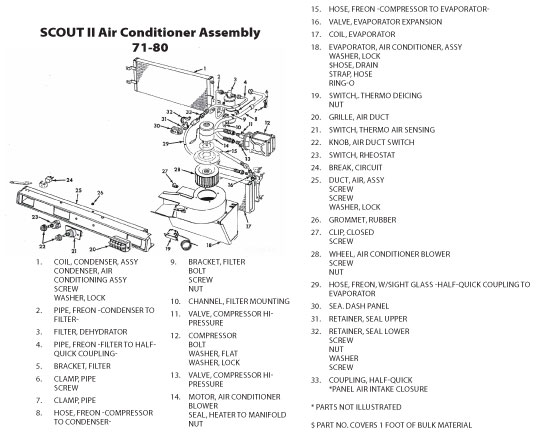

Air Conditioner Assembly
Click Image for Larger View
  1. Coil, Condenser, Assy
    Condenser, Air Conditioning Assy
    Screw
    Washer, Lock
  2. Pipe, Freon -Condenser to Filter-
  3. Filter, Dehydrator
  4. Pipe, Freon -Filter to Half-Quick Coupling-
  5. Bracket, Filter
  6. Clamp, Pipe
    Screw
  7. Clamp, Pipe
  8. Hose, Freon -Compressor to Condenser-
  9. Bracket, Filter
    Bolt
    Screw
    Nut
  10. Channel, Filter Mounting
  11. Valve, Compressor Hi-Pressure
  12. Compressor
    Bolt
    Washer, Flat
    Washer, Lock
  13. Valve, Compressor Hi-Pressure
  14. Motor, Air Conditioner Blower
    Seal, Heater to Manifold
    Nut
  15. Hose, Freon -Compressor to Evaporator-
  16. Valve, Evaporator Expansion
  17. Coil, Evaporator
  18. Evaporator, Air Conditioner, Assy
    Washer, Lock
    $Hose, Drain
    Strap, Hose
    Ring-O
  19. Switch,. Thermo Deicing
    Nut
  20. Grille, Air Duct
  21. Switch, Thermo Air Sensing
  22. Knob, Air Duct Switch
  23. Switch, Rheostat
  24. Break, Circuit
  25. Duct, Air, Assy
    Screw
    Screw
    Washer, Lock
  26. Grommet, Rubber
  27. Clip, Closed
    Screw
  28. Wheel, Air Conditioner Blower
    Screw
    Nut
  29. Hose, Freon, w/Sight Glass -Hal-ff-Quick Coupling to Evaporator
  30. Sea. Dash Panel
  31. Retainer, Seal Upper
  32. Retainer, Seal Lower
    Screw
    Nut
    Washer
    Screw
  33. Coupling, Half-Quick
    *Panel Air Intake Closure

* Parts Not Illustrated

$ Part No. Covers 1 Foot of Bulk Material

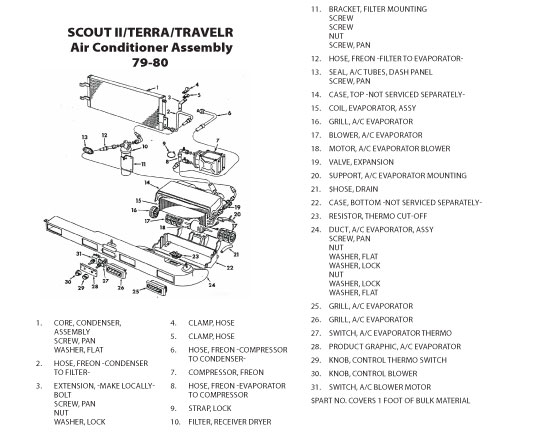

Air Conditioner Assembly
Click Image for Larger View
  1. Core, Condenser, Assembly
    Screw, Pan
    Washer, Flat
  2. Hose, Freon -Condenser to Filter-
  3. Extension, -Make Locally-
    Bolt
    Screw, Pan
    Nut
    Washer, Lock
  4. Clamp, Hose
  5. Clamp, Hose
  6. Hose, Freon -Compressor to Condenser-
  7. Compressor, Freon
  8. Hose, Freon -Evaporator to Compressor
  9. Strap, Lock
  10. Filter, Receiver Dryer
  11. Bracket, Filter Mounting
    Screw
    Screw
    Nut
    Screw, Pan
  12. Hose, Freon -Filter to Evaporator-
  13. Seal, A/C Tubes, Dash Panel
    Screw, Pan
  14. Case, Top -Not Serviced Separately-
  15. Coil, Evaporator, Assy
  16. Grill, A/C Evaporator
  17. Blower, A/C Evaporator
  18. Motor, a/C Evaporator Blower
  19. Valve, Expansion
  20. Support, A/C Evaporator Mounting
  21. $Hose, Drain
  22. Case, Bottom -Not Serviced Separately-
  23. Resistor, Thermo Cut-Off
  24. Duct, A/C Evaporator, Assy
    Screw, Pan
    Nut
    Washer, Flat
    Washer, Lock
    Nut
    Washer, Lock
    Washer, Flat
  25. Grill, A/C Evaporator
  26. Grill, A/C Evaporator
  27. Switch, A/C Evaporator Thermo
  28. Product Graphic, A/C Evaporator
  29. Knob, Control Thermo Switch
  30. Knob, Control Blower
  31. Switch, A/C Blower Motor

$Part No. Covers 1 Foot of Bulk Material


Return to Top

air conditioner clutch & pulley
1971-80
scout ii
a/c freon compressor
1971-80
scout ii

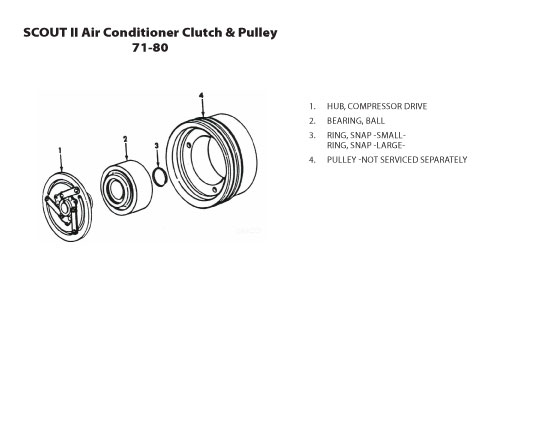

Air Conditioner Clutch & Pulley
Click Image for Larger View
  1. Hub, Compressor Drive
  2. Bearing, Ball
  3. Ring, Snap -Small-
    Ring, Snap -Large-
  4. Pulley -Not Serviced Separately

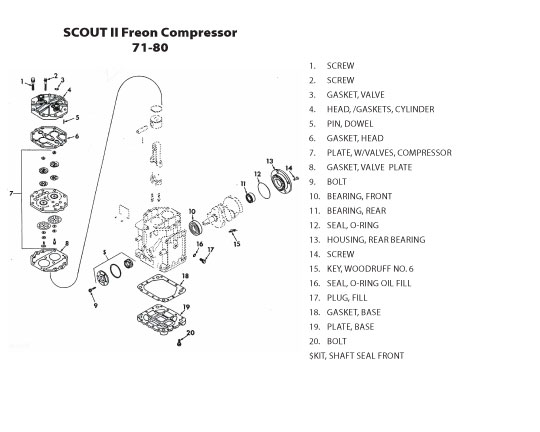

Freon Compressor
Click Image for Larger View
  1. Screw
  2. Screw
  3. Gasket, Valve
  4. Head, /gaskets, Cylinder
  5. Pin, Dowel
  6. Gasket, Head
  7. Plate, w/Valves, Compressor
  8. Gasket, Valve Plate
  9. Bolt
  10. Bearing, Front
  11. Bearing, Rear
  12. Seal, O-ring
  13. Housing, Rear Bearing
  14. Screw
  15. Key, Woodruff No. 6
  16. Seal, O-ring oil Fill
  17. Plug, Fill
  18. Gasket, Base
  19. Plate, Base
  20. Bolt

$Kit, Shaft Seal Front


Return to Top

a/c freon compressor drive & mounting
6 cylinder
1971-75
scout ii
a/c freon compressor drive & mounting
V8
1971-80
scout ii

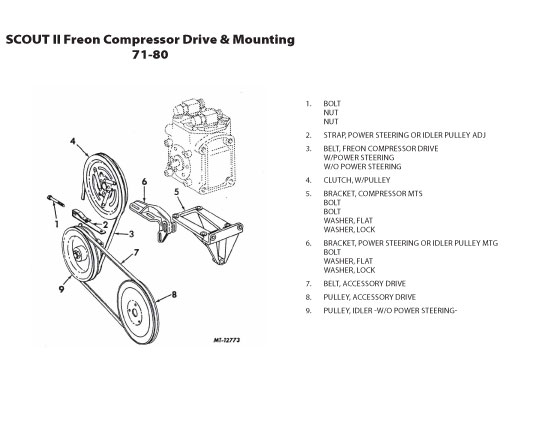

Freon Compressor Drive & Mounting
Click Image for Larger View
  1. Bolt
    Nut
    Nut
  2. Strap, Power Steering or Idler Pulley Adjusting
  3. Belt, Freon Compressor Drive
    w/Power Steering
    w/o Power Steering
  4. Clutch, w/Pulley
  5. Bracket, Compressor Mounting
    Bolt
    Bolt
    Washer, Flat
    Washer, Lock
  6. Bracket, Power Steering or Idler Pulley Mtg
    Bolt
    Washer, Flat
    Washer, Lock
  7. Belt, Accessory Drive
  8. Pulley, Accessory Drive
  9. Pulley, Idler -w/o Power Steering-

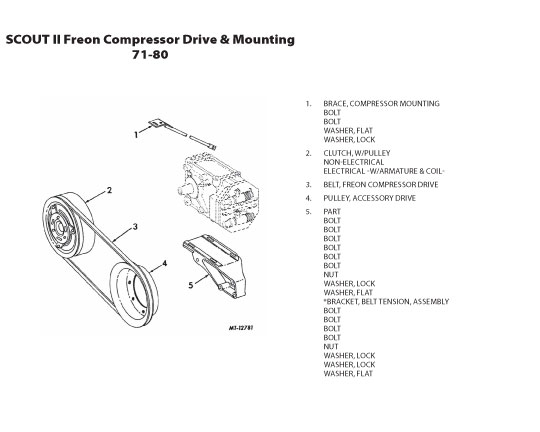

Freon Compressor Drive & Mounting
Click Image for Larger View
  1. Brace, Compressor Mounting
    Bolt
    Bolt
    Washer, Flat
    Washer, Lock
  2. Clutch, w/Pulley
    Non-Electrical
    Electrical -w/Armature & Coil-
  3. Belt, Freon Compressor Drive
  4. Pulley, Accessory Drive
  5. Bracket
    Bolt
    Bolt
    Bolt
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Lock
    Washer, Flat
    *Bracket, Belt Tension, Assembly
    Bolt
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Lock
    Washer, Lock
    Washer, Flat

Return to Top

body assembly
1971-80
scout ii
body mounting
1971-80
scout ii
Body Assembly
Click Image for Larger View
  1. Bracket, Windshield Mtg Right
    Bolt
    Washer, Flat
  2. Frame, Windshield
    Bolt, Windshield Frame Adjusting
    Bolt
    Bolt
    Nut
    Seal, Windshield Frame to Dash
    Pin, Seal Retainer
    Strip, Windshield Trim
    Header, Windshield Trim Assy
    Screw, Pan
    Screw, Pan
  3. Glass, Windshield -Clear-
    Glass, Windshield -Tinted-
  4. Retainer, Glass
    Standard
    Custom & Deluxe
    Moulding, Weatherseal
    Retainer Only
  5. Bracket, Windshield Mtg Left
    Bolt
    Washer, Flat
  6. Panel, Floor Right -Not Serviced Separately-
    Plug, Button
  7. Sill, Rear -Not Serviced-
  8. Panel, Wheelwell
    Filler, Wheelhouse Left
    Filler, Wheelhouse Right
  9. Panel, Floor Rear
    Panel, Floor Rear, Assy
    Extension, Front Floor Assy
    Extension, Front Floor Filler, Left
    Extension, Front Floor Filler, Right
    Clip, Extension, L-Type
  10. Sill, Rear Floor
    Center
    Rear
  11. Seal, Tailgate Opening
  12. Seal, Floor to Tailgate
  13. Panel, Side Outer Rear Left
    Panel, Side Outer Rear Right
    Button, Plug
  14. Extension, Outer Rear Left
    Extension, Outer Rear Right
    Reinforcement, Rear Inner Side Left
    Reinforcement, Rear Inner Side Right
  15. Panel, Floor Left -Not Serviced Separately-
    Plug, Button
  16. Panel, Side, Assy
    Left
    Right
    Panel, Outer Side
    Left
    Right
    Panel, Inner Side
    Left
    Right
    Cover, expansion Tank Access
    Seal, Cover
    Screw
    Screw
    Button, Plug
    Button, Plug
    Button, Plug
  17. Panel, Floor -Not Serviced Separately-
  18. Pillar, Lock Left Assy
    Pillar, Lock Right Assy
  19. Sill, Outer Side
    Left
    Right
    Sill, Inner Side
    Left
    Right
  20. Pillar, Hinge Left
    Pillar, Hinge Right
  21. Cap, Hinge Pillar Left
    Cap, Hinge Pillar Right
  22. Panel, Dash Complete
    Panel, Dash Front
    Panel, Dash Top
    Insulator, Dash
    Fastener, Insulator
    Button, Plug
    Button, Plug
  23. Section, w/Baffles and Splash Shields, Assy
    Left
    Right
    Bolt
    Screw
  24. Panel, Splash Lower -Not Serviced Separately-
  25. Strainer, Grille Left
    Strainer, Grille Right
    Bolt
  26. Reinforcement, Pillar -Not Serviced Separately-
  27. Strainer, Grille Top
  28. Panel, Air Intake Top
    Screw
  29. Channel, Inner Side Left
    Channel, Inner Side Right
    Screw, Channel to Side Panel
    *Bar, Seat Belt Anchor

*Part Not Illustrated

Body Mounting
Click Image for Larger View
  1. Bolt
  2. Washer, Flat
  3. Bushing, Rubber
  4. Nut
  5. Washer, Flat
  6. Washer, Flat
  7. Bolt
  8. Bolt
    *Insulator, Body Rear

*Parts Not Illustrated


Return to Top

bulkhead, body
1971-80
scout ii
cab top
1971-75
scout ii

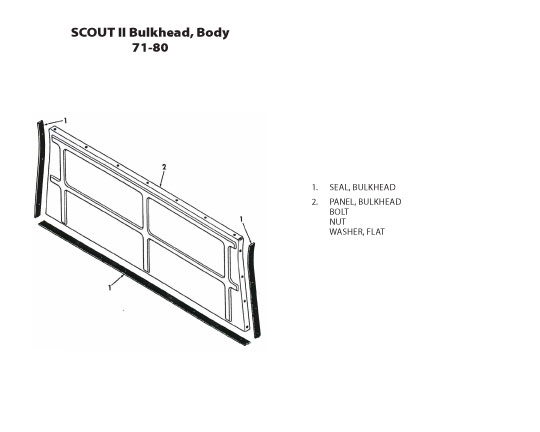

Bulkhead Body
Click Image for Larger View
  1. Seal, Bulkhead
  2. Panel, Bulkhead
    Bolt
    Nut
    Washer, Flat

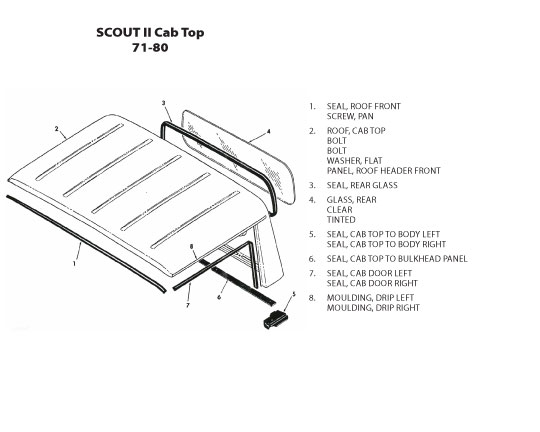

Cab TopClick Image for Larger View
  1. Seal, Roof Front
    Screw, Pan
  2. Roof, Cab Top
    Bolt
    Bolt
    Washer, Flat
    Panel, Roof Header Front
  3. Seal, Rear Glass
  4. Glass, Rear
    Clear
    Tinted
  5. Seal, Cab Top to Body Left
    Seal, Cab Top to Body Right
  6. Seal, Cab Top to Bulkhead Panel
  7. Seal, Cab Door Left
    Seal, Cab Door Right
  8. Moulding, Drip Left
    Moulding, Drip Right

Return to Top

cab top
1976-80
terra
travel top
1971-80
traveler

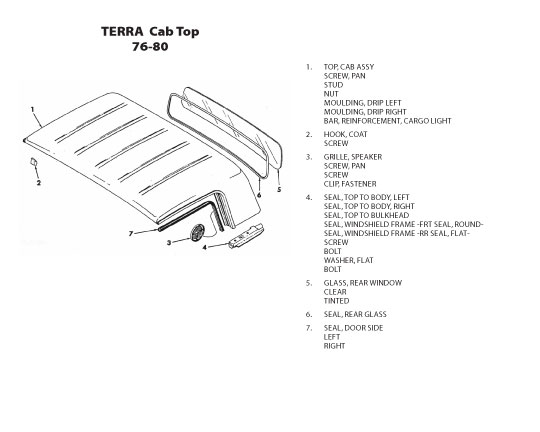

Cab Top Terra 76-80
Click Image for Larger View
  1. Top, Cab Assy
    Screw, Pan
    Stud
    Nut
    Moulding, Drip Left
    Moulding, Drip Right
    Bar, Reinforcement, Cargo Light
  2. Hook, Coat
    Screw
  3. Grille, Speaker
    Screw, Pan
    Screw
    Clip, Fastener
  4. Seal, Top to Body, Left
    Seal, Top to Body, Right
    Seal, Top to Bulkhead
    Seal, Windshield Frame -Frt Seal, Round-
    Seal, Windshield Frame -RR Seal, Flat-
    Screw
    Bolt
    Washer, Flat
    Bolt
  5. Glass, Rear Window
    Clear
    Tinted
  6. Seal, Rear Glass
  7. Seal, Door Side
    Left
    Right

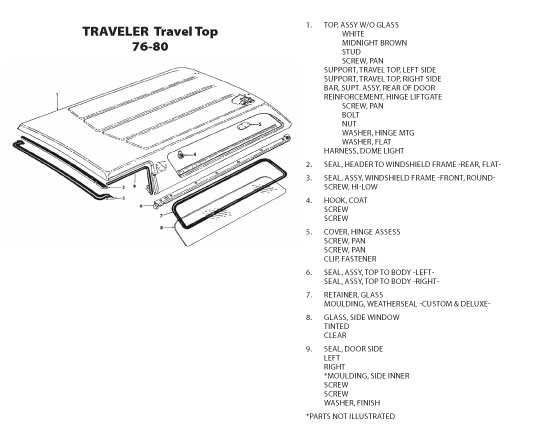

Travel Top Roof Assembly
Click Image for Larger View

  1. Top, Assy Welded w/Window Cut Outs w/o Glass -See Note-
    Screw, Pan
    Bolt
  2. Liftgate, w/hinge and Clear Glass
  3. Leaf, hinge -See Reference No. 4-
  4. Hinge, Liftgate Left, Assy
    Hinge, Liftgate Right, Assy
    Screw, Pan
    Pin, Hinge
  5. Glass, Liftgate Window
    Clear
    Tinted
  6. Retainer, Liftgate Window Glass
    Standard
    Deluxe
    Moulding, Liftgate Retainer -Deluxe-
  7. Latch, Liftgate, Assy
    Screw
  8. Handle, Liftgate Outside -w/o Cylinder-
    Gasket, Liftgate Handle
    Screw
  9. Cylinder, w/Key, Liftgate
  10. Cam, Liftgate Left, Assy
    Cam, Liftgate Right, Assy
  11. Support, Liftgate Left, Assy
    Support, Liftgate Right, Assy.
    Screw
    Bolt
    Nut
    Washer, Lock
  12. Seal, Liftgate
    Rivet
  13. Panel, Left Side Outer
    Panel, Right Side Outer
  14. Moulding, Rear Drip
  15. Clip, Drip Moulding
  16. Striker, Liftgate Lock
    Screw, Special
  17. Bow, Assy, Rear Roof
  18. Glass, Side Window
    *Clear
    Tinted
  19. Bow, Front Roof
  20. Seal, Left Side Door
    Seal, Right Side Door
  21. Retainer, Side Window Glass
    Standard
    Deluxe
    Moulding, Weatherseal -Custom & Deluxe-
  22. Support, Top Mounting
    Left
    Right
    Seal, Top to Body
    Left
    Right
  23. Seal, Header to Windshield Frame -Rear Flat-
    Seal, Windshield Frame, Assy -Front Round-
    Screw
  24. Panel, Roof Front Header

*Kit, Travel Top
Note: Travel Top Assy - Includes Reference Nos. 13, 14, 15, 17, 19 & 24


Return to Top

cab interior
1971-80
scout ii

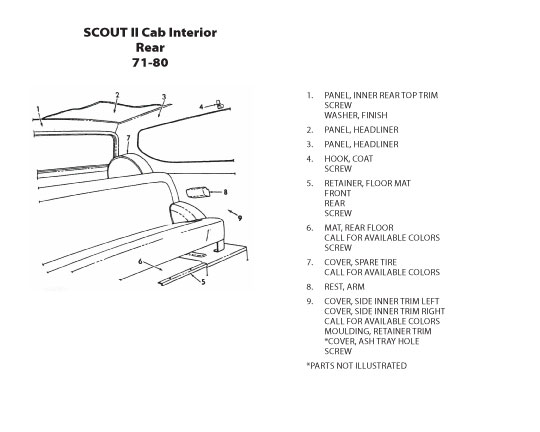

cab interior
rear
1971-80
scout ii

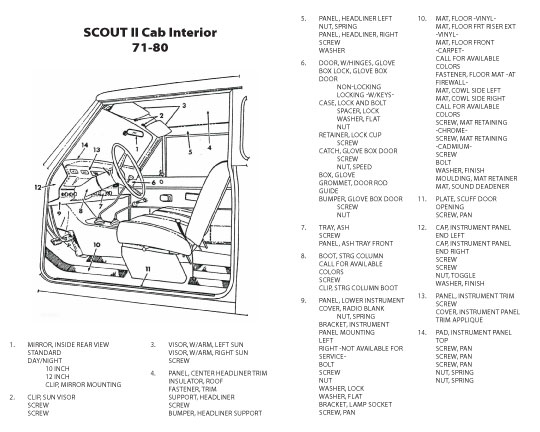

Cab Interior
Click Image for Larger View

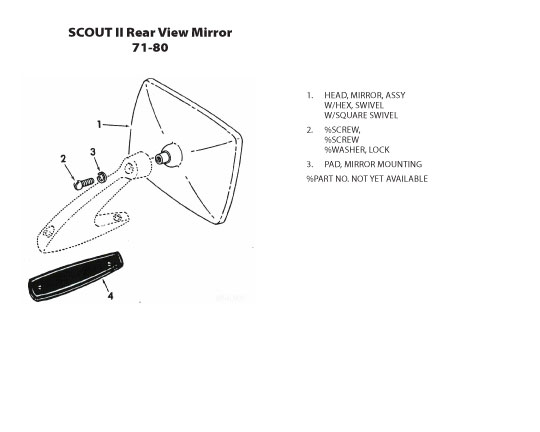

  1. Mirror, Inside Rear View
    Standard
    Day/Night
    10 Inch
    12 Inch
    Clip, Mirror Mounting
  2. Clip, Sun Visor
    Screw
    Screw
  3. Visor, w/Arm, Left Sun
    Visor, w/Arm, Right Sun
    Screw
  4. Panel, Center Headliner Trim
    Insulator, Roof
    Fastener, Trim
    Support, Headliner
    Screw
    Bumper, Headliner Support
  5. Panel, Headliner Left
    Nut, Spring
    Panel, Headliner, Right
    Screw
    Washer
  6. Door, w/Hinges, Glove Box Lock, Glove Box Door
    Non-Locking
    Locking -w/Keys-
    Case, Lock and Bolt
    Spacer, Lock
    Washer, Flat
    Nut
    Retainer, Lock Cup
    Screw
    Catch, Glove Box Door
    Screw
    Nut, Speed
    Box, Glove
    Grommet, Door Rod Guide
    Bumper, Glove Box Door
    Screw
    Nut
  7. Tray, Ash
    Screw
    Panel, Ash tray Front
  8. Boot, Steering Column
    Call for Available Colors
    Screw
    Clip, Steering Column Boot
  9. Panel, Lower instrument
    Cover, Radio Blank
    Nut, Spring
    Bracket, Instrument panel Mounting
    Left
    Right -Not Available for Service-
    Bolt
    Screw
    Nut
    washer, Lock
    Washer, Flat
    Bracket, Lamp Socket
    Screw, Pan
  10. Mat, Floor Front -Vinyl-
    Mat, Floor Frt Riser Ext -Vinyl-
    Mat, Floor Front -Carpet-
    Call for Available Colors
    Fastener, Floor Mat -At Firewall-
    Mat, Cowl Side Left
    Mat, Cowl Side Right
    Call for Available Colors
    Screw, Mat Retaining -Chrome-
    Screw, Mat Retaining -Cadmium-
    Screw
    Bolt
    Washer, Finish
    Moulding, Mat retainer
    Mat, Sound Deadener
  11. Plate, Scuff Door Opening
    Screw, Pan
  12. Cap, Instrument Panel End Left
    Cap, Instrument Panel End Right
    Screw
    Screw
    Nut, Toggle
    Washer, Finish
  13. Panel, Instrument Trim
    Screw
    Cover, Instrument Panel Trim Applique
  14. Pad, Instrument Panel Top
    Screw, Pan
    Screw, Pan
    Screw, Pan
    Nut, Spring
    Nut, Spring

Cab Interior Rear
Click Image for Larger View
  1. Panel, Inner Rear Top Trim
    Screw
    Washer, Finish
  2. Panel, Headliner
  3. Panel, Headliner
  4. Hook, Coat
    Screw
  5. Retainer, Floor Mat
    Front
    rear
    Screw
  6. Mat, Rear Floor
    Call for Available Colors
    Screw
  7. Cover, Spare Tire
    Call for Available Colors
  8. Rest, Arm
  9. Cover, Side Inner Trim Left
    Cover, Side Inner Trim Right
    Call for Available Colors
    Moulding, Retainer Trim
    *Cover, Ash Tray Hole
    Screw

*Parts Not Illustrated


Return to Top

console storage box
1971-80
scout ii
console storage box
1979-80
scout ii

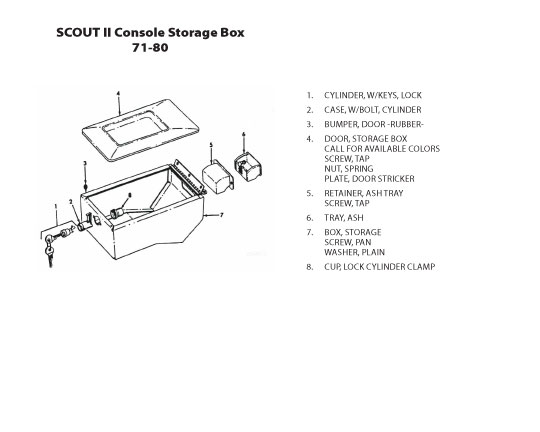

Console Storage Box
Click Image for Larger View
  1. Cylinder, w/Keys, Lock
  2. Case, w/Bolt, Cylinder
  3. Bumper, Door -Rubber-
  4. Door, Storage Box
    Call for Available Colors
    Screw, Tap
    Nut, Spring
    Plate, Door Sticker
  5. Retainer, Ash Tray
    Screw, Tap
  6. Tray, Ash
  7. Box, Storage
    Screw, Pan
    Washer, Plain
  8. Cup, Lock Cylinder Clamp

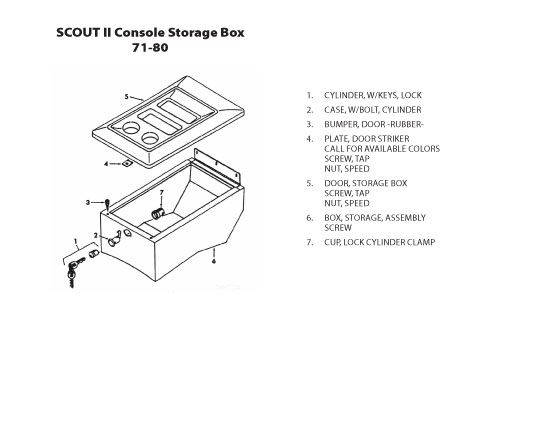

COnsole Storage Box
Click Image for Larger View
  1. Cylinder, w/Keys, Lock
  2. Case, w/Bolt, Cylinder
  3. Bumper, Door -Rubber-
  4. Plate, door Striker
    Call for Available Colors
    Screw, Tap
  5. Nut, Speed
    Door, Storage Box
    Screw, Tap
  6. Nut, Speed
    Box, Storage, Assembly
  7. Screw
    Cup, Lock Cylinder Clamp

Return to Top

heater & defroster
1971-80
scout ii
luggage rack
1971-80
scout ii

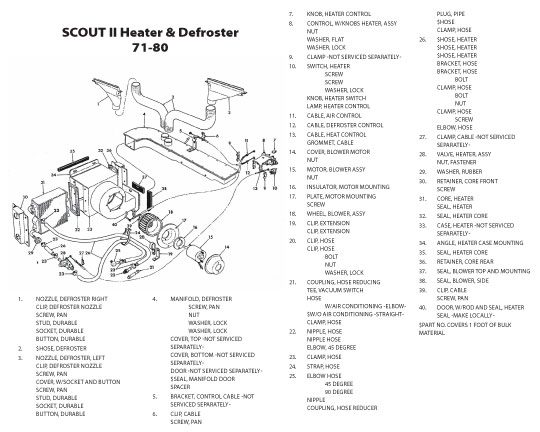

Heater & Defroster
Click Image for Larger View
  1. Nozzle, Defroster Right
    Clip, Defroster Nozzle
    Screw, Pan
    Stud, Durable
    Socket, Durable
    Button, Durable
  2. $Hose, Defroster
  3. Nozzle, Defroster, Left
    Clip, Defroster Nozzle
    Screw, Pan
    Cover, w/Socket and Button
    Screw, Pan
    Stud, Durable
    Socket, Durable
    Button, Durable
  4. Manifold, Defroster
    Screw, Pan
    Nut
    Washer, Lock
    Washer, Lock
    Cover, Top -Not Serviced Separately-
    Cover, Bottom -Not Serviced Separately-
    Door -Not Serviced Separately-
    $Seal, Manifold Door
    Spacer
  5. Bracket, Control Cable -Not Serviced Separately-
  6. Clip, Cable
    Screw, Pan
  7. Knob, Heater Control
  8. Control, w/Knobs Heater, Assy
    Nut
    washer, Flat
    Washer, Lock
  9. Clamp -Not Serviced Separately-
  10. Switch, Heater
    Screw
    Screw
    Washer, Lock
    Knob, Heater Switch
    Lamp, Heater Control
  11. Cable, Air Control
  12. Cable, Defroster Control
  13. Cable, Heat Control
    Grommet, Cable
  14. Cover, Blower Motor
    Nut
  15. Motor, Blower Assy
    Nut
  16. Insulator, Motor Mounting
  17. Plate, Motor Mounting
    Screw
  18. Wheel, Blower, Assy
  19. Clip, Extension
    Clip, Extension
  20. Clip, Hose
    Clip, Hose
    Bolt
    Nut
    Washer, Lock
  21. Coupling, Hose Reducing
    Tee, Vacuum Switch
    Hose
    w/Air Conditioning -Elbow-
    $w/o Air Conditioning -Straight-
    Clamp, Hose
  22. Nipple, Hose
    Nipple Hose
    Elbow, 45 Degree
  23. Clamp, Hose
  24. Strap, Hose
  25. Elbow Hose
    45 Degree
    90 Degree
    Nipple
    Coupling, Hose Reducer
    Plug, Pipe
    $Hose
    Clamp, Hose
  26. $Hose, Heater
    $Hose, Heater
    $Hose, Heater
    Bracket, Hose
    Bracket, Hose
    Bolt
    Clamp, Hose
    Bolt
    Nut
    Clamp, Hose
    Screw
    Elbow, Hose
  27. Clamp, Cable -Not Serviced Separately-
  28. Valve, Heater, Assy
    Nut, Fastener
  29. Washer, Rubber
  30. Retainer, Core Front
    Screw
  31. Core, Heater
    Seal, Heater
  32. Seal, Heater Core
  33. Case, Heater -Not Serviced Separately-
  34. Angle, Heater Case Mounting
  35. Seal, Heater Core
  36. Retainer, Core Rear
  37. Seal, Blower Top and Mounting
  38. Seal, Blower, Side
  39. Clip, Cable
    Screw, Pan
  40. Door, w/Rod and seal, Heater Seal -Make Locally-

$Part No. Covers 1 Foot of Bulk Material

Luggage Rack
Click Image for Larger View
  1. Rail, Cross
  2. Pin, Groove
  3. Stud, Rail
  4. Nut, Stud
  5. Rail, Side -w/Woodgrain Cover-
  6. Cover, Vinyl Woodgrain -Not Serviced Separately-
  7. Guard, Roof Protector -Adhesive-
    *59.20 Long
    * 70.20 Long
    *Slat, Luggage Rack -Screw Down-
    Screw, Pan
    Nut, Cap
    Washer, Rubber
  8. Gasket, Slat -Screw Down-
  9. *Gasket, Front Support
    *Gasket, Rear Support
  10. Support, Luggage Rack
    Left Front, Right Rear
    Right Front, Left Rear
    Screw
    *Screw
    *Screw
    Screw
    *Nut
    *Washer, Rubber

*Kit, Luggage Rack


Return to Top

noise abatement
1971-80
scout ii
rear view mirror
1971-80
scout ii

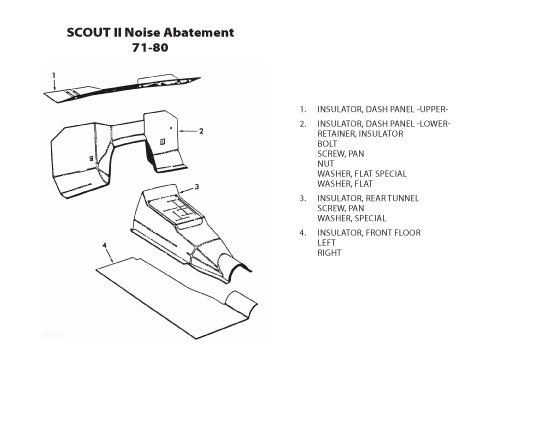

Noise Abatement
Click Image for Larger View
  1. Insulator, Dash Panel -Upper-
  2. Insulator, Dash Panel -Lower-
    Retainer, Insulator
    Bolt
    Screw, Pan
    Nut
    Washer, Flat Special
    Washer, Flat
  3. Insulator, Rear Tunnel
    Screw, Pan
    Washer, Special
  4. Insulator, Front Floor
    Left
    Right
Rear View Mirror
Click Image for Larger View
  1. Head, Mirror, assy
    w/Hex, Swivel
    w/Square Swivel
  2. %Screw,
    %Screw
  3. %Washer, Lock
  4. Pad, Mirror Mounting

%Part No. Not Yet Available


Return to Top

front seats
bucket
1971-74
scout ii
front seat
1/3-2/3 folding
1971-80
scout ii/terra/traveler

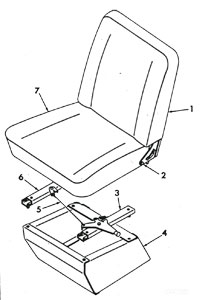

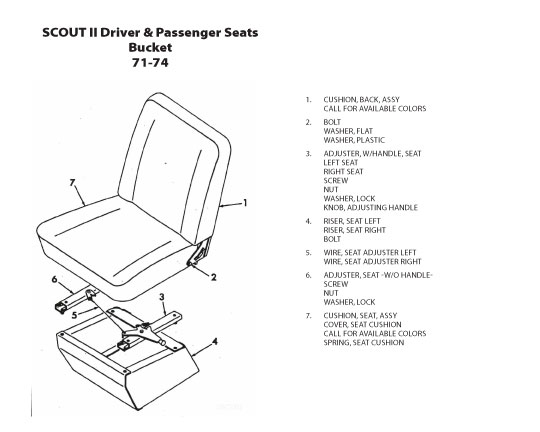

Driver & Passenger Seats-Bucket
Click Image for Larger View
  1. Cushion, Back, Assy
    Call for Available Colors
  2. Bolt
    Washer, Flat
    Washer, Plastic
  3. Adjuster, w/Handle, Seat
    Left Seat
    Right Seat
    Screw
    Nut
    Washer, Lock
    Knob, Adjusting Handle
  4. Riser, Seat Left
    Riser, Seat Right
    Bolt
  5. Wire, Seat Adjuster Left
    Wire, Seat Adjuster Right
  6. Adjuster, Seat -w/o Handle-
    Screw
    Nut
    Washer, Lock
  7. Cushion, Seat, Assy
    Cover, Seat Cushion
    Call for Available Colors
    Spring, Seat Cushion

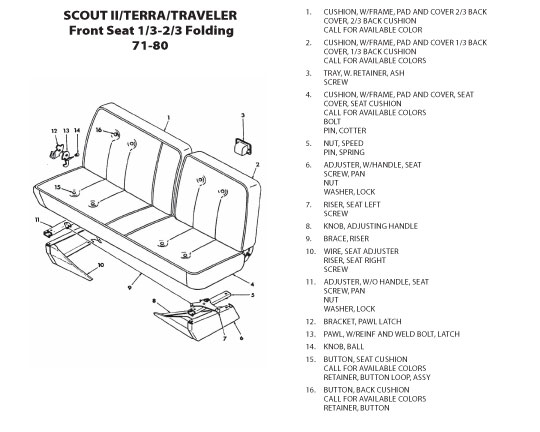

Front Seat 1/3-2/3 Folding
Click Image for Larger View|

  1. Cushion, w/Frame, Pad and Cover 2/3 Back
    Cover, 2/3 Back Cushion
    Call for Available Color
  2. Cushion, w/Frame, Pad and Cover 1/3 Back
    Cover, 1/3 back Cushion
    Call for Available Colors
  3. Tray, w. Retainer, Ash
    Screw
  4. Cushion, w/Frame, Pad and Cover, Seat
    Cover, Seat Cushion
    Call for Available Colors
    Bolt
    Pin, Cotter
    Nut, Speed
    Pin, Spring
  5. Adjuster, w/Handle, Seat
    Screw, Pan
    Nut
    Washer, Lock
  6. Riser, Seat Left
    Screw
  7. Knob, Adjusting Handle
  8. Brace, Riser
  9. Wire, Seat Adjuster
  10. Riser, Seat Right
    Screw
  11. Adjuster, w/o Handle, Seat
    Screw, Pan
    Nut
    Washer, Lock
  12. Bracket, Pawl Latch
  13. Pawl, w/Reinf and Weld Bolt, Latch
  14. Knob, ball
  15. Button, Seat Cushion
    Call for Available Colors
    Retainer, Button Loop, Assy
  16. Button, Back Cushion
    Call For Available Colors
    Retainer, Button

Return to Top

full width folding rear seat
1971-80
scout ii
full width folding rear seat
1971-80
scout ii

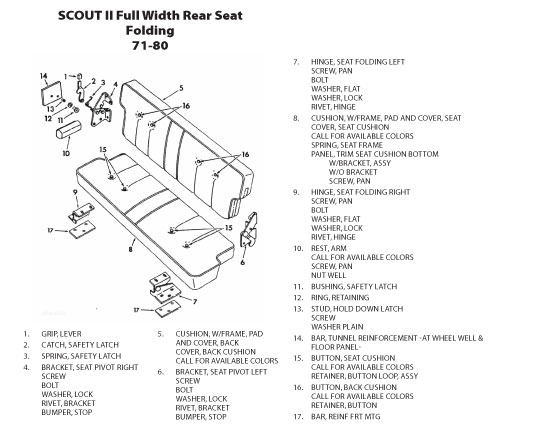

Full Width Folding Rear Seat 71--80
Click Image for Larger View
  1. Grip, Lever
  2. Catch, Safety Latch
  3. Spring, Safety Latch
  4. Bracket, Seat Pivot Right
    Screw
    Bolt
    Washer, Lock
    Rivet, Bracket
    Bumper, Stop
  5. Cushion, w/Frame, Pad and Cover, Back
    Cover, Back Cushion
    Call For Available Colors
  6. Bracket, Seat Pivot Left
    Screw
    Bolt
    Washer, Lock
    Rivet, Bracket
    Bumper, Stop
  7. Hinge, Seat Folding Left
    Screw, Pan
    Bolt
    Washer, Flat
    Washer, Lock
    Rivet, Hinge
  8. Cushion, w/Frame, Pad and Cover, Seat
    Cover, Seat Cushion
    Call For Available Colors
    Spring, Seat Frame
    Panel, Trim Seat Cushion Bottom
    w/Bracket, Assy
    w/o Bracket
    Screw, Pan
  9. Hinge, Seat Folding Right
    Screw, Pan
    Bolt
    Washer, Flat
    Washer, Lock
    Rivet, Hinge
  10. Rest, Arm
    Call For Available Colors
    Screw, Pan
    Nut Well
  11. Bushing, Safety Latch
  12. Ring, Retaining
  13. Stud, Hold Down Latch
    Screw
    Washer Plain
  14. Bar, Tunnel Reinforcement -At Wheel Well & Floor Panel-
  15. Button, Seat Cushion
    Call For Available Colors
    Retainer, Button Loop, Assy
  16. Button, Back Cushion
    Call For Available Colors
    Retainer, Button
  17. Bar, Reinf Frt Mtg

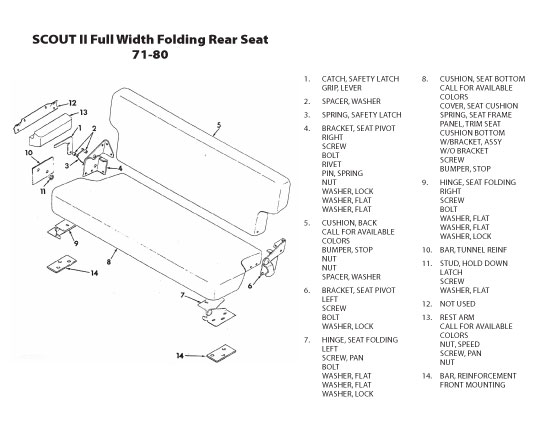

Full Width Folding Rear Seat
Click Image for Larger View
  1. Catch, Safety Latch
    Grip, Lever
  2. Spacer, Washer
  3. Spring, Safety Latch
  4. Bracket, Seat Pivot Right
    Screw
    Bolt
    Rivet
    Pin, Spring
    Nut
    Washer, Lock
    Washer, Flat
    Washer, Flat
  5. Cushion, Back
    Call for Available Colors
    Bumper, Stop
    Nut
    Nut
    Spacer, washer
  6. Bracket, Seat Pivot Left
    Screw
    Bolt
    Washer, Lock
  7. Hinge, Seat Folding Left
    Screw, Pan
    Bolt
    Washer, Flat
    Washer, Flat
    Washer, Lock
  8. Cushion, Seat Bottom
    Call For Available Colors
    Cover, Seat Cushion
    Spring, Seat Frame
    Panel, Trim Seat Cushion Bottom
    w/Bracket, Assy
    w/o Bracket
    Screw
    Bumper, Stop
  9. Hinge, Seat Folding Right
    Screw
    Bolt
    Washer, Flat
    Washer, Flat
    Washer, Lock
  10. Bar, Tunnel Reinf
  11. Stud, Hold Down Latch
    Screw
    Washer, Flat
  12. Not Used
  13. Rest Arm
    Call for Available Colors
    Nut, Speed
    Screw, Pan
    Nut
  14. Bar, Reinforcement Front Mounting

Return to Top

driver & passenger seats
bucket
1978-80
scout ii/terra/traveler

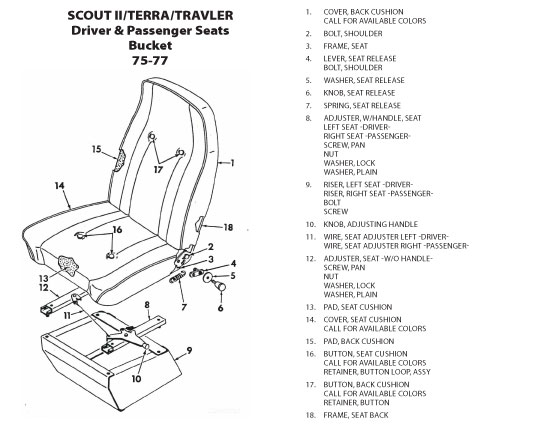

driver & passenger seats
bucket
75-77
scout ii/terra/traveler

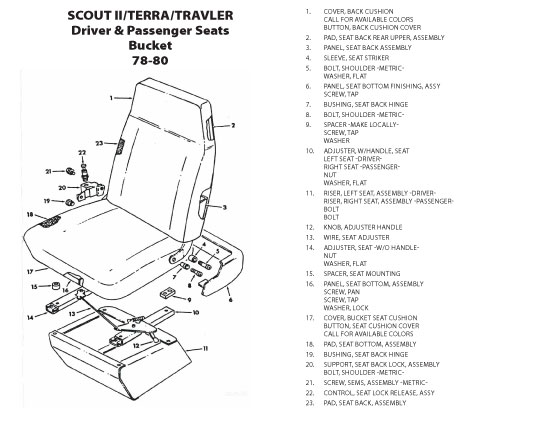

Driver & Passenger Seats Bucket
Click Image for Larger View
  1. Cover, Back Cushion
    Call for Available Colors
    Button, Back Cushion Cover
  2. Pad, Seat Back Rear Upper, Assembly
  3. Panel, Seat Back assembly
  4. Sleeve, Seat Striker
  5. Bolt, Shoulder -Metric-
    Washer, Flat
  6. Panel, Seat Bottom Finishing, Assy
    Screw, Tap
  7. Bushing, Seat Back Hinge
    Bolt, Shoulder -Metric-
  8. Spacer -Make Locally-
    Screw, Tap
    Washer
  9. Adjuster, w/Handle, Seat
    Left Seat -Driver-
    Right Seat -Passenger-
    Nut
    Washer, Flat
  10. Riser, Left Seat, Assembly -Driver-
    Riser, Right Seat, Assembly -Passenger-
    Bolt
    Bolt
  11. Knob, Adjuster Handle
  12. Wire, Seat Adjuster
  13. Adjuster, Seat -w/o Handle-
    Nut
    washer, Flat
  14. Spacer, Seat Mounting
  15. Panel, Seat Bottom, Assembly
    Screw, Pan
    Screw, Tap
    Washer, Lock
  16. Cover, Bucket Seat Cushion
    Button, Seat Cushion Cover
    Call For Available Colors
  17. Pad, Seat Bottom, Assembly
  18. Bushing, Seat Back Hinge
  19. Support, Seat Back Lock, Assembly
    Bolt, Shoulder -Metric-
  20. Screw, SEMS, Assembly -Metric-
  21. Control, Seat Lock Release, Assy
  22. Pad, Seat Back, Assembly
Driver & Passenger Seats Bucket 75-77
Click Image for Larger View
  1. Cover, Back Cushion
    Call for Available Colors
  2. Bolt, Shoulder
  3. Frame, Seat
  4. Lever, Seat Release
    Bolt, Shoulder
  5. Washer, Seat Release
  6. Knob, Seat Release
  7. Spring, Seat Release
  8. Adjuster, w/Handle, Seat
    Left Seat -Driver-
    Right Seat -Passenger-
    Screw, Pan
    Nut
    Washer, Lock
    Washer, Plain
  9. Riser, Left Seat -Driver-
    Riser, Right Seat -Passenger-
    Bolt
    Screw
  10. Knob, Adjusting Handle
  11. Wire, Seat Adjuster Left -Driver-
    Wire, Seat Adjuster Right -Passenger-
  12. Adjuster, Seat -w/o Handle-
    Screw, Pan
    Nut
    Washer, Lock
    Washer, Plain
  13. Pad, Seat Cushion
  14. Cover, Seat Cushion
    Call for Available Colors
  15. Pad, Back Cushion
  16. Button, Seat Cushion
    Call for Available Colors
    Retainer, Button Loop, Assy
  17. Button, Back Cushion
    Call for Available Colors
    Retainer, Button
  18. Frame, Seat Back

Return to Top

front & rear seat belts
without retractor
1971-80
scout ii
front seat belts
with retractor
1971-80
scout ii

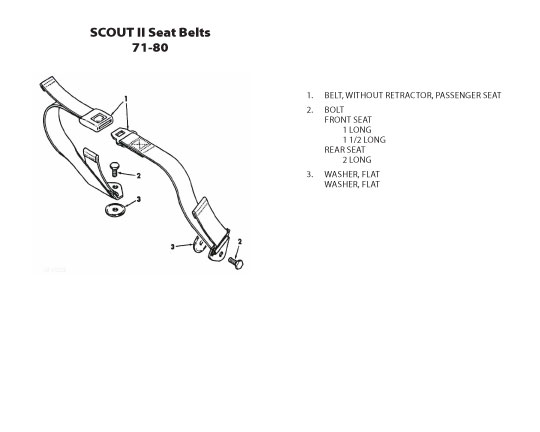

Seat Belts
Click Image for Larger View
  1. Belt, Without Retractor, Passenger Seat
  2. Bolt
    Front Seat
    1 Long
    1 1/2 Long
    Rear Seat
    2 Long
  3. Washer, Flat
    Washer, Flat

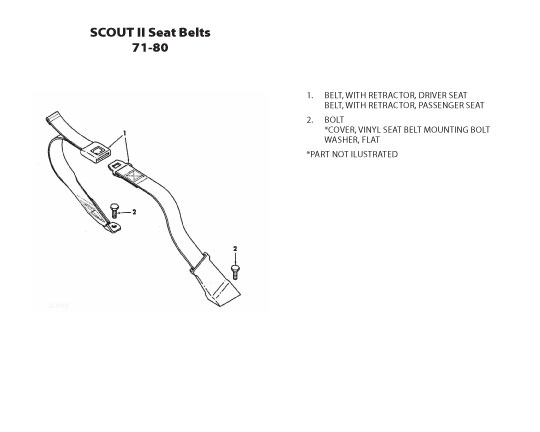

Seat Belts
Click Image for Larger View
  1. Belt, with Retractor, Driver Seat
    Belt, With Retractor, Passenger Seat
  2. Bolt
    *Cover, Vinyl Seat Belt Mounting Bolt
    Washer, Flat

*Part Not Illustrated


Return to Top

door, windows & vents
1971-80
scout ii
splash panel rear
1971-80
scout ii
Door, Window & Vents
Click Image for Larger View
  1. Glass, Vent Window
    Clear
    Tinted
  2. Seal, Vent Window
  3. Seal, Left Vent Window
    Seal, Right Vent Window
  4. Vent, w/Glass, Door
    Bolt
  5. Channel, Glass Run Front Left
    Channel, Glass Run Front Right
    Screw
  6. Seal, Weatherstrip
    Screw
  7. Window, w/Glass & Frame, Door
  8. Frame, Window Glass -Not Serviced Separately-
  9. Seal, Glass
  10. Seal, Glass Outer
  11. Channel, Regulator Left
    Channel, Regulator Right
  12. Seal, Glass Inner
  13. Seal, Channel Rear -Not Serviced Separately-
  14. Channel, window Rear Left
    Channel, Window Rear Right
  15. Screw, Pan
  16. Knob, Control Lock
    Standard
    Custom & Deluxe
  17. Retainer, Cylinder Housing
  18. Case, w/Shaft, Cylinder Lock
    Cylinder, Door Lock
  19. Handle, Outside Left
    Gasket, Door Handle Left
    Front
    Rear
    Handle, Outside Right
    Gasket, Door Handle Right
    Front
    Rear
    Screw
    Nut
    Washer, Flat
    Washer, Lock
  20. Rod, Lock Control
  21. Rod, Lock Control Lower
    Left
    Right
    Loom, Anti-Rattle Lock Rod
  22. Clip, Rod End Clevis
  23. Lock, Door
    Left
    Right
    Screw
  24. Retainer, Lock Rod
  25. Bumper, Stop
  26. Clip, Regulator Retainer
  27. Control, Remote Door Lock
    Left
    Right
    Screw, Pan
    Fastener, Clip
  28. Regulator, Window Glass Left
    Regulator, Window Glass Right
  29. Seal, Trim Panel Remote Opening
  30. Screw, Pan
  31. Retainer, Door Trim Panel
    Screw, Pan
  32. Rest, Arm
    Call for Available Colors
    Screw, Pan
    Screw, Pan
    Nut
  33. Handle, Remote Control Left
    Handle, Remote Control Right
    Screw
  34. Washer, Window Regulator
  35. Handle, Window Regulator
  36. Screw, Cap
  37. Panel, Door Trim Left
    Panel Door Trim Right
    Call for Available Colors
    Washer
  38. Deflector, Rain -Not Serviced Separately-
  39. Nut, Toggle
  40. Leaf, Hinge Upper
    Leaf, Hinge Lower
  41. Cage, Door Hinge -Upper & Lower-
    Bolt
    Pad, Door Hinge Check
    Retainer Spring
  42. Pin, Door Hinge
  43. Panel, Left Door Outer
    Panel, Right Door Outer
    Nut, Toggle
    Insulator, Sound Deadener
  44. Plug, Button
  45. Seal, Door Hinge
  46. Spring, Vent Window
    Washer
    Nut
  47. Seal, Vent Frame to Door Left
    Seal, Vent Frame to Door Right
  48. Handle, Window Left
    Handle, Window Right
    Pin, Window Handle
  49. Washer, Flat
  50. Spring, Button
  51. Button, Handle
  52. Plate, Striker
  53. Glass, Door -Clear-
    Glass, Door -Tinted-
  54. Striker, Door
    Left
    Right
    Screw
  55. Stop, Door Glass Upper
    Left
    Right
    *Moulding, Door Protector
    *Bracket, Window Adjustment
    Left
    Right
    Screw, Pan
    Nut
    Washer, Lock

*Parts Not Illustrated

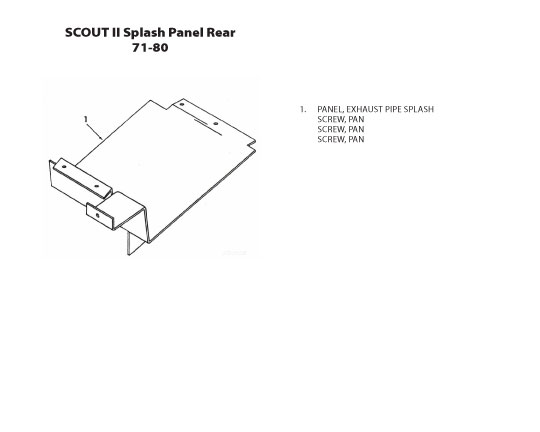

Splash Panel Rear
Click Image for Larger View
  1. Panel, Exhaust Pipe Splash
    Screw, Pan
    Screw, Pan
    Screw, Pan

Return to Top

liftgate
1976-80
traveler
tailgate assembly
1971-80
scout ii

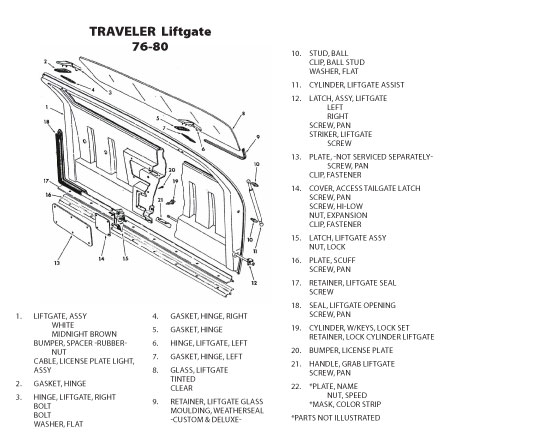

Traveler Liftgate
Click Image for Larger View
  1. Liftgate, Assy
    White
    Midnight Brown
    Bumper, Spacer -Rubber-
    Nut
    Cable, License Plate Light, Assy
  2. Gasket, Hinge
  3. Hinge, Liftgate, Right
    Bolt
    Bolt
    Washer, Flat
  4. Gasket, Hinge, Right
  5. Gasket, Hinge
  6. Hinge, Liftgate, Left
  7. Gasket, Hinge, Left
  8. Glass, Liftgate
    Tinted
    Clear
  9. Retainer, Liftgate Glass
    Moulding, Weatherseal -Custom & Deluxe-
  10. Stud, Ball
    Clip, Ball Stud
    Washer, Flat
  11. Cylinder, Liftgate Assist
  12. Latch, Assy, Liftgate
    Left
    Right
    Screw, Pan
    Striker, Liftgate
    Screw
  13. Plate, -Not Serviced Separately-
    Screw, Pan
    Clip, Fastener
  14. Cover, Access Tailgate Latch
    Screw, Pan
    Screw, Hi-Low
    Nut, Expansion
    Clip, Fastener
  15. Latch, Liftgate Assy
    Nut, Lock
  16. Plate, Scuff
    Screw, Pan
  17. Retainer, Liftgate Seal
    Screw
  18. Seal, Liftgate Opening
    Screw, Pan
  19. Cylinder, w/Keys, Lock Set
    Retainer, Lock Cylinder Liftgate
  20. Bumper, License Plate
  21. Handle, Grab Liftgate
    Screw, Pan
    *Plate, Name
    Nut, Speed
    *Mask, Color Strip

*Parts Not Illustrated

Luggage Rack
Click Image for Larger View
  1. Tailgate, w/ Lock & Supports
  2. Nut, Speed
  3. Plate, Name
  4. Plunger, Tailgate Catch
    Screw, Pan
    Gasket, Plunger
  5. Clamp, Closed
    Screw, Pan
  6. Spring, License Plate Bracket
  7. Bumper, Hinge -Rubber-
  8. Fastener, Button
    Screw, Pan
    Screw, Pan
  9. Bracket, License Plate
  10. * Cam, Tailgate Left
    * Cam, Tailgate Right
    Screw, Pan
    Washer
  11. Washer, Flat
  12. Bolt, Shoulder
  13. Striker, Tailgate Lock
    Screw
  14. Bumper, Tailgate Stop
  15. Spring, Left Support Lever
    Spring, Right Support Lever
  16. Bolt, Shoulder
    Washer, Spring
  17. Support, Hinge Bearing
    Bolt
    Bolt
  18. Support, Tailgate
    Left
    Right
  19. Retainer, Tailgate Latch
  20. Latch, Tailgate Assy
    Screw, Pan
    Nut
  21. Cover, Access
    Screw

* Kit, Tailgate Cam


Return to Top

transmission cover & seals
manual
1971-80
scout ii
exterior trim moulding
1971-79
scout ii/terra/traveler

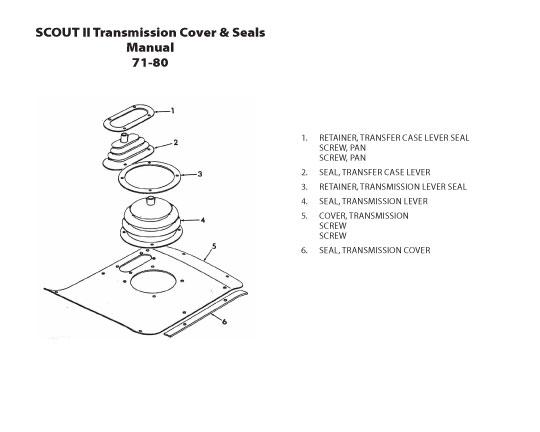

Transmission Cover & Seals
Click Image for Larger View
  1. Retainer, Transfer Case Lever Seal
    Screw, Pan
    Screw, Pan
  2. Seal, Transfer Case Lever
  3. Retainer, Transmission Lever Seal
  4. Seal, Transmission Lever
  5. Cover, Transmission
    Screw
    Screw
  6. Seal, Transmission Cover
Exterior Trim Moulding
Click Image for Larger View
  1. Moulding, Front Fender Left
    Moulding, Front Fender Right
  2. Moulding, Door
    Left
    Right
    Stampnut
  3. Moulding, Side Panel Front Left
    Moulding, Side Panel Front Left
  4. Moulding, Side Panel Rear Left
    Moulding, Side Panel Rear Right
    *Clip, Moulding Retainer
    *Kit, Side Applique
    Deluxe Exterior Trim -White Body Stripe-
    Custom Exterior Trim
    White Body & Fender Panels
    Wood Grain Body & Fender Panels
    *Kit, Moulding Insert Rear

*Parts Not Illustrated


Return to Top

fresh air ventilator
1971-80
scout ii
sliding side window
1976-80
traveler

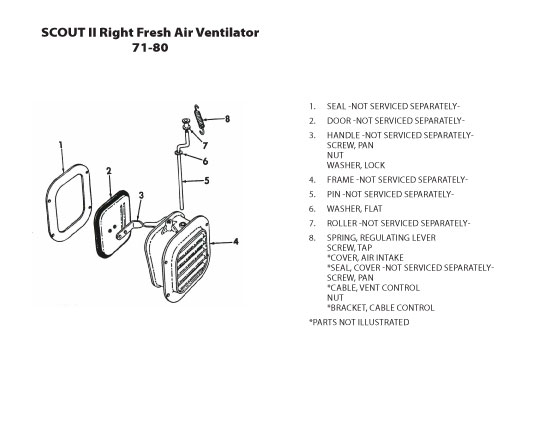

Right Fresh Air Ventilator
Click Image for Larger View
  1. Seal -Not Serviced Separately-
  2. Door -Not Serviced Separately-
  3. Handle -Not Serviced Separately-
    Screw, Pan
    Nut
    Washer, Lock
  4. Frame -Not Serviced Separately-
  5. Pin -Not Serviced Separately-
  6. Washer, Flat
  7. Roller -Not Serviced Separately-
  8. Spring, Regulating Lever
    Screw, Tap
    *Cover, Air Intake
    *Seal, Cover -Not Serviced Separately-
    Screw, Pan
    *Cable, Vent Control
    Nut
    *Bracket, Cable Control

*Parts Not Illustrated

Sliding Side WIndow Traveler
Click Image for Larger View
  1. Frame -Not Serviced Separately-
  2. Seal, Side Window Frame
  3. Glass, Side Window Rear -Tinted-
  4. Glass, Side Window Front -Tinted-
  5. Seal, Window -Woven Pile-
  6. Post, Side Glass
    Left
    Right
  7. Lock, Side Glass
  8. Bushing, Nylon
  9. Channel, Glass Run
  10. Seal, Side Window
  11. Not Used

*Kit, Latch Clip w/Mtg Screws Repair
-This kit will allow the option of repairing side window failures without replacing the complete window assy-


Return to Top

sliding side window
1971-80
scout ii

windshield wipers
electric
1971-80
scout ii

Sliding Side Window
Click Image for Larger View
  1. Frame -Not Serviced Separately-
  2. Seal, Side Window Frame, Left
    Seal, Side Window Frame, Right
  3. Glass, Side Window rear -Clear-
    Glass, Side Window Rear -Tinted-
  4. Glass, Side Window Front -Clear-
    Glass, Side Window Front -Tinted-
  5. Seal, window -Woven Pile-
  6. Post, Side Glass
  7. Lock, Side Glass
  8. Bushing, Nylon
  9. Channel, Glass Run
  10. Seal, Side Window
  11. Strip, Filler Plastic

*Kit, Latch Clip w/Mtg Screws Repair

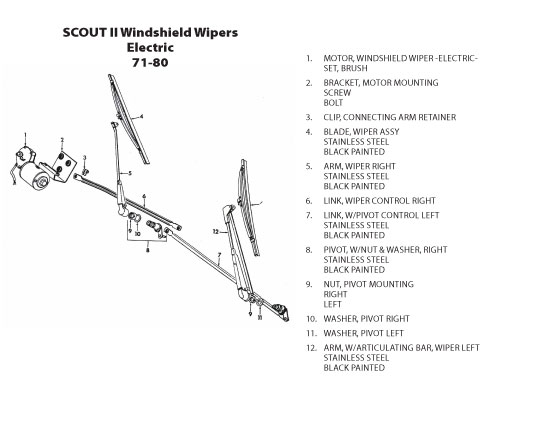

Windshield Wipers Electric
  1. Motor, Windshield Wiper -Electric-
    Set, Brush
  2. Bracket, Motor Mounting
    Screw
    Bolt
  3. Clip, Connecting Arm Retainer
  4. Blade, Wiper Assy
    Stainless Steel
    Black Painted
  5. Arm, Wiper Right
    Stainless Steel
    Black Painted
  6. Link, Wiper Control Right
  7. Link, w/Pivot Control Left
    Stainless Steel
    Black Painted
  8. Pivot, w/Nut & Washer, Right
    Stainless Steel
    Black Painted
  9. Nut, Pivot Mounting
    Right
    Left
  10. Washer, Pivot Right
  11. Washer, Pivot Left
  12. Arm, w/Articulating Bar, Wiper Left
    Stainless Steel
    Black Painted

Return to Top

windshield wipers/washer system
1971-80
scout ii

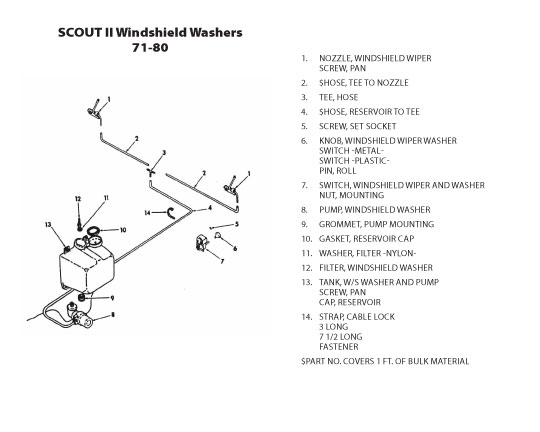

Windshield Washers
Click Image for Larger View
  1. Nozzle, Windshield Wiper
    Screw, Pan
  2. $Hose, Tee to Nozzle
  3. Tee, Hose
  4. $Hose, Reservoir to Tee
  5. Screw, Set Socket
  6. Knob, Windshield wiper Washer
    Switch -Metal-
    Switch -Plastic-
    Pin, Roll
  7. Switch, Windshield Wiper and Washer
    Nut, Mounting
  8. Pump, Windshield Washer
  9. Grommet, Pump Mounting
  10. Gasket, Reservoir Cap
  11. Washer, Filter -Nylon-
  12. Filter, Windshield Washer
  13. Tank, w/s Washer and Pump
    Screw, Pan
    Cap, Reservoir
  14. Strap, Cable Lock
    3 Long
    7 1/2 Long
    Fastener

$Part No. Covers 1 ft. of Bulk Material



Return to Top


Return to Parts Page


2075 Highway 61 - Fort Madison, Iowa 52627 - 319.372.3272 - FAX: 319.372.3281 - info@scoutconnection.com
  home - about us - products - services - links - photos - faq - contact us
  Website Design by: Out of the Box Graphic Productions
