Scout Light Parts
Scout, Traveler, Terra and Travelall are trademarks of the International Truck & Engine Corporation.
Their use has been licensed under Scout/Light Line Distributors, Inc.
Scout Connection is a Scout/Light Line Authorized Dealer.

Clutch, Transmission & Propeller Shafts
"Thanks for the great parts and service!” Eric Monse, TX


We have the largest inventory of N.O.S. (New Old Stock) parts in the United States! Our 1200 square foot parts, sales and accessories showroom is big and bright with a varied inventory and wide selection of new, used and NOS parts and accessories for your IH vehicle. We are a Scout Light-Line Dealer. Browse our digital parts book for all your IH needs! Give a call for medium-duty truck needs (LoadStar, FleetStar, CargoStar, S-Series). Contact us for your L, R, S truck needs, we have a small selection of used parts and ability to source many N.O.S. and reproduction parts. To Order Call: 319.372.3272.

Diagrams may not be actual representations of part image.

clutch assembly
1971-80
scout ii/terra/traveler		 clutch assembly
1971-80
scout ii

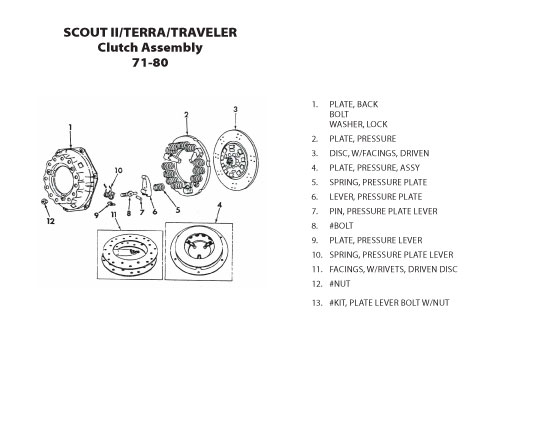

Clutch Assembly
Click Image for Larger View
  1. Plate, Back
    Bolt
    Washer, Lock
  2. Plate, Pressure
  3. Disc, w/Facings, Driven
  4. Plate, Pressure, Assy
  5. Spring, Pressure Plate
  6. Lever, Pressure Plate
  7. Pin, Pressure Plate Lever
  8. #Bolt
  9. Plate, Pressure Lever
  10. Spring, Pressure Plate Lever
  11. Facings, w/Rivets, Driven Disc
  12. #Nut

#Kit, Plate Lever Bolt w/Nut

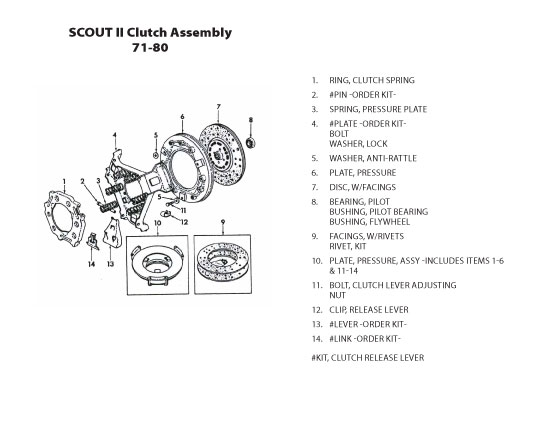

 Clutch Assembly
Click Image for Larger View
  1. Ring, Clutch Spring
  2. #Pin -Order Kit-
  3. Spring, Pressure Plate
  4. #Plate -Order Kit-
    Bolt
    Washer, Lock
  5. Washer, Anti-Rattle
  6. Plate, Pressure
  7. Disc, w/Facings
  8. Bearing, Pilot
    Bushing, Pilot Bearing
    Bushing, Flywheel
  9. Facings, w/Rivets
    Rivet, Kit
  10. Plate, Pressure, Assy -Includes Items 1-6 & 11-14
  11. Bolt, Clutch Lever Adjusting
    Nut
  12. Clip, Release Lever
  13. #Lever -Order Kit-
  14. #Link -Order Kit-

#Kit, Clutch Release Lever

Return to Top

clutch control
1971-80
scout ii		 transmission assembly
3 speed manual t-90
1971-80
scout ii

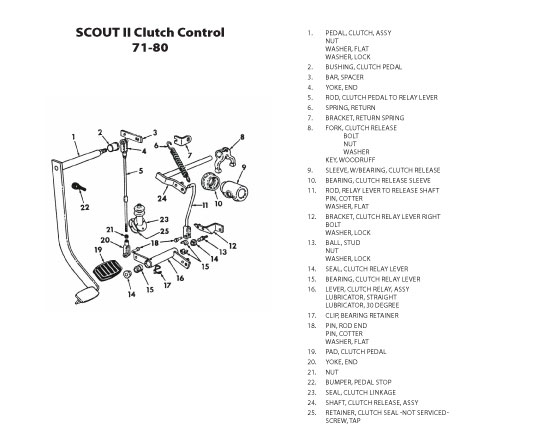

Clutch Control
Click Image for Larger View
  1. Pedal, Clutch, Assy
    Nut
    Washer, Flat
    Washer, Lock
  2. Bushing, Clutch Pedal
  3. Bar, Spacer
  4. Yoke, End
  5. Rod, Clutch Pedal to Relay Lever
  6. Spring, Return
  7. Bracket, Return Spring
  8. Fork, Clutch Release
    Bolt
    Nut
    Washer
    Key, Woodruff
  9. Sleeve, w/Bearing, Clutch Release
  10. Bearing, Clutch Release Sleeve
  11. Rod, Relay Lever to Release Shaft
    Pin, Cotter
    Washer, Flat
  12. Bracket, Clutch Relay Lever Right
    Bolt
    Washer, Lock
  13. Ball, Stud
    Nut
    Washer, Lock
  14. Seal, Clutch Relay Lever
  15. Bearing, Clutch Relay Lever
  16. Lever, Clutch Relay, Assy
    Lubricator, Straight
    Lubricator, 30 Degree
  17. Clip, Bearing Retainer
  18. Pin, Rod End
    Pin, Cotter
    Washer, Flat
  19. Pad, Clutch Pedal
  20. Yoke, End
  21. Nut
  22. Bumper, Pedal Stop
  23. Seal, Clutch Linkage
  24. Shaft, Clutch Release, Assy
  25. Retainer, Clutch Seal -Not Serviced-
    Screw, Tap

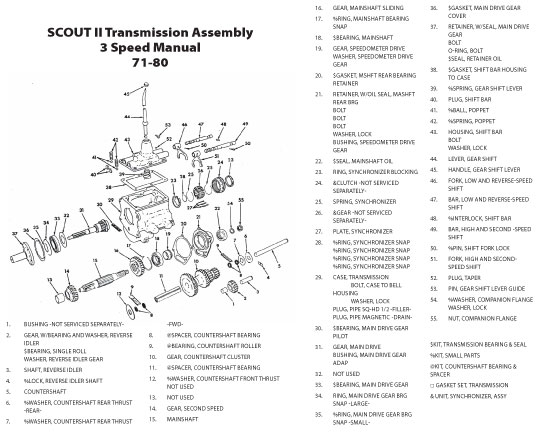

 Transmission Assembly 3 Speed Manual
Click Image for Larger View
  1. Bushing -Not Serviced Separately-
  2. Gear, w/Bearing and Washer, Reverse Idler
    $Bearing, Single Roll
    Washer, Reverse Idler Gear
  3. Shaft, Reverse Idler
  4. %Lock, Reverse Idler Shaft
  5. Countershaft
  6. %Washer, Countershaft Rear Thrust -Rear-
  7. %Washer, Countershaft Rear Thrust -FWD-
  8. @Spacer, Countershaft Bearing
  9. @Bearing, Countershaft Roller
  10. Gear, Countershaft Cluster
  11. @Spacer, Countershaft Bearing
  12. %Washer, Countershaft Front Thrust
  13. Not Used
  14. Gear, Second Speed
  15. Mainshaft
  16. Gear, Mainshaft Sliding
  17. %Ring, Mainshaft Bearing Snap
  18. $Bearing, Mainshaft
  19. Gear, Speedometer Drive
    Washer, Speedometer Drive Gear
  20. $Gasket, MSHFT Rear Bearing
  21. Retainer
    Retainer, w/Oil Seal, MASHFT Rear Brg
    Bolt
    Bolt
    Bolt
    Washer, Lock
    Bushing, Speedometer Drive Gear
  22. $Seal. Mainshaft Oil
  23. Ring, Synchronizer Blocking
  24. &Clutch -Not Serviced Separately-
  25. Spring, Synchronizer
  26. &Gear -Not Serviced Separately-
  27. Plate, Synchronizer
  28. %Ring, Synchronizer Snap
    %Ring, Synchronizer Snap
    %Ring, Synchronizer Snap
    %Ring, Synchronizer Snap
  29. Case, Transmission
    Bolt, Case to Bell Housing
    Washer, Lock
    Plug, Pipe SQ-HD 1/2 -Filler-
    Plug, Pipe Magnetic -Drain-
  30. $Bearing, Main Drive Gear Pilot
  31. Gear, Main Drive
    Bushing, Main Drive Gear Adap
  32. Not Used
  33. $Bearing, Main Drive Gear
  34. Ring, Main Drive Gear BRG Snap -Large-
  35. %Ring, Main Drive Gear BRG Snap -Small-
  36. $Gasket, Main Drive Gear Cover
  37. Retainer, w/Seal, Main Drive Gear
    Bolt
    O-Ring, Bolt
    $Seal, Retainer Oil
  38. $Gasket, Shift Bar Housing to Case
  39. %Spring, Gear Shift Lever
  40. Plug, Shift Bar
  41. %Ball, Poppet
  42. %Spring, Poppet
  43. Housing, Shift Bar
    Bolt
    Washer, Lock
  44. Lever, Gear Shift
  45. Handle, Gear Shift Lever
  46. Fork, Low and Reverse-Speed Shift
  47. Bar, Low and Reverse-Speed Shift
  48. %Interlock, Shift Bar
  49. Bar, High and Second -Speed Shift
  50. %Pin, Shift Fork Lock
  51. Fork, High and Second-Speed Shift
  52. Plug, Taper
  53. Pin, Gear Shift Lever Guide
  54. %Washer, Companion Flange
    Washer, Lock
  55. Nut, Companion Flange

$Kit, Transmission Bearing & Seal
%Kit, Small Parts
@Kit, Countershaft Bearing & Spacer
* Gasket Set, Transmission
& Unit, Synchronizer, Assy

Return to Top


transmission assembly
3 speed manual 332
1971-80
scout ii

 transmission assembly
4 speed manual
1971-80
scout ii

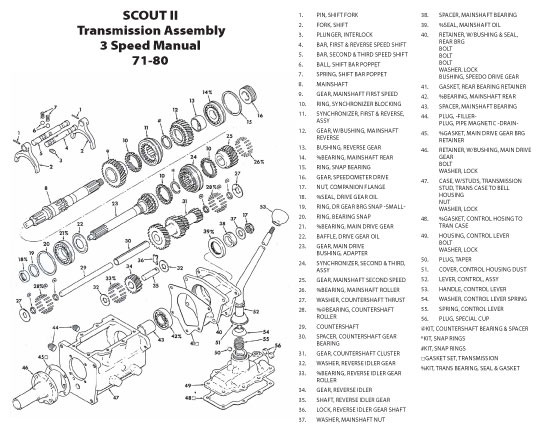

Transmission Assembly 3 Speed Manual
Click Image for Larger View
  1. Pin, Shift Fork
  2. Fork, Shift
  3. Plunger, Interlock
  4. Bar, First & Reverse Speed Shift
  5. Bar, Second & Third Speed Shift
  6. Ball, Shift Bar Poppet
  7. Spring, Shift Bar Poppet
  8. Mainshaft
  9. Gear, Mainshaft First Speed
  10. Ring, Synchronizer Blocking
  11. Synchronizer, First & Reverse, Assy
  12. Gear, w/Bushing, Mainshaft Reverse
  13. Bushing, Reverse Gear
  14. %Bearing, Mainshaft Rear
  15. Ring, Snap Bearing
  16. Gear, Speedometer Drive
  17. Nut, Companion Flange
  18. %Seal, Drive Gear Oil
  19. Ring, Dr Gear BRG Snap -Small-
  20. Ring, Bearing Snap
  21. %Bearing, Main Drive Gear
  22. Baffle, Drive Gear Oil
  23. Gear, Main Drive
    Bushing, Adapter
  24. Synchronizer, Second & Third, Assy
  25. Gear, Mainshaft Second Speed
  26. %Bearing, Mainshaft Roller
  27. Washer, Countershaft Thrust
  28. %@Bearing, Countershaft Roller
  29. Countershaft
  30. Spacer, Countershaft Gear Bearing
  31. Gear, Countershaft Cluster
  32. Washer, Reverse Idler Gear
  33. %Bearing, Reverse Idler Gear Roller
  34. Gear, Reverse Idler
  35. Shaft, Reverse Idler Gear
  36. Lock, Reverse Idler Gear Shaft
  37. Washer, Mainshaft Nut
  38. Spacer, Mainshaft Bearing
  39. %Seal, Mainshaft Oil
  40. Retainer, w/Bushing & Seal, Rear BRG
    Bolt
    Bolt
    Bolt
    Washer. Lock
    Bushing, Speedo Drive Gear
  41. Gasket, Rear Bearing Retainer
  42. %Bearing, Mainshaft Rear
  43. Spacer, Mainshaft Bearing
  44. Plug, -Filler-
    Plug, Pipe Magnetic -Drain-
  45. %Gasket, Main Drive Gear BRG
    Retainer
  46. Retainer, w/Bushing, Main drive Gear
    Bolt
    Washer, Lock
  47. Case, w/Studs, Transmission
    Stud, Trans Case to Bell Housing
    Nut
    Washer, Lock
  48. %Gasket, Control Hosing to Tran Case
  49. Housing, Control Lever
    Bolt
    Washer, Lock
  50. Plug, Taper
  51. Cover, Control Housing Dust
  52. Lever, Control, Assy
  53. Handle, Control Lever
  54. Washer, Control Lever Spring
  55. Spring, Control Lever
  56. Plug, Special Cup

@Kit, Countershaft Bearing & Spacer

*Kit, Snap Rings

#Kit, Snap Rings

*Gasket Set, Transmission

%Kit, Trans Bearing, Seal & Gasket

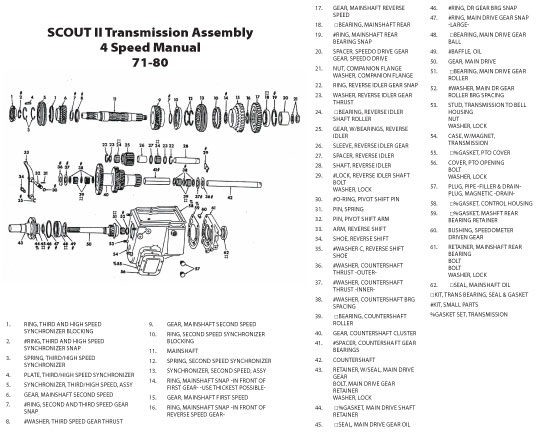

 Transmission Assembly 4 Speed Manual
Click Image for Larger View
  2. Ring, Third and High Speed Synchronizer Blocking
  3. #Ring, Third and High Speed Synchronizer Snap
  4. Spring, Third/High Speed Synchronizer
  5. Plate, Third/High Speed Synchronizer
  6. Synchronizer, Third/High Speed, Assy
  7. Gear, Mainshaft Second Speed
  8. #Ring, Second and Third Speed Gear Snap
  9. #Washer, Third Speed Gear Thrust
  10. Gear, Mainshaft Second Speed
  11. Ring, Second Speed Synchronizer Blocking
  12. Mainshaft
  13. Spring, Second Speed Synchronizer
  14. Synchronizer, Second Speed, Assy
  15. Ring, Mainshaft Snap -In Front of First Gear- -Use Thickest Possible-
  16. Gear, Mainshaft First Speed
  17. Ring, Mainshaft Snap -In Front of Reverse Speed Gear-
  18. Gear, Mainshaft Reverse Speed
  19. *Bearing, Mainshaft Rear
  20. #Ring, Mainshaft Rear bearing Snap
  21. Spacer, Speedo Drive Gear
    Gear, Speedo Drive
  22. Nut, Companion Flange
    Washer, Companion Flange
  23. Ring, Reverse Idler Gear Snap
  24. Washer, Reverse Idler Gear Thrust
  25. *Bearing, reverse Idler Shaft Roller
  26. Gear, w/Bearings, Reverse Idler
  27. Sleeve, Reverse Idler Gear
  28. Spacer, Reverse Idler
  29. Shaft, Reverse Idler
  30. #Lock, Reverse Idler Shaft
    Bolt
    Washer, Lock
  31. #O-Ring, Pivot Shift Pin
  32. Pin, Spring
  33. Pin, Pivot Shift Arm
  34. Arm, Reverse Shift
  35. Shoe,Reverse Shift
  36. #Washer C, Reverse Shift Shoe
  37. #Washer, Countershaft Thrust -Outer-
  38. #Washer, Countershaft Thrust -Inner-
  39. #Washer, Countershaft BRG Spacing
  40. *Bearing, Countershaft Roller
  41. Gear, Countershaft Cluster
  42. #Spacer, Countershaft Gear Bearings
  43. Countershaft
  44. Retainer, w/Seal, Main Drive Gear
    Bolt, Main Drive Gear Retainer
    Washer, Lock
  45. *%Gasket, Main Drive Shaft Retainer
  46. *Seal, Main Drive Gear oil
  47. #Ring, DR Gear BRG Snap
  48. #Ring, Main Drive Gear Snap -Large-
  49. *Bearing, Main Drive Gear Ball
  50. #Baffle, Oil
  51. Gear, Main Drive
  52. *Bearing, Main Drive Gear Roller
  53. #Washer, Main DR Gear Roller BRG Spacing
  54. Stud, Transmission to Bell Housing
    Nut
    Washer, Lock
  55. Case, w/Magnet, Transmission
  56. *%Gasket, PTO Cover
  57. Cover, PTO Opening
    Bolt
    Washer, Lock
  58. Plug, Pipe -Filler & Drain-
    Plug, Magnetic -Drain-
  59. *%Gasket, Control Housing
  60. *%Gasket, MASHFT Rear Bearing Retainer
  61. Bushing, Speedometer Driven Gear
  62. Retainer, Mainshaft Rear Bearing
    Bolt
    Bolt
    Washer, Lock
  63. *Seal, Mainshaft Oil

*Kit, Trans Bearing, Seal & Gasket

#Kit, Small Parts

%Gasket Set, Transmission

Return to Top


transfer case assembly
single speed
1971-80
scout ii

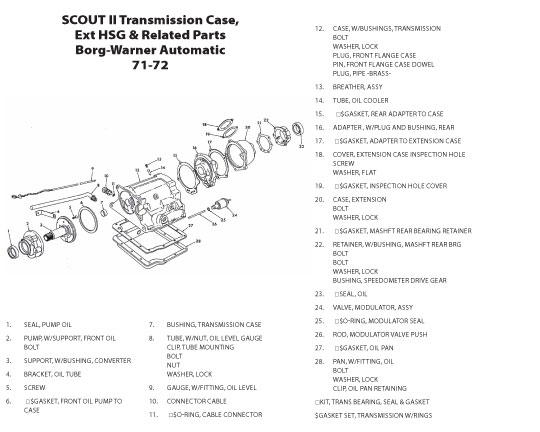

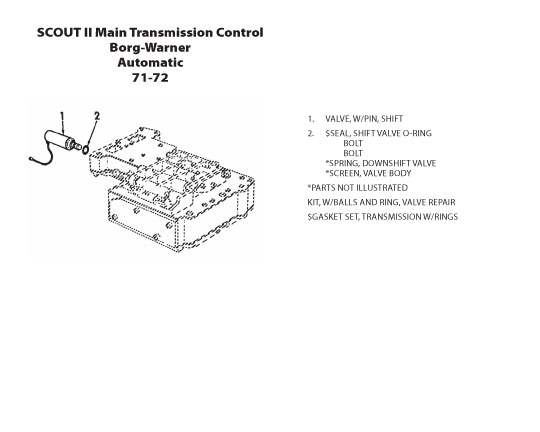

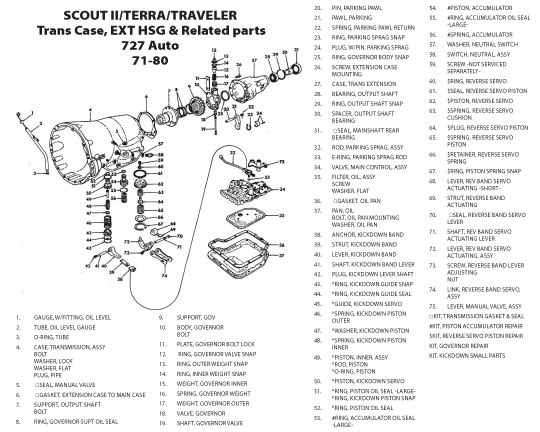

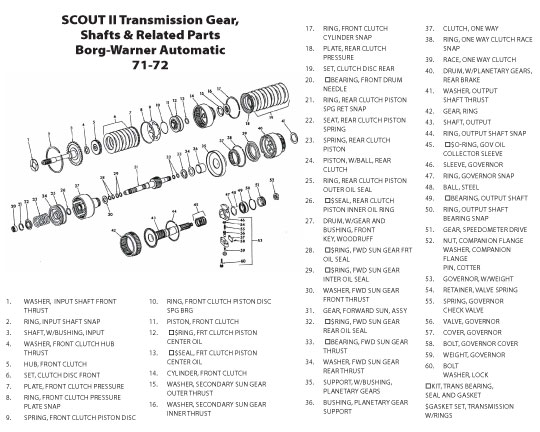

 trans case, ext hsg & related parts
borg-warner
automatic
1971-72
scout ii

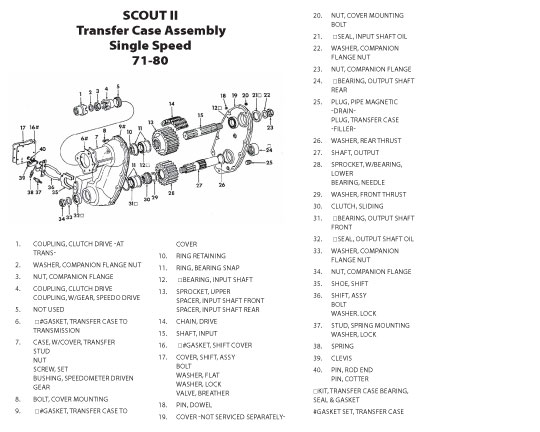

Transfer Case Assembly Single Speed
Click Image for Larger View
  1. Coupling, Clutch Drive -At Trans-
  2. Washer, Companion Flange Nut
  3. Nut, Companion Flange
  4. Coupling, Clutch Drive
    Coupling, w/Gear, Speedo Drive
  5. Not Used
  6. *#Gasket, Transfer Case to Transmission
  7. Case, w/Cover, Transfer
    Stud
    Nut
    Screw, Set
    Bushing, Speedometer Driven Gear
  8. Bolt, Cover Mounting
  9. *#Gasket, Transfer Case to Cover
  10. Ring Retaining
  11. Ring, Bearing Snap
  12. *Bearing, Input Shaft
  13. Sprocket, Upper
    Spacer, Input Shaft Front
    Spacer, Input Shaft Rear
  14. Chain, Drive
  15. Shaft, Input
  16. *#Gasket, Shift Cover
  17. Cover, Shift, Assy
    Bolt
    Washer, Flat
    Washer, Lock
    Valve, Breather
  18. Pin, Dowel
  19. Cover -Not Serviced Separately-
  20. Nut, Cover Mounting Bolt
  21. *Seal, Input Shaft Oil
  22. Washer, Companion Flange Nut
  23. Nut, Companion Flange
  24. *Bearing, Output Shaft Rear
  25. Plug, Pipe Magnetic -Drain-
    Plug, Transfer Case -Filler-
  26. Washer, Rear Thrust
  27. Shaft, Output
  28. Sprocket, w/Bearing, Lower
    Bearing, Needle
  29. Washer, Front Thrust
  30. Clutch, Sliding
  31. *Bearing, Output Shaft Front
  32. *Seal, Output Shaft Oil
  33. Washer, Companion Flange Nut
  34. Nut, Companion Flange
  35. Shoe, Shift
  36. Shift, Assy
    Bolt
    Washer. Lock
  37. Stud, Spring Mounting
    Washer, Lock
  38. Spring
  39. Clevis
  40. Pin, Rod End
    Pin, Cotter

*Kit, Transfer Case Bearing, Seal & Gasket
#Gasket Set, Transfer Case

 Transmission Case, Exterior Housing & related Parts
Click Image for Larger View
  1. Seal, Pump Oil
  2. Pump, w/Support, Front Oil
    Bolt
  3. Support, w/Bushing, Converter
  4. Bracket, Oil Tube
  5. Screw
  6. *$Gasket, Front Oil Pump to Case
  7. Bushing, Transmission Case
  8. Tube, w/Nut, Oil Level Gauge
    Clip, Tube Mounting
    Bolt
    Nut
    washer, Lock
  9. Gauge, w/Fitting, Oil Level
  10. Connector Cable
  11. *$O-Ring, Cable Connector
  12. Case, w/Bushings, Transmission
    Bolt
    Washer, Lock
    Plug, Front Flange Case
    Pin, Front Flange Case Dowel
    Plug, Pipe -Brass-
  13. Breather, Assy
  14. Tube, Oil Cooler
  15. *$Gasket, rear Adapter to Case
  16. Adapter , w/Plug and Bushing, Rear
  17. *$Gasket, Adapter to Extension Case
  18. Cover, Extension Case Inspection Hole
    Screw
    Washer, Flat
  19. *$Gasket, Inspection Hole Cover
  20. Case, Extension
    Bolt
    Washer, Lock
  21. *$Gasket, MASHFT Rear Bearing Retainer
  22. Retainer, w/Bushing, MASHFT Rear BRG
    Bolt
    Bolt
    Washer, Lock
    Bushing, Speedometer Drive Gear
  23. *Seal, Oil
  24. Valve, Modulator, Assy
  25. *$O-Ring, Modulator Seal
  26. Rod, Modulator Valve Push
  27. *$Gasket, Oil Pan
  28. Pan, w/Fitting, Oil
    Bolt
    Washer, Lock
    Clip, Oil Pan retaining

*Kit, Trans Bearing, Seal & Gasket
$Gasket Set, Transmission w/Rings

Return to Top

transfer case assembly
dana 20
automatic
1971-80
scout ii/terra/traveler		 transfer case controls
single speed
1971-80
scout ii
Transfer Case Assembly
Click Image for Larger View
  1. *Seal, Output Shaft
  2. Link, Control, Assy
  3. $Hose, 5/8
  4. Guide, Transfer Case Control
    Bolt
    Washer, Lock
  5. Ball, Lever End
    Nut
    Washer, Lock
  6. *Seal, Shift Bar Oil
  7. Lever, Transfer Case Control
  8. Handle, Shift Lever
  9. Lubricator, Pivot Pin
  10. Pin, Shift Lever Pivot
    Screw, Shift Lever Pivot Pin Set
  11. Retainer, Front Output Shaft Bearing
    Bolt, Bearing Retainer Lock
    Plug, Expansion
  12. Spring, Shift Bar Poppet Ball
    Underdrive
    Front Drive
  13. Plug, Poppet Spring
  14. Ball, Shift Bar Poppet
  15. *#Gasket, Frt Output Shaft BRG Retainer
  16. Pin, Rod End
    Pin, Cotter
  17. Plunger, Shift Bar Lock
  18. Bar, Front Drive Shift
  19. Bar, Underdrive Shift
  20. Plug, Transfer Case -Filler-
  21. Case, w/Plug, Transfer
    Bolt
    Washer, Lock
    Plug, Case
  22. Cup, Shift Fork Bar Dust
  23. Shaft, Front Output
    O-Ring, Output Shaft
  24. *Bearing, Front Output Shaft Cone
  25. *Bearing, Front Output Shaft Cup
  26. Shim, Bearing Adjusting
  27. Cover, Front Output Shaft Bearing, Bolt, Bearing Cover Lock
  28. Breather, Transfer Case, Assy
  29. Nut, Companion Flange
  30. Washer, Companion Flange Nut
  31. *Bearing, Rear Output Shaft Rear Cone
  32. *Bearing, Rear Output Shaft Rear Cup
  33. Shim, Bearing Adjusting
  34. Gear, Speedometer Drive
  35. Retainer, w/Bush., Rear Output Shft BRG
    Bolt, Bearing Retainer Lock
    Bushing, Speedometer Driven Gear
  36. *#Gasket, Rear Output Shaft BRG Retainer
  37. *Bearing, Rear Output Shaft Front Cup
  38. *Bearing, Rear Output Shaft Front Cone
  39. Shaft, Rear Output
  40. Lock, Idler Gear Shift
    Bolt, Lock
  41. Washer, Idler Gear Thrust
  42. Shaft, w/O-Ring, Idler Gear
    O-Ring, Idler Shaft
  43. *#Gasket, Transfer Case to Transmission
  44. Spacer, Idler Gear Bearing
  45. Fork, Rear Sliding Gear
  46. Screw, Shift Fork Set
  47. Fork, Front Sliding Gear
  48. Gear, Front Sliding
  49. Gear, Front Output Driven
  50. Washer, Front Output Driven Gear Thrust
  51. Washer, Gear
  52. Gear, Idler
  53. *Bearing, Idler Gear
  54. Gear, Main Drive
  55. Gear, Rear Sliding
  56. *#Gasket Bottom Cover
  57. Cover, w/Insert, Bottom Case
    Bolt, w/Lockwasher
  58. Plug, Magnetic -Drain-

*Kit, Transfer Case Bearing, Seal and Gasket

#Gasket Set, Transfer Case

$Part Number Covers 1 Foot of Bulk Material

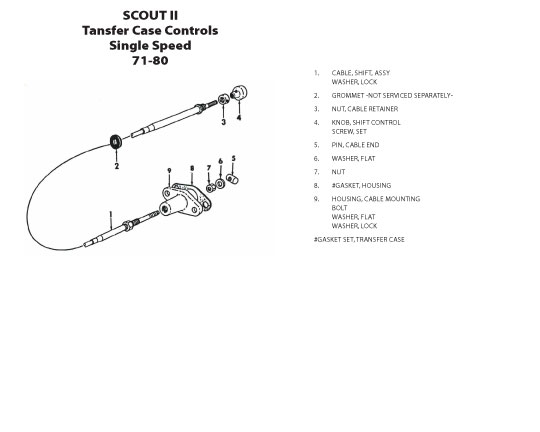

 Transfer Case Controls Single Speed
Click Image for Larger View
  1. Cable, Shift, Assy
    Washer, Lock
  2. Grommet -Not Serviced Separately-
  3. Nut, Cable Retainer
  4. Knob, Shift Control
    Screw, Set
  5. Pin, Cable End
  6. Washer, Flat
  7. Nut
  8. #Gasket, Housing
  9. Housing, Cable Mounting
    Bolt
    Washer, Flat
    Washer, Lock

#Gasket Set, Transfer Case

Return to Top

trans case, ext hsg & related parts
727
automatic
1971-80
scout ii/terra/traveler		 transfer case assembly
dana 300
1980
scout ii
Trans Case, Ext Hsg & Related Parts
Click Image for Larger View
  1. Gauge, w/Fitting, Oil Level
  2. Tube, Oil Level Gauge
  3. O-Ring, Tube
  4. Case, Transmission, Assy
    Bolt
    Washer, Lock
    Washer, Flat
    Plug, Pipe
  5. %Seal, Manual Valve
  6. %Gasket, Extension Case to Main Case
  7. Support, Output Shaft
    Bolt
  8. Ring, Governor Supt Oil Seal
  9. Support, Gov
  10. Body, Governor
    Bolt
  11. Plate, Governor Bolt Lock
  12. Ring, Governor Valve Snap
  13. Ring, Outer Weight Snap
  14. Ring, Inner Weight Snap
  15. Weight, Governor Inner
  16. Spring, Governor Weight
  17. Weight, Governor Outer
  18. Valve, Governor
  19. Shaft, Governor Valve
  20. Pin, Parking Pawl
  21. Pawl, Parking
  22. Spring, Parking Pawl Return
  23. Ring, Parking Sprag Snap
  24. Plug, w/Pin, Parking Sprag
  25. Ring, Governor Body Snap
  26. Screw, Extension Case Mounting
  27. Case, Trans Extension
  28. Bearing, Output Shaft
  29. Ring, Output Shaft Snap
  30. Spacer, Output Shaft Bearing
  31. %Seal, Mainshaft Rear Bearing
  32. Rod, Parking Sprag, Assy
  33. E-Ring, Parking Sprag Rod
  34. Valve, Main Control, Assy
    Bolt
    %Seal, Lever Shaft
  35. Filter, Oil, Assy
    Screw
    Washer, Flat
  36. %Gasket, Oil Pan
  37. Pan, Oil
    Bolt, Oil Pan Mounting
    Washer, Oil Pan
  38. Anchor, Kickdown Band
  39. Strut, Kickdown Band
  40. Lever, Kickdown Band
  41. Shaft, Kickdown Band Lever
  42. Plug, Kickdown Lever Shaft
  43. *Ring, Kickdown Guide Snap
  44. *Ring, Kickdown Guide Seal
  45. *Guide, Kickdown Servo
  46. *Spring, Kickdown Piston Outer
  47. *Washer, Kickdown Piston
  48. *Spring, Kickdown Piston Inner
  49. *Piston, Inner, Assy
    *Rod, Piston
    *O-Ring, Piston
  50. *Piston, Kickdown Servo
  51. *Ring, Piston Oil Seal -Large-
    *Ring, Kickdown Piston Snap
  52. *Ring, Piston Oil Seal
  53. #Ring, Accumulator Oil Seal -Large-
  54. #Piston, Accumulator
  55. #Ring, Accumulator Oil Seal -Large-
  56. #Spring, Accumulator
  57. Washer, Neutral Switch
  58. Switch, Neutral, Assy
  59. Screw -Not Serviced Separately-
  60. $Ring, Reverse Servo
  61. $Seal, Reverse Servo Piston
  62. $Piston, Reverse Servo
  63. $Spring, Reverse Servo Cushion
  64. $Plug, Reverse Servo Piston
  65. $Spring, Reverse Servo Piston
  66. $Retainer, Reverse Servo Spring
  67. $Ring, Piston Spring Snap
  68. Lever, Rev Band Servo Actuating
    -Short-
  69. Strut, Reverse Band Actuating
  70. %Seal, Reverse Band Servo Lever
  71. Shaft, Rev Band Servo Actuating Lever
  72. Lever, Rev Band Servo Actuating, Assy
  73. Screw, Reverse Band Lever Adjusting
    Nut
  74. Link, Reverse Band Servo, Assy
  75. Lever, Manual Valve, Assy

%Kit, Transmission Gasket & Seal

#Kit, Piston Accumulator Repair

$Kit, Reverse Servo Piston Repair

Kit, Governor Repair

*Kit, Kickdown Small Parts

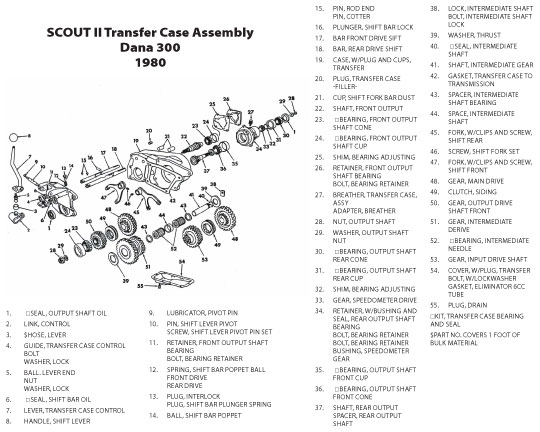

 transfer Case Assembly
Click Image for Larger View
  1. *Seal, Output Shaft Oil
  2. Link, Control
  3. $Hose, Lever
  4. Guide, Transfer Case Control
    Bolt
    Washer, Lock
  5. Ball. Lever End
    Nut
    Washer, Lock
  6. *Seal, Shift Bar Oil
  7. Lever, Transfer Case Control
  8. Handle, Shift Lever
  9. Lubricator, Pivot Pin
  10. Pin, Shift Lever pivot
    Screw, Shift Lever Pivot Pin Set
  11. Retainer, Front Output Shaft Bearing
    Bolt, Bearing Retainer
  12. Spring, Shift Bar Poppet Ball
    Front Drive
    Rear Drive
  13. Plug, Interlock
    Plug, Shift Bar Plunger Spring
  14. Ball, Shift Bar Poppet
  15. Pin, Rod End
    Pin, Cotter
  16. Plunger, Shift Bar Lock
  17. Bar Front Drive Shift
  18. Bar, Rear Drive Shift
  19. Case, w/Plug and Cups, Transfer
  20. Plug, Transfer Case -Filler-
  21. Cup, Shift Fork Bar Dust
  22. Shaft, Front Output
  23. *Bearing, Front Output Shaft Cone
  24. *Bearing, Front Output Shaft Cup
  25. Shim, Bearing Adjusting
  26. Retainer, Front Output Shaft Bearing
    Bolt, Bearing Retainer
  27. Breather, Transfer Case, Assy
    Adapter, Breather
  28. Nut, Output Shaft
  29. Washer, Output Shaft Nut
  30. *Bearing, Output Shaft Rear Cone
  31. *Bearing, Output Shaft Rear Cup
  32. Shim, Bearing Adjusting
  33. Gear, Speedometer Drive
  34. Retainer, w/Bushing and Seal, Rear Output Shaft Bearing
    Bolt, Bearing Retainer
    Bolt, Bearing Retainer
    Bushing, Speedometer Gear
  35. *Bearing, Output Shaft Front Cup
  36. *Bearing, Output Shaft Front Cone
  37. Shaft, Rear Output
    Spacer, Rear Output Shaft
  38. Lock, Intermediate Shaft
    Bolt, Intermediate Shaft Lock
  39. Washer, Thrust
  40. *Seal, Intermediate Shaft
  41. Shaft, Intermediate Gear
  42. Gasket, Transfer Case to Transmission
  43. Spacer, Intermediate Shaft Bearing
  44. Space, Intermediate Shaft
  45. Fork, w/Clips and Screw, Shift Rear
  46. Screw, Shift Fork Set
  47. Fork, w/Clips and Screw, Shift Front
  48. Gear, Main Drive
  49. Clutch, Siding
  50. Gear, Output Drive Shaft Front
  51. Gear, Intermediate Derive
  52. *Bearing, Intermediate Needle
  53. Gear, Input Drive Shaft
  54. Cover, w/Plug, transfer
    Bolt, w/Lockwasher
    Gasket, Eliminator 6CC Tube
  55. Plug, Drain

*Kit, Transfer Case Bearing and Seal

$Part No. Covers 1 Foot of Bulk Material

Return to Top


transmission remote control
727 automatic
1971-80
scout ii

 transmission remote control
borg-warner
automatic
1971-72
scout ii

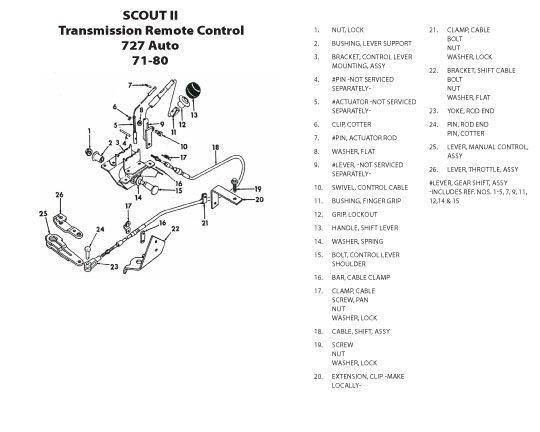

Transmission Remote Control
Click Image for Larger View
  1. Nut, Lock
  2. Bushing, Lever Support
  3. Bracket, Control Lever Mounting, Assy
  4. #Pin -Not Serviced Separately-
  5. #Actuator -Not Serviced Separately-
  6. Clip, Cotter
  7. #Pin, Actuator Rod
  8. Washer, Flat
  9. #Lever, -Not Serviced Separately-
  10. Swivel, Control Cable
  11. Bushing, Finger Grip
  12. Grip, Lockout
  13. Handle, Shift Lever
  14. Washer, Spring
  15. Bolt, Control Lever Shoulder
  16. Bar, Cable Clamp
  17. Clamp, Cable
    Screw, Pan
    Nut
    Washer, Lock
  18. Cable, Shift, Assy
    Screw
    Nut
    Washer, Lock
  19. Extension, Clip -Make Locally-
  20. Clamp, Cable
    Bolt
    Nut
    Washer, Lock
  21. Bracket, Shift Cable
    Bolt
    Nut
    Washer, Flat
  22. Yoke, Rod End
  23. Pin, Rod End
  24. Pin, Cotter
  25. Lever, Manual Control, Assy
  26. Lever, Throttle, Assy

#Lever, Gear Shift, Assy -Includes Ref. Nos. 1-5, 7, 9, 11, 12,14 & 15

 Transmission Remote Control
Click Image for Larger View
  1. Nut, Lock
  2. Lever, Switch Actuator
  3. Switch, Neutral Safety
    Bolt
    Washer, Lock
  4. Bushing, Lever Support
  5. Bracket, Control Lever Mounting, Assy
  6. #Pin -Not Serviced Separately-
  7. #Actuator -Not Serviced Separately-
  8. #Pin, Actuator Rod
  9. #Lever, -Not Serviced Separately-
  10. Bushing, Finger Grip
  11. Grip, Lockout
  12. Handle, Shift Lever
  13. Clamp, Cable
    Bolt
    Nut
    Washer, Lock
  14. Extension, Clip -To Floor Panel-
    Screw
    Nut
    Washer, Lock
  15. Clamp, Cable
    Screw
    Nut
    Washer, Lock
  16. Bar, Cable Clamp
  17. Cable, Shift, Assy
  18. Swivel, Control Cable
    Pin, Cotter
  19. Washer, Spring
  20. Washer, Flat
  21. Arm, w/Pin
  22. Yoke, Rod End
  23. Washer, Spring
  24. Bushing, Yoke
  25. Pin, Rod End
    Pin, Cotter
  26. Support, Shift Cable Anchor
    Bolt
    Nut
    Washer, Lock
  27. Washer

#Lever, Gear Shift, Assy -Includes Ref. Nos. 6, 7, 8 9-

Return to Top

trans con. lever/parking pawl linkage
borg-warner
automatic
1971-72
scout ii

transmission control lever & mounting
1971-80
scout ii

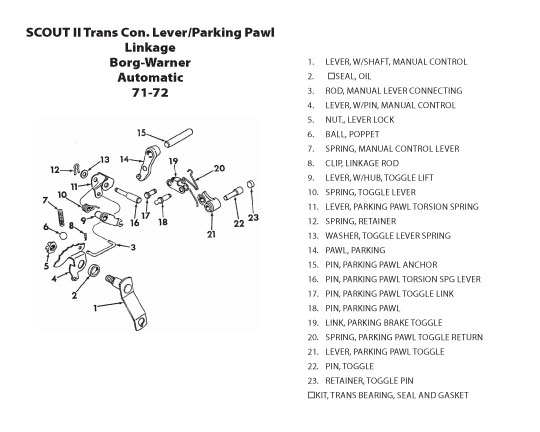

Trans COn Lever/Parking Pawl Linkage
Click Image for Larger View
  1. Lever, w/Shaft, Manual Control
  2. *Seal, Oil
  3. Rod, Manual Lever Connecting
  4. Lever, w/Pin, Manual Control
  5. Nut., Lever Lock
  6. Ball, Poppet
  7. Spring, Manual Control Lever
  8. Clip, Linkage Rod
  9. Lever, w/Hub, Toggle Lift
  10. Spring, Toggle Lever
  11. Lever, Parking Pawl Torsion Spring
  12. Spring, Retainer
  13. Washer, Toggle Lever Spring
  14. Pawl, Parking
  15. Pin, Parking Pawl Anchor
  16. Pin, Parking Pawl Torsion Spg Lever
  17. Pin, Parking Pawl Toggle Link
  18. Pin, Parking Pawl
  19. Link, Parking Brake Toggle
  20. Spring, Parking Pawl Toggle Return
  21. Lever, Parking Pawl Toggle
  22. Pin, Toggle
  23. Retainer, Toggle Pin

*Kit, Trans Bearing, Seal and Gasket

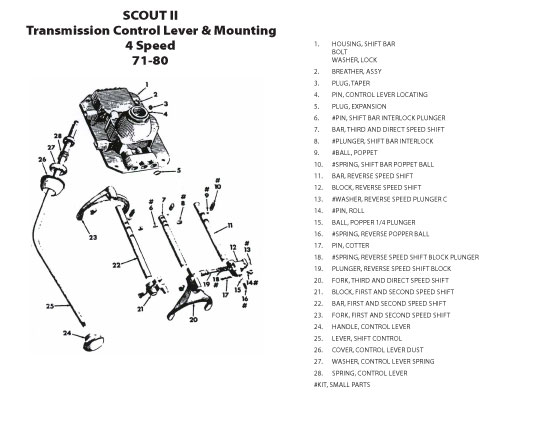

 Transmission Control Lever and Mounting
Click Image for Larger View
  1. Housing, Shift Bar
    Bolt
    Washer, Lock
  2. Breather, Assy
  3. Plug, Taper
  4. Pin, Control Lever Locating
  5. Plug, Expansion
  6. #Pin, Shift Bar Interlock Plunger
  7. Bar, Third and Direct Speed Shift
  8. #Plunger, Shift Bar Interlock
  9. #Ball, Poppet
  10. #Spring, Shift Bar Poppet Ball
  11. Bar, Reverse Speed Shift
  12. Block, Reverse Speed Shift
  13. #Washer, Reverse Speed Plunger C
  14. #Pin, Roll
  15. Ball, Popper 1/4 Plunger
  16. #Spring, Reverse Popper Ball
  17. Pin, Cotter
  18. #Spring, Reverse Speed Shift Block Plunger
  19. Plunger, Reverse Speed Shift Block
  20. Fork, Third and Direct Speed Shift
  21. Block, First and Second Speed Shift
  22. Bar, First and Second Speed Shift
  23. Fork, First and Second Speed Shift
  24. Handle, Control Lever
  25. Lever, Shift Control
  26. Cover, Control Lever Dust
  27. Washer, Control Lever Spring
  28. Spring, Control Lever

#Kit, Small Parts

Return to Top

transmission converter & housing
borg-warner
automatic
1971-72
scout ii		 trans converter, dr plate, adap/cover
727 automatic
1971-80
scout ii

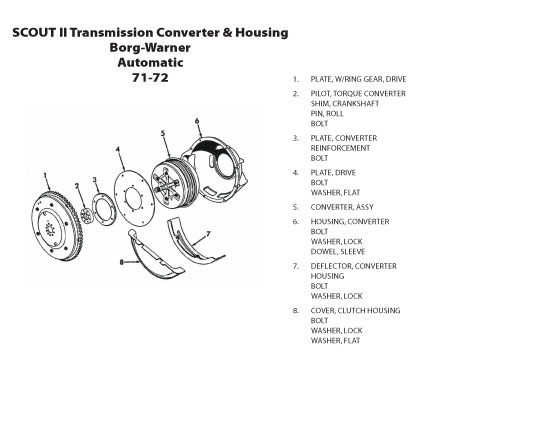

Transmission Converter & Housing
Click Image for Larger View
  1. Plate, w/Ring Gear, Drive
  2. Pilot, Torque Converter
    Shim, Crankshaft
    Pin, Roll
    Bolt
  3. Plate, Converter Reinforcement
    Bolt
  4. Plate, Drive
    Bolt
    Washer, Flat
  5. Converter, Assy
  6. Housing, Converter
    Bolt
    washer, Lock
    Dowel, Sleeve
  7. Deflector, Converter Housing
    Bolt
    Washer, Lock
  8. Cover, Clutch Housing
    Bolt
    Washer, Lock
    Washer, Flat

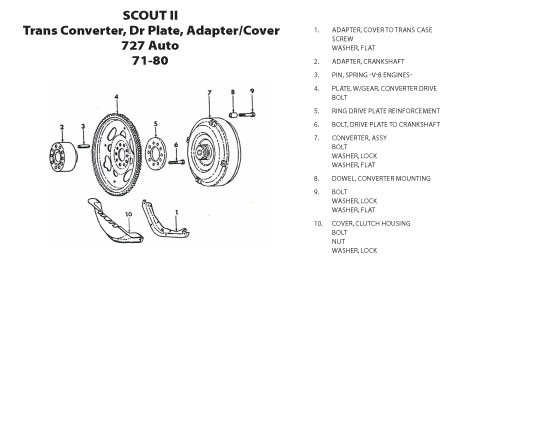

 Trans Converter, Dr plate, Adap/Cover
Click Image for Larger View
  1. Adapter, Cover to Trans Case
    Screw
    Washer, Flat
  2. Adapter, Crankshaft
  3. Pin, Spring -V-8 Engines-
  4. Plate, w/Gear, Converter Drive
    Bolt
  5. Ring Drive Plate Reinforcement
  6. Bolt, Drive Plate To Crankshaft
  7. Converter, Assy
    Bolt
    Washer, Lock
    Washer, Flat
  8. Dowel, Converter Mounting
  9. Bolt
    Washer, Lock
    Washer, Flat
  10. Cover, Clutch Housing
    Bolt
    Nut
    Washer, Lock

trans converter, dr plate, adap/cover
727 automatic diesel engine
1976-80
scout ii/terra/traveler		 converter & housing
borg-warner
automatic
1971-72
scout ii

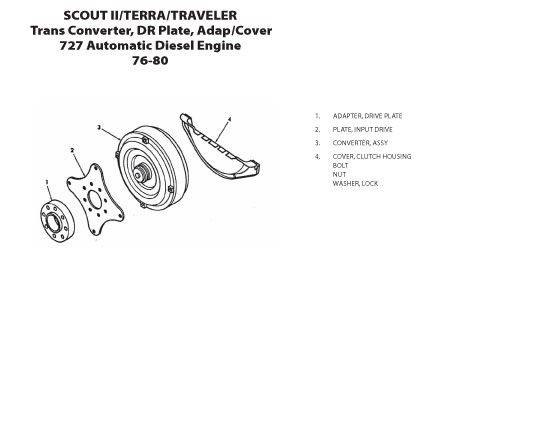

Trans Converter, DR Plate, Adap/Cover
Click Image for Larger View
  1. Adapter, Drive Plate
  2. Plate, Input Drive
  3. Converter, Assy
  4. Cover, Clutch Housing
    Bolt
    Nut
    Washer, Lock

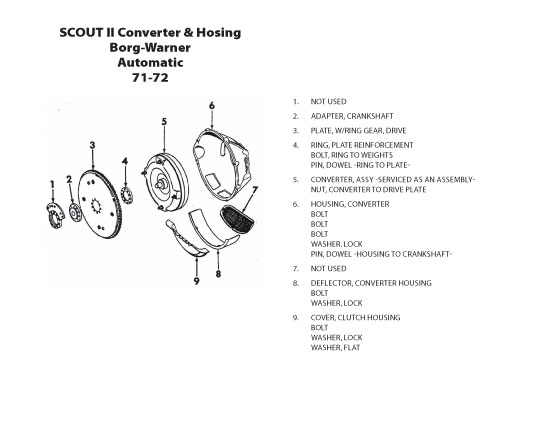

 Converter and Hosing
Click Image for Larger View
  1. Not Used
  2. Adapter, Crankshaft
  3. Plate, w/Ring Gear, Drive
  4. Ring, Plate Reinforcement
    Bolt, Ring to Weights
    Pin, Dowel -Ring to Plate-
  5. Converter, Assy -Serviced as an Assembly-
    Nut, Converter to Drive Plate
  6. Housing, Converter
    Bolt
    Bolt
    Bolt
    Washer. Lock
    Pin, Dowel -Housing to Crankshaft-
  7. Not Used
  8. Deflector, Converter Housing
    Bolt
    Washer, Lock
  9. Cover, Clutch Housing
    Bolt
    Washer, Lock
    Washer, Flat

Return to Top

trans gears, shft, clutch & related parts
727 automatic
1971-80
scout ii		 trans gears, shafts & related parts
borg-warner
automatic
1971-72
scout ii

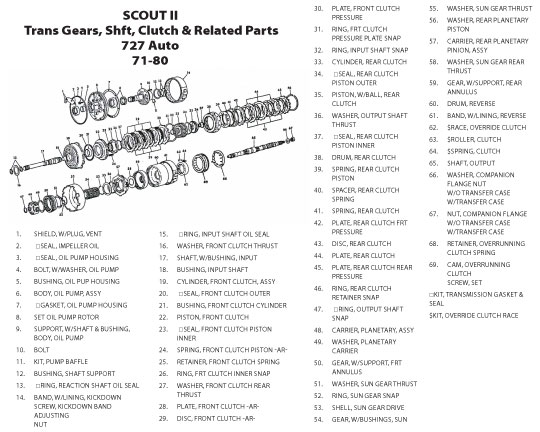

Trans Gears, Shft, Clutch & Related Parts
Click Image for Larger View
  1. Shield, w/Plug, Vent
  2. *Seal, Impeller Oil
  3. *Seal, Oil Pump Housing
  4. Bolt, w/Washer, Oil Pump
  5. Bushing, Oil Pup Housing
  6. Body, Oil Pump, Assy
  7. *Gasket, Oil Pump Housing
  8. Set Oil Pump Rotor
  9. Support, w/Shaft & bushing,
    Body, Oil Pump
  10. Bolt
  11. Kit, Pump Baffle
  12. Bushing, Shaft Support
  13. *Ring, Reaction Shaft Oil Seal
  14. Band, w/Lining, Kickdown
    Screw, Kickdown Band Adjusting
    Nut
  15. *Ring, Input Shaft Oil Seal
  16. Washer, Front Clutch Thrust
  17. Shaft, w/Bushing, Input
  18. Bushing, Input Shaft
  19. Cylinder, Front Clutch, Assy
  20. *Seal, Front Clutch Outer
  21. Bushing, Front Clutch Cylinder
  22. Piston, Front Clutch
  23. *Seal, Front Clutch Piston Inner
  24. Spring, Front Clutch Piston -AR-
  25. Retainer, Front Clutch Spring
  26. Ring, FRT Clutch Inner Snap
  27. Washer, Front Clutch Rear Thrust
  28. Plate, Front Clutch -AR-
  29. Disc, Front Clutch -AR-
  30. Plate, Front Clutch Pressure
  31. Ring, FRT Clutch Pressure Plate Snap
  32. Ring, Input Shaft Snap
  33. Cylinder, Rear Clutch
  34. *Seal, Rear Clutch Piston Outer
  35. Piston, w/Ball, Rear Clutch
  36. Washer, Output Shaft Thrust
  37. *Seal, Rear Clutch Piston Inner
  38. Drum, Rear Clutch
  39. Spring, Rear Clutch Piston
  40. Spacer, Rear Clutch spring
  41. Spring, Rear Clutch
  42. Plate, Rear Clutch FRT Pressure
  43. Disc, Rear Clutch
  44. Plate, Rear Clutch
  45. Plate, Rear Clutch Rear Pressure
  46. Ring, Rear Clutch Retainer Snap
  47. *Ring, Output Shaft Snap
  48. Carrier, Planetary, Assy
  49. Washer, Planetary Carrier
  50. Gear, w/Support, Frt Annulus
  51. Washer, Sun Gear Thrust
  52. Ring, Sun Gear Snap
  53. Shell, Sun Gear Drive
  54. Gear, w/Bushings, Sun
  55. Washer, Sun Gear Thrust
  56. Washer, rear Planetary Piston
  57. Carrier, Rear Planetary Pinion, Assy
  58. Washer, Sun Gear Rear Thrust
  59. Gear, w/Support, Rear Annulus
  60. Drum, Reverse
  61. Band, w/Lining, Reverse
  62. $Race, Override Clutch
  63. $Roller, Clutch
  64. $Spring, Clutch
  65. Shaft, Output
  66. Washer, Companion Flange Nut
    w/o Transfer Case
    w/Transfer Case
  67. Nut, Companion Flange
    w/o Transfer Case
    w/Transfer Case
  68. Retainer, Overrunning Clutch Spring
  69. Cam, Overrunning Clutch
    Screw, Set

*Kit, Transmission Gasket & Seal

$Kit, Override Clutch Race

 Transmission Gears, Shafts & Related Parts
Click Image for Larger View
  1. Washer, Input Shaft Front Thrust
  2. Ring, Input Shaft Snap
  3. Shaft, w/Bushing, Input
  4. Washer, Front Clutch Hub Thrust
  5. Hub, Front Clutch
  6. Set, Clutch Disc Front
  7. Plate, Front Clutch Pressure
  8. Ring, Front Clutch Pressure Plate Snap
  9. Spring, Front Clutch Piston Disc
  10. Ring, Front Clutch Piston Disc SPG BRG
  11. Piston, Front Clutch
  12. *$RIng, Frt Clutch Piston Center Oil
  13. *$Seal, Frt Clutch Piston Center Oil
  14. Cylinder, Front clutch
  15. Washer, Secondary Sun Gear Outer Thrust
  16. Washer, Secondary Sun Gear Inner Thrust
  17. Ring, Front Clutch Cylinder Snap
  18. Plate, Rear Clutch Pressure
  19. Set, Clutch Disc Rear
  20. *Bearing, Front Drum Needle
  21. Ring, Rear Clutch Piston SPG Ret Snap
  22. Seat, Rear Clutch Piston Spring
  23. Spring, Rear Clutch Piston
  24. Piston, w/Ball, Rear Clutch
  25. Ring, Rear Clutch Piston Outer Oil Seal
  26. *$Seal, Rear Clutch Piston Inner Oil Ring
  27. Drum, w/Gear and Bushing, Front
    Key, Woodruff
  28. *$Ring, FWD Sun Gear Frt Oil Seal
  29. *$RIng, FWD Sun Gear Inter Oil Seal
  30. Washer, FWD Sun Gear Front Thrust
  31. Gear, Forward Sun, Assy
  32. *$Ring, FWD Sun Gear Rear Oil Seal
  33. *Bearing, FWD Sun Gear Thrust
  34. Washer, FWD Sun Gear Rear Thrust
  35. Support, w/Bushing, Planetary Gears
  36. Bushing, Planetary Gear Support
  37. Clutch, One Way
  38. Ring, One Way Clutch Race Snap
  39. Race, One Way Clutch
  40. Drum, w/Planetary Gears, Rear Brake
  41. Washer, Output Shaft Thrust
  42. Gear, Ring
  43. Shaft, Output
  44. Ring, Output Shaft Snap
  45. *$O-Ring, Gov Oil Collector Sleeve
  46. Sleeve, Governor
  47. Ring, Governor Snap
  48. Ball, Steel
  49. *Bearing, Output Shaft
  50. Ring, Output Shaft Bearing Snap
  51. Gear, Speedometer Drive
  52. Nut, Companion Flange
    Washer, Companion Flange
    Pin, Cotter
  53. Governor, w/Weight
  54. Retainer, Valve Spring
  55. Spring, Governor Check Valve
  56. Valve, Governor
  57. Cover, Governor
  58. Bolt, Governor Cover
  59. Weight, Governor
  60. Bolt
    Washer, Lock

*Kit, Trans Bearing, Seal and Gasket
$Gasket Set, Transmission w/RIngs

Return to Top

transmission servos & brake bands
borg-warner
automatic
1971-72
scout ii

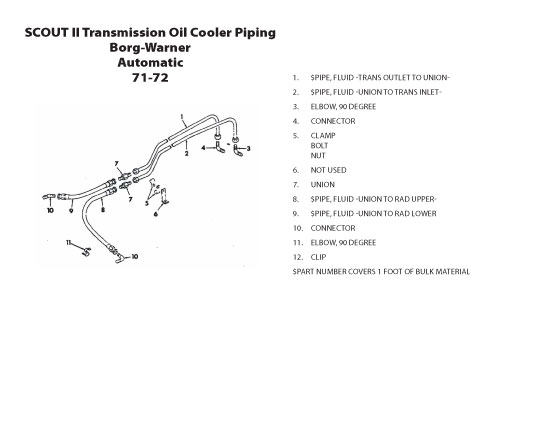

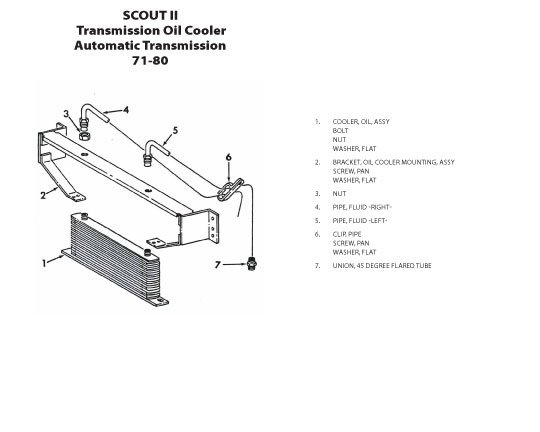

transmission oil cooler
automatic transmission
1971-80
scout ii

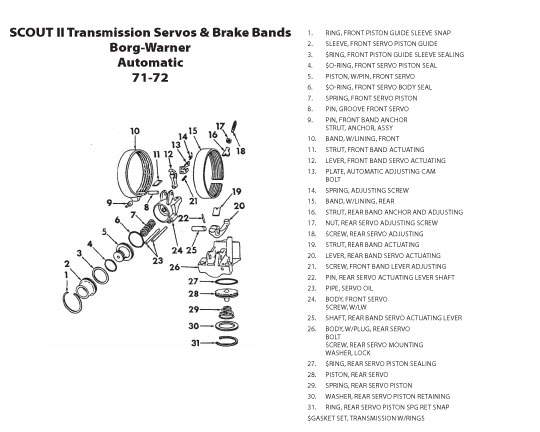

Transmission Servos and Brake Bands
Click Image for Larger View
  1. Ring, Front Piston Guide Sleeve Snap
  2. Sleeve, Front Servo Piston Guide
  3. $RIng, Front Piston Guide Sleeve Sealing
  4. $O-Ring, Front Servo Piston Seal
  5. Piston, w/Pin, Front Servo
  6. $O-Ring, Front Servo Body Seal
  7. Spring, Front Servo Piston
  8. Pin, Groove Front Servo
  9. Pin, Front Band Anchor
    Strut, Anchor, Assy
  10. Band, w/Lining, Front
  11. Strut, Front Band Actuating
  12. Lever, Front Band Servo Actuating
  13. Plate, Automatic Adjusting Cam
    Bolt
  14. Spring, Adjusting Screw
  15. Band, w/Lining, Rear
  16. Strut, Rear Band Anchor and Adjusting
  17. Nut, Rear Servo Adjusting Screw
  18. Screw, Rear Servo Adjusting
  19. Strut, Rear Band Actuating
  20. Lever, Rear Band Servo Actuating
  21. Screw, Front Band Lever Adjusting
  22. Pin, Rear Servo Actuating Lever Shaft
  23. Pipe, Servo Oil
  24. Body, Front Servo
    Screw, W/LW
  25. Shaft, Rear Band Servo Actuating Lever
  26. Body, w/Plug, Rear Servo
    Bolt
    Screw, Rear Servo Mounting
    Washer, Lock
  27. $Ring, Rear Servo Piston Sealing
    Piston, Rear Servo
    Spring, Rear Servo Piston
    Washer, Rear Servo Piston Retaining
    Ring, Rear Servo Piston SPG RET Snap

$Gasket Set, Transmission w/Rings

 Transmission Oil Cooler
Click Image for Larger View
  1. Cooler, Oil, Assy
    Bolt
    Nut
    Washer, Flat
  2. Bracket, Oil Cooler Mounting, Assy
    Screw, Pan
    Washer, Flat
  3. Nut
  4. Pipe, Fluid -Right-
  5. Pipe, Fluid -Left-
  6. Clip, Pipe
    Screw, Pan
    Washer, Flat
  7. Union, 45 Degree Flared Tube

Return to Top

transmission oil cooler piping
borg-warner
automatic
1971-72
scout ii		 main transmission control
borg-warner
automatic
1971-72
scout ii
Transmission Oil Cooler Piping
Click Image for Larger View
  1. $Pipe, Fluid -Trans Outlet to Union-
  2. $Pipe, Fluid -Union to Trans Inlet-
  3. Elbow, 90 Degree
  4. Connector
  5. Clamp
    Bolt
    Nut
  6. Not Used
  7. Union
  8. $Pipe, Fluid -Union to Rad Upper-
  9. $Pipe, Fluid -Union to Rad Lower
  10. Connector
  11. Elbow, 90 Degree
  12. Clip

$Part Number Covers 1 Foot of Bulk Material

 Main Transmission Control Automatic
Click Image for Larger View
  1. Valve, w/Pin, Shift
  2. $Seal, Shift Valve O-Ring
    Bolt
    Bolt
    *Spring, Downshift Valve
    *Screen, Valve Body

*Parts Not Illustrated
Kit, w/Balls and Ring, Valve Repair
$Gasket Set, Transmission w/Rings

Return to Top


Return to Parts Page

2075 Business 61 - Fort Madison, Iowa 52627 - 319.372.3272 - FAX: 319.372.3281 - info@scoutconnection.com
  home - about us - products - services - links - photos - faq - contact us
  Website Design by: Out of the Box Graphic Productions
