Scout Light Parts

Electrical System
"Thanks for the great parts and service!” Eric Monse, TX

We have the largest inventory of N.O.S. (New Old Stock) parts in the United States! Our 1200 square foot parts, sales and accessories showroom is big and bright with a varied inventory and wide selection of new, used and NOS parts and accessories for your IH vehicle. We are a Scout Light-Line Dealer. Browse our digital parts book for all your IH needs! Give a call for medium-duty truck needs (LoadStar, FleetStar, CargoStar, S-Series). Contact us for your L, R, S truck needs, we have a small selection of used parts and ability to source many N.O.S. and reproduction parts. To Order Call: 319.372.3272.

Diagrams may not be actual representations of part image.

battery box
1971-80
scout ii/terra/traveler
distributor
4 cylinder point style
1971-74
scout ii

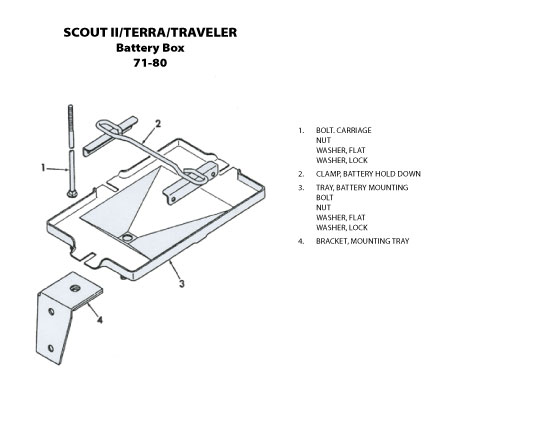

Battery Box
Click Image for Larger View
  1. Bolt. Carriage
    Nut
    Washer, Flat
    Washer, Lock
  2. Clamp, Battery Hold Down
  3. Tray, Battery Mounting
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  4. Bracket, Mounting Tray

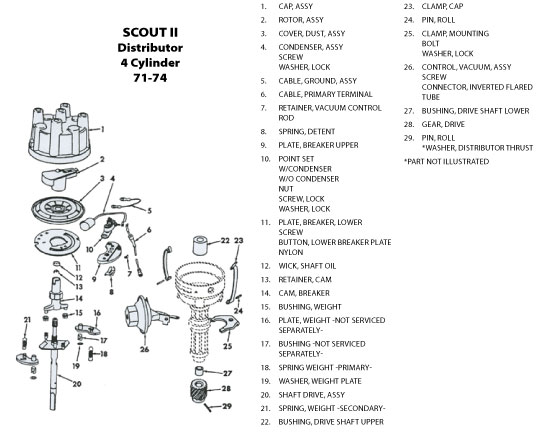

Distributor
Click Image for Larger View
  1. Cap, Assy
  2. Rotor, Assy
  3. Cover, Dust, Assy
  4. Condenser, Assy
    Screw
    Washer, Lock
  5. Cable, Ground, Assy
  6. Cable, Primary Terminal
  7. Retainer, Vacuum Control Rod
  8. Spring, Detent
  9. Plate, Breaker Upper
  10. Point Set
    w/Condenser
    w/o Condenser
    Nut
    Screw, Lock
    Washer, Lock
  11. Plate, Breaker, Lower
    Screw
    Button, Lower Breaker Plate Nylon
  12. Wick, Shaft Oil
  13. Retainer, Cam
  14. Cam, Breaker
  15. Bushing, Weight
  16. Plate, Weight -Not Serviced Separately-
  17. Bushing -Not Serviced Separately-
  18. Spring Weight -Primary-
  19. Washer, Weight Plate
  20. Shaft Drive, Assy
  21. Spring, Weight -Secondary-
  22. Bushing, Drive Shaft Upper
  23. Clamp, Cap
  24. Pin, Roll
  25. Clamp, Mounting
    Bolt
    Washer, Lock
  26. Control, Vacuum, Assy
    Screw
    Connector, Inverted Flared Tube
  27. Bushing, Drive Shaft Lower
  28. Gear, Drive
  29. Pin, Roll
    *Washer, Distributor Thrust

*Part Not Illustrated


Return to Top


distributor
V8 point style
1971-74
scout ii

distributor electronic
4 cylinder &V8
1975-78
scout ii/terra/traveler

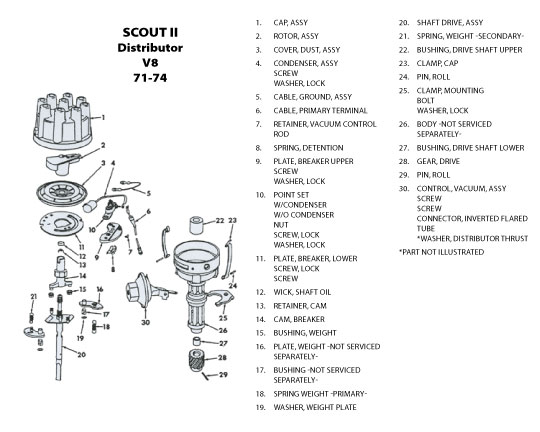

Distributor
Click Image for Larger View
  1. Cap, Assy
  2. Rotor, Assy
  3. Cover, Dust, Assy
  4. Condenser, Assy
    Screw
    Washer, Lock
  5. Cable, Ground, Assy
  6. Cable, Primary Terminal
  7. Retainer, Vacuum Control Rod
  8. Spring, Detention
  9. Plate, Breaker Upper
    Screw
    Washer, Lock
  10. Point Set
    w/Condenser
    w/o Condenser
    Nut
    Screw, Lock
    Washer, Lock
  11. Plate, Breaker, Lower
    Screw, Lock
    Screw
  12. Wick, Shaft Oil
  13. Retainer, Cam
  14. Cam, Breaker
  15. Bushing, Weight
  16. Plate, Weight -Not Serviced Separately-
  17. Bushing -Not Serviced Separately-
  18. Spring Weight -Primary-
  19. Washer, Weight Plate
  20. Shaft Drive, Assy
  21. Spring, Weight -Secondary-
  22. Bushing, Drive Shaft Upper
  23. Clamp, Cap
  24. Pin, Roll
  25. Clamp, Mounting
    Bolt
    Washer, Lock
  26. Body -Not Serviced Separately-
  27. Bushing, Drive Shaft Lower
  28. Gear, Drive
  29. Pin, Roll
  30. Control, Vacuum, Assy
    Screw
    Screw
    Connector, Inverted Flared Tube
    *Washer, Distributor Thrust

*Part Not Illustrated

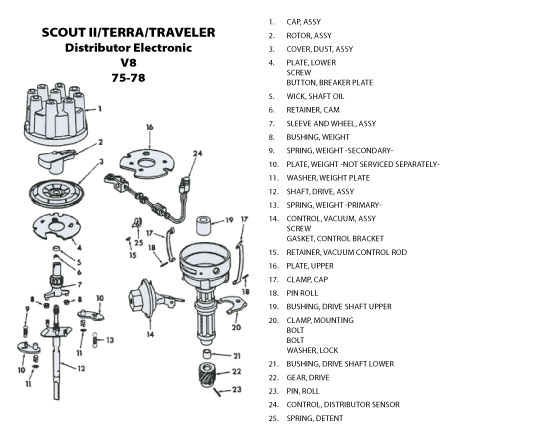

Distributor Electronic
Click Image for Larger View
  1. Cap, Assy
  2. Rotor, Assy
  3. Cover, Dust, Assy
  4. Plate, Lower
    Screw
    Button, Breaker Plate
  5. Wick, Shaft Oil
  6. Retainer, Cam
  7. Sleeve and Wheel, Assy
  8. Bushing, Weight
  9. Spring, Weight -Secondary-
  10. Plate, Weight -Not Serviced Separately-
  11. Washer, Weight Plate
  12. Shaft, Drive, Assy
  13. Spring, Weight -Primary-
  14. Control, Vacuum, Assy
    Screw
    Gasket, Control Bracket
  15. Retainer, Vacuum Control Rod
  16. Plate, Upper
  17. Clamp, Cap
  18. Pin Roll
  19. Bushing, Drive Shaft Upper
  20. Clamp, mounting
    Bolt
    Bolt
    Washer, Lock
  21. Bushing, Drive Shaft Lower
  22. Gear, Drive
  23. Pin, Roll
  24. Control, Distributor Sensor
  25. Spring, Detent

Return to Top


distributor -integral module-
4 cylinder
1978-80
scout ii

distributor -w/integral module-
V8
1978-80
scout ii

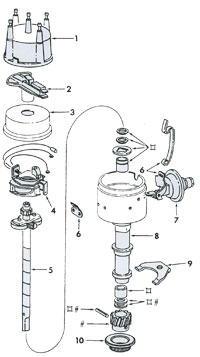

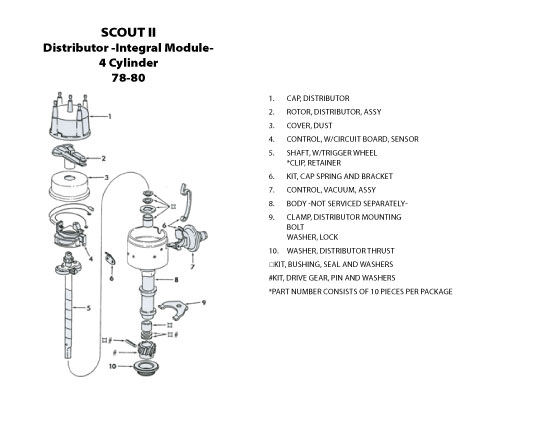

Distributor Integral Module
Click Image for Larger View
  1. Cap, Distributor
  2. Rotor, Distributor, Assy
  3. Cover, Dust
  4. Control, w/Circuit Board, Sensor
  5. Shaft, w/Trigger wheel
    *Clip, Retainer
  6. Kit, Cap Spring and Bracket
  7. Control, Vacuum, Assy
  8. Body -Not Serviced Separately-
  9. Clamp, Distributor Mounting
    Bolt
    Washer, Lock
  10. Washer, Distributor Thrust

+Kit, Bushing, Seal and Washers

#Kit, Drive Gear, Pin and Washers

*Part Number Consists of 10 Pieces Per Package

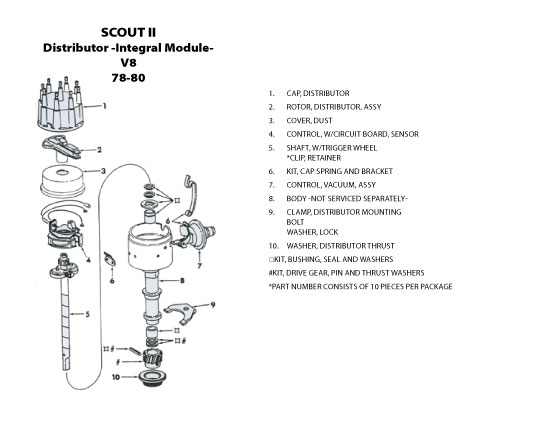

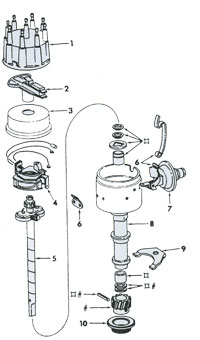

Distributor Integral Moudule
Click Image for Larger View
  1. Cap, Distributor
  2. Rotor, Distributor, Assy
  3. Cover, Dust
  4. Control, w/Circuit Board, Sensor
  5. Shaft, w/Trigger wheel
    *Clip, Retainer
  6. Kit, Cap Spring and Bracket
  7. Control, Vacuum, Assy
  8. Body -Not Serviced Separately-
  9. Clamp, Distributor Mounting
    Bolt
    Washer, Lock
  10. Washer, Distributor Thrust

*Kit, Bushing, Seal and Washers

#Kit, Drive Gear, Pin and Thrust Washers

*Part Number Consists of 10 Pieces Per Package


Return to Top


distributor -w/breaker points-
4 cylinder
78-80
scout ii

generator
4 cylinder & V8
1971-80
scout ii/terra/traveler

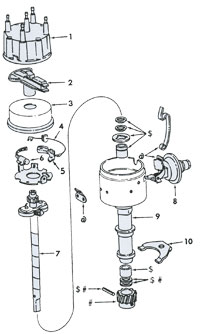

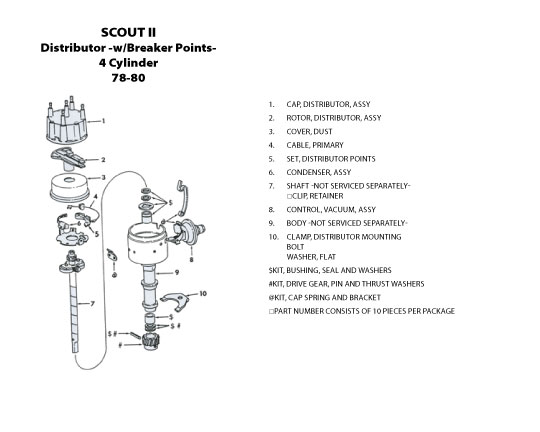

Distributor with Breaker Points
Click Image for Larger View
  1. Cap, Distributor, Assy
  2. Rotor, Distributor, Assy
  3. Cover, Dust
  4. Cable, Primary
  5. Set, Distributor Points
  6. Condenser, Assy
  7. Shaft -Not Serviced Separately-
    +Clip, Retainer
  8. Control, Vacuum, Assy
  9. Body -Not Serviced Separately-
  10. Clamp, Distributor Mounting
    Bolt
    Washer, Flat

$Kit, Bushing, Seal and Washers

#Kit, Drive Gear, Pin and Thrust Washers

@Kit, Cap Spring and Bracket

+Part Number Consists of 10 Pieces Per Package

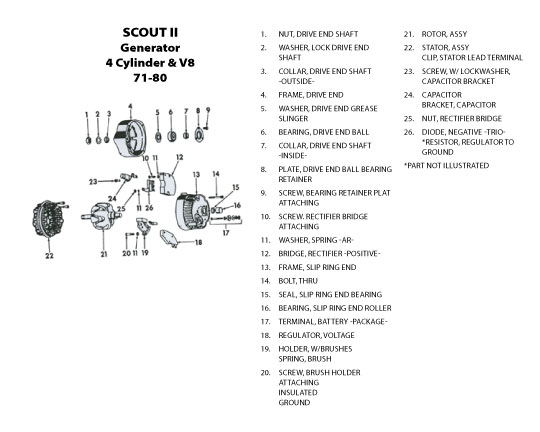

Generator
Click Image for Larger View
  1. Nut, Drive End Shaft
  2. Washer, Lock Drive End Shaft
  3. Collar, Drive End Shaft -Outside-
  4. Frame, Drive End
  5. Washer, Drive End Grease Slinger
  6. Bearing, Drive End Ball
  7. Collar, Drive End Shaft -Inside-
  8. Plate, Drive End Ball Bearing Retainer
  9. Screw, Bearing Retainer Plat Attaching
  10. Screw. Rectifier Bridge Attaching
  11. Washer, Spring -AR-
  12. Bridge, Rectifier -Positive-
  13. Frame, Slip Ring End
  14. Bolt, Thru
  15. Seal, Slip Ring End Bearing
  16. Bearing, Slip Ring End Roller
  17. Terminal, Battery -Package-
  18. Regulator, Voltage
  19. Holder, w/Brushes
    Spring, Brush
  20. Screw, Brush Holder Attaching
    Insulated
    Ground
  21. Rotor, Assy
  22. Stator, Assy
    Clip, Stator Lead Terminal
  23. Screw, w/ Lockwasher, Capacitor Bracket
  24. Capacitor
    Bracket, Capacitor
  25. Nut, Rectifier Bridge
  26. Diode, Negative -Trio-
    *Resistor, Regulator to Ground

*Part Not Illustrated


Return to Top


generator bracket & drive
V8
w/o air conditioning
1971-80
scout ii/terra/traveler

generator bracket & drive
6 cylinder
1971-75
scout ii/terra/traveler

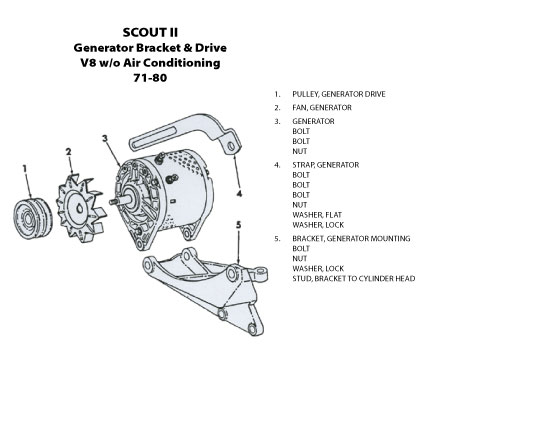

Generator Bracket and Drive
Click Image for Larger View
  1. Pulley, Generator Drive
  2. Fan, Generator
  3. Generator
    Bolt
    Bolt
    Nut
  4. Strap, Generator
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  5. Bracket, Generator Mounting
    Bolt
    Nut
    Washer, Lock
    Stud, Bracket to Cylinder Head

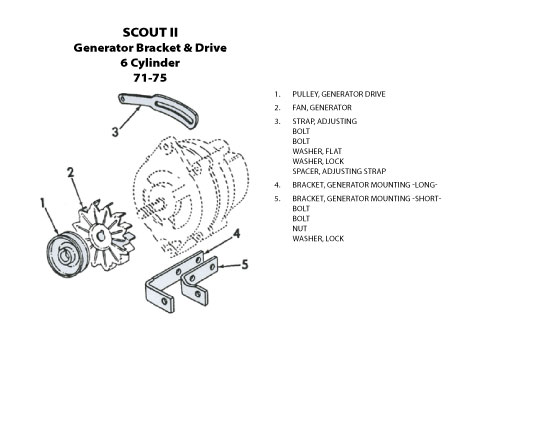

Generator Bracket & Drive
Click Image for Larger View
  1. Pulley, Generator Drive
  2. Fan, Generator
  3. Strap, Adjusting
    Bolt
    Bolt
    Washer, Flat
    Washer, Lock
    Spacer, Adjusting Strap
  4. Bracket, Generator Mounting -Long-
  5. Bracket, Generator Mounting -Short-
    Bolt
    Bolt
    Nut
    Washer, Lock

Return to Top

generator bracket & drive
diesel
1971-80
scout ii/terra/traveler

generator bracket & drive
V8 with air conditioning
1980
scout ii/terra/traveler

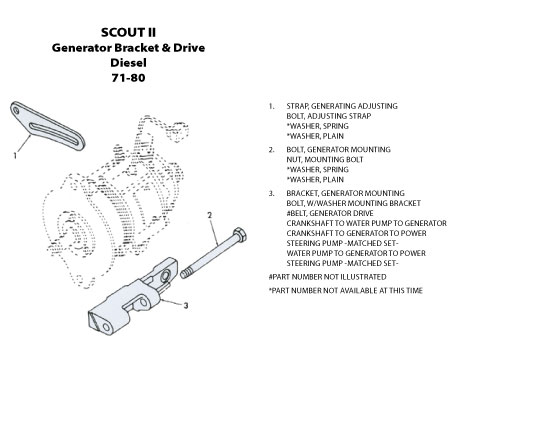

Generator Bracket & Drive
Click Image for Larger View
  1. Strap, generating Adjusting
    Bolt, Adjusting Strap
    *Washer, Spring
    *Washer, Plain
  2. Bolt, Generator Mounting
    Nut, Mounting Bolt
    *Washer, Spring
    *Washer, Plain
  3. Bracket, Generator Mounting
    Bolt, w/Washer Mounting Bracket
    #Belt, Generator Drive
    Crankshaft to Water Pump to Generator
    Crankshaft to Generator to Power
    Steering Pump -Matched Set-
    Water Pump to Generator to Power
    Steering Pump -Matched Set-

#Part Number Not Illustrated

*Part Number Not Available at this Time

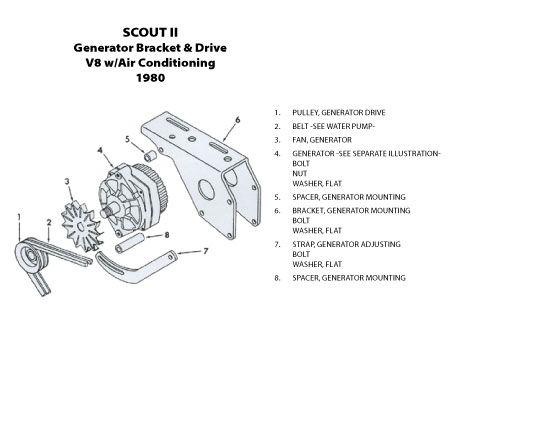

Generator Bracket & Drive
Click Image for Larger View
  1. Pulley, Generator Drive
  2. Belt -See Water Pump-
  3. Fan, Generator
  4. Generator -See Separate Illustration-
    Bolt
    Nut
    Washer, Flat
  5. Spacer, Generator Mounting
  6. Bracket, Generator Mounting
    Bolt
    Washer, Flat
  7. Strap, Generator Adjusting
    Bolt
    Washer, Flat
  8. Spacer, Generator Mounting

Return to Top

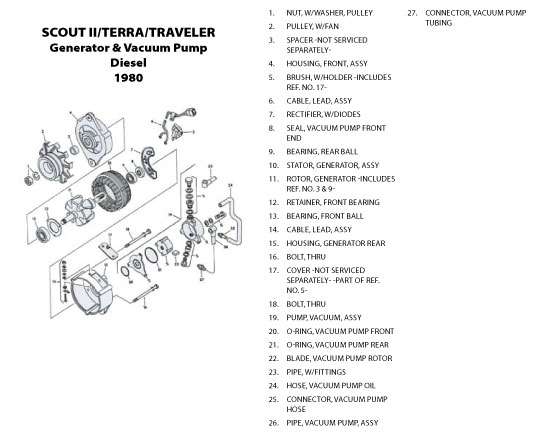

generator & vacuum pump
diesel
1979-80
scout ii/terra/traveler
generator & vacuum pump
diesel
1976-80
scout ii/terra/traveler

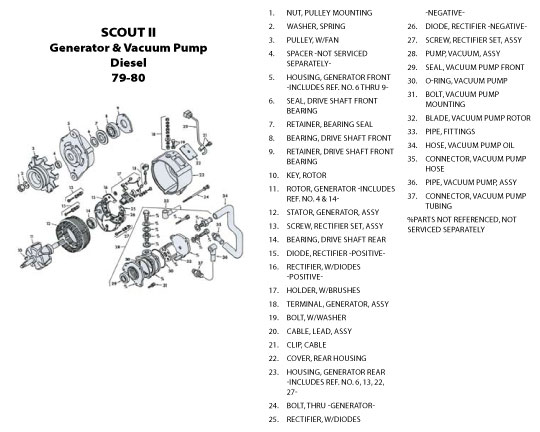

Generator & Vacuum Pump
Click Image for Larger View
  1. Nut, Pulley Mounting
  2. Washer, Spring
  3. Pulley, w/Fan
  4. Spacer -Not Serviced Separately-
  5. Housing, Generator Front -Includes Ref. No. 6 thru 9-
  6. Seal, Drive Shaft Front Bearing
  7. Retainer, Bearing Seal
  8. Bearing, Drive Shaft Front
  9. Retainer, Drive Shaft Front bearing
  10. Key, Rotor
  11. Rotor, Generator -Includes Ref. No. 4 & 14-
  12. Stator, Generator, Assy
  13. Screw, Rectifier Set, Assy
  14. Bearing, Drive Shaft Rear
  15. Diode, Rectifier -Positive-
  16. Rectifier, w/Diodes -Positive-
  17. Holder, w/Brushes
  18. Terminal, Generator, Assy
  19. Bolt, w/Washer
  20. Cable, Lead, Assy
  21. Clip, Cable
  22. Cover, Rear Housing
  23. Housing, Generator Rear -Includes Ref. No. 6, 13, 22, 27-
  24. Bolt, Thru -Generator-
  25. Rectifier, w/Diodes -Negative-
  26. Diode, Rectifier -Negative-
  27. Screw, Rectifier Set, Assy
  28. Pump, Vacuum, Assy
  29. Seal, Vacuum Pump Front
  30. O-Ring, Vacuum Pump
  31. Bolt, Vacuum Pump Mounting
  32. Blade, Vacuum Pump Rotor
  33. Pipe, Fittings
  34. Hose, Vacuum Pump Oil
  35. Connector, Vacuum Pump Hose
  36. Pipe, Vacuum Pump, Assy
  37. Connector, Vacuum Pump Tubing

%Parts Not Referenced, Not Serviced Separately

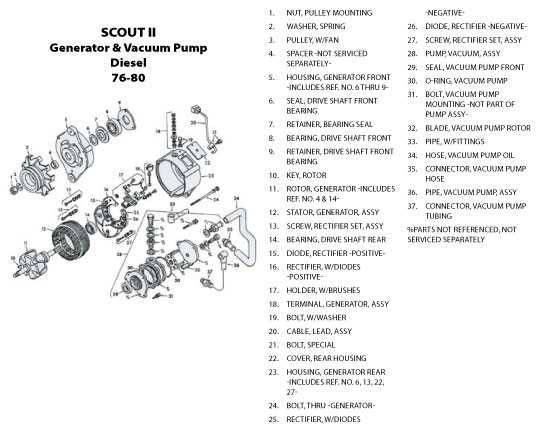

Generator & Vacuum Pump 76-80
Click Image for Larger View
  1. Nut, Pulley Mounting
  2. Washer, Spring
  3. Pulley, w/Fan
  4. Spacer -Not Serviced Separately-
  5. Housing, Generator Front -Includes Ref. No. 6 thru 9-
  6. Seal, Drive Shaft Front Bearing
  7. Retainer, Bearing Seal
  8. Bearing, Drive Shaft Front
  9. Retainer, Drive Shaft Front bearing
  10. Key, Rotor
  11. Rotor, Generator -Includes Ref. No. 4 & 14-
  12. Stator, Generator, Assy
  13. Screw, Rectifier Set, Assy
  14. Bearing, Drive Shaft Rear
  15. Diode, Rectifier -Positive-
  16. Rectifier, w/Diodes -Positive-
  17. Holder, w/Brushes
  18. Terminal, Generator, Assy
  19. Bolt, w/Washer
  20. Cable, Lead, Assy
  21. Bolt, Special
  22. Cover, Rear Housing
  23. Housing, Generator Rear -Includes Ref. No. 6, 13, 22, 27-
  24. Bolt, Thru -Generator-
  25. Rectifier, w/Diodes -Negative-
  26. Diode, Rectifier -Negative-
  27. Screw, Rectifier Set, Assy
  28. Pump, Vacuum, Assy
  29. Seal, Vacuum Pump Front
  30. O-Ring, Vacuum Pump
  31. Bolt, Vacuum Pump Mounting -Not
    Part Of Pump Assy-
  32. Blade, Vacuum Pump Rotor
  33. Pipe, w/Fittings
  34. Hose, Vacuum Pump Oil
  35. Connector, Vacuum Pump Hose
  36. Pipe, Vacuum Pump, Assy
  37. Connector, Vacuum Pump Tubing

%Parts Not Referenced, Not Serviced Separately


Return to Top

generator & vacuum pump
diesel
1980
scout ii/terra/traveler

horn & mounting
1971-80
scout ii/terra/traveler

Generator & Vacuum Pump
Click Image for Larger View
  1. Nut, w/Washer, Pulley
  2. Pulley, w/Fan
  3. Spacer -Not Serviced Separately-
  4. Housing, Front, Assy
  5. Brush, w/Holder -Includes Ref. No. 17-
  6. Cable, Lead, Assy
  7. Rectifier, w/Diodes
  8. Seal, Vacuum Pump Front End
  9. Bearing, Rear Ball
  10. Stator, Generator, Assy
  11. Rotor, Generator -Includes Ref. No. 3 & 9-
  12. Retainer, Front Bearing
  13. Bearing, Front Ball
  14. Cable, Lead, Assy
  15. Housing, Generator Rear
  16. Bolt, Thru
  17. Cover -Not Serviced Separately- -Part of Ref. No. 5-
  18. Bolt, Thru
  19. Pump, Vacuum, Assy
  20. O-Ring, Vacuum Pump Front
  21. O-Ring, Vacuum Pump Rear
  22. Blade, Vacuum Pump Rotor
  23. Pipe, w/Fittings
  24. Hose, Vacuum Pump Oil
  25. Connector, Vacuum Pump Hose
  26. Pipe, Vacuum Pump, Assy
  27. Connector, Vacuum Pump Tubing

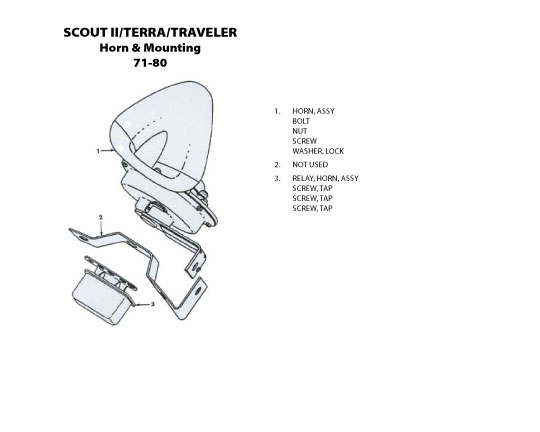

Horn and Mounting
Click Image for Larger View
  1. Horn, Assy
    Bolt
    Nut
    Screw
    Washer, Lock
  2. Not Used
  3. Relay, Horn, Assy
    Screw, Tap
    Screw, Tap
    Screw, Tap

Return to Top

instrument cluster
temperature/oil
1971-80
scout ii/terra/traveler

instrument cluster
alternator/fuel
1971-80
scout ii/terra/traveler

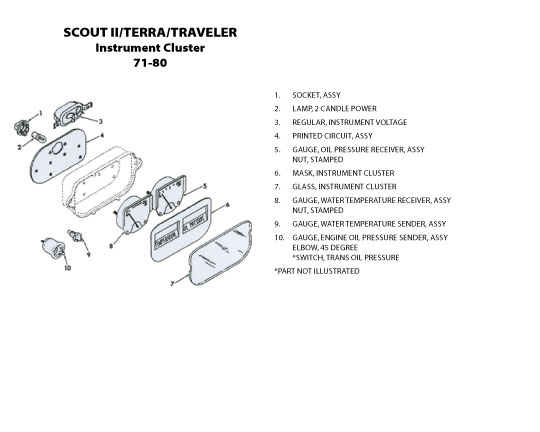

Instrument Cluster
Click Image for Larger View
  1. Socket, Assy
  2. Lamp, 2 Candle Power
  3. Regular, Instrument Voltage
  4. Printed Circuit, Assy
  5. Gauge, Oil Pressure Receiver, Assy
    Nut, Stamped
  6. Mask, Instrument Cluster
  7. Glass, Instrument Cluster
  8. Gauge, Water Temperature Receiver, Assy
    Nut, Stamped
  9. Gauge, Water Temperature Sender, Assy
  10. Gauge, Engine Oil Pressure Sender, Assy
    Elbow, 45 Degree
    *Switch, Trans Oil Pressure

*Part Not Illustrated

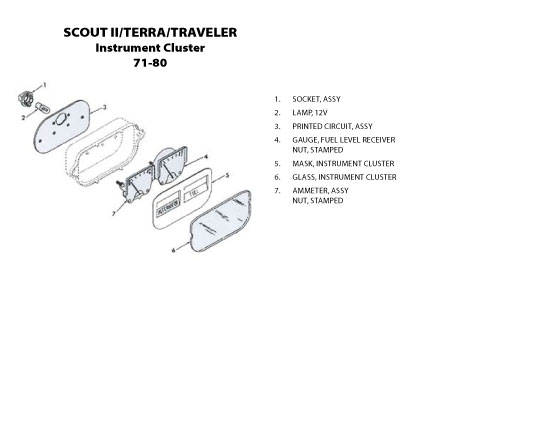

Instrument Cluster
Click Image for Larger View
  1. Socket, Assy
  2. Lamp, 12V
  3. Printed Circuit, Assy
  4. Gauge, Fuel Level Receiver
    Nut, Stamped
  5. Mask, Instrument Cluster
  6. Glass, Instrument Cluster
  7. Ammeter, Assy
    Nut, Stamped

Return to Top


instrument cluster
diesel
1971-80
scout ii

electronic ignition control
1975-78
scout ii/terra/traveler

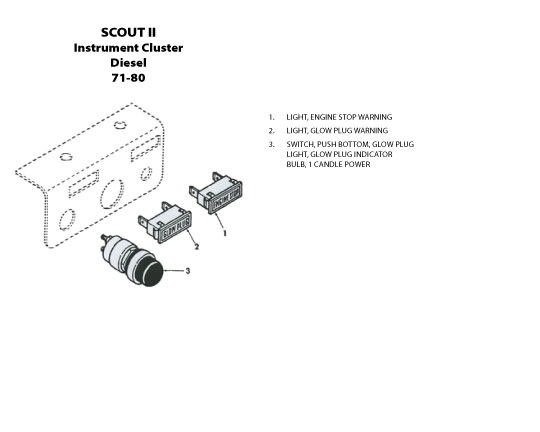

Instrument Cluster
Click Image for Larger View
  1. Light, Engine Stop Warning
  2. Light, Glow Plug Warning
  3. Switch, Push Bottom, Glow Plug
    Light, Glow Plug Indicator
    Bulb, 1 Candle Power

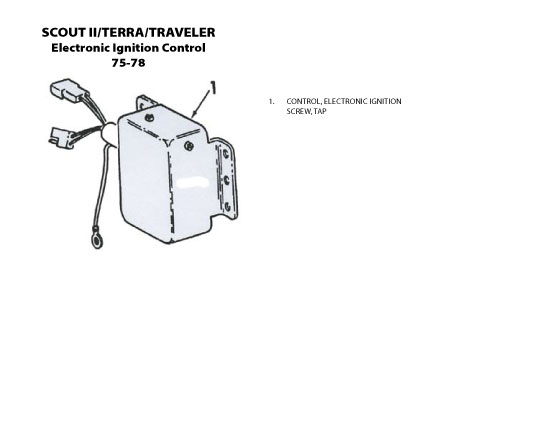

Electronic Ignition Control
Click Image for Larger View
  1. Control, Electronic Ignition
    Screw, Tap

Return to Top


ignition coil
4 cylinder/6 cylinder/v8
1971-80
scout ii

cargo light & switch
1976-80
terra

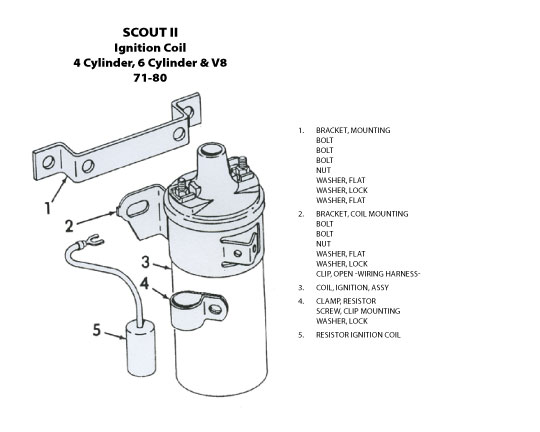

Ignition Coil
Click Image for Larger View
  1. Bracket, Mounting
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
    Washer, Flat
  2. Bracket, Coil Mounting
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
    Clip, Open -Wiring Harness-
  3. Coil, Ignition, Assy
  4. Clamp, Resistor
    Screw, Clip Mounting
    Washer, Lock
  5. Resistor Ignition Coil

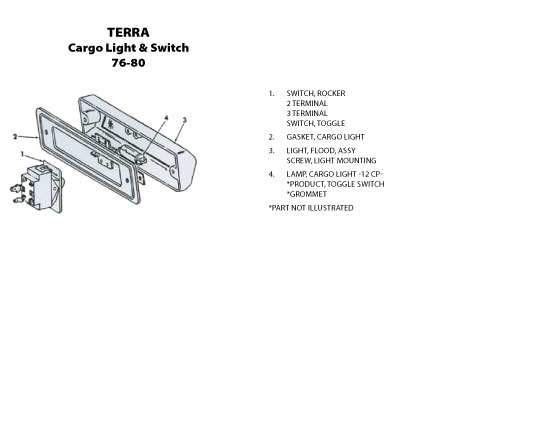

Cargo Light & Switch
Click Image for Larger View
  1. Switch, Rocker
    2 Terminal
    3 terminal
    Switch, Toggle
  2. Gasket, Cargo Light
  3. Light, Flood, Assy
    Screw, Light Mounting
  4. Lamp, Cargo Light -12 CP-
    *Product, Toggle Switch
    *Grommet

*Part Not Illustrated


Return to Top


courtesy light
1971-80
scout ii/terra/traveler

dome light
1971-80
scout ii/terra/traveler

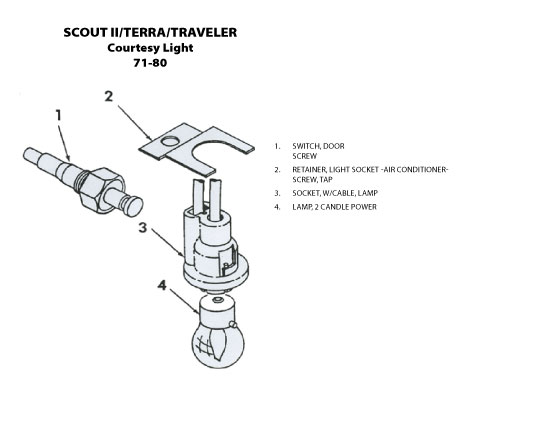

Courtesy Light
Click Image for Larger View
  1. Switch, Door
    Screw
  2. Retainer, Light Socket -Air Conditioner-
    Screw, Tap
  3. Socket, w/Cable, Lamp
  4. Lamp, 2 Candle Power

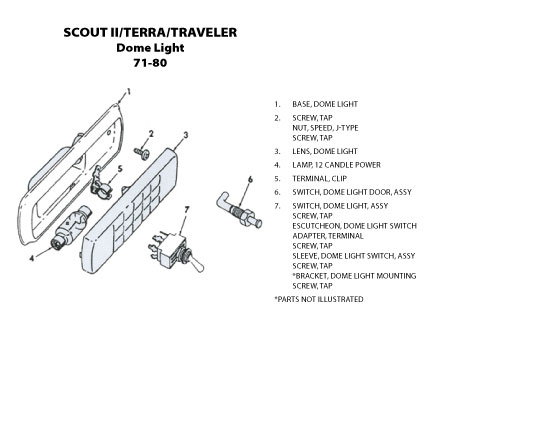

Dome Light
Click Image for Larger View
  1. Base, Dome Light
  2. Screw, Tap
    Nut, Speed, J-Type
    Screw, Tap
  3. Lens, Dome Light
  4. Lamp, 12 Candle Power
  5. Terminal, Clip
  6. Switch, Dome Light Door, Assy
  7. Switch, Dome Light, Assy
    Screw, Tap
    Escutcheon, Dome Light Switch
    Adapter, Terminal
    Screw, Tap
    Sleeve, Dome Light Switch, Assy
    Screw, Tap
    *Bracket, Dome Light Mounting
    Screw, Tap

*Parts Not Illustrated


Return to Top


fuse block
1971-78
scout ii/terra/traveler

hazard warning & turn signal switch
1971-80
scout ii/terra/traveler

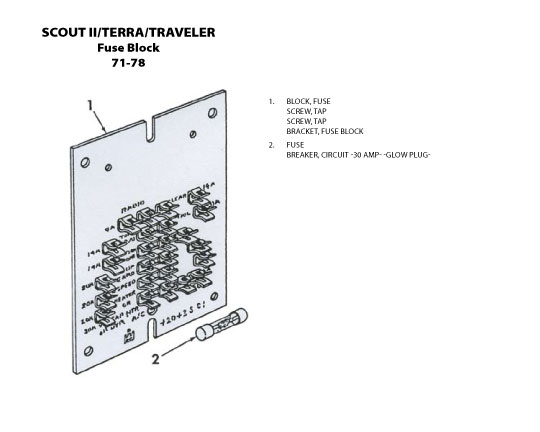

Fuse Block
Click Image for Larger View
  1. Block, Fuse
    Screw, Tap
    Screw, tap
    Bracket, Fuse Block
  2. Fuse
    Breaker, Circuit -30 Amp- -Glow Plug-

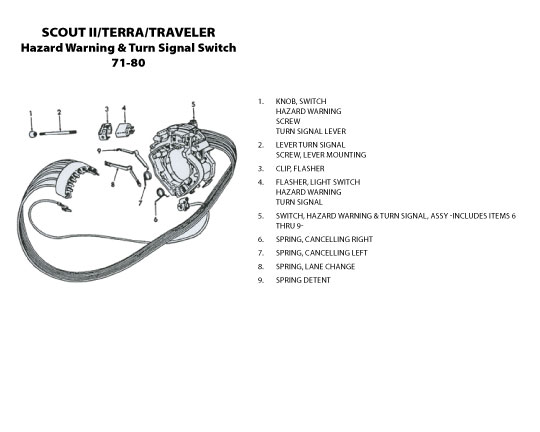

Hazard Warning & Turn Signal Switch
Click Image for Larger View
  1. Knob, Switch
    Hazard Warning
    Screw
  2. Turn Signal Lever
  3. Lever Turn Signal
    Screw, Lever Mounting
    Clip, Flasher
  4. Flasher, Light Switch
    Hazard Warning
    Turn Signal
  5. Switch, Hazard Warning & Turn Signal, Assy -Includes Items 6 thru 9-
  6. Spring, Canceling Right
  7. Spring, Canceling Left
  8. Spring, Lane Change
  9. Spring Detent

Return to Top

instrument panel illumination
1971-80
scout ii/terra/traveler

headlight
1971-79
scout ii/terra/traveler

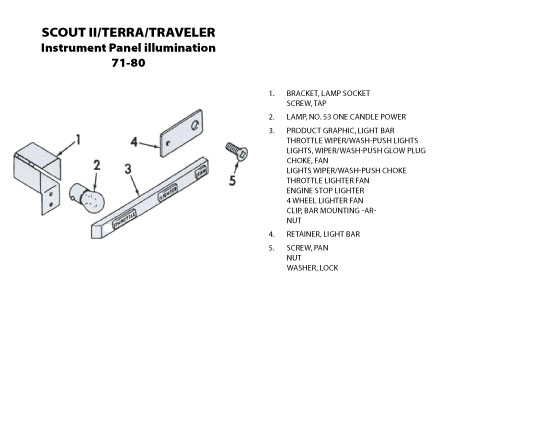

Instrument Panel Illumination
Click Image for Larger View
  1. Bracket, Lamp Socket
    Screw, Tap
  2. Lamp, No. 53 One Candle Power
  3. Product Graphic, Light Bar
    Throttle Wiper/Wash-Push Lights
    Lights, Wiper/Wash-Push Glow Plug
    Choke, Fan
    Lights Wiper/Wash-Push Choke
    Throttle Lighter Fan
    Engine Stop Lighter
    4 Wheel Lighter Fan
    Clip, Bar Mounting -AR-
    Nut
  4. Retainer, Light Bar
  5. Screw, Pan
    Nut
    Washer, Lock

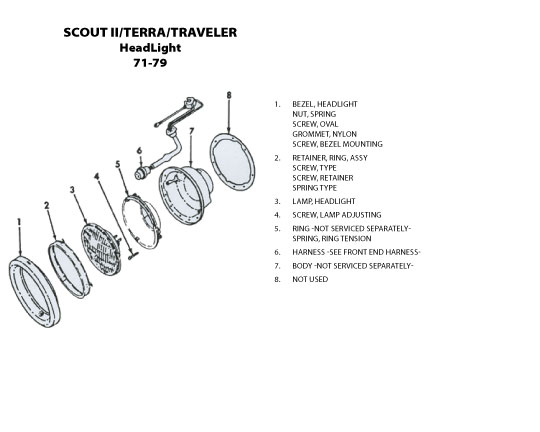

Headlight
Click Image for Larger View
  1. Bezel, Headlight
    Nut, Spring
    Screw, Oval
    Grommet, Nylon
    Screw, Bezel Mounting
  2. Retainer, Ring, Assy
    Screw, Type
    Screw, Retainer
    Spring Type
  3. Lamp, Headlight
  4. Screw, Lamp Adjusting
  5. Ring -Not Serviced Separately-
  6. Spring, Ring Tension
    Harness -See Front End Harness-
  7. Body -Not Serviced Separately-
  8. Not Used

Return to Top

headlight
1980
scout ii/terra/traveler
license plate & lamp mounting
1971-80
scout ii/terra

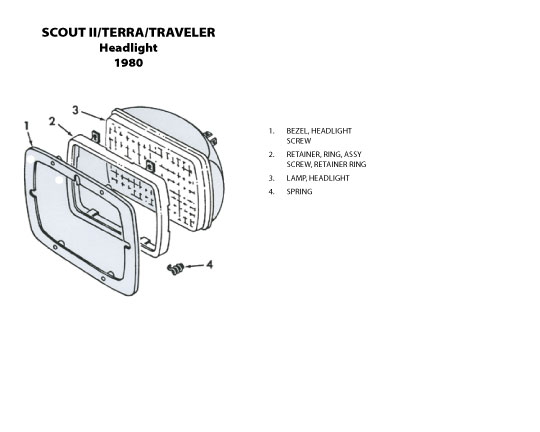

Headlight
Click Image for Larger View
  1. Bezel, Headlight
    Screw
  2. Retainer, Ring, Assy
    Screw, Retainer Ring
  3. Lamp, Headlight
  4. Spring

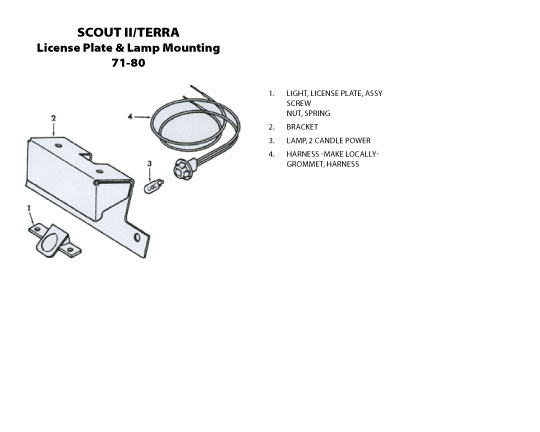

License Plate & Lamp Mounting
Click Image for Larger View
  1. Light, License Plate, Assy
    Screw
    Nut, Spring
  2. Bracket
  3. Lamp, 2 Candle Power
  4. Harness -Make Locally-
    Grommet, Harness

Return to Top

license plate & lamp mounting
1976-80
traveler

parking light
1971-80
scout ii/terra/traveler

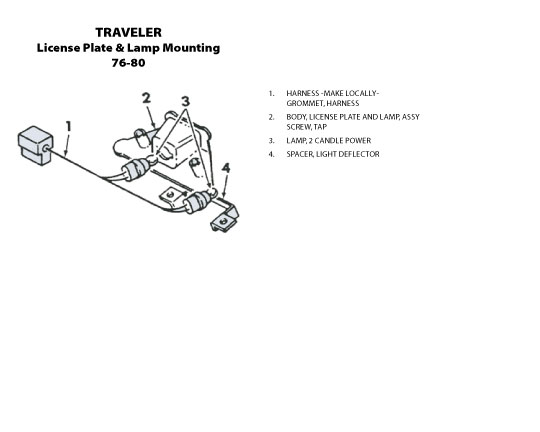

License Plate & Lamp Mounting
Click Image for Larger View
  1. Harness -Make Locally-
    Grommet, Harness
  2. Body, License Plate and Lamp, Assy
    Screw, Tap
  3. Lamp, 2 Candle Power
  4. Spacer, Light Deflector

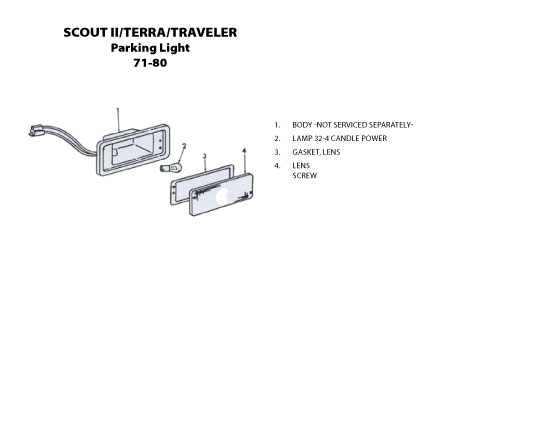

Parking Light
Click Image for Larger View
  1. Body -Not Serviced Separately-
  2. Lamp 32-4 Candle Power
  3. Gasket, Lens
  4. Lens
    Screw

Return to Top

side marker light front & rear
1971-78
scout ii/terra/traveler

side marker lights
front & rear
1978-80
scout ii/terra/traveler

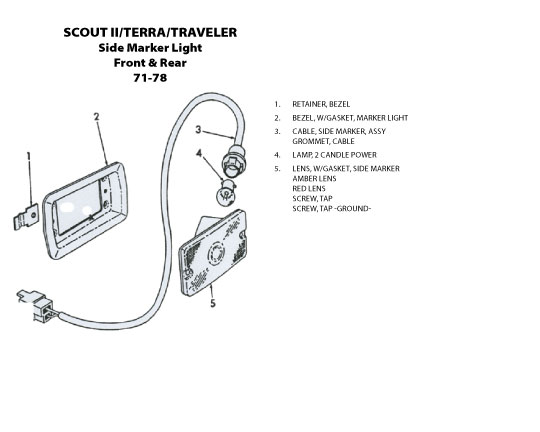

Side Marker Light Front & Rear
Click Image for Larger View
  1. Retainer, Bezel
  2. Bezel, w/Gasket, Marker Light
  3. Cable, Side Marker, Assy
    Grommet, Cable
  4. Lamp, 2 Candle Power
  5. Lens, w/Gasket, Side Marker
    Amber Lens
    Red Lens
    Screw, Tap
    Screw, Tap -Ground-

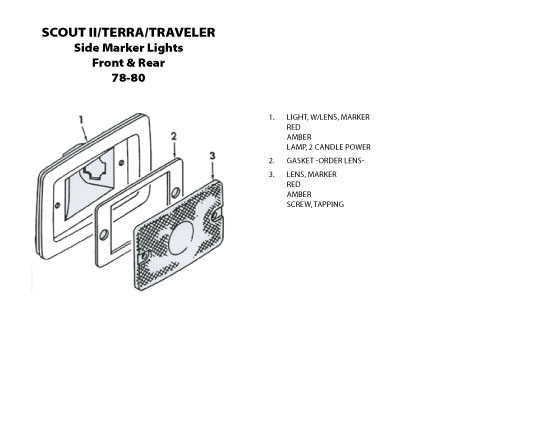

Side Marker Lights Front & Rear
Click Image for Larger View
  1. Light, w/Lens, Marker
    Red
    Amber
    Lamp, 2 Candle Power
  2. Gasket -Order Lens-
  3. Lens, Marker
    Red
    Amber
    Screw, Tapping

Return to Top

stop, tail & back-up light
1971-78
scout ii/terra/traveler
stop, turn & back-up light
1978-80
scout ii/terra/traveler

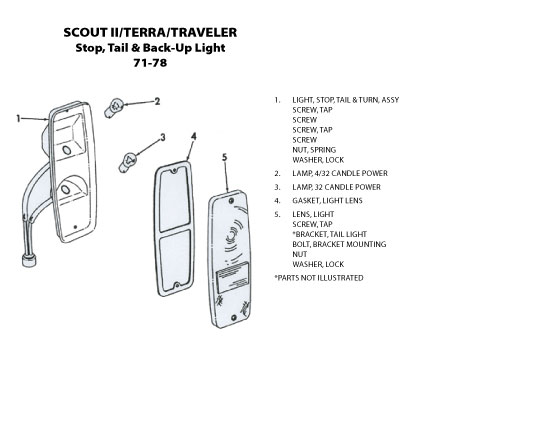

Stop, Tail & Back-Up Light
Click Image for Larger View
  1. Light, Stop, Tail & Turn, Assy
    Screw, Tap
    Screw
    Screw, Tap
    Screw
    Nut, Spring
    Washer, Lock
  2. Lamp, 4/32 Candle Power
  3. Lamp, 32 Candle Power
  4. Gasket, Light Lens
  5. Lens, Light
    Screw, Tap
    *Bracket, Tail Light
    Bolt, Bracket Mounting
    Nut
    Washer, Lock

*Parts Not Illustrated

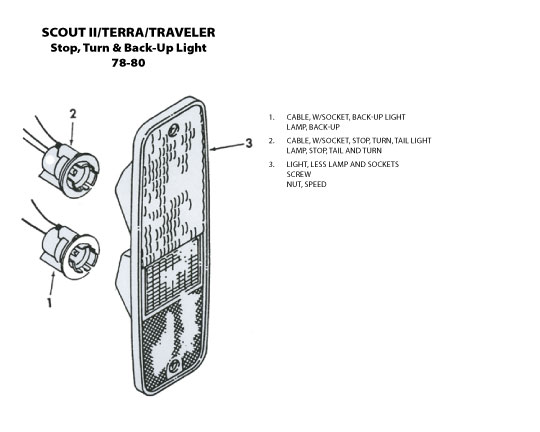

Stop, Turn & Back-Up Light
Click Image for Larger View
  1. Cable, w/Socket, Back-Up Light
    Lamp, Back-Up
  2. Cable, w/Socket, Stop, Turn, Tail Light
    Lamp, Stop, Tail and Turn
  3. Light, Less Lamp and Sockets
    Screw
    Nut, Speed

Return to Top


switches
1971-80
scout ii/terra/traveler

regulator
diesel
1976-80
scout ii

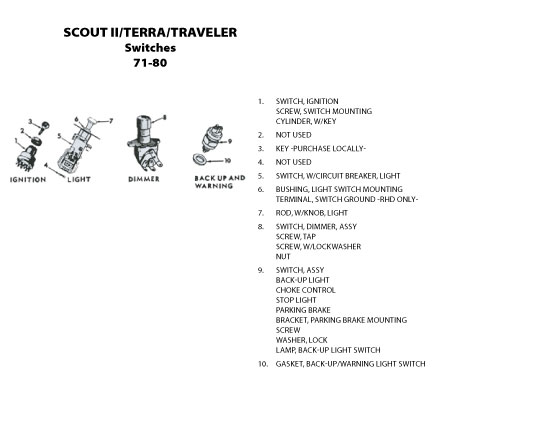

Switches
Click Image for Larger View
  1. Switch, Ignition
    Screw, Switch Mounting
    Cylinder, w/Key
  2. Not Used
  3. Key -Purchase Locally-
  4. Not Used
  5. Switch, w/Circuit Breaker, Light
  6. Bushing, Light Switch Mounting
    Terminal, Switch Ground -RHD Only-
  7. Rod, w/Knob, Light
  8. Switch, Dimmer, Assy
    Screw, Tap
    Screw, w/Lockwasher
    Nut
  9. Switch, Assy
    Back-Up Light
    Choke Control
    Stop Light
    Parking Brake
    Bracket, Parking Brake Mounting
    Screw
    Washer, Lock
    Lamp, Back-Up Light Switch
  10. Gasket, Back-Up/Warning Light Switch

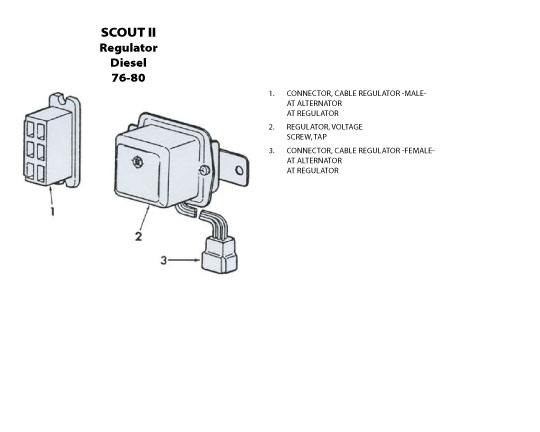

Regulator
Click Image for Larger View
  1. Connector, Cable Regulator -Male-
    At Alternator
    At Regulator
  2. Regulator, Voltage
    Screw, Tap
  3. Connector, Cable Regulator -Female-
    At Alternator
    At Regulator

Return to Top

starting motor
4 cylinder & V8
1971-80
scout ii

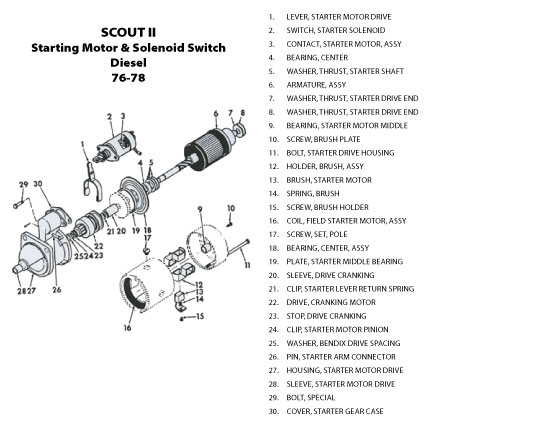

starting motor & solenoid switch
diesel
1976-78
scout ii

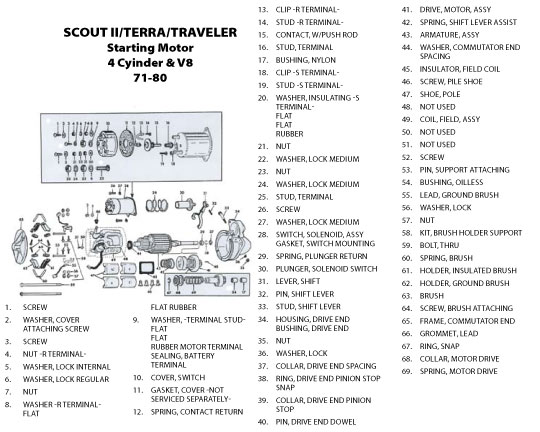

Starting Motor
Click Image for Larger View
  1. Screw
  2. Washer, Cover Attaching Screw
  3. Screw
  4. Nut -R Terminal-
  5. Washer, Lock Internal
  6. Washer, Lock Regular
  7. Nut
  8. Washer -R Terminal-
    Flat No. 8
    Flat No. 8
    Rubber No. 8
  9. Washer, -Terminal Stud-
    Flat
    Flat
    Rubber Motor Terminal
    Sealing, Battery Terminal
  10. Cover, Switch
  11. Gasket, Cover -Not Serviced Separately-
  12. Spring, Contact return
  13. Clip -R Terminal-
  14. Stud -R Terminal-
  15. Contact, w/Push Rod
  16. Stud, Terminal
  17. Bushing, Nylon
  18. Clip -S Terminal-
  19. Stud -S Terminal-
  20. Washer, Insulating -S Terminal-
    Flat
    Flat
    Rubber
  21. Nut
  22. Washer, Lock Medium
  23. Nut
  24. Washer, Lock Medium
  25. Stud, Terminal
  26. Screw
  27. Washer, Lock Medium
  28. Switch, Solenoid, Assy
    Gasket, Switch Mounting
  29. Spring, Plunger Return
  30. Plunger, Solenoid Switch
  31. Lever, Shift
  32. Pin, Shift Lever
  33. Stud, Shift Lever
  34. Housing, Drive End
    Bushing, Drive End
  35. Nut
  36. Washer, Lock
  37. Collar, Drive End Spacing
  38. Ring, Drive End Pinion Stop Snap
  39. Collar, Drive End Pinion Stop
  40. Pin, Drive End Dowel
  41. Drive, Motor, Assy
  42. Spring, Shift Lever Assist
  43. Armature, Assy
  44. Washer, Commutator End Spacing
  45. Insulator, Field Coil
  46. Screw, Pile Shoe
  47. Shoe, Pole
  48. Not Used
  49. Coil, Field, Assy
  50. Not Used
  51. Not Used
  52. Screw
  53. Pin, Support Attaching
  54. Bushing, Oilless
  55. Lead, Ground Brush
  56. Washer, Lock
  57. Nut
  58. Kit, Brush Holder Support
  59. Bolt, Thru
  60. Spring, Brush
  61. Holder, Insulated Brush
  62. Holder, Ground Brush
  63. Brush
  64. Screw, Brush Attaching
  65. Frame, Commutator End
  66. Grommet, Lead
  67. Ring, Snap
  68. Collar, Motor Drive
  69. Spring, Motor Drive
Starting Motor & Solenoid Switch
Click Image for Larger View
  1. Lever, Starter Motor Drive
  2. Switch, Starter Solenoid
  3. Contact, Starter Motor, Assy
  4. Bearing, Center
  5. Washer, Thrust, Starter Shaft
  6. Armature, Assy
  7. Washer, Thrust, Starter Drive End
  8. Washer, Thrust, Starter Drive end
  9. Bearing, Starter Motor Middle
  10. Screw, Brush plate
  11. Bolt, Starter Drive Housing
  12. Holder, Brush, Assy
  13. Brush, Starter Motor
  14. Spring, Brush
  15. Screw, Brush Holder
  16. Coil, Field Starter Motor, Assy
  17. Screw, Set, Pole
  18. Bearing, Center, Assy
  19. Plate, Starter Middle Bearing
  20. Sleeve, Drive Cranking
  21. Clip, Starter Lever return Spring
  22. Drive, Cranking Motor
  23. Stop, Drive Cranking
  24. Clip, Starter Motor Pinion
  25. Washer, Bendix Drive spacing
  26. Pin, Starter Arm Connector
  27. Housing, Starter Motor Drive
  28. Sleeve, Starter Motor Drive
  29. Bolt, Special
  30. Cover, Starter Gear Case

Return to Top

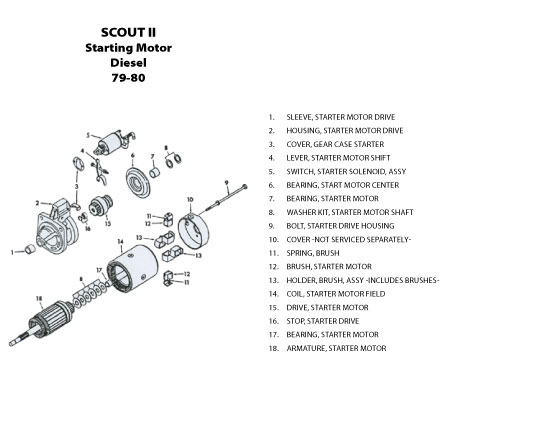

starting motor
diesel
1979-80
scout ii


Starting Motor
Click Image for Larger View
  1. Sleeve, Starter Motor Drive
  2. Housing, Starter Motor Drive
  3. Cover, Gear Case Starter
  4. Lever, Starter Motor Shift
  5. Switch, Starter Solenoid, Assy
  6. Bearing, Start Motor Center
  7. Bearing, Starter Motor
  8. Washer Kit, Starter Motor Shaft
  9. Bolt, Starter Drive housing
  10. Cover -Not Serviced Separately-
  11. Spring, Brush
  12. Brush, Starter Motor
  13. Holder, Brush, Assy -Includes Brushes-
  14. Coil, Starter Motor Field
  15. Drive, Starter Motor
  16. Stop, Starter Drive
  17. Bearing, Starter Motor
  18. Armature, Starter Motor


Return to Top


Return to Parts Page


2075 Highway 61 - Fort Madison, Iowa 52627 - 319.372.3272 - FAX: 319.372.3281 - info@scoutconnection.com
  home - about us - products - services - links - photos - faq - contact us
  Website Design by: Out of the Box Graphic Productions
