Scout Light Parts
Scout, Traveler, Terra and Travelall are trademarks of the International Truck & Engine Corporation.
Their use has been licensed under Scout/Light Line Distributors, Inc.
Scout Connection is a Scout/Light Line Authorized Dealer.

Engines
"Thanks for the great parts and service!” Eric Monse, TX

We have the largest inventory of N.O.S. (New Old Stock) parts in the United States! Our 1200 square foot parts, sales and accessories showroom is big and bright with a varied inventory and wide selection of new, used and NOS parts and accessories for your IH vehicle. We are a Scout Light-Line Dealer. Listed below are just some of the most commonly requested parts. Give a call for medium-duty truck needs (LoadStar, FleetStar, CargoStar, S-Series). Contact us for your L, R, S truck needs, we have a small selection of used parts and ability to source many N.O.S. and reproduction parts. To Order Call: 319.372.3272.

Diagrams may not be actual representations of part image.

gasket set
cylinder/crankcase overhaul
196 cubic inch/4 cylinder
1971-80
scout ii

gasket set
cylinder/crankcase overhaul
258 cubic inch/6 cylinder
1971-80
scout ii

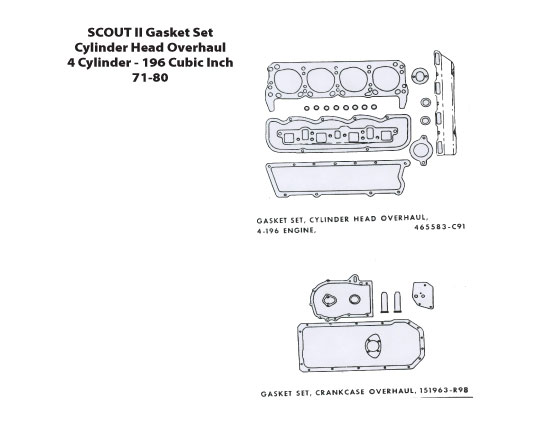

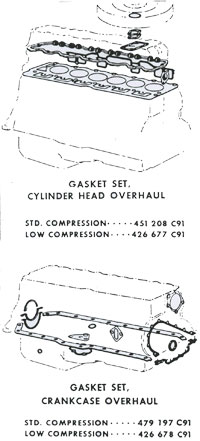

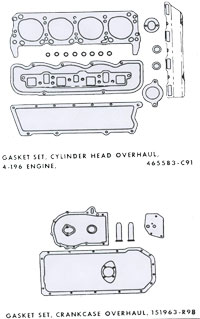

Gasket Set Cylinder Head Overhaul 4 cylinder
Click Image for Larger View

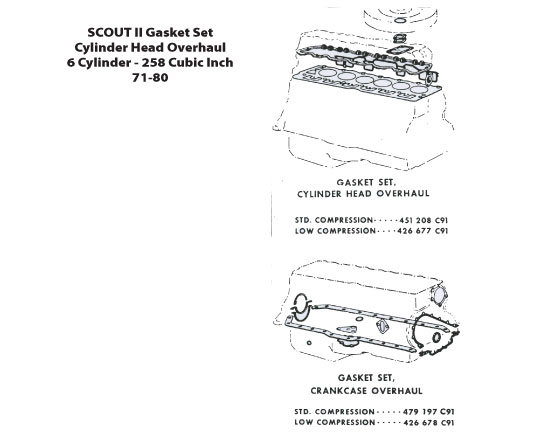

  Gasket Set Cylinder Head Overhaul 6 cylinder
Click Image for Larger View


Return to Top

gasket set
cylinder/crankcase overhaul
304 & 345 cubic inch/V8
1971-80
scout ii

accelerator, throttle & choke control
6 cylinder
1971-75
scout ii

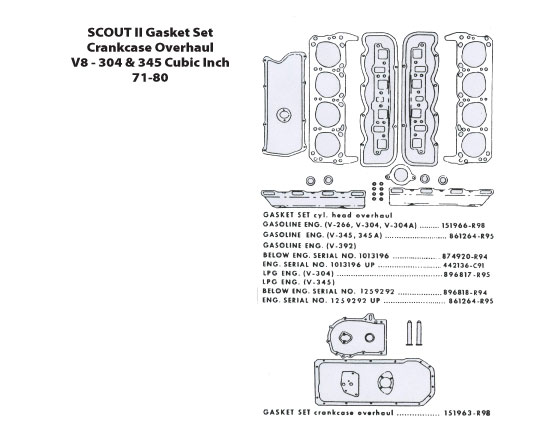

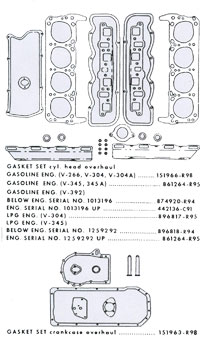

Gasket Set Cylinder/Cranjcase Overhaul
Click Image for Larger View

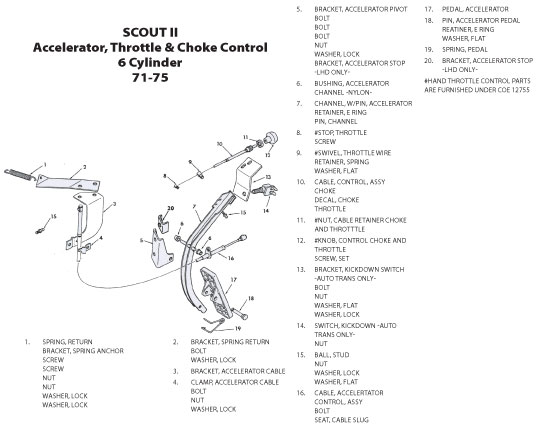

  Accelerator, Throttle and Choke Control 71-75
Click Image for Larger View
  1. Spring, Return
    Bracket, Spring Anchor
    Screw
    Screw
    Nut
    Nut
    Washer, Lock
    Washer, Lock
  2. Bracket, Spring Return
    Bolt
    Washer, Lock
  3. Bracket, Accelerator Cable
  4. Clamp, Accelerator Cable
    Bolt
    Nut
    Washer, Lock
  5. Bracket, Accelerator Pivot
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Lock
    Bracket, Accelerator Stop -LHD Only-
  6. Bushing, Accelerator Channel -Nylon-
  7. Channel, w/Pin, Accelerator
    Retainer, E Ring
    Pin, Channel
  8. #Stop, Throttle
    Screw
  9. #Swivel, Throttle Wire
    Retainer, Spring
    Washer, Flat
  10. Cable, Control, Assy
    Choke
    Decal, Choke
    Throttle
  11. #Nut, Cable Retainer Choke and Throttle
  12. #Knob, Control Choke and Throttle
    Screw, Set
  13. Bracket, Kickdown Switch -Auto Trans Only-
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  14. Switch, Kickdown -Auto Trans Only-
    Nut
  15. Ball, Stud
    Nut
    Washer, Lock
    Washer, Flat
  16. Cable, Accelerator Control, Assy
    Bolt
    Seat, Cable Slug
  17. Pedal, Accelerator
  18. Pin, Accelerator Pedal
    Retainer, E Ring
    Washer, Flat
  19. Spring, Pedal
  20. Bracket, Accelerator Stop -LHD Only-

#Hand Throttle Control Parts are Furnished Under Code 12755


Return to Top

accelerator, throttle & choke control
v8
1971-78
scout ii

accelerator, throttle & choke control
4 cylinder
1971-80
scout ii

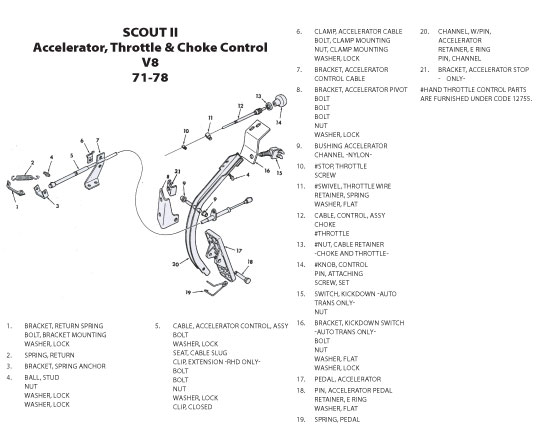

Accelerator, Throttle and Choke Control
Click Image for Larger View
  1. Bracket, Return Spring
    Bolt, Bracket Mounting
    Washer, Lock
  2. Spring, Return
  3. Bracket, Spring Anchor
  4. Ball, Stud
    Nut
    Washer, Lock
    Washer, Lock
  5. Cable, Accelerator Control, Assy
    Bolt
    Washer, Lock
    Seat, Cable Slug
    Clip, Extension -RHD Only-
    Bolt
    Bolt
    Nut
    Washer, Lock
    Clip, Closed
  6. Clamp, Accelerator Cable
    Bolt, Clamp Mounting
    Nut, Clamp Mounting
    Washer, Lock
  7. Bracket, Accelerator Control Cable
  8. Bracket, Accelerator Pivot
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Lock
  9. Bushing Accelerator Channel -Nylon-
  10. #Stop, Throttle
    Screw
  11. #Swivel, Throttle Wire
    Retainer, Spring
    Washer, Flat
  12. Cable, Control, Assy
    Choke
    #Throttle
  13. #Nut, Cable Retainer -Choke and Throttle-
  14. #Knob, Control
    Pin, Attaching
    Screw, Set
  15. Switch, Kickdown -Auto Trans Only-
    Nut
  16. Bracket, Kickdown Switch -Auto Trans Only-
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  17. Pedal, Accelerator
  18. Pin, Accelerator Pedal
    Retainer, E Ring
    Washer, Flat
  19. Spring, Pedal
  20. Channel, w/Pin, Accelerator
    Retainer, E Ring
    Pin, Channel
  21. Bracket, Accelerator Stop - Only-

#Hand Throttle Control Parts are Furnished Under Code 12755.

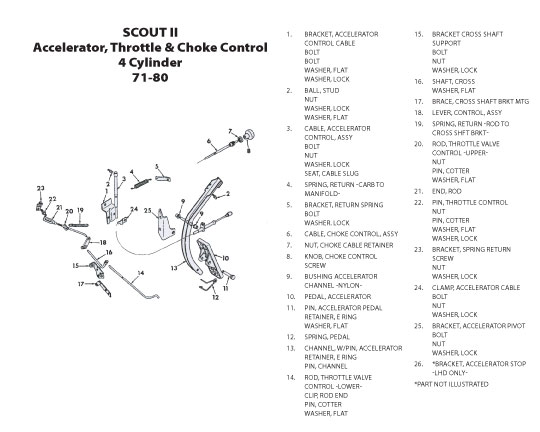

Accelerator, Throttle and Choke Control
Click Image for Larger View
  1. Bracket, Accelerator Control Cable
    Bolt
    Bolt
    Washer, Flat
    Washer, Lock
  2. Ball, Stud
    Nut
    Washer, Lock
    Washer, Flat
  3. Cable, Accelerator Control, Assy
    Bolt
    Nut
    Washer. Lock
    Seat, Cable Slug
  4. Spring, Return -Carb to Manifold-
  5. Bracket, Return Spring
    Bolt
    Washer. Lock
  6. Cable, Choke Control, Assy
  7. Nut, Choke Cable Retainer
  8. Knob, Choke Control
    Screw
  9. Bushing Accelerator Channel -Nylon-
  10. Pedal, Accelerator
  11. Pin, Accelerator Pedal
    Retainer, E Ring
    Washer, Flat
  12. Spring, Pedal
  13. Channel, w/Pin, Accelerator
    Retainer, E Ring
    Pin, Channel
  14. Rod, Throttle Valve Control -Lower-
    Clip, Rod End
    Pin, Cotter
    Washer, Flat
  15. Bracket Cross Shaft Support
    Bolt
    Nut
    Washer, Lock
  16. Shaft, Cross
    Washer, Flat
  17. Brace, Cross Shaft Brkt Mtg
  18. Lever, Control, Assy
  19. Spring, Return -Rod to Cross Shft Brkt-
  20. Rod, Throttle Valve Control -Upper-
    Nut
    Pin, Cotter
    Washer, Flat
  21. End, Rod
  22. Pin, Throttle Control
    Nut
    Pin, Cotter
    Washer, Flat
    Washer, Lock
  23. Bracket, Spring Return
    Screw
    Nut
    Washer, Lock
  24. Clamp, Accelerator Cable
    Bolt
    Nut
    Washer, Lock
  25. Bracket, Accelerator Pivot
    Bolt
    Nut
    Washer, Lock

*Bracket, Accelerator Stop -LHD Only-

*Part Not Illustrated


Return to Top


accelerator, throttle control
diesel
1976-80
scout ii

accelerator, throttle control
diesel
1980
scout ii

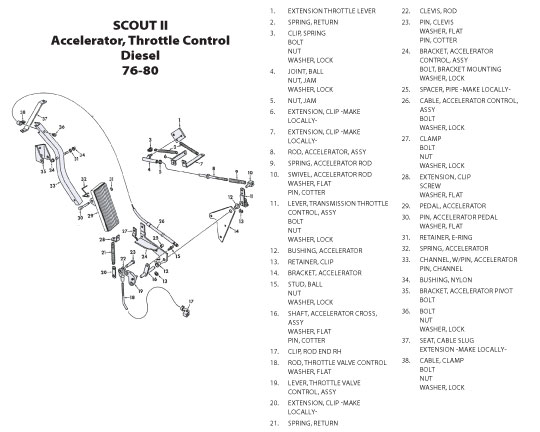

Accelerator, Throttle Control
Click Image for Larger View
  1. Extension Throttle Lever
  2. Spring, Return
  3. Clip, Spring
    Bolt
    Nut
    Washer, Lock
  4. Joint, Ball
    Nut, Jam
    Washer, Lock
  5. Nut, Jam
  6. Extension, Clip -Make Locally-
  7. Extension, Clip -Make Locally-
  8. Rod, Accelerator, Assy
  9. Spring, Accelerator Rod
  10. Swivel, Accelerator Rod
    Washer, Flat
    Pin, Cotter
  11. Lever, Transmission Throttle Control, Assy
    Bolt
    Nut
    Washer, Lock
  12. Bushing, Accelerator
  13. Retainer, Clip
  14. Bracket, Accelerator
  15. Stud, Ball
    Nut
    Washer, Lock
  16. Shaft, Accelerator Cross, Assy
    Washer, Flat
    Pin, Cotter
  17. Clip, Rod End RH
  18. Rod, Throttle Valve Control
    Washer, Flat
  19. Lever, Throttle Valve Control, Assy
  20. Extension, Clip -Make Locally-
  21. Spring, Return
  22. Clevis, Rod
  23. Pin, Clevis
    Washer, Flat
    Pin, Cotter
  24. Bracket, Accelerator Control, Assy
    Bolt, Bracket Mounting
    Washer, Lock
  25. Spacer, Pipe -Make Locally-
  26. Cable, Accelerator Control, Assy
    Bolt
    Washer, Lock
  27. Clamp
    Bolt
    Nut
    Washer, Lock
  28. Extension, Clip
    Screw
    Washer, Flat
  29. Pedal, Accelerator
  30. Pin, Accelerator Pedal
    Washer, Flat
  31. Retainer, E-Ring
  32. Spring, Accelerator
  33. Channel, w/Pin, Accelerator
  34. Pin, Channel
  35. Bushing, Nylon
  36. Bracket, Accelerator Pivot
    Bolt
    Bolt
    Nut
    Washer, Lock
  37. Seat, Cable Slug
    Extension -Make Locally-
  38. Cable, Clamp
    Bolt
    Nut
    Washer, Lock

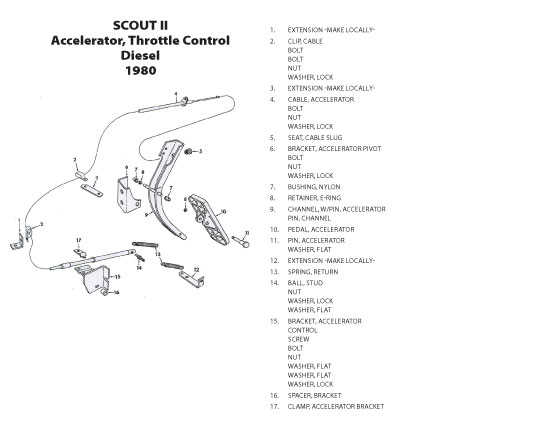

Accelerator, Throttle Control
Click Image for Larger View
  1. Extension -Make Locally-
  2. Clip, Cable
    Bolt
    Bolt
    Nut
    Washer, Lock
  3. Extension -Make Locally-
  4. Cable, Accelerator
    Bolt
    Nut
    Washer, Lock
  5. Seat, Cable Slug
  6. Bracket, Accelerator Pivot
    Bolt
    Nut
    Washer, Lock
  7. Bushing, Nylon
  8. Retainer, E-Ring
  9. Channel, w/Pin, Accelerator
    Pin, Channel
  10. Pedal, Accelerator
  11. Pin, Accelerator
    Washer, Flat
  12. Extension -Make Locally-
  13. Spring, Return
  14. Ball, Stud
    Nut
    Washer, Lock
    Washer, Flat
  15. Bracket, Accelerator Control
    Screw
    Bolt
    Nut
    Washer, Flat
    Washer, Flat
    Washer, Lock
  16. Spacer, Bracket
  17. Clamp, Accelerator Bracket

Return to Top

air cleaner assembly
(not Diesel)
1971-80
scout ii/terra/traveler

air cleaner
6 cylinder
1971-80
scout ii

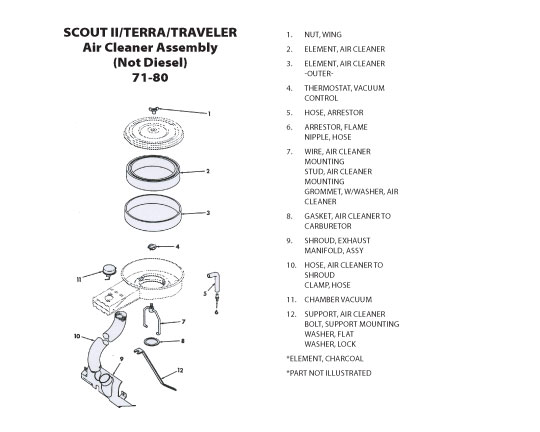

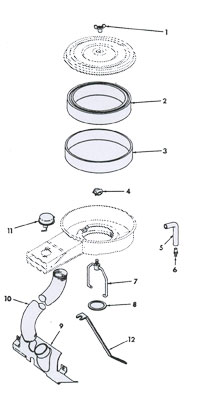

Air Cleaner Assembly
Click Image for Larger View
  1. Nut, Wing
  2. Element, Air Cleaner
  3. Element, Air Cleaner -Outer-
  4. Thermostat, Vacuum Control
  5. Hose, Arrestor
  6. Arrestor, Flame
    Nipple, Hose
  7. Wire, Air Cleaner Mounting
    Stud, Air Cleaner Mounting
    Grommet, w/Washer, Air Cleaner
  8. Gasket, Air Cleaner to Carburetor
  9. Shroud, Exhaust Manifold, Assy
  10. Hose, Air Cleaner to Shroud
    Clamp, Hose
  11. Chamber Vacuum
  12. Support, Air Cleaner
    Bolt, Support Mounting
    Washer, Flat
    Washer, Lock

*Element, Charcoal

*Part Not Illustrated

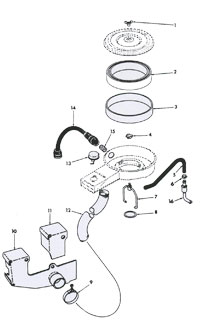

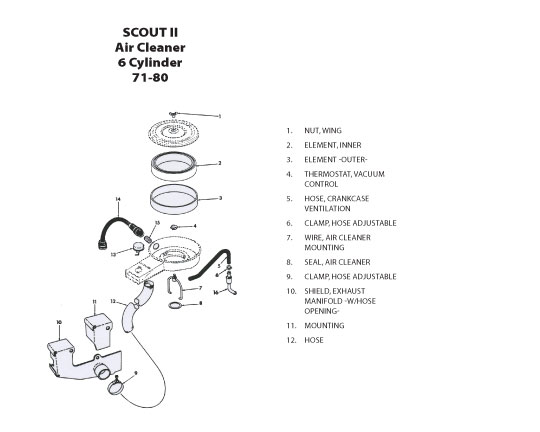

Air Cleaner
Click Image for Larger View
  1. Nut, Wing
  2. Element, Inner
  3. Element -Outer-
  4. Thermostat, Vacuum Control
  5. Hose, Crankcase Ventilation
  6. Clamp, Hose Adjustable
  7. Wire, Air Cleaner Mounting
  8. Seal, Air Cleaner
  9. Clamp, Hose Adjustable
  10. Shield, Exhaust Manifold -w/Hose Opening-
  11. Mounting
  12. Hose

Return to Top


air cleaner assembly
diesel
1976-80
scout ii

air cleaner
diesel
1980
scout ii

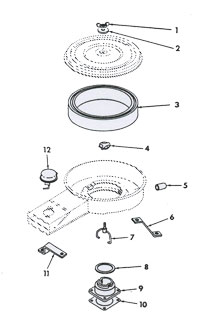

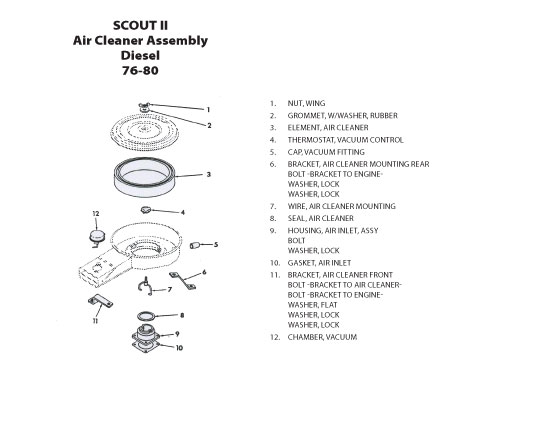

Air Cleaner Assembly
Click Image for Larger View
  1. Nut, Wing
  2. Grommet, w/Washer, Rubber
  3. Element, Air Cleaner
  4. Thermostat, Vacuum Control
  5. Cap, Vacuum Fitting
  6. Bracket, Air Cleaner Mounting Rear
    Bolt -Bracket to Engine-
    Washer, Lock
    Washer, Lock
  7. Wire, Air Cleaner Mounting
  8. Seal, Air Cleaner
  9. Housing, Air Inlet, Assy
    Bolt
    Washer, Lock
  10. Gasket, Air Inlet
  11. Bracket, Air Cleaner Front
    Bolt -Bracket to Air Cleaner-
    Bolt -Bracket to Engine-
    Washer, Flat
    Washer, Lock
    Washer, Lock
  12. Chamber, Vacuum

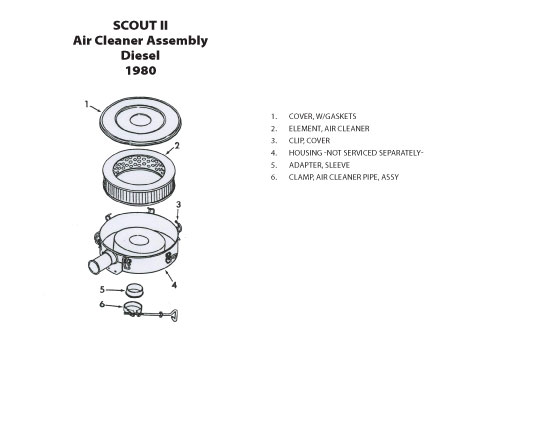

Air Cleaner
Click Image for Larger View
  1. Cover, w/Gaskets
  2. Element, Air Cleaner
  3. Clip, Cover
  4. Housing -Not Serviced Separately-
  5. Adapter, Sleeve
  6. Clamp, Air Cleaner Pipe, Assy

Return to Top

air intake -venturi-
diesel
1976-80
scout ii

camshaft & related parts
diesel
1976-80
scout ii

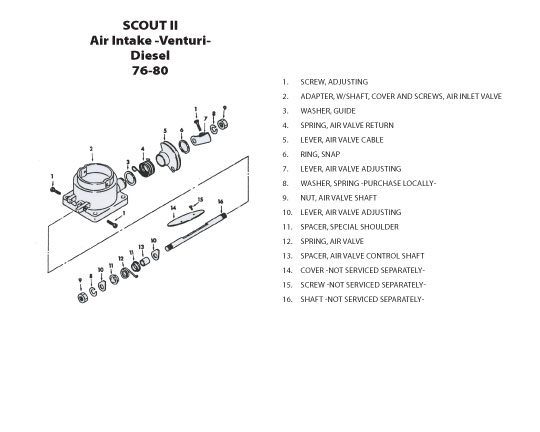

Air Intake -Venturi-
Click Image for Larger View
  1. Screw, Adjusting
  2. Adapter, w/Shaft, Cover and Screws,
    Air Inlet Valve
  3. Washer, Guide
  4. Spring, Air Valve Return
  5. Lever, Air Valve Cable
  6. Ring, Snap
  7. Lever, Air Valve Adjusting
  8. Washer, Spring -Purchase Locally-
  9. Nut, Air Valve Shaft
  10. Lever, Air Valve Adjusting
  11. Spacer, Special Shoulder
  12. Spring, Air Valve
  13. Spacer, Air Valve Control Shaft
  14. Cover -Not Serviced Separately-
  15. Screw -Not Serviced Separately-
  16. Shaft -Not Serviced Separately-

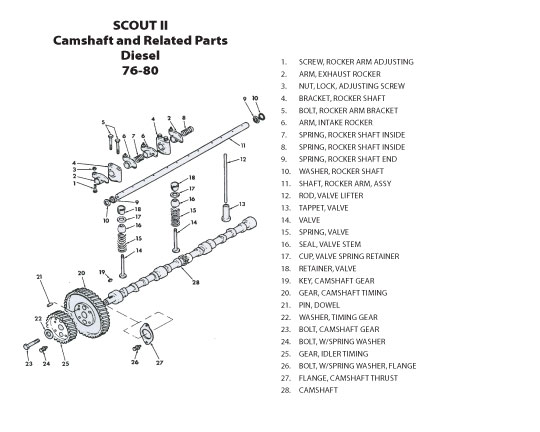

Camshaft and Related Parts
Click Image for Larger View
  1. Screw, Rocker Arm Adjusting
  2. Arm, Exhaust Rocker
  3. Nut, Lock, Adjusting Screw
  4. Bracket, Rocker Shaft
  5. Bolt, Rocker Arm Bracket
  6. Arm, Intake Rocker
  7. Spring, Rocker Shaft Inside
  8. Spring, Rocker Shaft Inside
  9. Spring, Rocker Shaft End
  10. Washer, Rocker Shaft
  11. Shaft, Rocker Arm, Assy
  12. Rod, Valve Lifter
  13. Tappet, Valve
  14. Valve
  15. Spring, Valve
  16. Seal, Valve Stem
  17. Cup, Valve Spring Retainer
  18. Retainer, Valve
  19. Key, Camshaft Gear
  20. Gear, Camshaft Timing
  21. Pin, Dowel
  22. Washer, Timing Gear
  23. Bolt, Camshaft Gear
  24. Bolt, w/Spring Washer
  25. Gear, Idler Timing
  26. Bolt, w/Spring Washer, Flange
  27. Flange, Camshaft Thrust
  28. Camshaft

Return to Top

carburetor
v8 manual choke
1971-75
scout ii
carburetor assembly
v8 automatic choke
1971-75
scout ii

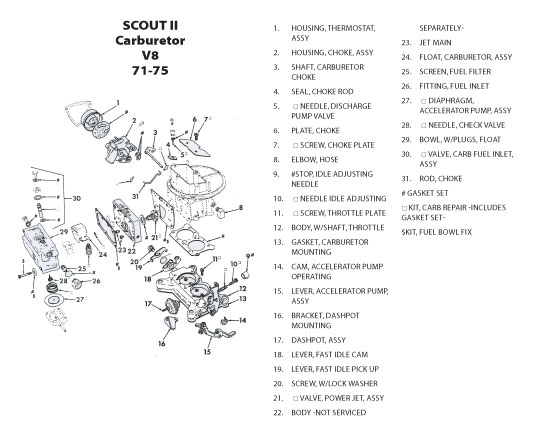

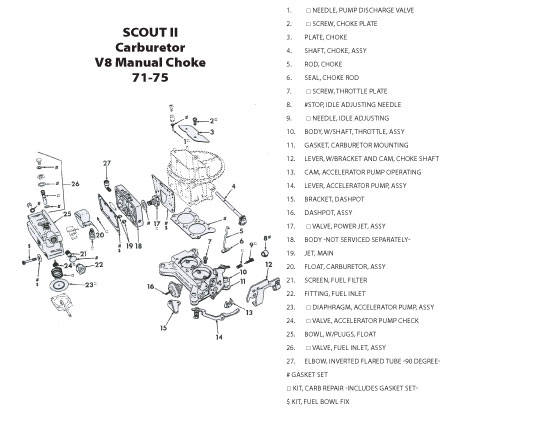

Carburetor
Click Image for Larger View
  1. * Needle, Pump Discharge Valve
  2. * Screw, Choke Plate
  3. Plate, Choke
  4. Shaft, Choke, Assy
  5. Rod, Choke
  6. Seal, Choke Rod
  7. * Screw, Throttle Plate
  8. #Stop, Idle Adjusting Needle
  9. * Needle, Idle Adjusting
  10. Body, w/Shaft, Throttle, Assy
  11. Gasket, Carburetor Mounting
  12. Lever, w/Bracket and Cam, Choke Shaft
  13. Cam, Accelerator Pump Operating
  14. Lever, Accelerator Pump, Assy
  15. Bracket, Dashpot
  16. Dashpot, Assy
  17. * Valve, Power Jet, Assy
  18. Body -Not Serviced Separately-
  19. Jet, Main
  20. Float, Carburetor, Assy
  21. Screen, Fuel Filter
  22. Fitting, Fuel Inlet
  23. * Diaphragm, Accelerator Pump, Assy
  24. * Valve, Accelerator Pump Check
  25. Bowl, w/Plugs, Float
  26. * Valve, Fuel Inlet, Assy
  27. Elbow, Inverted Flared Tube -90 Degree-

# Gasket Set

* Kit, Carb Repair -Includes Gasket Set-

$ Kit, Fuel Bowl Fix

Carburetor Assembly
Click Image for Larger View
  1. Housing, Thermostat, Assy
  2. Housing, Choke, Assy
  3. Shaft, Carburetor Choke
  4. Seal, Choke Rod
  5. * Needle, Discharge Pump Valve
  6. Plate, Choke
  7. * Screw, Choke Plate
  8. Elbow, Inverted Flared Tube -90 Degree-
  9. # Stop, Idle adjusting Needle
  10. * Needle, Idle Adjusting
  11. * Screw, Throttle Plate
  12. Body, w/Shaft, Throttle
  13. Gasket, Carburetor Mounting
  14. Cam, Accelerator Pump Operating
  15. Lever, Accelerator Pump, Assy
  16. Bracket, Dashpot Mounting
  17. Dashpot, Assy
  18. Lever, Fast Idle Cam
  19. Lever, Fast Idle Pick Up
  20. Screw, w/LW Pan
  21. * Valve, Power Jet, Assy
  22. Body -Not Serviced Separately-
  23. Jet, Main
  24. Float, Carburetor, Assy
  25. Screen, Fuel Filter
  26. Fitting, Fuel Inlet
  27. Diaphragm, Accelerator Pump, Assy
  28. * Needle, Check Valve
  29. Bowl, w/Plugs, Float
  30. * Valve, Carb Fuel Inlet, Assy
  31. Rod, Choke

# Gasket Set

* Kit, Carb Repair -Includes Gasket Set-

$ Kit, Fuel Bowl Fix


Return to Top

carburetor
6 cylinder 1971-75
4 cylinder 1971-80
scout ii
carburetor
v8
1976-80
scout ii
Carburetor
Click Image for Larger View
  1. Shaft, w/Lever, Throttle
  2. Screw, Fast Idle Cam
  3. Cam, Fast Idle
  4. Rod, Fast Idle
  5. Shaft, w/Lever, Choke
  6. * Screw
    Choke Plate
    Throttle Plate
  7. Plate, Choke
  8. * Diaphragm, Economizer
  9. Bowl, Fuel
  10. Float, Carburetor
  11. * Retainer, Carburetor Float
  12. Spring, Carburetor Float
  13. Jet, Main
  14. Body, Main Metering
  15. * #Ball, Valve Check
  16. * Needle, Idle Adjusting
  17. Gasket, Carburetor Mounting
    Insulator, Carb to Intake Manifold
  18. * Valve, w/Seat, Fuel Inlet
  19. * Retainer, Accelerator Pump Lever
  20. * Link, Accelerator Pump Operating
  21. * Cam, Accelerator Pump
  22. Dashpot, Assy
  23. $ Stop, Idle Adjusting Needle

$ Gasket Set

# Kit, Accelerator Pump

* Kit, Carb Repair -Includes Gasket Set-

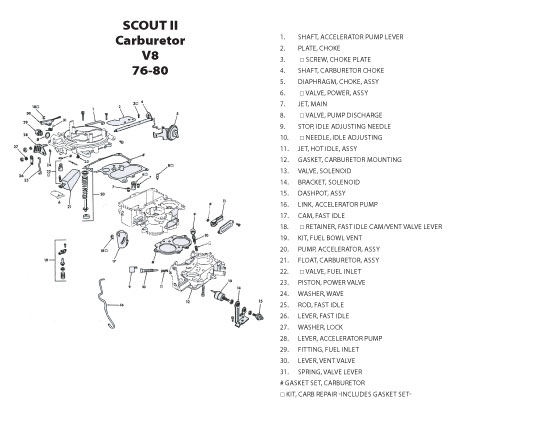

Carburetor
Click Image for Larger View
  1. Shaft, Accelerator Pump Lever
  2. Plate, Choke
  3. * Screw, Choke Plate
  4. Shaft, Carburetor Choke
  5. Diaphragm, Choke, Assy
  6. * Valve, Power, Assy
  7. Jet, Main
  8. * Valve, Pump Discharge
  9. Stop, Idle Adjusting Needle
  10. * Needle, Idle Adjusting
  11. Jet, Hot Idle, Assy
  12. Gasket, Carburetor Mounting
  13. Valve, Solenoid
  14. Bracket, Solenoid
  15. Dashpot, Assy
  16. Link, Accelerator Pump
  17. Cam, Fast Idle
  18. * Retainer, Fast Idle Cam/Vent Valve Lever
  19. Kit, Fuel Bowl Vent
  20. Pump, Accelerator, Assy
  21. Float, Carburetor, Assy
  22. * Valve, Fuel Inlet
  23. Piston, Power Valve
  24. Washer, Wave
  25. Rod, Fast Idle
  26. Lever, Fast Idle
  27. Washer, Lock
  28. Lever, Accelerator Pump
  29. Fitting, Fuel Inlet
  30. Lever, Vent Valve
  31. Spring, Valve Lever

# Gasket Set, Carburetor

* Kit, Carb Repair -Includes Gasket Set-


Return to Top


carburetor assembly
4 cylinder
1979-80
scout ii

carburetor
v8 holley 2BBL
1971-75
scout ii

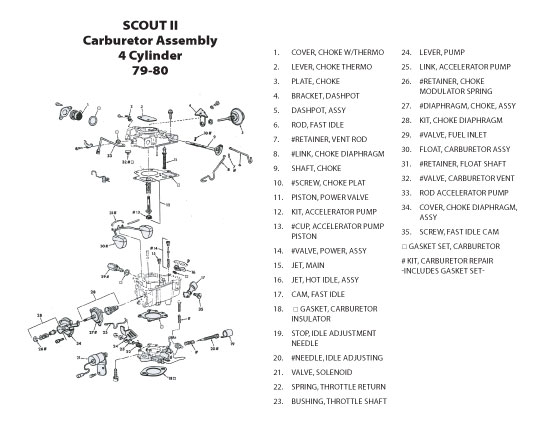

Carburetor Assembly
Click Image for Larger View
  1. Cover, Choke w/Thermo
  2. Lever, Choke Thermo
  3. Plate, Choke
  4. Bracket, Dashpot
  5. Dashpot, Assy
  6. Rod, Fast Idle
  7. #Retainer, Vent Rod
  8. #Link, Choke Diaphragm
  9. Shaft, Choke
  10. #Screw, Choke Plat
  11. Piston, Power Valve
  12. Kit, Accelerator Pump
  13. #Cup, Accelerator Pump Piston
  14. #Valve, Power, Assy
  15. Jet, Main
  16. Jet, Hot Idle, Assy
  17. Cam, Fast Idle
  18. * Gasket, Carburetor Insulator
  19. Stop, Idle Adjustment Needle
  20. #Needle, Idle Adjusting
  21. Valve, Solenoid
  22. Spring, Throttle Return
  23. Bushing, Throttle Shaft
  24. Lever, Pump
  25. Link, Accelerator Pump
  26. #Retainer, Choke Modulator Spring
  27. #Diaphragm, Choke, Assy
  28. Kit, Choke Diaphragm
  29. #Valve, Fuel Inlet
  30. Float, Carburetor Assy
  31. #Retainer, Float Shaft
  32. #Valve, Carburetor Vent
  33. Rod Accelerator Pump
  34. Cover, Choke Diaphragm, Assy
  35. Screw, Fast Idle Cam

* Gasket Set, Carburetor

# Kit, Carburetor Repair -Includes Gasket Set-

Carburetor
Click Image for Larger View

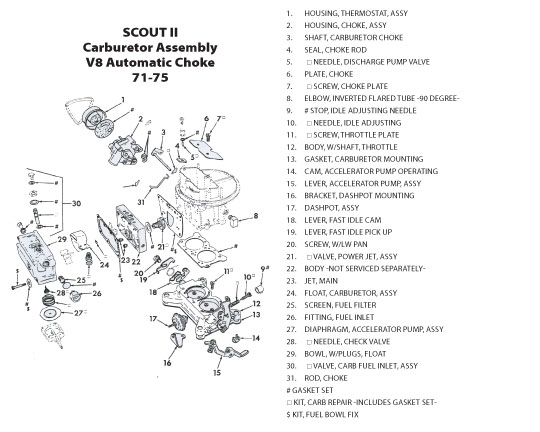

  1. Housing, Thermostat, Assy
  2. Housing, Choke, Assy
  3. Shaft, Carburetor Choke
  4. Seal, Choke Rod
  5. * Needle, Discharge Pump Valve
  6. Plate, Choke
  7. * Screw, Choke Plate
  8. Elbow, Hose
  9. #Stop, Idle Adjusting Needle
  10. * Needle Idle Adjusting
  11. * Screw, Throttle Plate
  12. Body, w/Shaft, Throttle
  13. Gasket, Carburetor Mounting
  14. Cam, Accelerator Pump Operating
  15. Lever, Accelerator Pump, Assy
  16. Bracket, Dashpot Mounting
  17. Dashpot, Assy
  18. Lever, Fast Idle Cam
  19. Lever, Fast Idle Pick Up
  20. Screw, w/Lock Washer
  21. * Valve, Power Jet, Assy
  22. Body -Not Serviced Separately-
  23. Jet Main
  24. Float, Carburetor, Assy
  25. Screen, Fuel Filter
  26. Fitting, Fuel Inlet
  27. * Diaphragm, Accelerator Pump, Assy
  28. * Needle, Check Valve
  29. Bowl, w/Plugs, Float
  30. * Valve, Carb Fuel Inlet, Assy
  31. Rod, Choke

# Gasket Set

*Kit, Carb Repair -Includes gasket Set-

$Kit, Fuel Bowl Fix


Return to Top


carburetor
v8 carter therma-quad
1974-75 & 1979-80
scout ii

automatic choke piping
v8
1971-80
scout ii
Carburetor

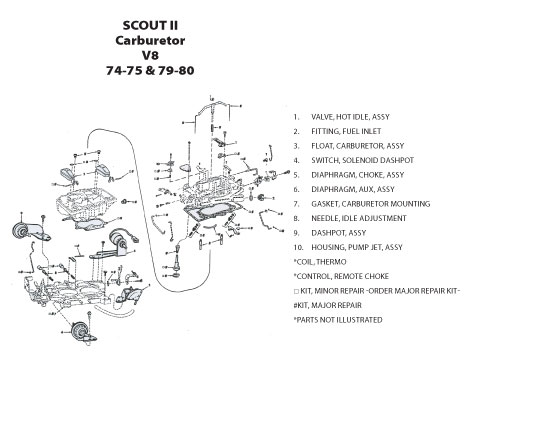

Click Image for Larger View
  1. Valve, Hot Idle, Assy
  2. Fitting, Fuel Inlet
  3. Float, Carburetor, Assy
  4. Switch, Solenoid Dashpot
  5. Diaphragm, Choke, Assy
  6. Diaphragm, Aux, Assy
  7. Gasket, Carburetor Mounting
  8. Needle, Idle Adjustment
  9. Dashpot, Assy
  10. Housing, Pump Jet, Assy

*Coil, Thermo

*Control, Remote Choke

* Kit, Minor Repair -Order Major Repair Kit-

#Kit, Major Repair

*Parts Not Illustrated

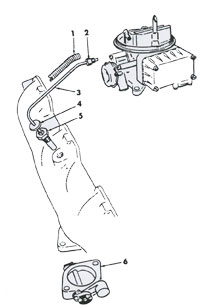

Automatic Choke Piping
Click Image for Larger View
  1. Insulator, Pipe
  2. Nut, Ball Sleeve
    Sleeve, Ball
  3. Pipe, Carburetor to Exhaust Manifold
    Pipe, Inside Manifold -Stainless Steel-
  4. Shield, Heat Chamber Inlet
  5. Chamber, Heat
  6. Regulator, Heat
    Gasket, Heat Regulator

Return to Top

divorced choke control
v8
1974-80
scout ii
electric assist choke control
v8 electric choke
1976-78
scout ii

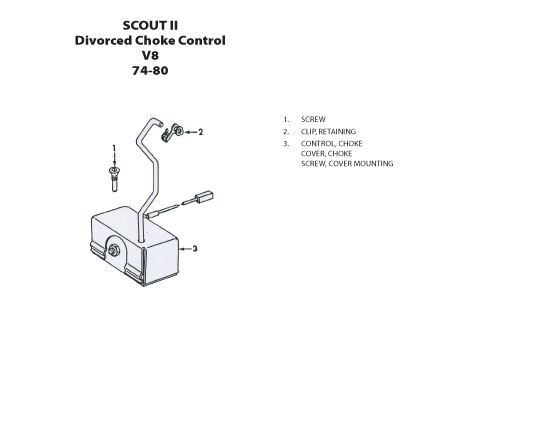

Divorced Choke Control
Click Image for Larger View
  1. Screw
  2. Clip, Retaining
  3. Control, Choke
    Cover, Choke
    Screw, Cover Mounting

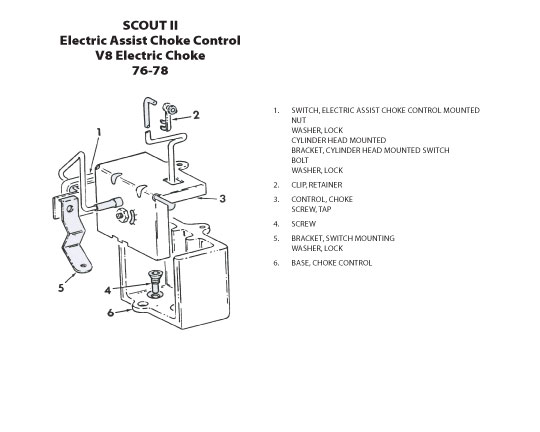

Electric Assist Choke Control
Click Image for Larger View
  1. Switch, Electric Assist Choke Control Mounted
    Nut
    Washer, Lock
    Cylinder Head Mounted
    Bracket, Cylinder Head Mounted Switch
    Bolt
    Washer, Lock
  2. Clip, Retainer
  3. Control, Choke
    Screw, Tap
  4. Screw
  5. Bracket, Switch Mounting
    Washer, Lock
  6. Base, Choke Control

Return to Top


cLutch housing
diesel
1976-80
scout ii

crankcase ventilator
4 cylinder
1971-80
scout ii

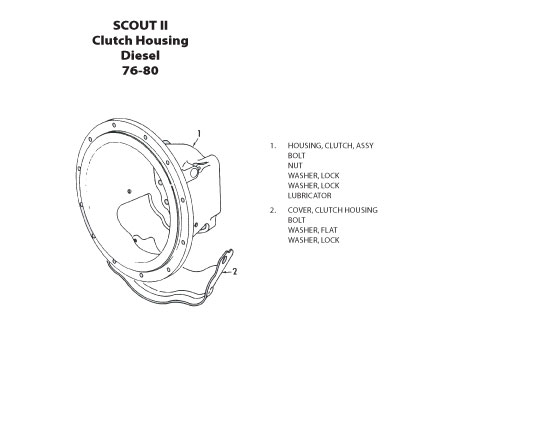

Clutch Housing
Click Image for Larger View
  1. Housing, Clutch, Assy
    Bolt
    Nut
    Washer, Lock
    Washer, Lock
    Lubricator
  2. Cover, Clutch Housing
    Bolt
    Washer, Flat
    Washer, Lock

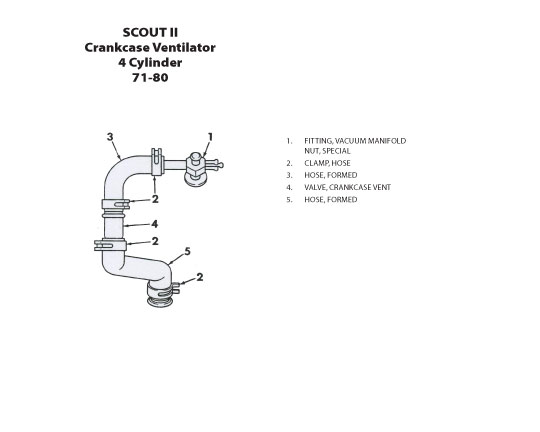

Crankcase Ventilator
Click Image for Larger View
  1. Fitting, Vacuum Manifold
    Nut, Special
  2. Clamp, Hose
  3. Hose, Formed
  4. Valve, Crankcase Vent
  5. Hose, Formed

Return to Top

crankcase & related parts
4 cylinder
1971-80
scout ii

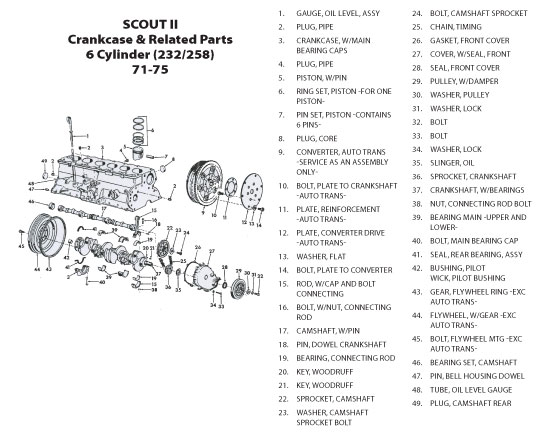

crankcase & related parts
6 cylinder (232/258)
1971-75
scout ii

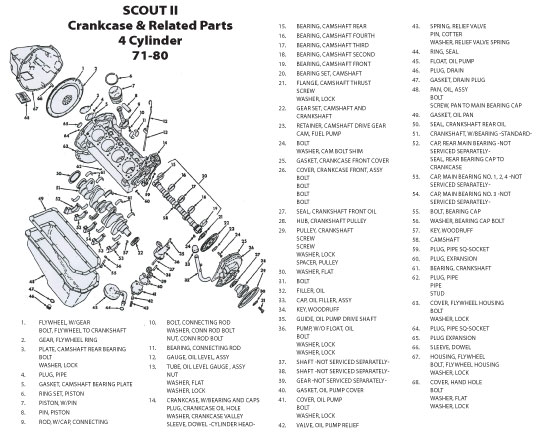

Crankcase and Related Parts
Click Image for Larger View
  1. Flywheel, w/Gear
    Bolt, Flywheel to Crankshaft
  2. Gear, Flywheel Ring
  3. Plate, Camshaft Rear Bearing
    Bolt
    Washer, Lock
  4. Plug, Pipe
  5. Gasket, Camshaft Bearing Plate
  6. Ring Set, Piston
  7. Piston, w/Pin
  8. Pin, Piston
  9. Rod, w/Cap, Connecting
  10. Bolt, Connecting Rod
    Washer, Conn Rod Bolt
    Nut, Conn Rod Bolt
  11. Bearing, Connecting Rod
  12. Gauge, Oil Level, Assy
  13. Tube, Oil Level Gauge , Assy
    Nut
    Washer, Flat
    Washer, Lock
  14. Crankcase, w/Bearing and Caps
    Plug, Crankcase Oil Hole
    Washer, Crankcase Valley
    Sleeve, Dowel -Cylinder Head-
  15. Bearing, Camshaft Rear
  16. Bearing, Camshaft Fourth
  17. Bearing, Camshaft Third
  18. Bearing, Camshaft Second
  19. Bearing, Camshaft Front
  20. Bearing Set, Camshaft
  21. Flange, Camshaft Thrust
    Screw
    Washer, Lock
  22. Gear Set, Camshaft and Crankshaft
  23. Retainer, Camshaft Drive Gear
    Cam, Fuel Pump
  24. Bolt
    Washer, Cam Bolt Shim
  25. Gasket, Crankcase Front Cover
  26. Cover, Crankcase Front, Assy
    Bolt
    Bolt
    Bolt
    Bolt
  27. Seal, Crankshaft Front Oil
  28. Hub, Crankshaft Pulley
  29. Pulley, Crankshaft
    Screw
    Screw
    Washer, Lock
    Spacer, Pulley
  30. Washer, Flat
  31. Bolt
  32. Filler, Oil
  33. Cap, Oil Filler, Assy
  34. Key, Woodruff
  35. Guide, Oil Pump Drive Shaft
  36. Pump, w/o Float, Oil
    Bolt
    Washer, Lock
    Washer, Lock
  37. Shaft -Not Serviced Separately-
  38. Shaft -Not Serviced Separately-
  39. Gear -Not Serviced Separately-
  40. Gasket, Oil Pump Cover
  41. Cover, Oil Pump
    Bolt
    Washer, Lock
  42. Valve, Oil Pump Relief
  43. Spring, Relief Valve
    Pin, Cotter
    Washer, Relief Valve Spring
  44. Ring, Seal
  45. Float, Oil Pump
  46. Plug, Drain
  47. Gasket, Drain Plug
  48. Pan, Oil, Assy
    Bolt
    Screw, Pan to Main Bearing Cap
  49. Gasket, Oil Pan
  50. Seal, Crankshaft Rear Oil
  51. Crankshaft, w/Bearing -Standard-
  52. Cap, Rear Main Bearing -Not Serviced Separately-
    Seal, Rear Bearing Cap to Crankcase
  53. Cap, Main Bearing No. 1, 2, 4 -Not Serviced Separately-
  54. Cap, Main Bearing No. 3 -Not Serviced Separately-
  55. Bolt, Bearing Cap
  56. Washer, Bearing Cap Bolt
  57. Key, Woodruff
  58. Camshaft
  59. Plug, Pipe SQ-Socket
  60. Plug, Expansion
  61. Bearing, Crankshaft
  62. Plug, Pipe
    Pipe
    Stud
  63. Cover, Flywheel Housing
    Bolt
    Washer, Lock
  64. Plug, Pipe SQ-Socket
  65. Plug Expansion
  66. Sleeve, Dowel
  67. Housing, Flywheel
    Bolt, Flywheel Housing
    Washer, Lock
  68. Cover, Hand Hole
    Bolt
    Washer, Flat
    Washer, Lock
Crankcase and Related Parts
Click Image for Larger View
  1. Gauge, Oil Level, Assy
  2. Plug, Pipe
  3. Crankcase, w/Main Bearing Caps
  4. Plug, Pipe
  5. Piston, w/Pin
  6. Ring Set, Piston -For One Piston-
  7. Pin Set, Piston -Contains 6 Pins-
  8. Plug, Core
  9. Converter, Auto Trans -Service as an Assembly Only-
  10. Bolt, Plate to Crankshaft -Auto Trans
  11. Plate, Reinforcement -Auto Trans-
  12. Plate, Converter Drive -Auto Trans-
  13. Washer, Flat
  14. Bolt, Plate to Converter
  15. Rod, w/Cap and Bolt Connecting
  16. Bolt, w/Nut, Connecting Rod
  17. Camshaft, w/Pin
  18. Pin, Dowel Crankshaft
  19. Bearing, Connecting Rod
  20. Key, Woodruff
  21. Key, Woodruff
  22. Sprocket, Camshaft
  23. Washer, Camshaft Sprocket Bolt
  24. Bolt, Camshaft Sprocket
  25. Chain, Timing
  26. Gasket, Front Cover
  27. Cover, w/Seal, Front
  28. Seal, Front Cover
  29. Pulley, w/Damper
  30. Washer, Pulley
  31. Washer, Lock
  32. Bolt
  33. Bolt
  34. Washer, Lock
  35. Slinger, Oil
  36. Sprocket, Crankshaft
  37. Crankshaft, w/Bearings
  38. Nut, Connecting Rod Bolt
  39. Bearing Main -Upper and Lower-
  40. Bolt, Main Bearing Cap
  41. Seal, Rear Bearing, Assy
  42. Bushing, Pilot
    Wick, Pilot Bushing
  43. Gear, Flywheel Ring -Exc Auto Trans-
  44. Flywheel, w/Gear -Exc Auto Trans-
  45. Bolt, Flywheel Mtg -Exc Auto Trans-
  46. Bearing Set, Camshaft
  47. Pin, Bell Housing Dowel
  48. Tube, Oil Level Gauge
  49. Plug, Camshaft Rear


Return to Top


crankcase & related parts
v8
1971-80
scout ii

crankcase assembly
diesel
1976-79
scout ii

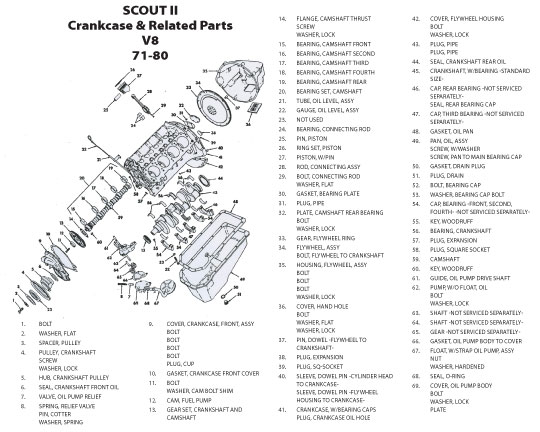

Crankcase and Related Parts
Click Image for Larger View
  1. Bolt
  2. Washer, Flat
  3. Spacer, Pulley
  4. Pulley, Crankshaft
    Screw
    Washer, Lock
  5. Hub, Crankshaft Pulley
  6. Seal, Crankshaft Front Oil
  7. Valve, Oil Pump Relief
  8. Spring, Relief Valve
    Pin, Cotter
    Washer, Spring
  9. Cover, Crankcase, Front, Assy
    Bolt
    Bolt
    Bolt
    Bolt
    Plug, Cup
  10. Gasket, Crankcase Front Cover
  11. Bolt
    Washer, Cam Bolt Shim
  12. Cam, Fuel Pump
  13. Gear Set, Crankshaft and Camshaft
  14. Flange, Camshaft thrust
    Screw
    Washer, Lock
  15. Bearing, Camshaft Front
  16. Bearing, Camshaft Second
  17. Bearing, Camshaft Third
  18. Bearing, Camshaft Fourth
  19. Bearing, Camshaft Rear
  20. Bearing Set, Camshaft
  21. Tube, Oil Level, Assy
  22. Gauge, Oil Level, Assy
  23. Not Used
  24. Bearing, Connecting Rod
  25. Pin, Piston
  26. Ring Set, Piston
  27. Piston, w/Pin
  28. Rod, Connecting Assy
  29. Bolt, Connecting Rod
    Washer, Flat
  30. Gasket, Bearing Plate
  31. Plug, Pipe
  32. Plate, Camshaft Rear Bearing
    Bolt
    Washer, Lock
  33. Gear, Flywheel Ring
  34. Flywheel, Assy
    Bolt, Flywheel to Crankshaft
  35. Housing, Flywheel, Assy
    Bolt
    Bolt
    Bolt
    Washer, Lock
  36. Cover, Hand Hole
    Bolt
    Washer, Flat
    Washer, Lock
  37. Pin, Dowel -Flywheel to Crankshaft-
  38. Plug, Expansion
  39. Plug, SQ-Socket
  40. Sleeve, Dowel Pin -Cylinder Head to Crankcase-
    Sleeve, Dowel Pin -Flywheel Housing to Crankcase-
  41. Crankcase, w/Bearing Caps
    Plug, Crankcase Oil Hole
  42. Cover, Flywheel Housing
    Bolt
    Washer, Lock
  43. Plug, Pipe
    Plug, Pipe
  44. Seal, Crankshaft Rear Oil
  45. Crankshaft, w/Bearing -Standard Size-
  46. Cap, Rear Bearing -Not Serviced Separately-
    Seal, Rear Bearing Cap
  47. Cap, Third Bearing -Not Serviced Separately-
  48. Gasket, Oil Pan
  49. Pan, Oil, Assy
    Screw, w/Washer
    Screw, Pan to Main Bearing Cap
  50. Gasket, Drain Plug
  51. Plug, Drain
  52. Bolt, Bearing Cap
  53. Washer, Bearing Cap Bolt
  54. Cap, Bearing -Front, Second, Fourth- -Not Serviced Separately-
  55. Key, Woodruff
  56. Bearing, Crankshaft
  57. Plug, Expansion
  58. Plug, Square Socket
  59. Camshaft
  60. Key, Woodruff
  61. Guide, Oil Pump Drive Shaft
  62. Pump, w/o Float, oil
    Bolt
    Washer, Lock
  63. Shaft -Not Serviced Separately-
  64. Shaft -Not Serviced Separately-
  65. Gear -Not Serviced Separately-
  66. Gasket, Oil Pump Body to Cover
  67. Float, w/Strap Oil Pump, Assy
    Nut
    Washer, Hardened
  68. Seal, O-Ring
  69. Cover, Oil Pump Body
    Bolt
    Washer, Lock
    Plate

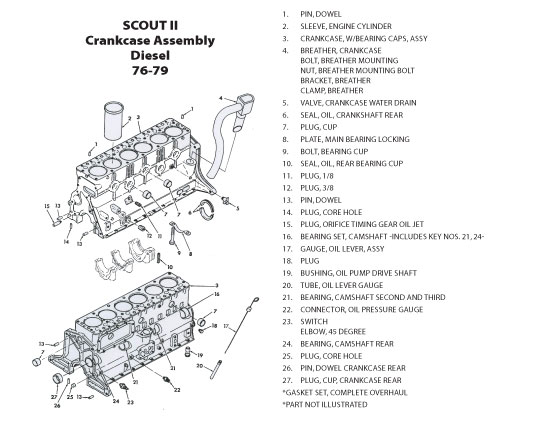

Crankcase Assembly
Click Image for Larger View
  1. in, Dowel
  2. Sleeve, Engine Cylinder
  3. Crankcase, w/Bearing Caps, Assy
  4. Breather, Crankcase
    Bolt, Breather Mounting
    Nut, Breather Mounting Bolt
    Bracket, Breather
    Clamp, Breather
  5. Valve, Crankcase Water Drain
  6. Seal, Oil, Crankshaft Rear
  7. Plug, Cup
  8. Plate, Main Bearing Locking
  9. Bolt, Bearing Cup
  10. Seal, Oil, Rear Bearing Cup
  11. Plug, 1/8
  12. Plug, 3/8
  13. Pin, Dowel
  14. Plug, Core Hole
  15. Plug, Orifice Timing Gear Oil Jet
  16. Bearing Set, Camshaft -Includes Key Nos. 21, 24-
  17. Gauge, Oil Lever, Assy
  18. Plug
  19. Bushing, Oil Pump Drive Shaft
  20. Tube, Oil Lever Gauge
  21. Bearing, Camshaft Second and Third
  22. Connector, Oil Pressure Gauge
  23. Switch
    Elbow, 45 Degree
  24. Bearing, Camshaft Rear
  25. Plug, Core Hole
  26. Pin, Dowel Crankcase Rear
  27. Plug, Cup, Crankcase Rear

*Gasket Set, Complete Overhaul

*Part Not Illustrated


Return to Top


front crankcase cover, flywheel housing
diesel
1976-80
scout ii

crankshaft, piston & related parts
diesel
1976-80
scout ii

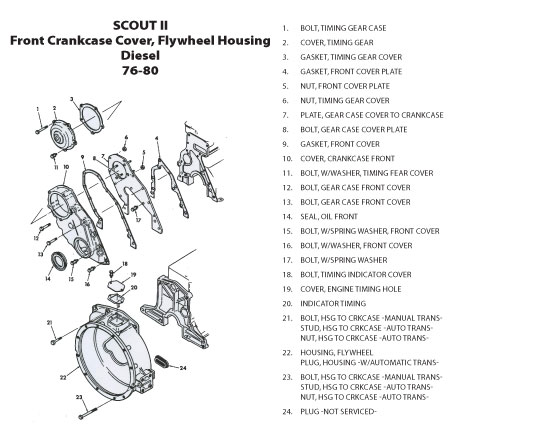

Front Crankcase Cover, Flywheel Housing
Click Image for Larger View
  1. Bolt, Timing Gear Case
  2. Cover, Timing Gear
  3. Gasket, Timing Gear Cover
  4. Gasket, Front Cover Plate
  5. Nut, Front Cover Plate
  6. Nut, Timing Gear Cover
  7. Plate, Gear Case Cover to Crankcase
  8. Bolt, Gear Case Cover Plate
  9. Gasket, Front Cover
  10. Cover, Crankcase Front
  11. Bolt, w/Washer, Timing Fear Cover
  12. Bolt, Gear Case front Cover
  13. Bolt, Gear Case Front Cover
  14. Seal, Oil Front
  15. Bolt, w/Spring Washer, Front Cover
  16. Bolt, w/Washer, Front Cover
  17. Bolt, w/Spring washer
  18. Bolt, Timing Indicator Cover
  19. Cover, Engine Timing Hole
  20. Indicator Timing
  21. Bolt, Hsg to Crkcase -Manual Trans-
    Stud, Hsg to Crkcase -Auto Trans-
    Nut, Hsg to Crkcase -Auto Trans-
  22. Housing, Flywheel
    Plug, Housing -w/Automatic Trans-
  23. Bolt, Hsg to Crkcase -Manual Trans-
    Stud, Hsg to Crkcase -Auto Trans-
    Nut, Hsg to Crkcase -Auto Trans-
  24. Plug -Not Serviced-

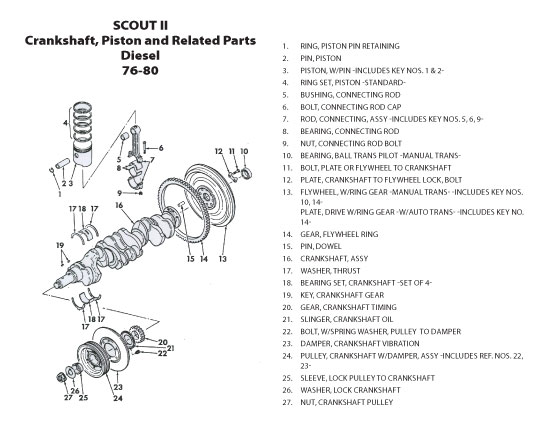

Crankshaft, Piston and Related Parts
Click Image for Larger View
  1. Ring, Piston Pin Retaining
  2. Pin, Piston
  3. Piston, w/Pin -Includes Key Nos. 1 & 2-
  4. Ring Set, Piston -Standard-
  5. Bushing, Connecting Rod
  6. Bolt, Connecting Rod Cap
  7. Rod, Connecting, Assy -Includes Key Nos. 5, 6, 9-
  8. Bearing, Connecting Rod
  9. Nut, Connecting Rod Bolt
  10. Bearing, Ball Trans Pilot -Manual Trans-
  11. Bolt, Plate or Flywheel to Crankshaft
  12. Plate, Crankshaft to Flywheel Lock, Bolt
  13. Flywheel, w/Ring Gear -Manual Trans- -Includes Key Nos. 10, 14-
    Plate, Drive w/Ring Gear -w/Auto Trans- -Includes Key No. 14-
  14. Gear, Flywheel Ring
  15. Pin, Dowel
  16. Crankshaft, Assy
  17. Washer, Thrust
  18. Bearing Set, Crankshaft -Set of 4-
  19. Key, Crankshaft Gear
  20. Gear, Crankshaft Timing
  21. Slinger, Crankshaft Oil
  22. Bolt, w/Spring Washer, Pulley to
    Damper
  23. Damper, Crankshaft Vibration
  24. Pulley, Crankshaft w/Damper, Assy -Includes Ref. Nos. 22, 23-
  25. Sleeve, Lock Pulley to Crankshaft
  26. Washer, Lock Crankshaf
  27. Nut, Crankshaft Pulley

Return to Top

crankcase & related parts
diesel
1980
scout ii

auto cruise control
1971-80
scout ii/terra/traveler

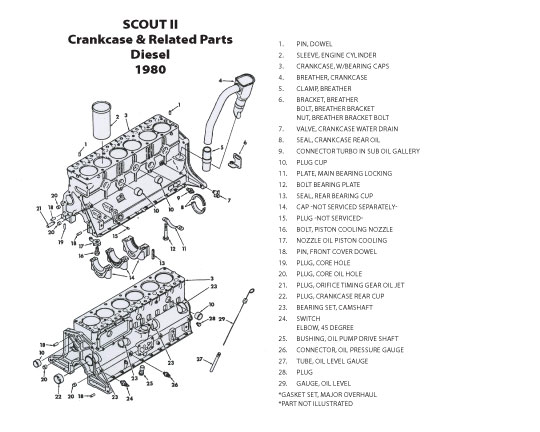

Crankcase and Related Parts
Click Image for Larger View
  1. Pin, Dowel
  2. Sleeve, Engine Cylinder
  3. Crankcase, w/bearing Caps
  4. Breather, Crankcase
  5. Clamp, Breather
  6. Bracket, Breather
    Bolt, Breather Bracket
    Nut, Breather Bracket Bolt
  7. Valve, Crankcase Water Drain
  8. Seal, Crankcase Rear Oil
  9. Connector Turbo in Sub Oil Gallery
  10. Plug Cup
  11. Plate, Main Bearing Locking
  12. Bolt Bearing Plate
  13. Seal, Rear Bearing Cup
  14. Cap -Not Serviced Separately-
  15. Plug -Not Serviced-
  16. Bolt, Piston Cooling Nozzle
  17. Nozzle Oil Piston Cooling
  18. Pin, Front Cover Dowel
  19. Plug, Core Hole
  20. Plug, Core Oil Hole
  21. Plug, Orifice Timing Gear Oil Jet
  22. Plug, Crankcase Rear Cup
  23. Bearing Set, Camshaft
  24. Switch
    Elbow, 45 Degree
  25. Bushing, Oil Pump Drive Shaft
  26. Connector, Oil Pressure Gauge
  27. Tube, Oil Level Gauge
  28. Plug
  29. Gauge, Oil Level

*Gasket Set, Major Overhaul
*Part Not Illustrated

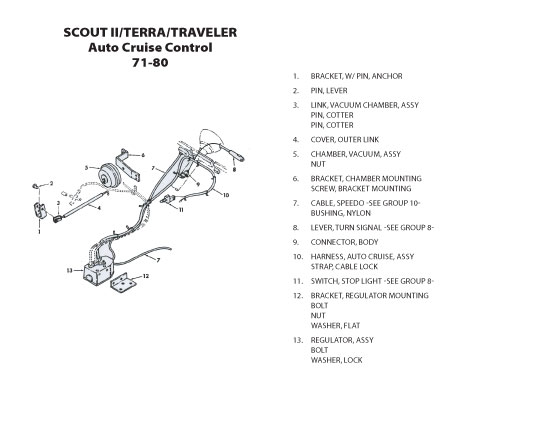

Auto Cruise Control
Click Image for Larger View
  1. Bracket, w/ Pin, Anchor
  2. Pin, Lever
  3. Link, Vacuum Chamber, Assy
    Pin, Cotter
    Pin, Cotter
  4. Cover, Outer Link
  5. Chamber, Vacuum, Assy
    Nut
  6. Bracket, Chamber Mounting
    Screw, Bracket Mounting
  7. Cable, Speedo -See Group 10-
    Bushing, Nylon
  8. Lever, Turn Signal -See Group 8-
  9. Connector, Body
  10. Harness, Auto Cruise, Assy
    Strap, Cable Lock
  11. Switch, Stop Light -See Group 8-
  12. Bracket, Regulator Mounting
    Bolt
    Nut
    Washer, Flat
  13. Regulator, Assy
    Bolt
    Washer, Lock

Return to Top


cylinder head & related parts
6 cylinder (232/258)
1971-80
scout ii

cylinder head & related parts
4 cylinder
1971-80
scout ii

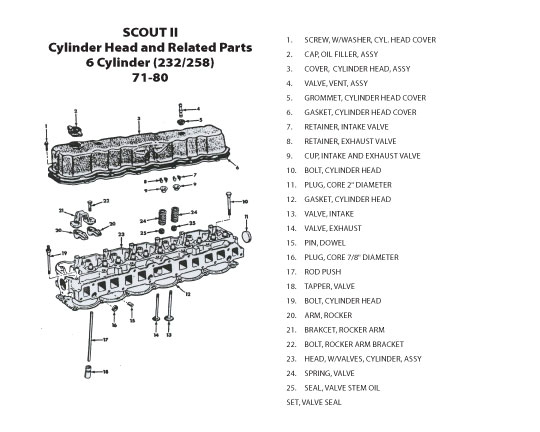

Cylinder Head and Related Parts 6 Cylinder
Click Image for Larger View
  1. Screw, w/Washer, Cyl. Head Cover
  2. Cap, Oil Filler, Assy
  3. Cover, Cylinder Head, Assy
  4. Valve, Vent, Assy
  5. Grommet, Cylinder Head Cover
  6. Gasket, Cylinder Head Cover
  7. Retainer, Intake Valve
  8. Retainer, Exhaust Valve
  9. Cup, Intake and Exhaust Valve
  10. Bolt, Cylinder Head
  11. Plug, Core 2" Diameter
  12. Gasket, Cylinder Head
  13. Valve, Intake
  14. Valve, Exhaust
  15. Pin, Dowel
  16. Plug, Core 7/8" Diameter
  17. Rod Push
  18. Tappet, Valve
  19. Bolt, Cylinder Head
  20. Arm, Rocker
  21. Bracket, Rocker Arm
  22. Bolt, Rocker Arm Bracket
  23. Head, w/Valves, Cylinder, Assy
  24. Spring, Valve
  25. Seal, Valve Stem Oil

Set, Valve Seal

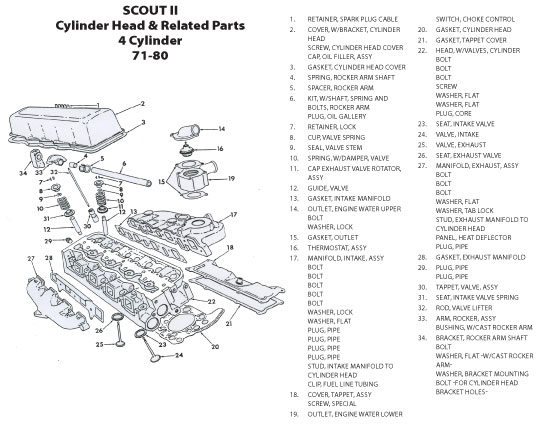

Cylinder Head and Related Parts
Click Image for Larger View
  1. Retainer, Spark Plug Cable
  2. Cover, w/Bracket, Cylinder Head
    Screw, Cylinder Head Cover
    Cap, Oil Filler, Assy
  3. Gasket, Cylinder Head Cover
  4. Spring, Rocker Arm Shaft
  5. Spacer, Rocker Arm
  6. Kit, w/Shaft, Spring and Bolts, Rocker Arm
    Plug, Oil Gallery
  7. Retainer, Lock
  8. Cup, Valve Spring
  9. Seal, Valve Stem
  10. Spring, w/Damper, valve
  11. Cap Exhaust Valve Rotator, Assy
  12. Guide, Valve
  13. Gasket, Intake Manifold
  14. Outlet, Engine Water Upper
    Bolt
    Washer, Lock
  15. Gasket, Outlet
  16. Thermostat, Assy
  17. Manifold, Intake, Assy
    Bolt
    Bolt
    Bolt
    Bolt
    Bolt
    Washer, Lock
    Washer, Flat
    Plug, Pipe
    Plug, Pipe
    Plug, Pipe
    Plug, Pipe
    Stud, Intake Manifold to Cylinder Head
    Clip, Fuel Line Tubing
  18. Cover, Tappet, Assy
    Screw, Special
  19. Outlet, Engine Water Lower
    Switch, Choke Control
  20. Gasket, Cylinder Head
  21. Gasket, Tappet Cover
  22. Head, w/Valves, Cylinder
    Bolt
    Bolt
    Bolt
    Screw
    Washer, Flat
    Washer, Flat
    Plug, Core
  23. Seat, Intake Valve
  24. Valve, Intake
  25. Valve, Exhaust
  26. Seat, Exhaust Valve
  27. Manifold, Exhaust, Assy
    Bolt
    Bolt
    Bolt
    Washer, Flat
    Washer, Tab Lock
    Stud, Exhaust Manifold to Cylinder Head
    Panel, Heat Deflector
    Plug, Pipe
  28. Gasket, Exhaust Manifold
  29. Plug, Pipe
    Plug, Pipe
  30. Tappet, Valve, Assy
  31. Seat, Intake Valve Spring
  32. Rod, Valve Lifter
  33. Arm, Rocker, Assy
    Bushing, w/Cast Rocker Arm
  34. Bracket, Rocker Arm Shaft
    Bolt
    Washer, Flat -w/Cast Rocker Arm-
    Washer, Bracket Mounting
    Bolt -For Cylinder Head Bracket Holes-

Return to Top


cylinder head & related parts
6 cylinder (258)
1974-75
scout ii

cylinder head & related parts
v8
1971-80
scout ii

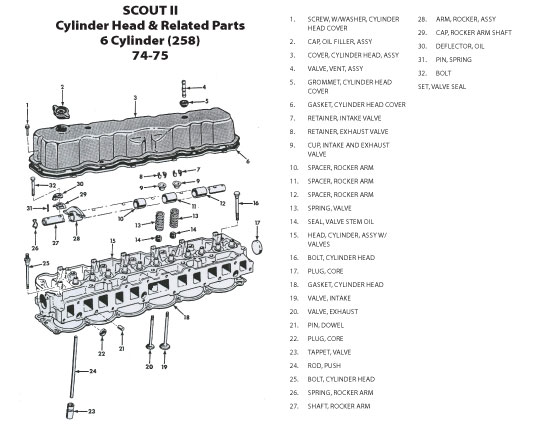

Cylinder Head and Related Parts
Click Image for Larger View
  1. Screw, w/Washer, Cylinder Head Cover
  2. Cap, Oil Filler, Assy
  3. Cover, Cylinder Head, Assy
  4. Valve, Vent, Assy
  5. Grommet, Cylinder Head Cover
  6. Gasket, Cylinder Head Cover
  7. Retainer, Intake Valve
  8. Retainer, Exhaust Valve
  9. Cup, Intake and Exhaust Valve
  10. Spacer, Rocker Arm
  11. Spacer, Rocker Arm
  12. Spacer, Rocker Arm
  13. Spring, Valve
  14. Seal, Valve Stem Oil
  15. Head, Cylinder, Assy w/Valves
  16. Bolt, Cylinder Head
  17. Plug, Core
  18. Gasket, Cylinder Head
  19. Valve, Intake
  20. Valve, Exhaust
  21. Pin, Dowel
  22. Plug, Core
  23. Tappet, Valve
  24. Rod, Push
  25. Bolt, Cylinder Head
  26. Spring, Rocker Arm
  27. Shaft, Rocker Arm
  28. Arm, Rocker, Assy
  29. Cap, Rocker Arm Shaft
  30. Deflector, Oil
  31. Pin, Spring
  32. Bolt

Set, Valve Seal

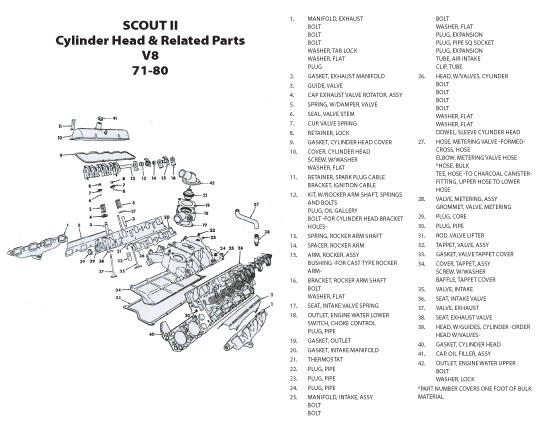

Cylinder Head and Related Parts
Click Image for Larger View
  1. Manifold, Exhaust
    Bolt
    Bolt
    Bolt
    Washer, Tab Lock
    Washer, Flat
    Plug
  2. Gasket, Exhaust Manifold
  3. Guide, Valve
  4. Cap Exhaust Valve Rotator, Assy
  5. Spring, w/Damper, Valve
  6. Seal, Valve Stem
  7. Cup, Valve Spring
  8. Retainer, Lock
  9. Gasket, Cylinder Head Cover
  10. Cover, Cylinder Head
    Screw, w/Washer
    Washer, Flat
  11. Retainer, Spark Plug Cable
    Bracket, Ignition Cable
  12. Kit, w/Rocker Arm Shaft, Springs and Bolts
    Plug, Oil Gallery
    Bolt -For Cylinder Head Bracket Holes-
  13. Spring, Rocker Arm Shaft
  14. Spacer, Rocker Arm
  15. Arm, Rocker, Assy
    Bushing -For Cast Type Rocker Arm-
  16. Bracket, Rocker Arm Shaft
    Bolt
    Washer, Flat
  17. Seat, Intake Valve Spring
  18. Outlet, Engine Water Lower
    Switch, Choke Control
    Plug, Pipe
  19. Gasket, Outlet
  20. Gasket, Intake Manifold
  21. Thermostat
  22. Plug, Pipe
  23. Plug, Pipe
  24. Plug, Pipe
  25. Manifold, Intake, Assy
    Bolt
    Bolt
    Bolt
    Washer, Flat
    Plug, Expansion
    Plug, Pipe SQ Socket
    Plug, Expansion
    Tube, Air Intake
    Clip, Tube
  26. Head, w/Valves, Cylinder
    Bolt
    Bolt
    Bolt
    Bolt
    Washer, Flat
    Washer, Flat
    Dowel, Sleeve Cylinder Head
  27. Hose, Metering Valve -Formed-
    Cross, Hose
    Elbow, Metering Valve Hose
    *Hose, Bulk
    Tee, Hose -To Charcoal Canister-
    Fitting, Upper Hose to Lower Hose
  28. Valve, Metering, Assy
    Grommet, Valve, Metering
  29. Plug, Core
  30. Plug, Pipe
  31. Rod, Valve Lifter
  32. Tappet, Valve, Assy
  33. Gasket, Valve Tappet Cover
  34. Cover, Tappet, Assy
    Screw, w/Washer
    Baffle, Tappet Cover
  35. Valve, Intake
  36. Seat, Intake Valve
  37. Valve, Exhaust
  38. Seat, Exhaust Valve
  39. Head, w/Guides, Cylinder -Order
    Head w/Valves-
  40. Gasket, Cylinder Head
  41. Cap, Oil Filler, Assy
  42. Outlet, Engine Water Upper
    Bolt
    Washer, Lock

*Part Number Covers One Foot of Bulk Material


Return to Top


cylinder head assembly
diesel
1976-79
scout ii

cylinder head assembly
diesel
1976-79
scout ii

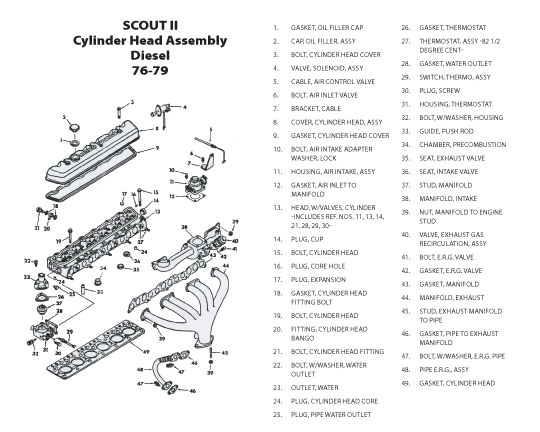

Cylindeer Head Assembly Diesel
Click Image for Larger View
  1. Gasket, Oil Filler Cap
  2. Cap, Oil Filler, Assy
  3. Bolt, Cylinder Head Cover
  4. Valve, Solenoid, Assy
  5. Cable, Air Control Valve
  6. Bolt, Air Inlet Valve
  7. Bracket, Cable
  8. Cover, Cylinder Head, Assy
  9. Gasket, Cylinder Head Cover
  10. Bolt, Air Intake Adapter
    Washer, Lock
  11. Housing, Air Intake, Assy
  12. Gasket, Air Inlet to Manifold
  13. Head, w/Valves, Cylinder -Includes Ref. Nos. 11, 13, 14, 21, 28, 29, 30-
  14. Plug, Cup
  15. Bolt, Cylinder Head
  16. Plug, Core Hole
  17. Plug, Expansion
  18. Gasket, Cylinder Head Fitting Bolt
  19. Bolt, Cylinder Head
  20. Fitting, Cylinder Head Bango
  21. Bolt, Cylinder Head Fitting
  22. Bolt, w/Washer, Water Outlet
  23. Outlet, Water
  24. Plug, Cylinder Head Core
  25. Plug, Pipe Water Outlet
  26. Gasket, Thermostat
  27. Thermostat, Assy -82 1/2 Degree Cent-
  28. Gasket, Water Outlet
  29. Switch, Thermo, Assy
  30. Plug, Screw
  31. Housing, Thermostat
  32. Bolt, w/Washer, Housing
  33. Guide, Push Rod
  34. Chamber, Precombustion
  35. Seat, Exhaust Valve
  36. Seat, Intake Valve
  37. Stud, Manifold
  38. Manifold, Intake
  39. Nut, Manifold to Engine Stud
  40. Valve, Exhaust Gas Recirculation, Assy
  41. Bolt, E.R.G. Valve
  42. Gasket, E.R.G. Valve
  43. Gasket, Manifold
  44. Manifold, Exhaust
  45. Stud, Exhaust Manifold to Pipe
  46. Gasket, Pipe to Exhaust Manifold
  47. Bolt, w/Washer, E.R.G. Pipe
  48. Pipe E.R.G., Assy
  49. Gasket, Cylinder Head

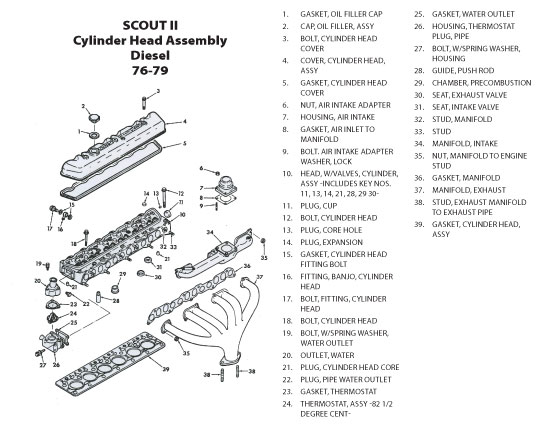

Cylinder Head Assembly
Click Image for Larger View
  1. Gasket, Oil Filler Cap
    Cap, Oil Filler, Assy
  2. Bolt, Cylinder Head Cover
  3. Cover, Cylinder Head, Assy
  4. Gasket, Cylinder Head Cover
  5. Nut, Air Intake Adapter
  6. Housing, Air Intake
  7. Gasket, Air Inlet to Manifold
  8. Bolt. Air Intake Adapter
  9. Washer, Lock
  10. Head, w/Valves, Cylinder, Assy -Includes Key Nos. 11, 13, 14, 21, 28, 29 30-
  11. Plug, Cup
  12. Bolt, Cylinder Head
  13. Plug, Core Hole
  14. Plug, Expansion
  15. Gasket, Cylinder Head Fitting Bolt
  16. Fitting, Banjo, Cylinder Head
  17. Bolt, Fitting, Cylinder Head
  18. Bolt, Cylinder Head
  19. Bolt, w/Spring Washer, Water Outlet
  20. Outlet, Water
  21. Plug, Cylinder Head Core
  22. Plug, Pipe Water Outlet
  23. Gasket, Thermostat
  24. Thermostat, Assy -82 1/2 Degree Cent-
  25. Gasket, Water Outlet
  26. Housing, Thermostat
    Plug, Pipe
  27. Bolt, w/Spring Washer, housing
  28. Guide, Push Rod
  29. Chamber, Precombustion
  30. Seat, Exhaust Valve
  31. Seat, Intake Valve
  32. Stud, Manifold
  33. Stud
  34. Manifold, Intake
  35. Nut, Manifold to Engine Stud
  36. Gasket, Manifold
  37. Manifold, Exhaust
  38. Stud, Exhaust Manifold to Exhaust
    Pipe
  39. Gasket, Cylinder Head, Assy

Return to Top

cylinder head assembly
diesel
1980
scout ii
emission air pump & mounting
4 cylinder
1971-80
scout ii

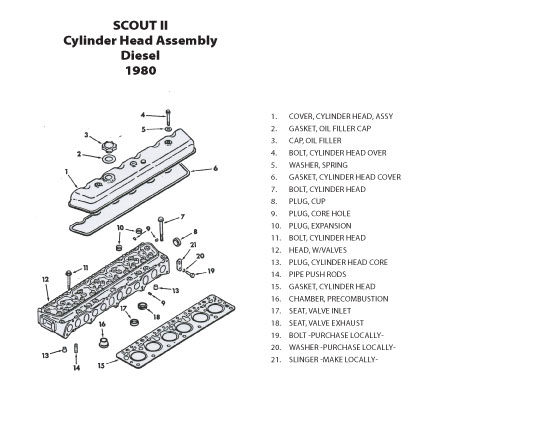

Cylinder Head Assembly
Click Image for Larger View
  1. Cover, Cylinder Head, Assy
  2. Gasket, Oil Filler Cap
  3. Cap, Oil Filler
  4. Bolt, Cylinder Head Over
  5. Washer, Spring
  6. Gasket, Cylinder Head Cover
  7. Bolt, Cylinder Head
  8. Plug, Cup
  9. Plug, Core Hole
  10. Plug, Expansion
  11. Bolt, Cylinder Head
  12. Head, w/Valves
  13. Plug, Cylinder Head Core
  14. Pipe Push Rods
  15. Gasket, Cylinder Head
  16. Chamber, Precombustion
  17. Seat, Valve Inlet
  18. Seat, Valve Exhaust
  19. Bolt -Purchase Locally-
  20. Washer -Purchase Locally-
  21. Slinger -Make Locally-

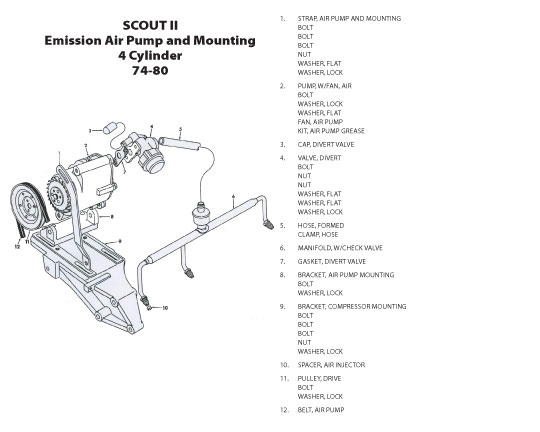

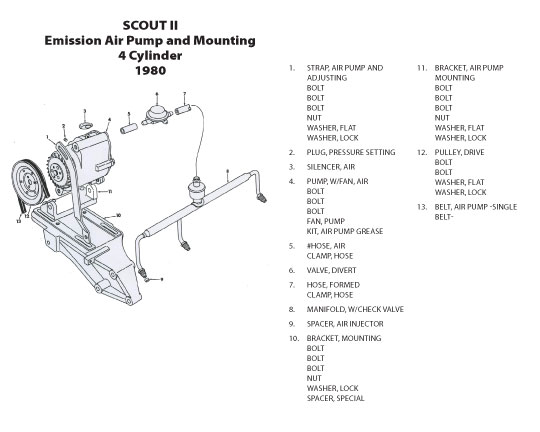

Emission Air Pump and Mounting
Click Image for Larger View
  1. Strap, Adjusting Air Pump
    Bolt
    Bolt
    Bolt
    Nut
    Nut
    Washer, Flat
    Washer, Flat
    Washer, Lock
  2. Pump, w/Fan, Air
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
    Fan, Air Pump
    Kit, Air Pump Grease
  3. Gasket, Divert Valve
  4. Valve, Divert
    Bolt
    Nut
    Nut
    Washer, Hardened
    Washer, Hardened
    Washer, Lock
    Cap, Divert Valve
  5. Clamp. Hose
  6. Hose
  7. Valve, Check
  8. Manifold, Air Exhaust
  9. Bracket, Air Pump Mounting -w/Spacer-
    Bolt
    Bolt
    Washer, Lock
    Spacer, Bracket
  10. Pulley, Drive
    Bolt
    Washer, Lock
  11. Belt, Air Pump
  12. Tube, Air Injection

Return to Top


emission air pump mounting
6 cylinder
1971-75
scout ii

emission air pump & mounting
4 cylinder
1974-80
scout ii

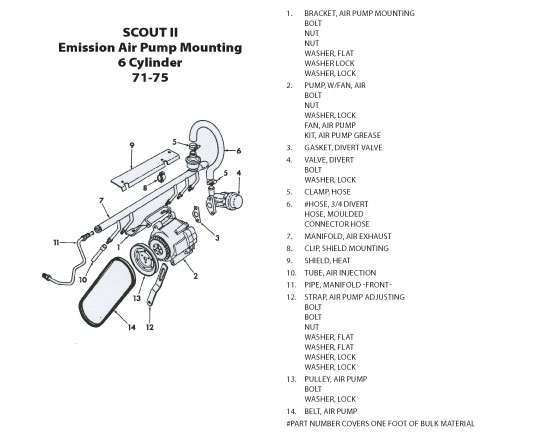

Emission Air Pump Mounting
Click Image for Larger View
  1. Bracket, Air Pump Mounting
    Bolt
    Nut
    Nut
    Washer, Flat
    Washer Lock
    Washer, Lock
  2. Pump, w/Fan, Air
    Bolt
    Nut
    Washer, Lock
    Fan, Air Pump
    Kit, Air Pump Grease
  3. Gasket, Divert Valve
  4. Valve, Divert
    Bolt
    Washer, Lock
  5. Clamp, Hose
  6. #Hose, 3/4 Divert
    Hose, Moulded
    Connector Hose
  7. Manifold, Air Exhaust
  8. Clip, Shield Mounting
  9. Shield, Heat
  10. Tube, Air Injection
  11. Pipe, Manifold -Front-
  12. Strap, Air Pump Adjusting
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Flat
    Washer, Lock
    Washer, Lock
  13. Pulley, Air Pump
    Bolt
    Washer, Lock
  14. Belt, Air Pump

#Part Number Covers One Foot of Bulk Material

Emission Air Pump and Mounting
Click Image for Larger View
  1. Strap, Air Pump and Mounting
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  2. Pump, w/Fan, Air
    Bolt
    Washer, Lock
    Washer, Flat
    Fan, Air Pump
    Kit, Air Pump grease
  3. Cap, Divert Valve
  4. Valve, Divert
    Bolt
    Nut
    Nut
    Washer, Flat
    Washer, Flat
    Washer, Lock
  5. Hose, Formed
    Clamp, Hose
  6. Manifold, w/Check Valve
  7. Gasket, Divert Valve
  8. Bracket, Air Pump Mounting
    Bolt
    Washer, Lock
  9. Bracket, Compressor Mounting
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Lock
  10. Spacer, Air Injector
  11. Pulley, Drive
    Bolt
    Washer, Lock
  12. Belt, Air Pump

Return to Top

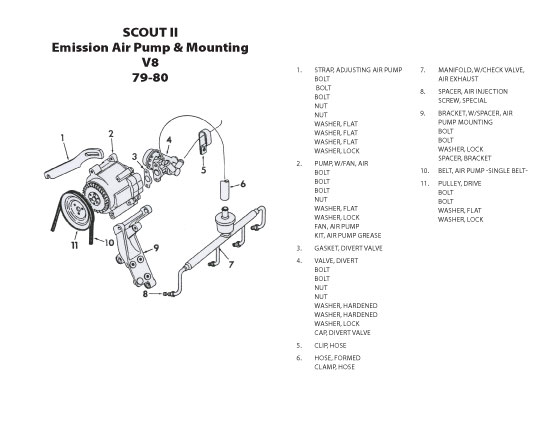

emission air pump & mounting
v8
1979-80
scout ii

emission air pump & mounting
4 cylinder
1980
scout ii

Emission Air Pump and Mounting
Click Image for Larger View
  1. Strap, Adjusting Air Pump
    Bolt
    Bolt
    Bolt
    Nut
    Nut
    Washer, Flat
    Washer, Flat
    Washer, Flat
    Washer, Lock
  2. Pump, w/Fan, Air
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
    Fan, Air Pump
    Kit, Air Pump Grease
  3. Gasket, Divert Valve
  4. Valve, Divert
    Bolt
    Bolt
    Nut
    Nut
    Washer, Hardened
    Washer, Hardened
    Washer, Lock
    Cap, Divert Valve
  5. Clip, Hose
  6. Hose, Formed
    Clamp, Hose
  7. Manifold, w/Check Valve, Air Exhaust
  8. Spacer, Air Injection
    Screw, Special
  9. Bracket, w/Spacer, Air Pump Mounting
    Bolt
    Bolt
    Washer, Lock
    Spacer, Bracket
  10. Belt, Air Pump -Single Belt-
  11. Pulley, Drive
    Bolt
    Bolt
    Washer, Flat
    Washer, Lock
Emission Air Pump and Mounting
Click Image for Larger View
  1. Strap, Air Pump and Adjusting
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  2. Plug, Pressure Setting
  3. Silencer, Air
  4. Pump, w/Fan, Air
    Bolt
    Bolt
    Bolt
    Fan, Pump
    Kit, Air Pump grease
  5. #Hose, Air
    Clamp, Hose
  6. Valve, Divert
  7. Hose, Formed
    Clamp, Hose
  8. Manifold, w/Check Valve
  9. Spacer, Air Injector
  10. Bracket, Mounting
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Lock
    Spacer, Special
  11. Bracket, Air Pump Mounting
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  12. Pulley, Drive
    Bolt
    Bolt
    Washer, Flat
    Washer, Lock
  13. Belt, Air Pump -Single Belt-

Return to Top

engine rear mounting
1977-80
scout ii/terra/traveler

engine front mounting
6 cylinder
1971-75
scout ii

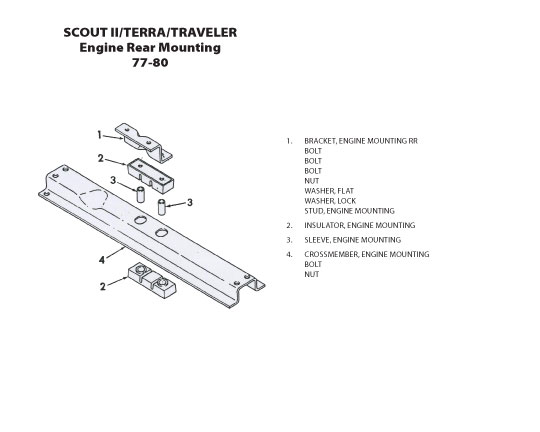

Engine Rear Mounting
Click Image for Larger View
  1. Bracket, Engine Mounting RR
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
    Stud, Engine Mounting
  2. Insulator, Engine Mounting
  3. Sleeve, Engine Mounting
  4. Crossmember, Engine Mounting
    Bolt
    Nut

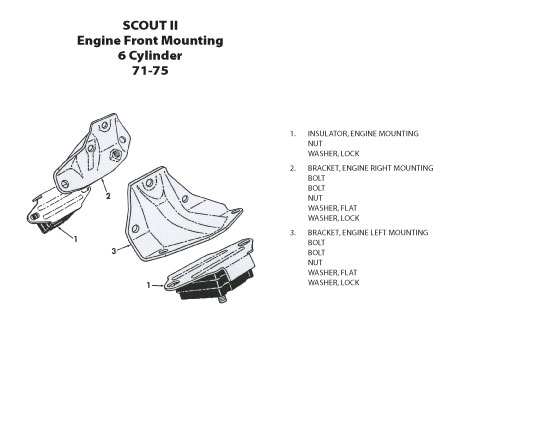

Engine Front Mounting
Click Image for Larger View
  1. Insulator, Engine Mounting
    Nut
    Washer, Lock
  2. Bracket, Engine Right Mounting
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  3. Bracket, Engine Left Mounting
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock

Return to Top

engine rear mounting
1971-76
scout ii/terra/traveler
engine front mounting
4 cylinder
1971-80
scout ii

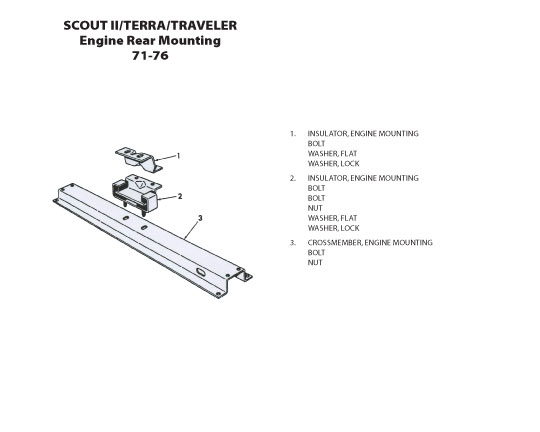

Engine Rear Mounting
Click Image for Larger View
  1. Insulator, Engine Mounting
    Bolt
    Washer, Flat
    Washer, Lock
  2. Insulator, Engine Mounting
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  3. Crossmember, Engine Mounting
    Bolt
    Nut

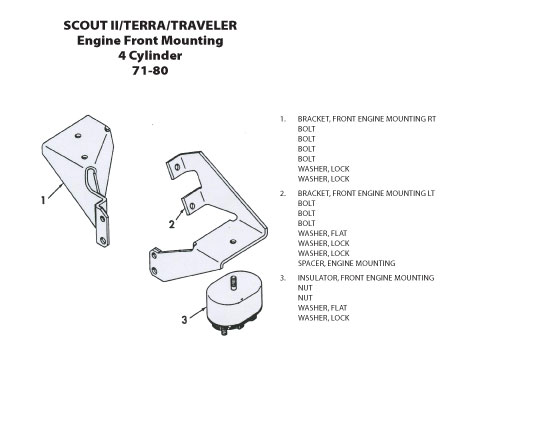

Engine Front Mounting
Click Image for Larger View
  1. Bracket, Front Engine Mounting RT
    Bolt
    Bolt
    Bolt
    Bolt
    Washer, Lock
    Washer, Lock
  2. Bracket, Front Engine Mounting LT
    Bolt
    Bolt
    Bolt
    Washer, Flat
    Washer, Lock
    Washer, Lock
    Spacer, Engine Mounting
  3. Insulator, Front Engine Mounting
    Nut
    Nut
    Washer, Flat
    Washer, Lock

Return to Top


engine front mounting
v8
1971-80
scout ii

engine front mounting
diesel
1976-80
scout ii

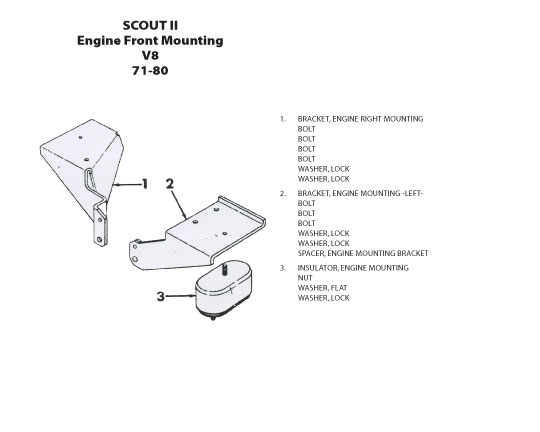

Engine Front Mounting
Click Image for Larger View
  1. Bracket, Engine RIght Mounting
    Bolt
    Bolt
    Bolt
    Bolt
    Washer, Lock
    Washer, Lock
  2. Bracket, Engine Mounting -Left-
    Bolt
    Bolt
    Bolt
    Washer, Lock
    Washer, Lock
    Spacer, Engine Mounting Bracket
  3. Insulator, Engine Mounting
    Nut
    Washer, Flat
    Washer, Lock

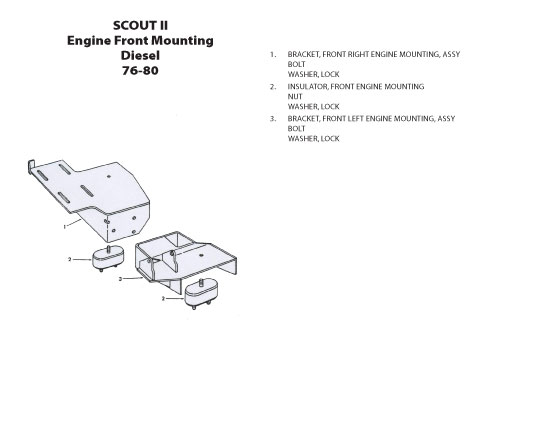

Engine Front Mounting
Click Image for Larger View
  1. Bracket, Front Right Engine Mounting, Assy
    Bolt
    Washer, Lock
  2. Insulator, Front Engine Mounting
    Nut
    Washer, Lock
  3. Bracket, Front Left Engine Mounting, Assy
    Bolt
    Washer, Lock

Return to Top

engine rear mounting
diesel
1976-80
scout ii
engine shutdown
diesel
1976-80
scout ii

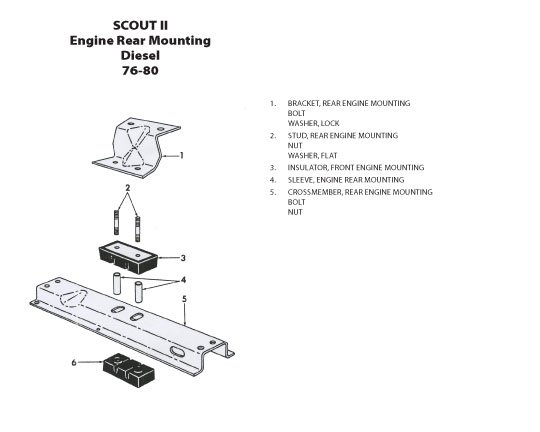

Engine Rear Mounting
Click Image for Larger View
  1. Bracket, Rear Engine Mounting
    Bolt
    Washer, Lock
  2. Stud, Rear Engine Mounting
    Nut
    Washer, Flat
  3. Insulator, Front Engine Mounting
  4. Sleeve, Engine Rear Mounting
  5. Crossmember, Rear Engine Mounting
    Bolt
    Nut

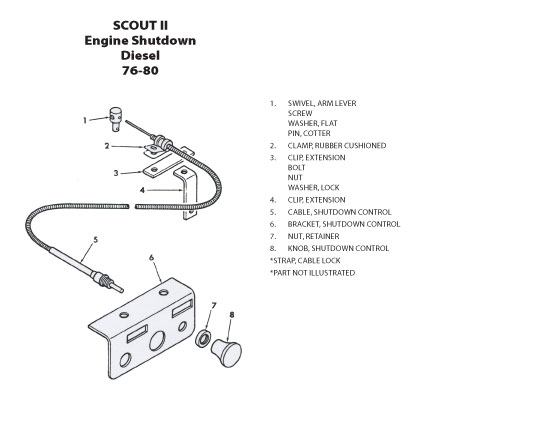

Eingine Shutdown
Click Image for Larger View
  1. Swivel, Arm Lever
    Screw
    Washer, Flat
    Pin, Cotter
  2. Clamp, Rubber Cushioned
  3. Clip, Extension
    Bolt
    Nut
    Washer, Lock
  4. Clip, Extension
  5. Cable, Shutdown Control
  6. Bracket, Shutdown Control
  7. Nut, Retainer
  8. Knob, Shutdown Control

*Strap, Cable Lock

*Part Not Illustrated


Return to Top


engine shut-down
diesel
1980
scout ii

exhaust gas recirculation valve
1971-80
scout ii

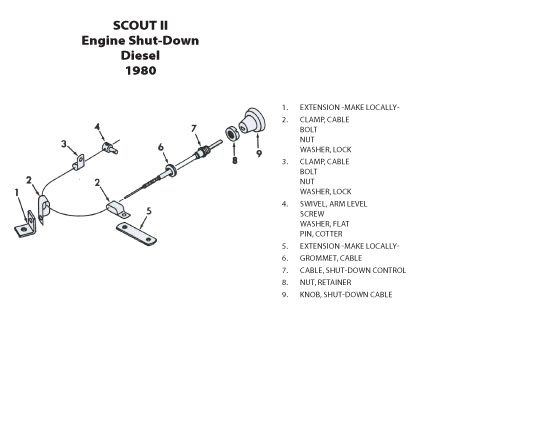

Engine Shut-Down
Click Image for Larger View
  1. Extension -Make Locally-
  2. Clamp, Cable
    Bolt
    Nut
    Washer, Lock
  3. Clamp, Cable
    Bolt
    Nut
    Washer, Lock
  4. Swivel, Arm Level
    Screw
    Washer, Flat
    Pin, Cotter
  5. Extension -Make Locally-
  6. Grommet, Cable
  7. Cable, Shut-Down Control
  8. Nut, Retainer
  9. Knob, Shut-Down Cable

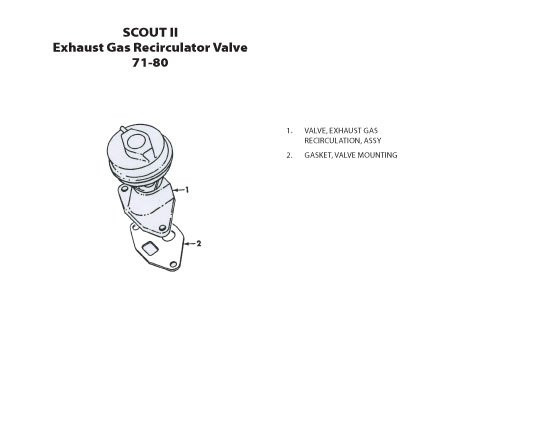

Exhaust Gas Recirculation valve
Click Image for Larger View
  1. Valve, Exhaust Gas Recirculation, Assy
  2. Gasket, Valve Mounting

Return to Top


fan, fan belt & water pump
4 cylinder
1971-80
scout ii

fan, fan belt & water pump
6 cylinder
1971-75
scout ii

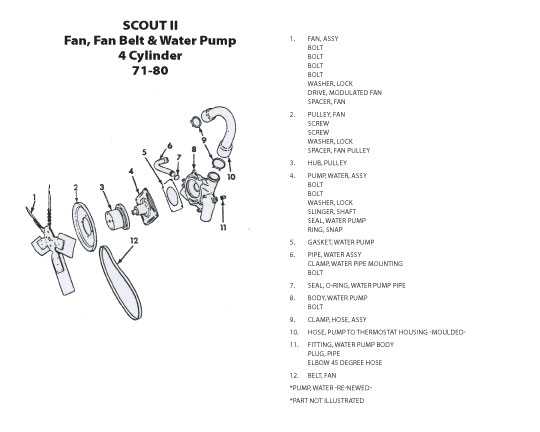

Fan, Fan Belt and Water Pump
Click Image for Larger View
  1. Fan, Assy
    Bolt
    Bolt
    Bolt
    Bolt
    Washer, Lock
    Drive, Modulated Fan
    Spacer, Fan
  2. Pulley, Fan
    Screw
    Screw
    Washer, Lock
    Spacer, Fan Pulley
  3. Hub, Pulley
  4. Pump, Water, Assy
    Bolt
    Bolt
    Washer, Lock
    Slinger, Shaft
    Seal, Water Pump
    Ring, Snap
  5. Gasket, Water Pump
  6. Pipe, Water Assy
    Clamp, Water Pipe Mounting
    Bolt
  7. Seal, O-Ring, Water Pump Pipe
  8. Body, Water Pump
    Bolt
  9. Clamp, Hose, Assy
  10. Hose, Pump to Thermostat Housing -Moulded-
  11. Fitting, Water Pump Body
    Plug, Pipe
    Elbow 45 Degree Hose
  12. Belt, Fan

*Pump, Water -Re-Newed-

*Part Not Illustrated

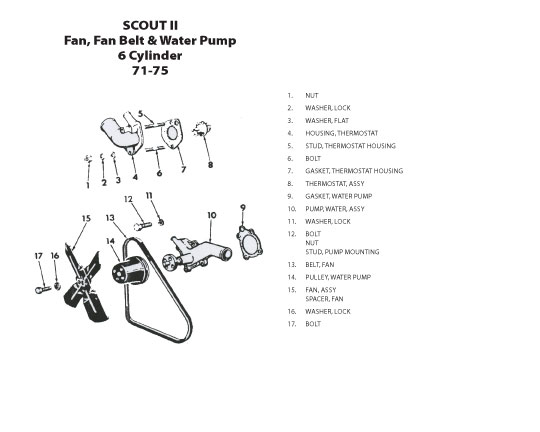

Fan, Fan Belt and Water Pump
Click Image for Larger View
  1. Nut
  2. Washer, Lock
  3. Washer, Flat
  4. Housing, Thermostat
  5. Stud, Thermostat Housing
  6. Bolt
  7. Gasket, Thermostat Housing
  8. Thermostat, Assy
  9. Gasket, Water Pump
  10. Pump, Water, Assy
  11. Washer, Lock
  12. Bolt
    Nut
    Stud, Pump Mounting
  13. Belt, Fan
  14. Pulley, Water Pump
  15. Fan, Assy
    Spacer, Fan
  16. Washer, Lock
  17. Bolt

Return to Top


fan, fan belt & water pump
v8
1971-80
scout ii

water pump, fan & fan belt
diesel
1976-80
scout ii

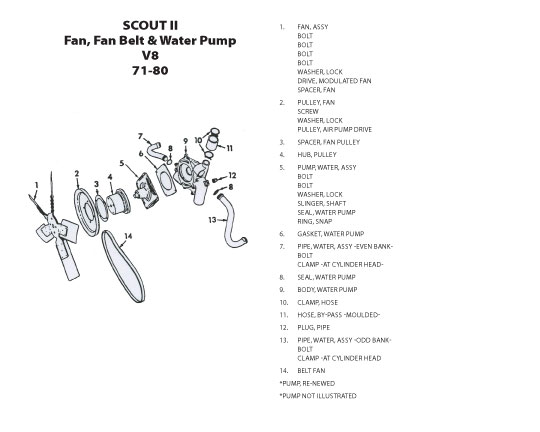

Fan, Fan Belt and Water Pump
Click Image for Larger View
  1. Fan, Assy
    Bolt
    Bolt
    Bolt
    Bolt
    Washer, Lock
    Drive, Modulated Fan
    Spacer, Fan
  2. Pulley, Fan
    Screw
    Washer, Lock
    Pulley, Air Pump Drive
  3. Spacer, Fan Pulley
  4. Hub, Pulley
  5. Pump, Water, Assy
    Bolt
    Bolt
    Washer, Lock
    Slinger, Shaft
    Seal, Water Pump
    Ring, Snap
  6. Gasket, Water Pump
  7. Pipe, Water, Assy -Even Bank-
    Bolt
    Clamp -At Cylinder Head-
  8. Seal, Water Pump
  9. Body, Water Pump
  10. Clamp, Hose
  11. Hose, By-Pass -Moulded-
  12. Plug, Pipe
  13. Pipe, Water, Assy -Odd Bank-
    Bolt
    Clamp -At Cylinder Head
  14. Belt Fan

*Pump, Re-Newed

*Pump Not Illustrated

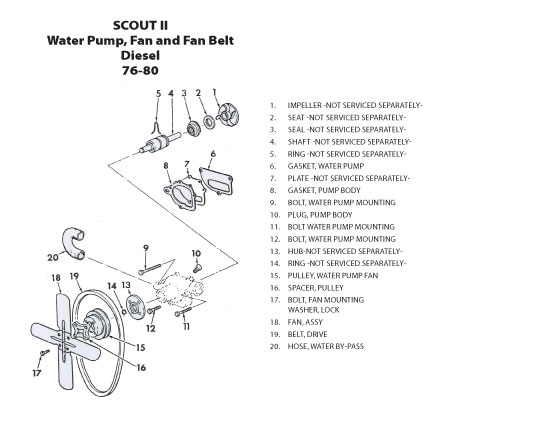

Water Pump, Fan and Fan Belt
Click Image for Larger View
  1. Impeller -Not Serviced Separately
  2. Seat -Not Serviced Separately-
  3. Seal -Not Serviced Separately-
  4. Shaft -Not Serviced Separately-
  5. Ring -Not Serviced Separately-
  6. Gasket, Water Pump
  7. Plate -Not Serviced Separately-
  8. Gasket, Pump Body
  9. Bolt, Water Pump Mounting
  10. Plug, Pump Body
  11. Bolt Water Pump Mounting
  12. Bolt, Water Pump Mounting
  13. Hub-Not Serviced Separately-
  14. Ring -Not Serviced Separately-
  15. Pulley, Water Pump Fan
  16. Spacer, Pulley
  17. Bolt, Fan Mounting
    Washer, Lock
  18. Fan, Assy
  19. Belt, Drive
  20. Hose, Water By-Pass

Return to Top

flywheel housing
6 cylinder
1971-75
scout ii
fuel pump primer
diesel
1976-80
scout ii

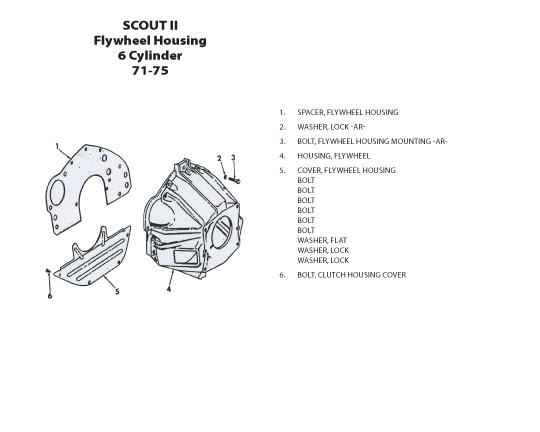

Flywheel Housing
Click Image for Larger View
  1. Spacer, Flywheel Housing
  2. Washer, Lock -AR-
  3. Bolt, Flywheel Housing Mounting -AR-
  4. Housing, Flywheel
  5. Cover, Flywheel Housing
    Bolt
    Bolt
    Bolt
    Bolt
    Bolt
    Bolt
    Washer, Flat
    Washer, Lock
    Washer, Lock
  6. Bolt, Clutch Housing Cover

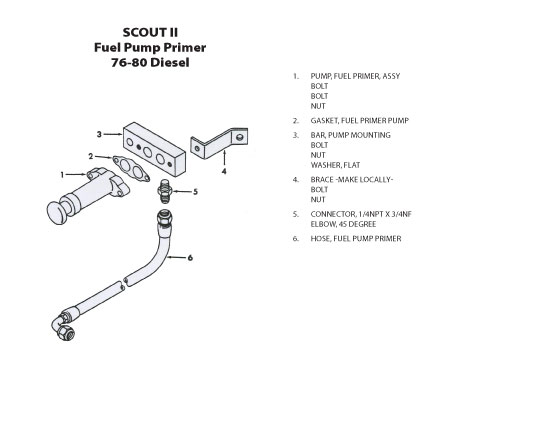

Fuel Pump Primer 76-80 Diesel
Click Image for Larger View
  1. Pump, Fuel Primer, Assy
    Bolt
    Bolt
    Nut
  2. Gasket, Fuel Primer Pump
  3. Bar, Pump Mounting
    Bolt
    Nut
    Washer, Flat
  4. Brace -Make Locally-
    Bolt
    Nut
  5. Connector, 1/4NPT x 3/4NF
    Elbow, 45 Degree
  6. Hose, Fuel Pump Primer

Return to Top


fuel pump
4 cylinder
1971-74
scout ii

fuel pump
6 cylinder
1971-75
scout ii

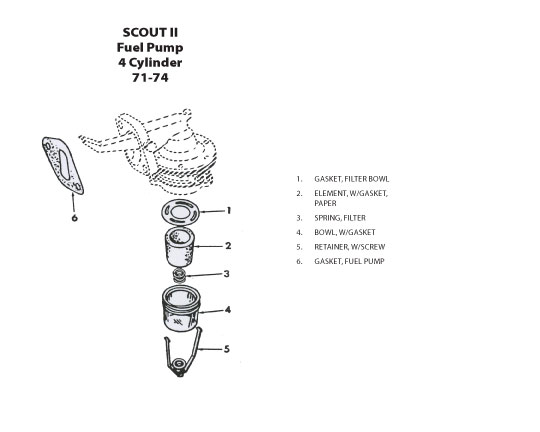

Fuel Pump
Click Image for Larger View
  1. Gasket, Filter Bowl
  2. Element, w/Gasket, Paper
  3. Spring, Filter
  4. Bowl, w/Gasket
  5. Retainer, w/Screw
  6. Gasket, Fuel Pump

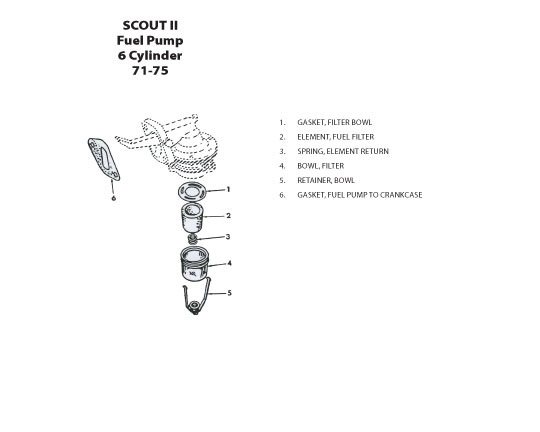

Fuel Pump
Click Image for Larger View
  1. Gasket, Filter Bowl
  2. Element, Fuel Filter
  3. Spring, Element Return
  4. Bowl, Filter
  5. Retainer, Bowl
  6. Gasket, Fuel Pump to Crankcase

Return to Top

fuel pump & filter
4/6/8 cylinder
1974-80
scout ii

fuel injection pump
diesel
1976-79
scout ii

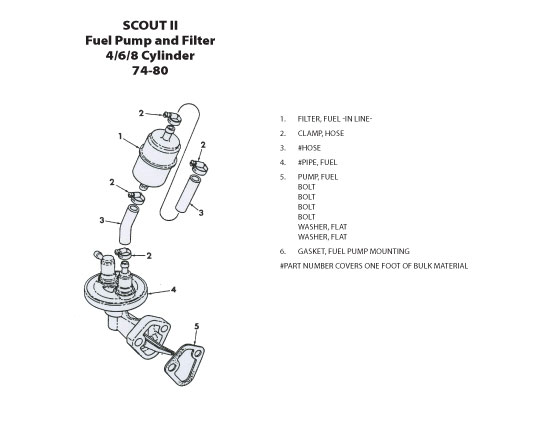

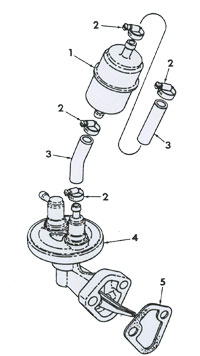

Fuel Pump and Filter
Click Image for Larger View
  1. Filter, Fuel -In Line-
  2. Clamp, Hose
  3. #Hose
    #Pipe, Fuel
  4. Pump, Fuel
    Bolt
    Bolt
    Bolt
    Bolt
    Washer, Flat
    Washer, Flat
  5. Gasket, Fuel Pump Mounting

#Part Number Covers One Foot of Bulk Material

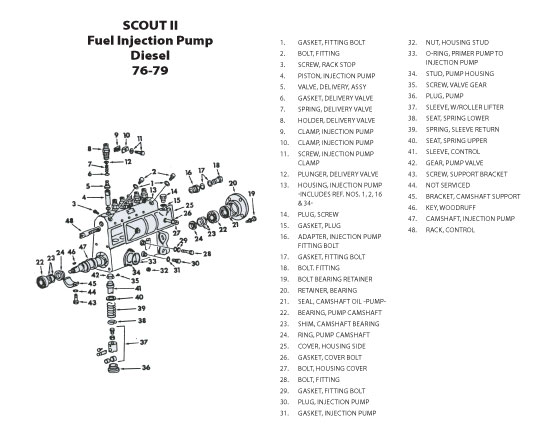

Fuel Injection Pump Diesel
Click Image for Larger View
  1. Gasket, Fitting Bolt
  2. Bolt, Fitting
  3. Screw, Rack Stop
  4. Piston, Injection Pump
  5. Valve, Delivery, Assy
  6. Gasket, Delivery Valve
  7. Spring, Delivery Valve
  8. Holder, Delivery Valve
  9. Clamp, Injection Pump
  10. Clamp, Injection Pump
  11. Screw, Injection Pump Clamp
  12. Plunger, Delivery Valve
  13. Housing, Injection Pump -Includes
    Ref. Nos. 1, 2, 16 & 34
  14. Plug, Screw
  15. Gasket, Plug
  16. Adapter, Injection Pump Fitting Bolt
  17. Gasket, Fitting Bolt
  18. Bolt. Fitting
  19. Bolt Bearing Retainer
  20. Retainer, Bearing
  21. Seal, Camshaft Oil -Pump-
  22. Bearing, Pump Camshaft
  23. Shim, Camshaft Bearing
  24. Ring, Pump Camshaft
  25. Cover, Housing Side
  26. Gasket, Cover Bolt
  27. Bolt, Housing Cover
  28. Bolt, Fitting
  29. Gasket, Fitting Bolt
  30. Plug, Injection Pump
  31. Gasket, Injection Pump
  32. Nut, Housing Stud
  33. O-Ring, Primer Pump to Injection
    Pump
  34. Stud, Pump Housing
  35. Screw, Valve Gear
  36. Plug, Pump
  37. Sleeve, w/Roller Lifter
  38. Seat, Spring Lower
  39. Spring, Sleeve Return
  40. Seat, Spring Upper
  41. Sleeve, Control
  42. Gear, Pump Valve
  43. Screw, Support Bracket
  44. Not Serviced
  45. Bracket, Camshaft Support
  46. Key, Woodruff
  47. Camshaft, Injection Pump
  48. Rack, Control

Return to Top

fuel injection pump governor
diesel
1976-79
scout ii
fuel injection pump
diesel
1976-80
scout ii

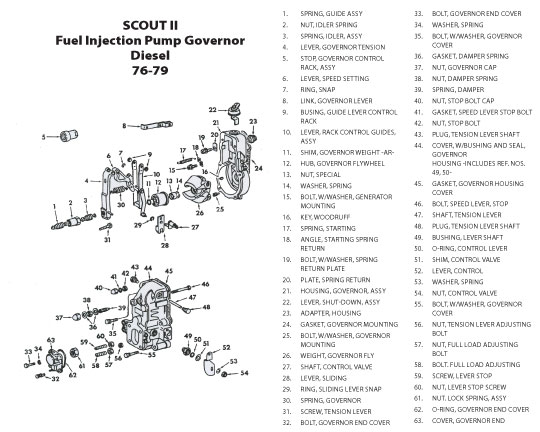

Fuel Injection Pump Governor
Click Image for Larger View
  1. Spring, Guide Assy
  2. Nut, Idler Spring
  3. Spring, Idler, Assy
  4. Lever, Governor Tension
  5. Stop, Governor Control Rack, Assy
  6. Lever, Speed Setting
  7. Ring, Snap
  8. Link, Governor Lever
  9. Busing, Guide Lever Control rack
  10. Lever, Rack Control Guides, Assy
  11. Shim, Governor weight -AR-
  12. Hub, Governor Flywheel
  13. Nut, Special
  14. Washer, Spring
  15. Bolt, w/Washer, Generator Mounting
  16. Key, Woodruff
  17. Spring, Starting
  18. Angle, Starting Spring Return
  19. Bolt, w/Washer, Spring Return plate
  20. Plate, Spring Return
  21. Housing, Governor, Assy
  22. Lever, Shut-Down, Assy
  23. Adapter, housing
  24. Gasket, Governor Mounting
  25. Bolt, w/Washer, Governor Mounting
  26. Weight, Governor Fly
  27. Shaft, Control Valve
  28. Lever, Sliding
  29. Ring, Sliding Lever Snap
  30. Spring, Governor
  31. Screw, Tension Lever
  32. Bolt, Governor End Cover
  33. Bolt, Governor End Cover
  34. Washer, Spring
  35. Bolt, w/Washer, Governor Cover
  36. Gasket, Damper Spring
  37. Nut, Governor Cap
  38. Nut, Damper Spring
  39. Spring, Damper
  40. Nut, Stop Bolt Cap
  41. Gasket, Speed Lever Stop Bolt
  42. Nut, Stop Bolt
  43. Plug, Tension Lever Shaft
  44. Cover, w/Bushing and Seal, Governor
    Housing -Includes Ref. Nos. 49, 50-
  45. Gasket, Governor Housing Cover
  46. Bolt, Speed Lever, Stop
  47. Shaft, Tension Lever
  48. Plug, Tension Lever Shaft
  49. Bushing, Lever Shaft
  50. O-Ring, Control Lever
  51. Shim, Control Valve
  52. Lever, Control
  53. Washer, Spring
  54. Nut, Control Valve
  55. Bolt, w/Washer, Governor Cover
  56. Nut, Tension Lever Adjusting Bolt
  57. Nut, Full Load Adjusting Bolt
  58. Bolt. Full Load Adjusting
  59. Screw, Lever Stop
  60. Nut, Lever Stop Screw
  61. Nut. Lock Spring, Assy
  62. O-Ring, Governor End Cover
  63. Cover, Governor End

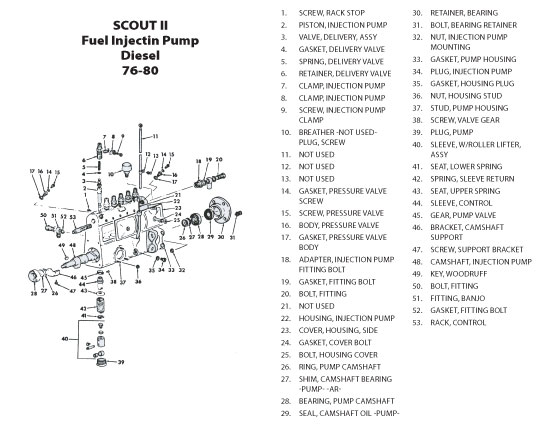

Fuel Injection Pump
Click Image for Larger View
  1. Screw, Rack Stop
  2. Piston, Injection Pump
  3. Valve, Delivery, Assy
  4. Gasket, Delivery Valve
  5. Spring, Delivery Valve
  6. Retainer, Delivery Valve
  7. Clamp, Injection Pump
  8. Clamp, Injection Pump
  9. Screw, Injection Pump Clamp
  10. Breather -Not Used-
    Plug, Screw
  11. Not Used
  12. Not Used
  13. Not Used
  14. Gasket, Pressure Valve Screw
  15. Screw, Pressure Valve
  16. Body, Pressure Valve
  17. Gasket, Pressure Valve Body
  18. Adapter, Injection Pump Fitting Bolt
  19. Gasket, Fitting Bolt
  20. Bolt, Fitting
  21. Not Used
  22. Housing, Injection Pump
  23. Cover, housing, Side
  24. Gasket, Cover Bolt
  25. Bolt, Housing Cover
  26. Ring, Pump Camshaft
  27. Shim, Camshaft Bearing -Pump- -AR-
  28. Bearing, Pump Camshaft
  29. Seal, Camshaft Oil -Pump-Retainer,
  30. Bearing
  31. Bolt, Bearing Retainer
  32. Nut, Injection Pump Mounting
  33. Gasket, pump Housing
  34. Plug, Injection Pump
  35. Gasket, Housing Plug
  36. Nut, Housing Stud
  37. Stud, Pump Housing
  38. Screw, Valve Gear
  39. Plug, Pump
  40. Sleeve, w/Roller Lifter, Assy
  41. Seat, Lower Spring
  42. Spring, Sleeve Return
  43. Seat, Upper Spring
  44. Sleeve, Control
  45. Gear, Pump Valve
  46. Bracket, Camshaft Support
  47. Screw, Support Bracket
  48. Camshaft, Injection Pump
  49. Key, Woodruff
  50. Bolt, Fitting
  51. Fitting, banjo
  52. Gasket, Fitting Bolt
  53. Rack, Control

Return to Top


fuel injection pipes
diesel
1976-80
scout ii

fuel filter
diesel
1976-80
scout ii

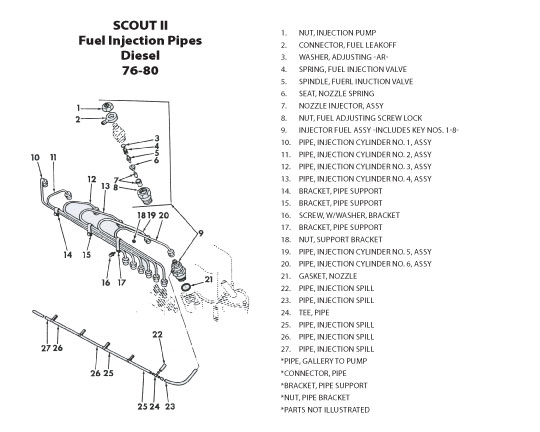

Fuel Injection Pipes
Click Image for Larger View
  1. Nut, Injection Pump
  2. Connector, Fuel Leakoff
  3. Washer, Adjusting -AR-
  4. Spring, Fuel Injection Valve
  5. Spindle, Fuel Induction Valve
  6. Seat, Nozzle Spring
  7. Nozzle Injector, Assy
  8. Nut, Fuel Adjusting Screw Lock
  9. Injector Fuel Assy -Includes Key Nos. 1-8-
  10. Pipe, Injection Cylinder No. 1, Assy
  11. Pipe, Injection Cylinder No. 2, Assy
  12. Pipe, Injection Cylinder No. 3, Assy
  13. Pipe, Injection Cylinder No. 4, Assy
  14. Bracket, Pipe Support
  15. Bracket, Pipe Support
  16. Screw, w/Washer, Bracket
  17. Bracket, Pipe Support
  18. Nut, Support Bracket
  19. Pipe, Injection Cylinder No. 5, Assy
  20. Pipe, Injection Cylinder No. 6, Assy
  21. Gasket, Nozzle
  22. Pipe, Injection Spill
  23. Pipe, Injection Spill
  24. Tee, Pipe
  25. Pipe, Injection Spill
  26. Pipe, Injection Spill
  27. Pipe, Injection Spill

*Pipe, Gallery to Pump
*Connector, Pipe
*Bracket, Pipe Support
*Nut, Pipe Bracket

*Parts Not Illustrated

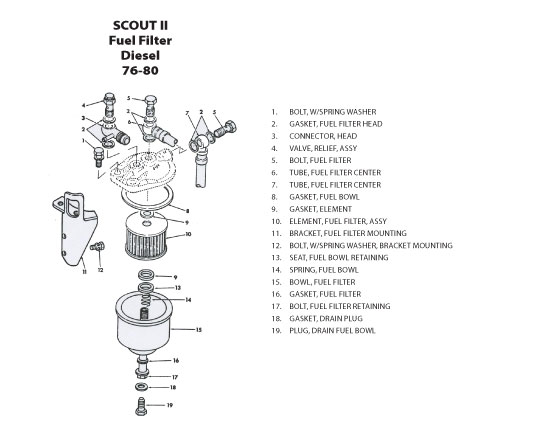

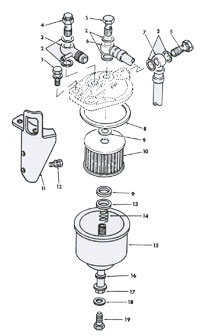

Fuel Filter
Click Image for Larger View
  1. Bolt, w/Spring Washer
  2. Gasket, Fuel Filter Head
  3. Connector, Head
  4. Valve, Relief, Assy
  5. Bolt, Fuel Filter
  6. Tube, Fuel Filter Center
  7. Tube, Fuel Filter Center
  8. Gasket, Fuel Bowl
  9. Gasket, Element
  10. Element, Fuel Filter, Assy
  11. Bracket, Fuel Filter Mounting
  12. Bolt, w/Spring Washer, Bracket Mounting
  13. Seat, Fuel Bowl Retaining
  14. Spring, Fuel Bowl
  15. Bowl, Fuel Filter
  16. Gasket, Fuel Filter
  17. Bolt, Fuel Filter Retaining
  18. Gasket, Drain Plug
  19. Plug, Drain Fuel Bowl

Return to Top

fuel filter -primary-
diesel
1976-80
scout ii
fuel injection pump governor
diesel
1976-80
scout ii

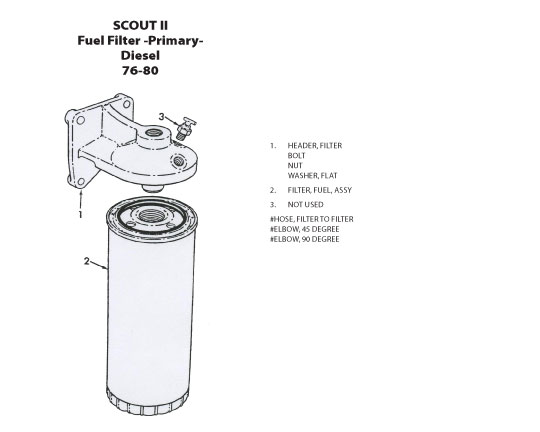

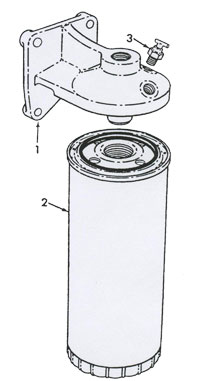

Fuel Filter Primary
Click Image for Larger View
  1. Header, Filter
    Bolt
    Nut
    Washer, Flat
  2. Filter, Fuel, Assy
  3. Not Used

#Hose, Filter to Filter

#Elbow,45 Degree

#Elbow, 90 Degree

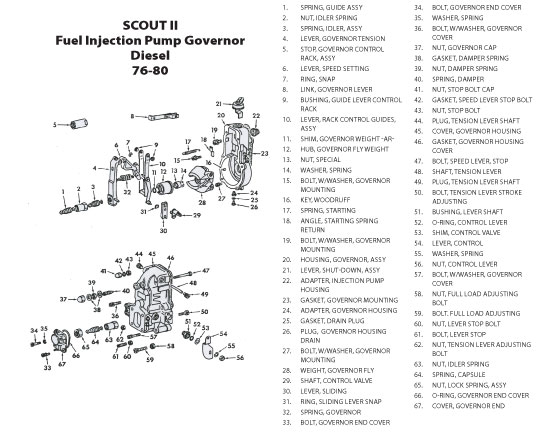

Fuel Injection Pump Governor
Click Image for Larger View
  1. Spring, Guide Assy
  2. Nut, Idler Spring
  3. Spring, Idler, Assy
  4. Lever, Governor Tension
  5. Stop, Governor Control Rack, Assy
  6. Lever, Speed Setting
  7. Ring, Snap
  8. Link, Governor Lever
  9. Bushing, Guide Lever Control rack
  10. Lever, Rack Control Guides, Assy
  11. Shim, Governor weight -AR-
  12. Hub, Governor Fly Weight
  13. Nut, Special
  14. Washer, Spring
  15. Bolt, w/Washer, Governor Mounting
  16. Key, Woodruff
  17. Spring, Starting
  18. Angle, Starting Spring Return
  19. Bolt, w/Washer, Governor mounting
  20. Housing, Governor, Assy
  21. Lever, Shut-Down, Assy
  22. Adapter, Injection Pump housing
  23. Gasket, Governor Mounting
  24. Adapter, Governor Housing
  25. Gasket, Drain Plug
  26. Plug, Governor Housing Drain
  27. Bolt, w/Washer, Governor Mounting
  28. Weight, Governor Fly
  29. Shaft, Control Valve
  30. Lever, Sliding
  31. Ring, Sliding Lever Snap
  32. Spring, Governor
  33. Bolt, Governor End Cover
  34. Bolt, Governor End Cover
  35. Washer, Spring
  36. Bolt, w/Washer, Governor Cover
  37. Nut, Governor Cap
  38. Gasket, Damper Spring
  39. Nut, Damper Spring
  40. Spring, Damper
  41. Nut, Stop Bolt Cap
  42. Gasket, Speed Lever Stop Bolt
  43. Nut, Stop Bolt
  44. Plug, Tension Lever Shaft
  45. Cover, Governor Housing
  46. Gasket, Governor Housing Cover
  47. Bolt, Speed Lever, Stop
  48. Shaft, Tension Lever
  49. Plug, Tension Lever Shaft
  50. Bolt, Tension Lever Stroke Adjusting
  51. Bushing, Lever Shaft
  52. O-Ring, Control Lever
  53. Shim, Control Valve
  54. Lever, Control
  55. Washer, Spring
  56. Nut, Control Lever
  57. Bolt, w/Washer, Governor Cover
  58. Nut, Full Load Adjusting Bolt
  59. Bolt. Full Load Adjusting
  60. Nut, Lever Stop Bolt
  61. Bolt, Lever Stop
  62. Nut, Tension Lever Adjusting Bolt
  63. Nut, Idler Spring
  64. Spring, Capsule
  65. Nut, Lock Spring, Assy
  66. O-Ring, Governor End Cover
  67. Cover, Governor End

Return to Top


fuel injection pipes
diesel
1976-80
scout ii

fuel injection pump governor
diesel
1976-80
scout ii

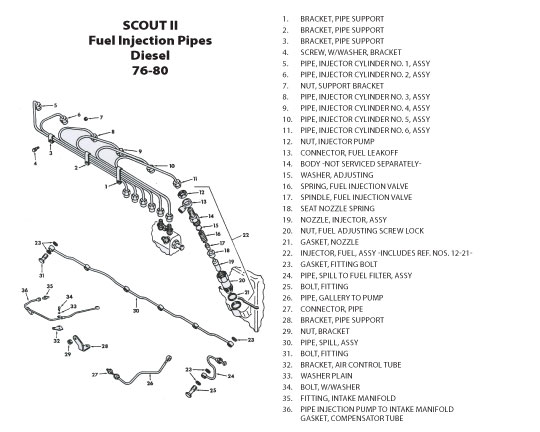

Fuel Injection Pipes
Click Image for Larger View
  1. Bracket, Pipe Support
  2. Bracket, Pipe Support
  3. Bracket, Pipe Support
  4. Screw, w/Washer, Bracket
  5. Pipe, Injector Cylinder No. 1, Assy
  6. Pipe, Injector Cylinder No. 2, Assy
  7. Nut, Support Bracket
  8. Pipe, Injector Cylinder No. 3, Assy
  9. Pipe, Injector Cylinder No. 4, Assy
  10. Pipe, Injector Cylinder No. 5, Assy
  11. Pipe, Injector Cylinder No. 6, Assy
  12. Nut, Injector Pump
  13. Connector, Fuel Leakoff
  14. Body -Not Serviced Separately-
  15. Washer, Adjusting
  16. Spring, Fuel Injection Valve
  17. Spindle, Fuel Injection Valve
  18. Seat Nozzle Spring
  19. Nozzle, Injector, Assy
  20. Nut, Fuel Adjusting Screw Lock
  21. Gasket, Nozzle
  22. Injector, Fuel, Assy -Includes Ref. Nos. 12-21-
  23. Gasket, Fitting Bolt
  24. Pipe, Spill to Fuel Filter, Assy
  25. Bolt, Fitting
  26. Pipe, Gallery to Pump
  27. Connector, Pipe
  28. Bracket, Pipe Support
  29. Nut, Bracket
  30. Pipe, Spill, Assy
  31. Bolt, Fitting
  32. Bracket, Air Control Tube
  33. Washer Plain
  34. Bolt, w/Washer
  35. Fitting, Intake Manifold
  36. Pipe Injection Pump to Intake Manifold
    Gasket, Compensator Tube

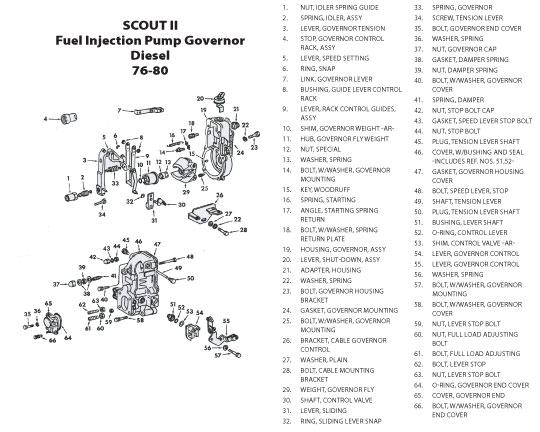

Fuel Injection Pump Governor
Click Image for Larger View
  1. Nut, Idler Spring Guide
  2. Spring, Idler, Assy
  3. Lever, Governor Tension
  4. Stop, Governor Control Rack, Assy
  5. Lever, Speed Setting
  6. Ring, Snap
  7. Link, Governor Lever
  8. Bushing, Guide Lever Control Rack
  9. Lever, Rack Control Guides, Assy
  10. Shim, Governor weight -AR-
  11. Hub, Governor Fly Weight
  12. Nut, Special
  13. Washer, Spring
  14. Bolt, w/Washer, Governor Mounting
  15. Key, Woodruff
  16. Spring, Starting
  17. Angle, Starting Spring Return
  18. Bolt, w/Washer, Spring Return Plate
  19. Housing, Governor, Assy
  20. Lever, Shut-Down, Assy
  21. Adapter, Housing
  22. Washer, Spring
  23. Bolt, Governor Housing Bracket
  24. Gasket, Governor Mounting
  25. Bolt, w/Washer, Governor Mounting
  26. Bracket, Cable Governor Control
  27. Washer, Plain
  28. Bolt, Cable Mounting Bracket
  29. Weight, Governor Fly
  30. Shaft, Control Valve
  31. Lever, Sliding
  32. Ring, Sliding Lever Snap
  33. Spring, Governor
  34. Screw, Tension Lever
  35. Bolt, Governor End Cover
  36. Washer, Spring
  37. Nut, Governor Cap
  38. Gasket, Damper Spring
  39. Nut, Damper Spring
  40. Bolt, w/Washer, Governor Cover
  41. Spring, Damper
  42. Nut, Stop Bolt Cap
  43. Gasket, Speed Lever Stop Bolt
  44. Nut, Stop Bolt
  45. Plug, Tension Lever Shaft
  46. Cover, w/Bushing and Seal -Includes Ref. Nos. 51,52-
  47. Gasket, Governor Housing Cover
  48. Bolt, Speed Lever, Stop
  49. Shaft, Tension Lever
  50. Plug, Tension Lever Shaft
  51. Bushing, Lever Shaft
  52. O-Ring, Control Lever
  53. Shim, Control Valve -AR-
  54. Lever, Governor Control
  55. Lever, Governor Control
  56. Washer, Spring
  57. Bolt, w/Washer, Governor Mounting
  58. Bolt, w/Washer, Governor Cover
  59. Nut, Lever Stop Bolt
  60. Nut, Full Load Adjusting Bolt
  61. Bolt, Full Load Adjusting
  62. Bolt, Lever Stop
  63. Nut, Lever Stop Bolt
  64. O-Ring, Governor End Cover
  65. Cover, Governor End
  66. Bolt, w/Washer, Governor End Cover

Return to Top

fuel injection pump governor
diesel
1980
scout ii

primary feed & hand pump
diesel
1976-80
scout ii

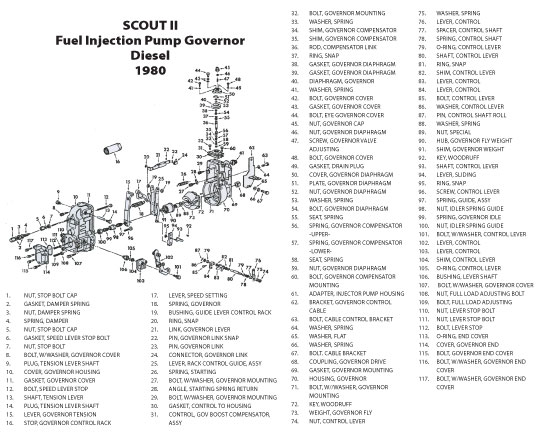

Fuel Injection Pump Governor
Click Image for Larger View
  1. Nut, Stop Bolt Cap
  2. Gasket, Damper Spring
  3. Nut, Damper Spring
  4. Spring, Damper
  5. Nut, Stop Bolt Cap
  6. Gasket, Speed Lever Stop Bolt
  7. Nut, Stop Bolt
  8. Bolt, w/Washer, Governor Cover
  9. Plug, Tension Lever Shaft
  10. Cover, Governor Housing
  11. Gasket, Governor Cover
  12. Bolt, Speed Lever Stop
  13. Shaft, Tension Lever
  14. Plug, Tension Lever Shaft
  15. Lever, Governor Tension
  16. Stop, Governor Control Rack
  17. Lever, Speed Setting
  18. Spring, Governor
  19. Bushing, Guide Lever Control Rack
  20. Ring, Snap
  21. Link, Governor Lever
  22. Pin, Governor Link Snap
  23. Pin, Governor Link
  24. Connector, Governor Link
  25. Lever, Rack Control Guide, Assy
  26. Spring, Starting
  27. Bolt, w/Washer, Governor Mounting
  28. Angle, Starting Spring Return
  29. Bolt, w/Washer, Governor Mounting
  30. Gasket, Control to Housing
  31. Control, Gov Boost Compensator, Assy
  32. Bolt, Governor Mounting
  33. Washer, Spring
  34. Shim, Governor Compensator
  35. Shim, Governor Compensator
  36. Rod, Compensator Link
  37. Ring, Snap
  38. Gasket, Governor Diaphragm
  39. Gasket, Governor Diaphragm
  40. Diaphragm, Governor
  41. Washer, Spring
  42. Bolt, Governor Cover
  43. Gasket, Governor Cover
  44. Bolt, Eye Governor Cover
  45. Nut, Governor Cap
  46. Nut, Governor diaphragm
  47. Screw, Governor Valve Adjusting
  48. Bolt, Governor Cover
  49. Gasket, Drain Plug
  50. Cover, Governor Diaphragm
  51. Plate, Governor Diaphragm
  52. Nut, Governor Diaphragm
  53. Washer, Spring
  54. Bolt, Governor Diaphragm
  55. Seat, Spring
  56. Spring, Governor Compensator -Upper-
  57. Spring, Governor Compensator -Lower-
  58. Seat, Spring
  59. Nut, Governor Diaphragm
  60. Bolt, Governor Compensator Mounting
  61. Adapter, Injector Pump Housing
  62. Bracket, Governor Control Cable
  63. Bolt, Cable Control Bracket
  64. Washer, Spring
  65. Washer, Flat
  66. Washer, Spring
  67. Bolt. Cable Bracket
  68. Coupling, Governor Drive
  69. Gasket, Governor Mounting
  70. Housing, Governor
  71. Bolt, w//Washer, Governor Mounting
  72. Key, Woodruff
  73. Weight, Governor Fly
  74. Nut, Control Lever
  75. Washer, Spring
  76. Lever, Control
  77. Spacer, Control Shaft
  78. Spring, Control Shaft
  79. O-Ring, Control Lever
  80. Shaft, Control Lever
  81. Ring, Snap
  82. Shim, Control Lever
  83. Lever, Control
  84. Lever, Control
  85. Bolt, Control Lever
  86. Washer, Control Lever
  87. Pin, Control Shaft Roll
  88. Washer, Spring
  89. Nut, Special
  90. Hub, Governor Fly Weight
  91. Shim, Governor Weight
  92. Key, Woodruff
  93. Shaft, Control Lever
  94. Lever, Sliding
  95. Ring, Snap
  96. Screw, Control Lever
  97. Spring, Guide, Assy
  98. Nut, Idler Spring Guide
  99. Spring, Governor Idle
  100. Nut, Idler Spring Guide
  101. Bolt, w/Washer, Control Lever
  102. Lever, Control
  103. Lever, Control
  104. Shim, Control Lever
  105. O-Ring, Control Lever
  106. Bushing, Lever Shaft
  107. Bolt, w/Washer, Governor Cover
  108. Nut, Full Load Adjusting Bolt
  109. Bolt, Full Load Adjusting
  110. Nut, Lever Stop Bolt
  111. Nut, Lever Stop Bolt
  112. Bolt, Lever Stop
  113. O-Ring, End Cover
  114. Cover, Governor End
  115. Bolt, Governor End Cover
  116. Bolt, w/Washer, Governor End Cover
  117. Bolt, w/Washer, Governor End Cover

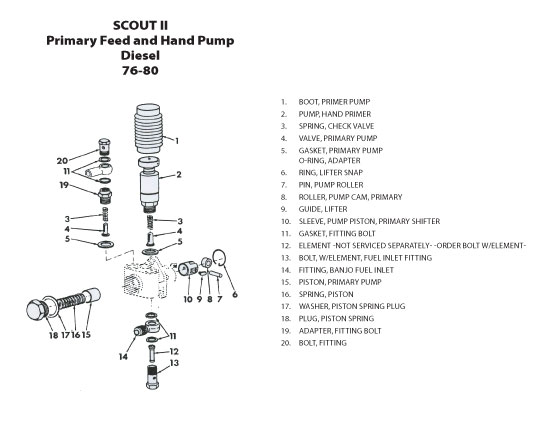

Primary Feed and Hand Pump
Click Image for Larger View
  1. Boot, Primer Pump
  2. Pump, Hand Primer
  3. Spring, Check Valve
  4. Valve, Primary Pump
  5. Gasket, Primary Pump
    O-Ring, Adapter
  6. Ring, Lifter Snap
  7. Pin, Pump Roller
  8. Roller, Pump Cam, Primary
  9. Guide, Lifter
  10. Sleeve, Pump Piston, Primary Shifter
  11. Gasket, Fitting Bolt
  12. Element -Not Serviced Separately- -Order Bolt w/Element-
  13. Bolt, w/Element, Fuel Inlet Fitting
  14. Fitting, Banjo Fuel Inlet
  15. Piston, Primary Pump
  16. Spring, Piston
  17. Washer, Piston Spring Plug
  18. Plug, Piston Spring
  19. Adapter, Fitting Bolt
  20. Bolt, Fitting

Return to Top


preheater glow plug & light indicator
diesel
1976-80
scout ii

advance governor
diesel
1976-80
scout ii
Preheater Glow Plug and Light Indicator
Click Image for Larger View
  1. Harness, Glow Plug
  2. Plug, Glow
  3. Light, Glow Plug Indicator

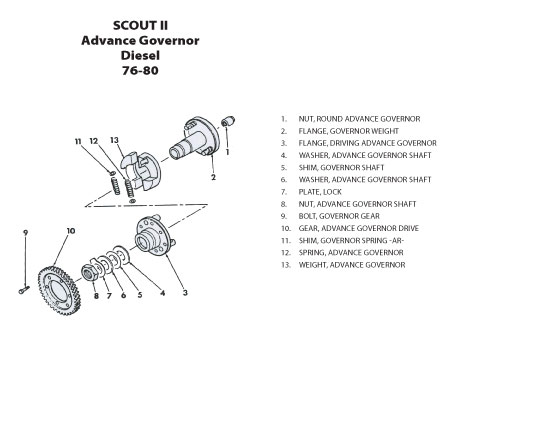

Advance Governor
Click Image for Larger View
  1. Nut, Round Advance Governor
  2. Flange, Governor Weight
  3. Flange, Driving Advance Governor
  4. Washer, Advance Governor Shaft
  5. Shim, Governor Shaft
  6. Washer, Advance Governor Shaft
  7. Plate, Lock
  8. Nut, Advance Governor Shaft
  9. Bolt, Governor Gear
  10. Gear, Advance Governor Drive
  11. Shim, Governor Spring -AR-
  12. Spring, Advance Governor
  13. Weight, Advance Governor

Return to Top

manifolds
6 cylinder
1971-75
scout ii

intake manifold & air cleaner piping
diesel
1980
scout ii

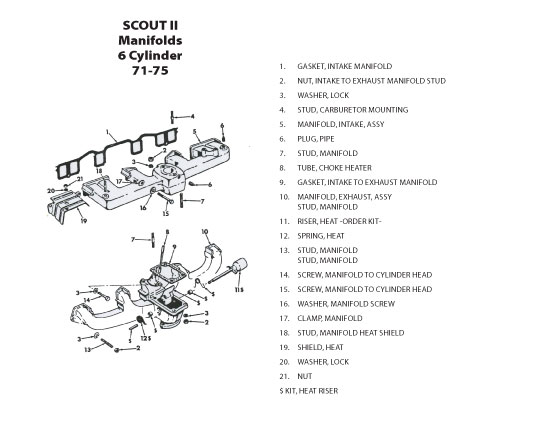

Manifolds
Click Image for Larger View
  1. Gasket, Intake Manifold
  2. Nut, Intake to Exhaust Manifold Stud
  3. Washer, Lock
  4. Stud, Carburetor Mounting
  5. Manifold, Intake, Assy
  6. Plug, Pipe
  7. Stud, Manifold
  8. Tube, Choke Heater
  9. Gasket, Intake to Exhaust Manifold
  10. Manifold, Exhaust, Assy
    Stud, Manifold
  11. Riser, Heat -Order Kit-
  12. Spring, Heat
  13. Stud, Manifold
    Stud, Manifold
  14. Screw, Manifold to Cylinder Head
  15. Screw, Manifold to Cylinder Head
  16. Washer, Manifold Screw
  17. Clamp, Manifold
  18. Stud, Manifold Heat Shield
  19. Shield, Heat
  20. Washer, Lock
  21. Nut

$ Kit, Heat Riser

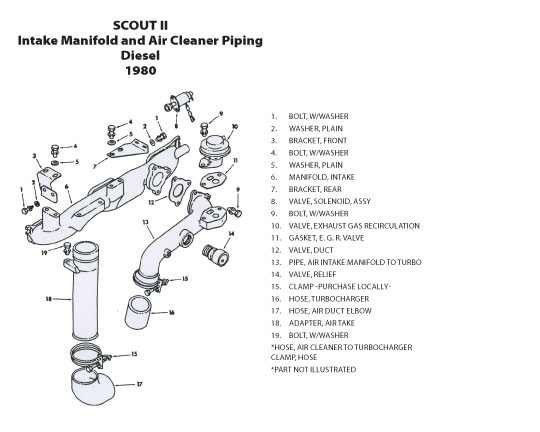

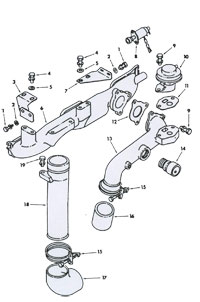

Intake Manifold and Air Cleaner Piping
Click Image for Larger View
  1. Bolt, w/Washer
  2. Washer, Plain
  3. Bracket, Front
  4. Bolt, w/Washer
  5. Washer, Plain
  6. Manifold, Intake
  7. Bracket, Rear
  8. Valve, Solenoid, Assy
  9. Bolt, w/Washer
  10. Valve, Exhaust Gas Recirculation
  11. Gasket, E. G. R. Valve
  12. Valve, Duct
  13. Pipe, Air Intake Manifold to Turbo
  14. Valve, Relief
  15. Clamp -Purchase Locally-
  16. Hose, Turbocharger
  17. Hose, Air Duct Elbow
  18. Adapter, Air Take
  19. Bolt, w/Washer

*Hose, Air Cleaner to Turbocharger
Clamp, Hose

*Part Not Illustrated


Return to Top


exhaust manifold
diesel
1980
scout ii

oil filter
4 cylinder
1971-80
scout ii

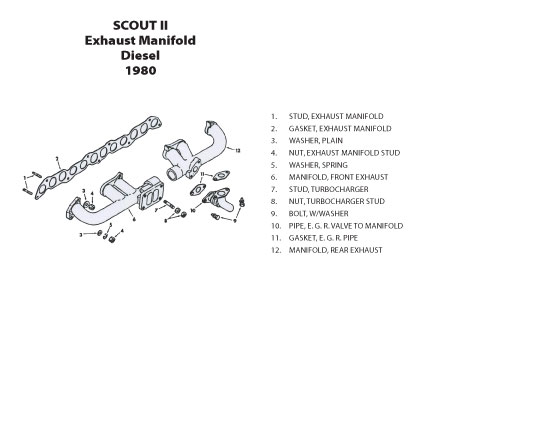

Exhaust Manifold
Click Image for Larger View
  1. Stud, Exhaust Manifold
  2. Gasket, Exhaust Manifold
  3. Washer, Plain
  4. Nut, Exhaust Manifold Stud
  5. Washer, Spring
  6. Manifold, Front Exhaust
  7. Stud, Turbocharger
  8. Nut, Turbocharger Stud
  9. Bolt, w/Washer
  10. Pipe, E. G. R. Valve to Manifold
  11. Gasket, E. G. R. Pipe
  12. Manifold, Rear Exhaust

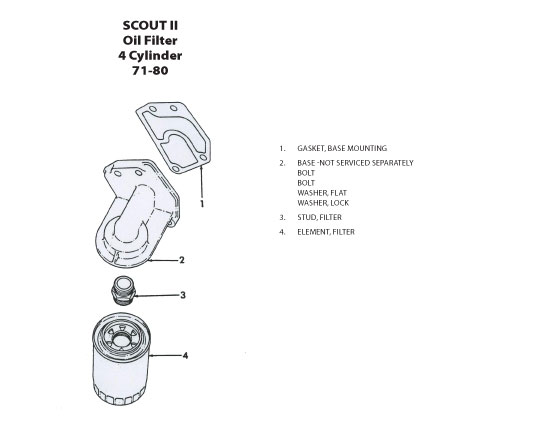

Oil Filter
Click Image for Larger View
  1. Gasket, Base Mounting
  2. Base -Not Serviced Separately
    Bolt
    Bolt
    Washer, Flat
    Washer, Lock
  3. Stud, Filter
  4. Element, Filter

Return to Top

oil filter, pan & pump
6 cylinder
1971-75
scout ii

oil pan, oil pump, assembly
diesel
1976-80
scout ii

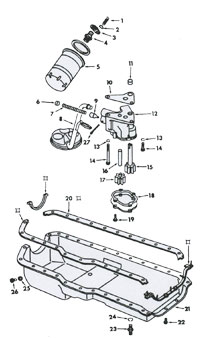

Oil Filter, Pan and Pump
Click Image for Larger View
  1. Spring Oil By-Pass Valve
  2. Valve, Oil By-Pass
  3. Retainer, Oil By-Pass Valve
  4. Connector, Oil Filter
  5. Filter, w/Gasket
  6. Retainer, Release Valve Spring
  7. Spring, Release Valve
  8. Float, Oil Pump, Assy
  9. Plunger, Release Valve
  10. Gasket, Pump to Crankcase
  11. Bushing, Oil Pump, To Crankcase
  12. Pump, Oil, Assy -Includes Items 69, 13-19 and 27
    Plug Oil Pump
  13. Washer, Lock
  14. Bolt
  15. Shaft, w/Gear, Oil Pump Drive
  16. Shaft, Oil Pump Idler Gear
  17. Gear, Oil Pump Idler
  18. Gasket, Oil Pump Cover
  19. Bolt, Cover
  20. Gasket, Oil Pan -Order Gasket Set-
  21. Pan, w/Plug, Oil
  22. Screw, w/Washer
    Screw, w/Washer
  23. Stud, Oil Pan Mounting
  24. Washer, Lock
  25. Gasket, Oil Pan Drain Plug
  26. Plug, Oil Pan Drain
  27. Pin, Cotter

* Set, Oil Pan Gasket

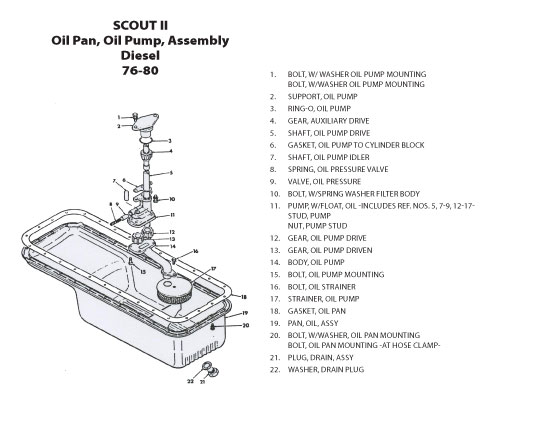

Oil Pan, Oil Pump, Assembly
Click Image for Larger View
  1. Bolt, w/ Washer Oil Pump Mounting
    Bolt, w/Washer Oil Pump Mounting
  2. Support, Oil Pump
  3. Ring-O, Oil Pump
  4. Gear, Auxiliary Drive
  5. Shaft, Oil Pump Drive
  6. Gasket, Oil Pump to Cylinder Block
  7. Shaft, Oil Pump Idler
  8. Spring, Oil Pressure Valve
  9. Valve, Oil Pressure
  10. Bolt, w/Spring washer Filter Body
  11. Pump, w/Float, Oil -Includes Ref. Nos. 5, 7-9, 12-17-
    Stud, Pump
    Nut, Pump Stud
  12. Gear, Oil Pump Drive
  13. Gear, Oil Pump Driven
  14. Body, Oil Pump
  15. Bolt, Oil Pump Mounting
  16. Bolt, Oil Strainer
  17. Strainer, Oil Pump
  18. Gasket, Oil Pan
  19. Pan, Oil, Assy
  20. Bolt, w/Washer, Oil Pan Mounting
    Bolt, Oil Pan Mounting -At Hose Clamp-
  21. Plug, Drain, Assy
  22. Washer, Drain Plug

Return to Top

oil filter
diesel
1976-80
scout ii
oil cooler
diesel
1976-80
scout ii

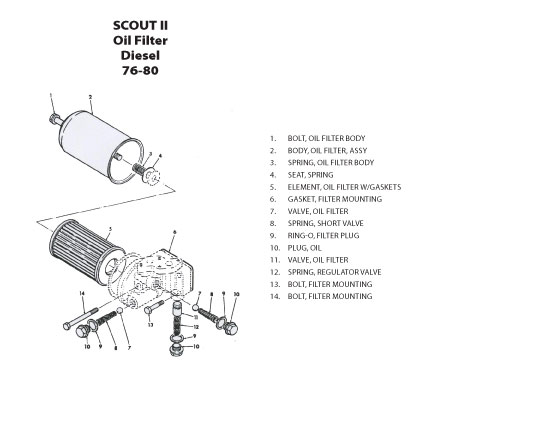

Oil Filter
Click Image for Larger View
  1. Bolt, Oil Filter Body
  2. Body, Oil Filter, Assy
  3. Spring, Oil Filter Body
  4. Seat, Spring
  5. Element, Oil Filter w/Gaskets
  6. Gasket, Filter Mounting
  7. Valve, Oil Filter
  8. Spring, Short Valve
  9. Ring-O, Filter Plug
  10. Plug, Oil
  11. Valve, Oil Filter
  12. Spring, Regulator Valve
  13. Bolt, Filter Mounting
  14. Bolt, Filter Mounting

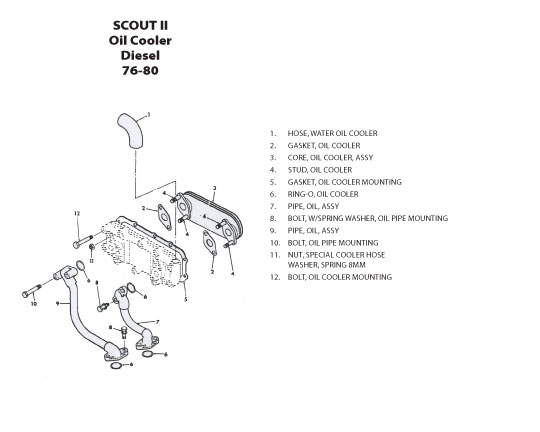

Oil Cooler
Click Image for Larger View
  1. Hose, Water Oil Cooler
  2. Gasket, Oil Cooler
  3. Core, Oil Cooler, Assy
  4. Stud, Oil Cooler
  5. Gasket, Oil Cooler Mounting
  6. Ring-O, Oil Cooler
  7. Pipe, Oil, Assy
  8. Bolt, w/Spring Washer, Oil Pipe Mounting
  9. Pipe, Oil, Assy
  10. Bolt, Oil Pipe Mounting
  11. Nut, Special Cooler Hose
    Washer, Spring 8mm
  12. Bolt, Oil Cooler Mounting

Return to Top


oil cooler
diesel
1980
scout ii

oil pan, oil pump, assy
diesel
1980
scout ii

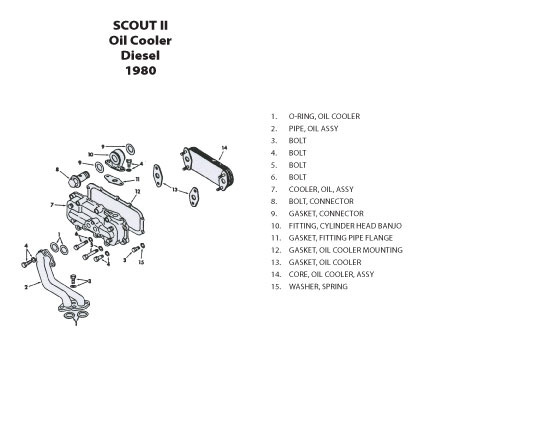

Oil Cooler
Click Image for Larger View
  1. O-Ring, Oil Cooler
  2. Pipe, Oil Assy
  3. Bolt
  4. Bolt
  5. Bolt
  6. Bolt
  7. Cooler, Oil, Assy
  8. Bolt, Connector
  9. Gasket, Connector
  10. Fitting, Cylinder Head Banjo
  11. Gasket, Fitting Pipe Flange
  12. Gasket, Oil Cooler Mounting
  13. Gasket, Oil Cooler
  14. Core, Oil Cooler, Assy
  15. Washer, Spring
Oil Pan, Oil Pump Assembly
Click Image for Larger View
  1. Bolt, w/ Washer
  2. Support, Oil Pump
  3. Ring-O, Oil Pump Support
  4. Gear, Auxiliary Drive
  5. Shaft, Drive -Includes Ref. Nos. 14,15-
  6. Gasket, Oil Pump to Cylinder Block
  7. Bolt, w/ Washer
  8. Valve, Oil Pressure
  9. Spring, Oil Pressure Valve
  10. Shim, Oil Pump
  11. Washer
  12. Pin, Cotter
  13. Pump, w/Float -Includes Ref. Nos. 5, 8-20-
  14. Key, Woodruff
  15. Gear, Drive
  16. Gear, Driven
  17. Body, Oil Pump
  18. Bolt, w/Washer
  19. Bolt, w/Washer
  20. Strainer, Oil Pump
  21. Gasket, Oil Pan
  22. Pan, Oil, Assy
  23. Bolt, w/Washer, Oil Pan Mounting
    Bolt, Oil Pan Mounting -At Clamp-
  24. Washer, Drain Plug
  25. Plug, Drain

Return to Top


radiator & mounting
4 cylinder 1971-80
6 cylinder 1971-75
scout ii

radiator & mounting
v8
1971-80
scout ii

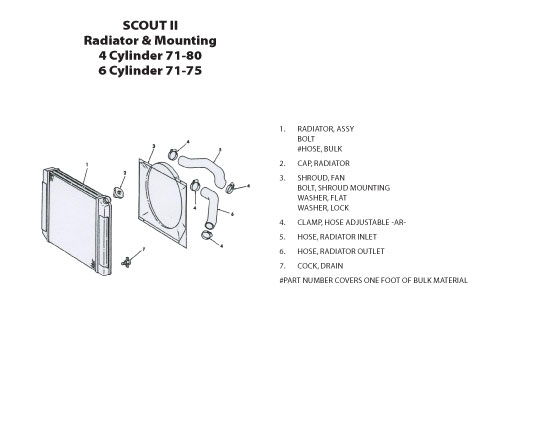

Radiator and Mounting
Click Image for Larger View
  1. Radiator, Assy
    Bolt
    #Hose, Bulk
  2. Cap, Radiator
  3. Shroud, Fan
    Bolt, Shroud Mounting
    Washer, Flat
    Washer, Lock
  4. Clamp, Hose Adjustable -AR-
  5. Hose, Radiator Inlet
  6. Hose, Radiator Outlet
  7. Cock, Drain

#Part Number Covers One Foot of Bulk Material

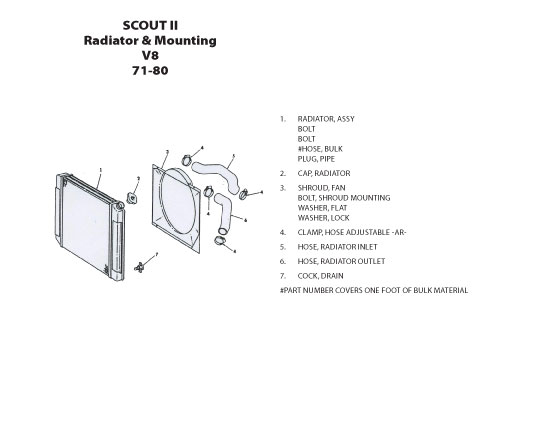

Radiator and Mounting
Click Image for Larger View
  1. Radiator, Assy
    Bolt
    Bolt
    #Hose, Bulk
    Plug, Pipe
  2. Cap, Radiator
  3. Shroud, Fan
    Bolt, Shroud Mounting
    Washer, Flat
    Washer, Lock
  4. Clamp, Hose Adjustable -AR-
  5. Hose, Radiator Inlet
  6. Hose, Radiator Outlet
  7. Cock, Drain

#Part Number Covers One Foot of Bulk Material


Return to Top


radiator reservoir tank
1971-80
scout ii/terra/traveler

radiator & mounting
diesel
76-80
scout ii

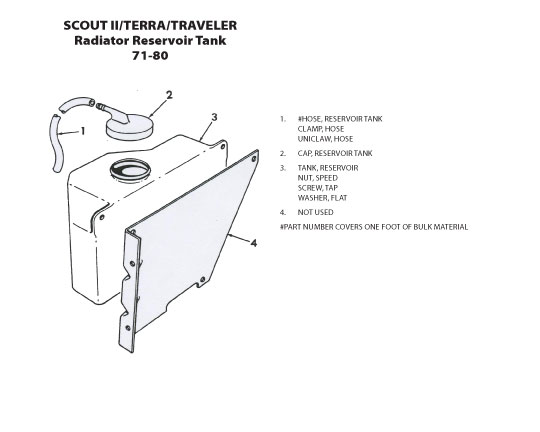

Radiator Reservoir Tank
Click Image for Larger View
  1. #Hose, Reservoir Tank
    Clamp, Hose
    Uniclaw, Hose
  2. Cap, Reservoir Tank
  3. Tank, Reservoir
    Nut, Speed
    Screw, Tap
    Washer, Flat
  4. Not Used

#Part Number Covers One Foot of Bulk Material

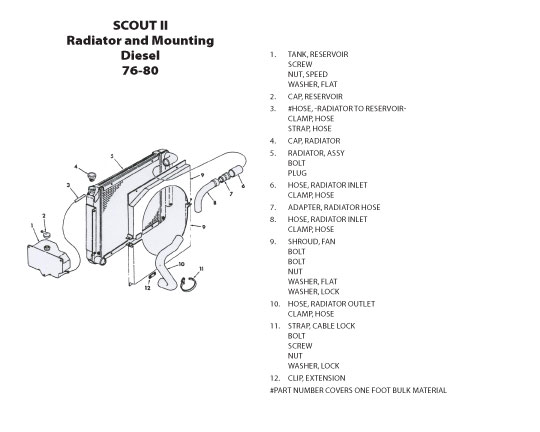

Radiator and Mounting
Click Image for Larger View
  1. Tank, Reservoir
    Screw
    Nut, Speed
    Washer, Flat
  2. Cap, Reservoir
  3. #Hose, -Radiator to Reservoir-
    Clamp, Hose
    Strap, Hose
  4. Cap, Radiator
  5. Radiator, Assy
    Bolt
    Plug
  6. Hose, Radiator Inlet
    Clamp, Hose
  7. Adapter, Radiator Hose
  8. Hose, Radiator Inlet
    Clamp, Hose
  9. Shroud, Fan
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  10. Hose, Radiator Outlet
    Clamp, Hose
  11. Strap, Cable Lock
    Bolt
    Screw
    Nut
    Washer, Lock
  12. Clip, Extension

#Part Number Covers One Foot Bulk Material


Return to Top

thermostat, housing & water outlet
diesel
1980
scout ii
turbocharger mounting & piping
diesel
1980
scout ii

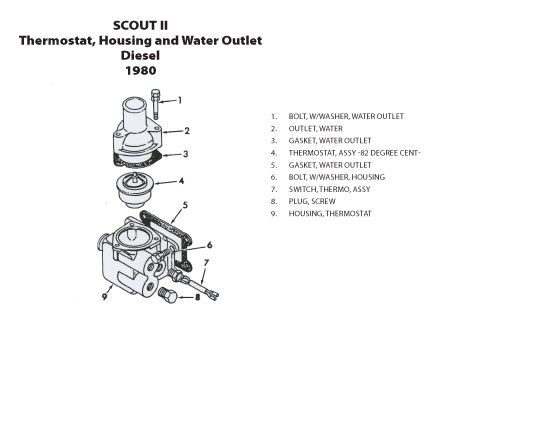

Thermostat, Housing and Water Outlet
Click Image for Larger View
  1. Bolt, w/Washer, Water Outlet
  2. Outlet, Water
  3. Gasket, Water Outlet
  4. Thermostat, Assy -82 Degree Cent-
  5. Gasket, Water Outlet
  6. Bolt, w/Washer, Housing
  7. Switch, Thermo, Assy
  8. Plug, Screw
  9. Housing, Thermostat

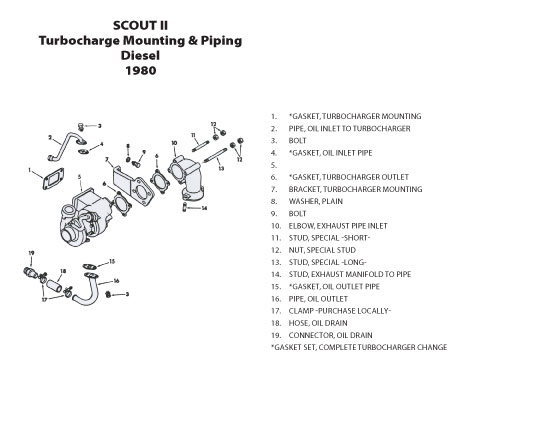

Turbocharger Mounting and Piping
Click Image for Larger View
  1. *Gasket, Turbocharger Mounting
  2. Pipe, Oil Inlet to Turbocharger
  3. Bolt
  4. *Gasket, Oil Inlet Pipe
  5. *Gasket, Turbocharger Outlet
  6. Bracket, Turbocharger Mounting
  7. Washer, Plain
  8. Bolt
  9. Elbow, Exhaust Pipe Inlet
  10. Stud, Special -Short-
  11. Nut, Special Stud
  12. Stud, Special -Long-
  13. Stud, Exhaust Manifold to Pipe
  14. *Gasket, Oil Outlet Pipe
  15. Pipe, Oil Outlet
  16. Clamp -Purchase Locally-
  17. Hose, Oil Drain
  18. Connector, Oil Drain

*Gasket Set, Complete Turbocharger Change


Return to Top

turbocharger assembly
diesel
1980
scout ii

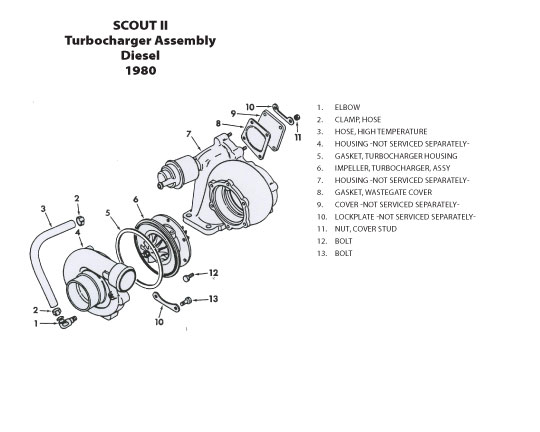

Turbocharger Assembly
Click Image for Larger View
  1. Elbow
  2. Clamp, Hose
  3. Hose, High Temperature
  4. Housing -Not Serviced Separately-
  5. Gasket, Turbocharger housing
  6. Impeller, Turbocharger, Assy
  7. Housing -Not Serviced Separately-
  8. Gasket, Wastegate Cover
  9. Cover -Not Serviced Separately-
  10. Lockplate -Not Serviced Separately-
  11. Nut, Cover Stud
  12. Bolt
  13. Bolt


Return to Top






Return to Parts Page


2075 Business 61 - Fort Madison, Iowa 52627 - 319.372.3272 - FAX: 319.372.3281 - info@scoutconnection.com
  home - about us - products - services - links - photos - faq - contact us
  Website Design by: Out of the Box Graphic Productions
