Scout Light Parts

Exhaust Systems
"Thanks for the great parts and service!” Eric Monse, TX

We have the largest inventory of N.O.S. (New Old Stock) parts in the United States! Our 1200 square foot parts, sales and accessories showroom is big and bright with a varied inventory and wide selection of new, used and NOS parts and accessories for your IH vehicle. We are a Scout Light-Line Dealer. Browse our digital parts book for all your IH needs! Give a call for medium-duty truck needs (LoadStar, FleetStar, CargoStar, S-Series). Contact us for your L, R, S truck needs, we have a small selection of used parts and ability to source many N.O.S. and reproduction parts. To Order Call: 319.372.3272.

Diagrams may not be actual representations of part image.


exhaust pipe, muffler & tail pipe
v8
1971
scout ii

exhaust pipe, muffler & tail pipe
v8
1972-78
scout ii/terra/traveler

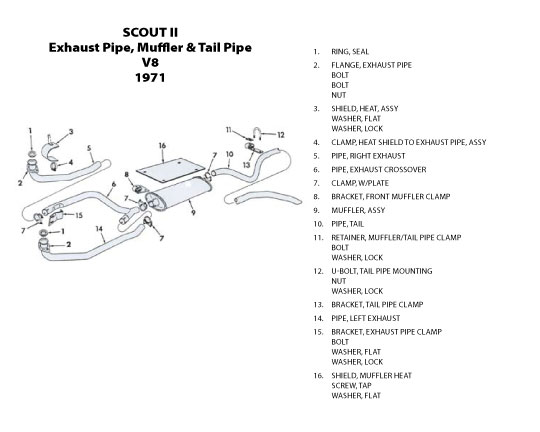

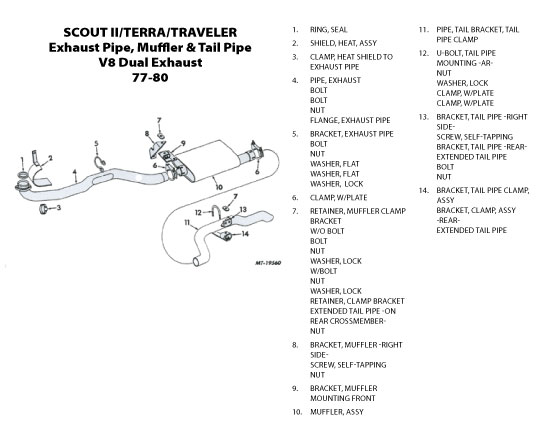

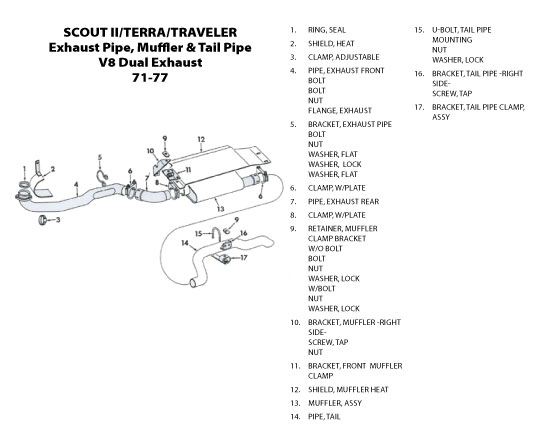

Exhaust Pipe, Muffler & Tail Pipe
Click Image for Larger View
  1. Ring, Seal
  2. Flange, Exhaust Pipe
    Bolt
    Bolt
    Nut
  3. Shield, Heat, Assy
    Washer, Flat
    Washer, Lock
  4. Clamp, Heat Shield to Exhaust Pipe, Assy
  5. Pipe,Rright Exhaust
  6. Pipe, Exhaust Crossover
  7. Clamp, w/Plate
  8. Bracket, Front Muffler Clamp
  9. Muffler, Assy
  10. Pipe, Tail
  11. Retainer, Muffler/Tail Pipe Clamp
    Bolt
    Washer, Lock
  12. U-Bolt, Tail Pipe Mounting
    Nut
    Washer, Lock
  13. Bracket, tail Pipe Clamp
  14. Pipe, Left Exhaust
  15. Bracket, Exhaust Pipe Clamp
    Bolt
    Washer, Flat
    Washer, Lock
  16. Shield, Muffler Heat
    Screw, Tap
    Washer, Flat

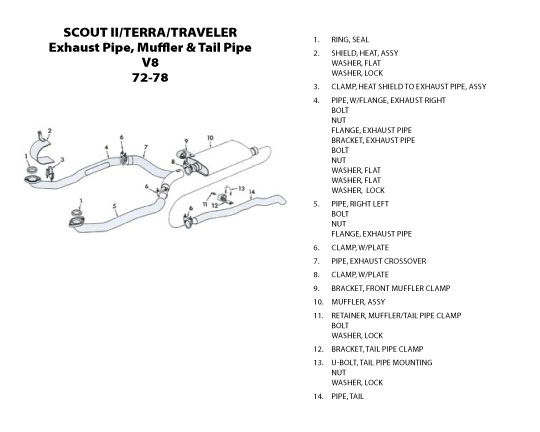

Exhaust Pipe, Muffler & Tail Pipe
Click Image for Larger View
  1. Ring, Seal
  2. Shield, Heat, Assy
    Washer, Flat
    Washer, Lock
  3. Clamp, Heat Shield to Exhaust Pipe, Assy
  4. Pipe, w/Flange, Exhaust Right
    Bolt
    Nut
    Flange, Exhaust Pipe
    Bracket, Exhaust Pipe
    Bolt
    Nut
    Washer, Flat
    Washer, Flat
    Washer, Lock
  5. Pipe, Right Left
    Bolt
    Nut
    Flange, Exhaust Pipe
  6. Clamp, w/Plate
  7. Pipe, Exhaust Crossover
  8. Clamp, w/Plate
  9. Bracket, Front Muffler Clamp
  10. Muffler, Assy
  11. Retainer, Muffler/Tail Pipe Clamp
    Bolt
    Washer, Lock
  12. Bracket, Tail Pipe Clamp
  13. U-Bolt, Tail Pipe Mounting
    Nut
    Washer, Lock
  14. Pipe, Tail

Return to Top

exhaust pipe, muffler & tail pipe
v8 dual exhaust
1971-77
scout ii

exhaust pipe, muffler & tail pipe
v8 dual exhaust
1977-80
scout ii/terra/traveler

Exhaust Pipe, Muffler & Tail Pipe
Click Image for Larger View
  1. Ring, Seal
  2. Shield, Heat
  3. Clamp, Adjustable
  4. Pipe, Exhaust Front
    Bolt
    Bolt
    Nut
    Flange, Exhaust
  5. Bracket, Exhaust Pipe
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
    Washer, Flat
  6. Clamp, w/Plate
  7. Pipe, Exhaust Rear
  8. Clamp, w/Plate
  9. Retainer, Muffler Clamp Bracket
    w/o Bolt
    Bolt
    Nut
    Washer, Lock
    w/Bolt
    Nut
    Washer, Lock
  10. Bracket, Muffler -Right Side-
    Screw, Tap
    Nut
  11. Bracket, Front Muffler Clamp
  12. Shield, Muffler Heat
  13. Muffler, Assy
  14. Pipe, Tail
  15. U-Bolt, Tail Pipe Mounting
    Nut
    Washer, Lock
  16. Bracket, Tail Pipe -Right Side-
    Screw, Tap
  17. Bracket, Tail Pipe Clamp, Assy
Exhaust Pipe, Muffler & Tail Pipe
Click Image for Larger View
  1. Ring, Seal
  2. Shield, Heat, Assy
  3. Clamp, Heat Shield to Exhaust Pipe
  4. Pipe, Exhaust
    Bolt
    Bolt
    Nut
    Flange, Exhaust Pipe
  5. Bracket, Exhaust Pipe
    Bolt
    Nut
    Washer, Flat
    Washer, Flat
    Washer, Lock
    Clamp, w/Plate
  6. Retainer, Muffler Clamp Bracket
    w/o Bolt
    Bolt
    Nut
    Washer, Lock
    w/Bolt
    Nut
    Washer, Lock
  7. Retainer, Clamp Bracket
    Extended Tail Pipe -On Rear Crossmember-
    Nut
  8. Bracket, Muffler -Right Side-
    Screw, Self-Tapping
    Nut
  9. Bracket, Muffler Mounting Front
    Muffler, Assy
  10. Pipe, Tail Bracket, Tail Pipe Clamp
  11. U-Bolt, Tail Pipe Mounting -AR-
    Nut
    Washer, Lock
    Clamp, w/Plate
    Clamp, w/Plate
  12. Bracket, Tail Pipe -Right Side-
    Screw, Self-Tapping
    Bracket, Tail Pipe -Rear-
    Extended Tail Pipe
    Bolt
    Nut
  13. Bracket, Tail Pipe Clamp, Assy
  14. Bracket, Clamp, Assy -Rear-
    Extended Tail Pipe

Return to Top

exhaust pipe, muffler & converter
4 cylinder
1979-80
scout ii/terra/traveler

exhaust pipe, muffler, converter & tail pipe
v8
1979-80
scout ii/terra/traveler

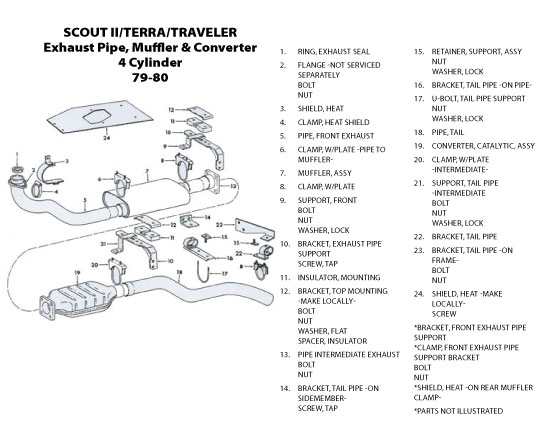

Exhaust Pipe, Muffler & Converter
Click Image for Larger View
  1. Ring, Exhaust Seal
  2. Flange -Not Serviced Separately
    Bolt
    Nut
  3. Shield, Heat
  4. Clamp, Heat Shield
  5. Pipe, Front Exhaust
  6. Clamp, w/Plate -Pipe to Muffler-
  7. Muffler, Assy
  8. Clamp, w/Plate
  9. Support, Front
    Bolt
    Nut
    Washer, Lock
  10. Bracket, Exhaust Pipe Support
    Screw, Tap
  11. Insulator, Mounting
  12. Bracket, Top Mounting -Make Locally-
    Bolt
    Nut
    Washer, Flat
    Spacer, Insulator
  13. Pipe Intermediate Exhaust
    Bolt
    Nut
  14. Bracket, Tail Pipe -On Sidemember-
    Screw, Tap
  15. Retainer, Support, Assy
    Nut
    Washer, Lock
  16. Bracket, Tail Pipe -On Pipe-
  17. U-Bolt, Tail Pipe Support
    Nut
    Washer, Lock
  18. Pipe, Tail
  19. Converter, Catalytic, Assy
  20. Clamp, w/Plate -Intermediate-
  21. Support, Tail Pipe -Intermediate-
    Bolt
    Nut
    Washer, Lock
  22. Bracket, Tail Pipe
  23. Bracket, Tail Pipe -On Frame-
    Bolt
    Nut
  24. Shield, Heat -Make Locally-
    Screw

*Bracket, Front Exhaust Pipe Support
*Clamp, Front Exhaust Pipe Support Bracket
Bolt
Nut
*Shield, Heat -On Rear Muffler Clamp-

*Parts Not Illustrated

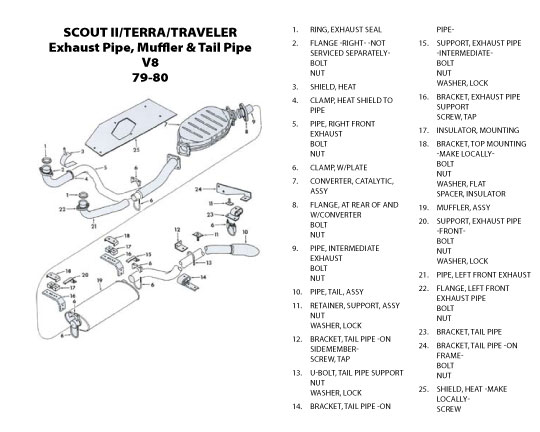

Exhaust Pipe, Muffler & Tail Pipe
Click Image for Larger View
  1. Ring, Exhaust Seal
  2. Flange -Right- -Not Serviced Separately-
    Bolt
    Nut
  3. Shield, Heat
  4. Clamp, Heat Shield to Pipe
  5. Pipe, Right Front Exhaust
    Bolt
    Nut
  6. Clamp, w/Plate
  7. Converter, Catalytic, Assy
  8. Flange, At Rear of and w/Converter
    Bolt
    Nut
  9. Pipe, Intermediate Exhaust
    Bolt
    Nut
  10. Pipe, Tail, Assy
  11. Retainer, Support, Assy
    Nut
    Washer, Lock
  12. Bracket, Tail Pipe -On Sidemember-
    Screw, Tap
  13. U-Bolt, Tail Pipe Support
    Nut
    Washer, Lock
  14. Bracket, Tail Pipe -On Pipe-
  15. Support, Exhaust Pipe -Intermediate-
    Bolt
    Nut
    Washer, Lock
  16. Bracket, Exhaust Pipe Support
    Screw, Tap
  17. Insulator, Mounting
  18. Bracket, Top Mounting -Make Locally-
    Bolt
    Nut
    Washer, Flat
    Spacer, Insulator
  19. Muffler, Assy
  20. Support, Exhaust Pipe -Front-
    Bolt
    Nut
    Washer, Lock
  21. Pipe, Left Front Exhaust
  22. Flange, Left Front Exhaust Pipe
    Bolt
    Nut
  23. Bracket, Tail Pipe
  24. Bracket, Tail Pipe -On Frame-
    Bolt
    Nut
  25. Shield, Heat -Make Locally-
    Screw

Return to Top

exhaust pipe, muffler & tail pipe
diesel
1976-80
scout ii/terra/traveler

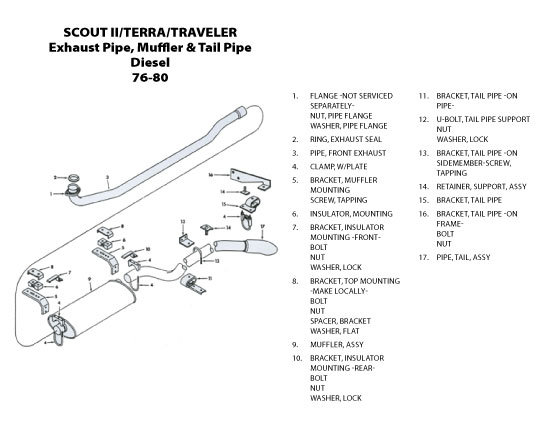

Exhaust Pipe, Muffler & Tail Pipe
Click Image for Larger View
  1. Flange -Not Serviced Separately-
    Nut, Pipe Flange
    Washer, Pipe Flange
  2. Ring, Exhaust Seal
  3. Pipe, Front Exhaust
  4. Clamp, w/Plate
  5. Bracket, Muffler Mounting
    Screw, Tapping
  6. Insulator, Mounting
  7. Bracket, Insulator Mounting -Front-
    Bolt
    Nut
    Washer, Lock
  8. Bracket, Top Mounting -Make Locally-
    Bolt
    Nut
    Spacer, Bracket
    Washer, Flat
  9. Muffler, Assy
  10. Bracket, Insulator Mounting -Rear-
    Bolt
    Nut
    Washer, Lock
  11. Bracket, Tail Pipe -On Pipe-
  12. U-Bolt, Tail Pipe Support
    Nut
    Washer, Lock
  13. Bracket, Tail Pipe -On Sidemember-Screw, Tapping
  14. Retainer, Support, Assy
  15. Bracket, Tail Pipe
  16. Bracket, Tail Pipe -On Frame-
    Bolt
    Nut
  17. Pipe, Tail, Assy


Return to Top


Return to Parts Page
