Scout Light Parts

Frame, Bumper & Suspension
"Thanks for the great parts and service!” Eric Monse, TX

We have the largest inventory of N.O.S. (New Old Stock) parts in the United States! Our 1200 square foot parts, sales and accessories showroom is big and bright with a varied inventory and wide selection of new, used and NOS parts and accessories for your IH vehicle. We are a Scout Light-Line Dealer. Browse our digital parts book for all your IH needs! Give a call for medium-duty truck needs (LoadStar, FleetStar, CargoStar, S-Series). Contact us for your L, R, S truck needs, we have a small selection of used parts and ability to source many N.O.S. and reproduction parts. To Order Call: 319.372.3272.

Diagrams may not be actual representations of part image.


front springs with shock absorbers
1971-80
scout ii/terra/traveler

rear springs with shock absorbers
1971-80
scout ii/terra/traveler

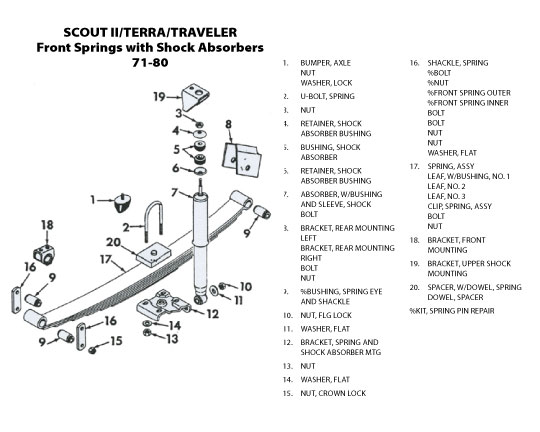

Front Springs with Shock Absorbers
Click Image for Larger View
  1. Bumper, Axle
    Nut
    Washer, Lock
  2. U-Bolt, Spring
  3. Nut
  4. Retainer, Shock Absorber Bushing
  5. Bushing, Shock Absorber
  6. Retainer, Shock Absorber Bushing
  7. Absorber, w/Bushing and Sleeve, Shock
    Bolt
  8. Bracket, Rear Mounting Left
    Bracket, Rear Mounting Right
    Bolt
    Nut
  9. %Bushing, Spring Eye and Shackle
  10. Nut, Flg Lock
  11. Washer, Flat
  12. Bracket, Spring and Shock Absorber Mtg
  13. Nut
  14. Washer, Flat
  15. Nut, Crown Lock
  16. Shackle, Spring
    %Bolt
    %Nut
    %Front Spring Outer
    %Front Spring Inner
    Bolt
    Bolt
    Nut
    Nut
    Washer, Flat
  17. Spring, Assy
    Leaf, w/Bushing, No. 1
    Leaf, No. 2
    Leaf, No. 3
    Clip, Spring, Assy
    Bolt
    Nut
  18. Bracket, Front Mounting
  19. Bracket, Upper Shock Mounting
  20. Spacer, w/Dowel, Spring
    Dowel, Spacer

%Kit, Spring Pin Repair

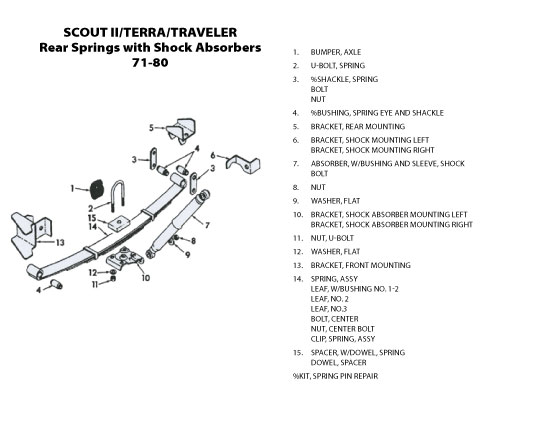

Rear Springs with Shock Absorbers
Click Image for Larger View
  1. Bumper, Axle
  2. U-Bolt, Spring
  3. %Shackle, Spring
    Bolt
    Nut
  4. %Bushing, Spring Eye and Shackle
  5. Bracket, Rear Mounting
  6. Bracket, Shock Mounting Left
    Bracket, Shock Mounting Right
  7. Absorber, w/Bushing and Sleeve, Shock
    Bolt
  8. Nut
  9. Washer, Flat
  10. Bracket, Shock Absorber Mounting Left
    Bracket, Shock Absorber Mounting Right
  11. Nut, U-Bolt
  12. Washer, Flat
  13. Bracket, Front Mounting
  14. Spring, Assy
    Leaf, w/Bushing No. 1-2
    Leaf, No. 2
    Leaf, No.3
    Bolt, Center
    Nut, Center Bolt
    Clip, Spring, Assy
  15. Spacer, w/Dowel, Spring
    Dowel, Spacer

%Kit, Spring Pin Repair


Return to Top

stabilizer bar
1971-80
scout ii/terra/traveler

frame assembly
1976-80
scout ii/terra/traveler

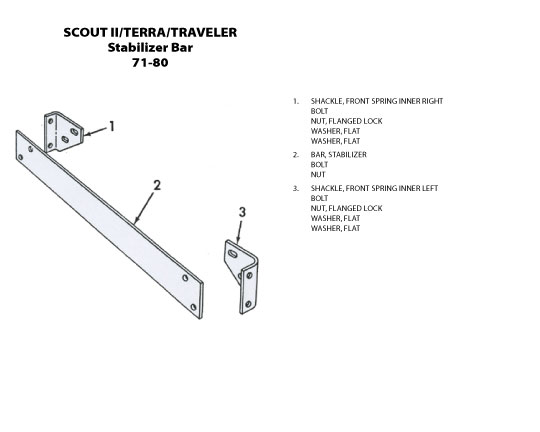

Stabilizer Bar
Click Image for Larger View
  1. Shackle, Front Spring Inner Right
    Bolt
    Nut, Flanged Lock
    Washer, Flat
    Washer, Flat
  2. Bar, Stabilizer
    Bolt
    Nut
  3. Shackle, Front Spring Inner Left
    Bolt
    Nut, Flanged Lock
    Washer, Flat
    Washer, Flat

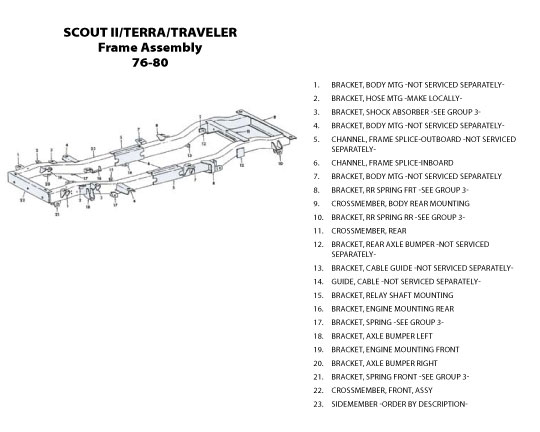

Frame Assembly
Click Image for Larger View
  1. Bracket, Body Mtg -Not Serviced Separately-
  2. Bracket, Hose Mtg -Make Locally-
  3. Bracket, Shock Absorber -See Group 3-
  4. Bracket, Body Mtg -Not Serviced Separately-
  5. Channel, Frame Splice-Outboard -Not Serviced Separately-
  6. Channel, Frame Splice-Inboard
  7. Bracket, Body Mtg -Not Serviced Separately
  8. Bracket, RR Spring Frt -See Group 3-
  9. Crossmember, Body Rear Mounting
  10. Bracket, RR Spring RR -See Group 3-
  11. Crossmember, Rear
  12. Bracket, Rear Axle Bumper -Not Serviced Separately-
  13. Bracket, Cable Guide -Not Serviced Separately-
  14. Guide, Cable -Not Serviced Separately-
  15. Bracket, Relay Shaft Mounting
  16. Bracket, Engine Mounting Rear
  17. Bracket, Spring -See Group 3-
  18. Bracket, Axle Bumper Left
  19. Bracket, Engine Mounting Front
  20. Bracket, Axle Bumper Right
  21. Bracket, Spring Front -See Group 3-
  22. Crossmember, Front, Assy
  23. Sidemember -Order by Description-

Return to Top

rear step bumper
1971-80
scout ii/terra/traveler

front bumper & tow hooks
1971-80
scout ii/terra/traveler

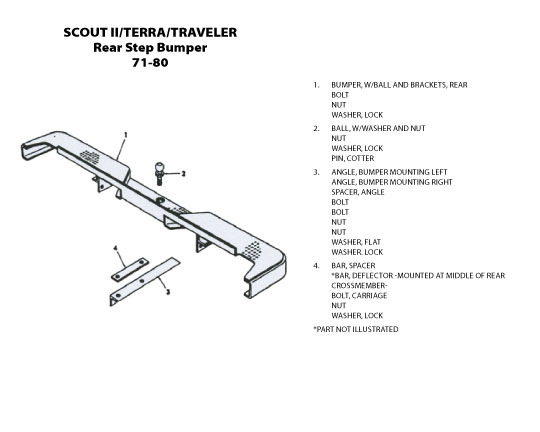

Rear Step Bumper
Click Image for Larger View
  1. Bumper, w/Ball and Brackets, Rear
    Bolt
    Nut
    Washer, Lock
  2. Ball, w/Washer and Nut
    Nut
    Washer, Lock
    Pin, Cotter
  3. Angle, Bumper Mounting Left
    Angle, Bumper Mounting Right
    Spacer, Angle
    Bolt
    Bolt
    Nut
    Nut
    Washer, Flat
    Washer. Lock
  4. Bar, Spacer
    *Bar, Deflector -Mounted at Middle of Rear Crossmember-
    Bolt, Carriage
    Nut
    Washer, Lock

*Part Not Illustrated

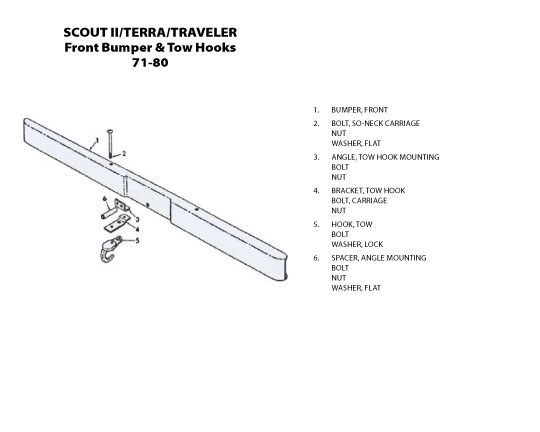

Front Bumper and Tow Hooks
Click Image for Larger View
  1. Bumper, Front
  2. Bolt, So-Neck Carriage
    Nut
    Washer, Flat
  3. Angle, Tow Hook Mounting
    Bolt
    Nut
  4. Bracket, Tow Hook
    Bolt, Carriage
    Nut
  5. Hook, Tow
    Bolt
    Washer, Lock
  6. Spacer, Angle Mounting
    Bolt
    Nut
    Washer, Flat

Return to Top

rear bumper
1971-80
scout ii/terra/traveler

spare tire mounting
1971-80
scout ii/terra/traveler

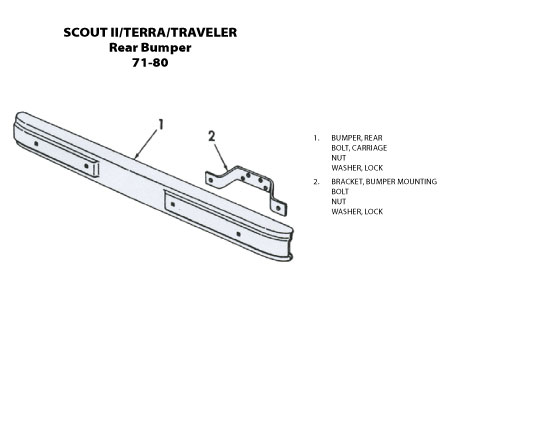

Rear Bumper
Click Image for Larger View
  1. Bumper, Rear
    Bolt, Carriage
    Nut
    Washer, Lock
  2. Bracket, Bumper Mounting
    Bolt
    Nut
    Washer, Lock

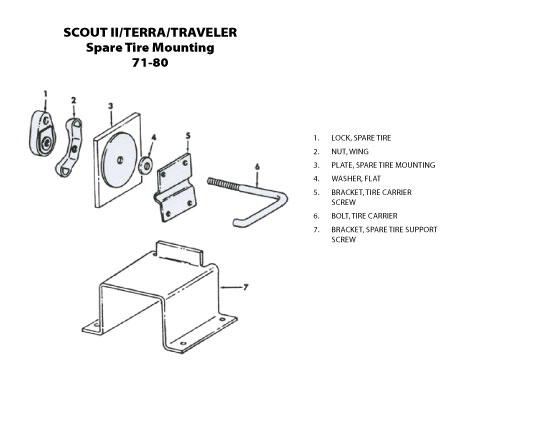

Spare Tire Mounting
Click Image for Larger View
  1. Lock, Spare Tire
  2. Nut, Wing
  3. Plate, Spare Tire Mounting
  4. Washer, Flat
  5. Bracket, Tire Carrier
    Screw
  6. Bolt, Tire Carrier
  7. Bracket, Spare tire Support
    Screw

Return to Top
