Fuel Tanks
"Thanks for the great parts and service!” Eric Monse, TX


We have the largest inventory of N.O.S. (New Old Stock) parts in the United States! Our 1200 square foot parts, sales and accessories showroom is big and bright with a varied inventory and wide selection of new, used and NOS parts and accessories for your IH vehicle. We are a Scout Light-Line Dealer. Browse our digital parts book for all your IH needs! Give a call for medium-duty truck needs (LoadStar, FleetStar, CargoStar, S-Series). Contact us for your L, R, S truck needs, we have a small selection of used parts and ability to source many N.O.S. and reproduction parts. To Order Call: 319.372.3272.

Diagrams may not be actual representations of part image.

fuel tank
late 1971-80
scout ii/terra/traveler

fuel tank
early 1971-80
scout ii/terra/traveler

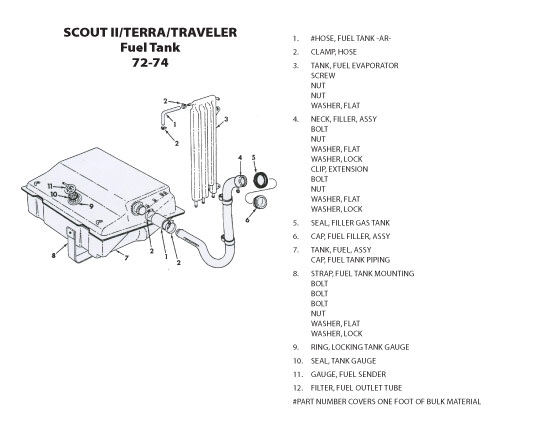

Fuel Tank
Click Image for Larger View
  1. #Hose, Fuel Tank -AR-
  2. Clamp, Hose
  3. Tank, Fuel Evaporator
    Screw
    Nut
    Nut
    Washer, Flat
  4. Neck, Filler, Assy
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
    Clip, Extension
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  5. Seal, Filler Gas Tank
  6. Cap, Fuel Filler, Assy
  7. Tank, Fuel, Assy
    Cap, Fuel Tank piping
  8. Strap, Fuel Tank Mounting
    Bolt
    Bolt
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  9. Ring, Locking Tank Gauge
  10. Seal, Tank Gauge
  11. Gauge, Fuel Sender
    Filter, Fuel Outlet Tube

#Part Number Covers One Foot of Bulk Material

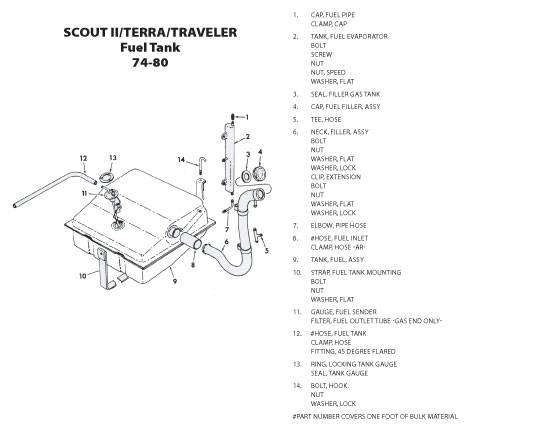

 Fuel Tank
Click Image for Larger View
  1. Cap, Fuel Pipe
    Clamp, Cap
  2. Tank, Fuel Evaporator
    Bolt
    Screw
    Nut
    Nut, Speed
    Washer, Flat
  3. Seal, Filler Gas Tank
  4. Cap, Fuel Filler, Assy
  5. Tee, Hose
  6. Neck, Filler, Assy
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
    Clip, Extension
    Bolt
    Nut
    Washer, Flat
    Washer, Lock
  7. Elbow, Pipe Hose
  8. #Hose, Fuel Inlet
    Clamp, Hose -AR-
  9. Tank, Fuel, Assy
  10. Strap, Fuel Tank Mounting
    Bolt
    Nut
    Washer, Flat
  11. Gauge, Fuel Sender
    Filter, Fuel Outlet Tube -Gas End Only-
  12. #Hose, Fuel Tank
    Clamp, Hose
    Fitting, 45 Degree Flared
  13. Ring, Locking Tank Gauge
    Seal, Tank Gauge
  14. Bolt, Hook
    Nut
    Washer, Lock

#Part Number Covers One Foot of Bulk Material

Return to Top

fuel fumes filter & mounting
1971-80
scout ii/terra/traveler

fuel tank skid plate
1971-80
scout ii/terra/traveler

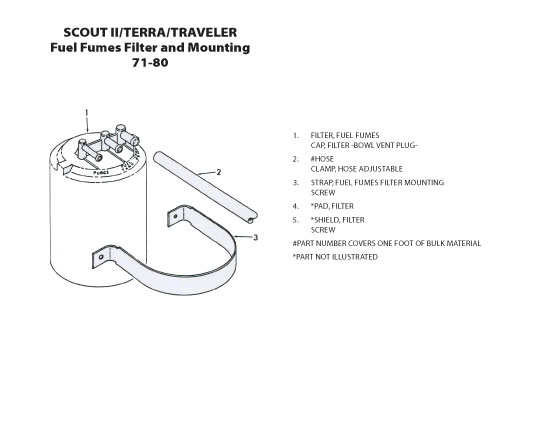

Fuel Fumes Filter and Mounting
Click Image for Larger View
  1. Filter, Fuel Fumes
    Cap, Filter -Bowl Vent Plug-
  2. #Hose
    Clamp, Hose Adjustable
  3. Strap, Fuel Fumes Filter Mounting
    Screw

*Pad, Filter
*Shield, Filter
Screw

#Part Number Covers One Foot of Bulk Material

*Part Not Illustrated

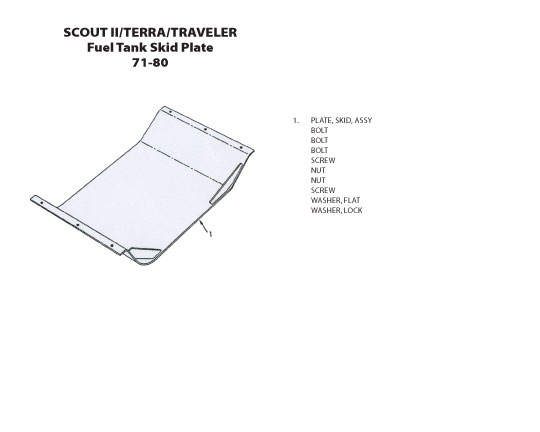

 Fuel Tank Skid Plate
Click Image for Larger View
  1. Plate, Skid, Assy
    Bolt
    Bolt
    Bolt
    Screw
    Nut
    Nut
    Screw
    Washer, Flat
    Washer, Lock

Return to Top


Return to Parts Page
