road speed sensor
1971-80
all engines

road speed sensor
1971-76
scout ii all engines

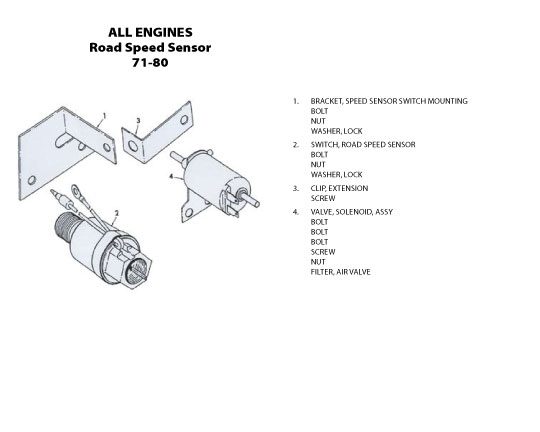

Road Speed Sensor
Click Image for Larger View
  1. Bracket, Speed Sensor Switch Mounting
    Bolt
    Nut
    Washer, Lock
  2. Switch, Road Speed Sensor
    Bolt
    Nut
    Washer, Lock
  3. Clip, Extension
    Screw
  4. Valve, Solenoid, Assy
    Bolt
    Bolt
    Bolt
    Screw
    Nut
    Filter, Air Valve

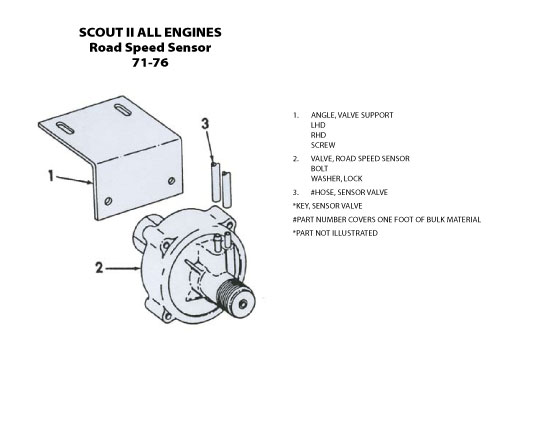

Road Speed Sensor
Click Image for Larger View
  1. Angle, Valve Support
    LHD
    RHD
    Screw
  2. Valve, Road Speed Sensor
    Bolt
    Washer, Lock
  3. #Hose, Sensor Valve

*Key, Sensor Valve

#Part Number Covers One Foot of Bulk Material

*Part Not Illustrated


Return to Top

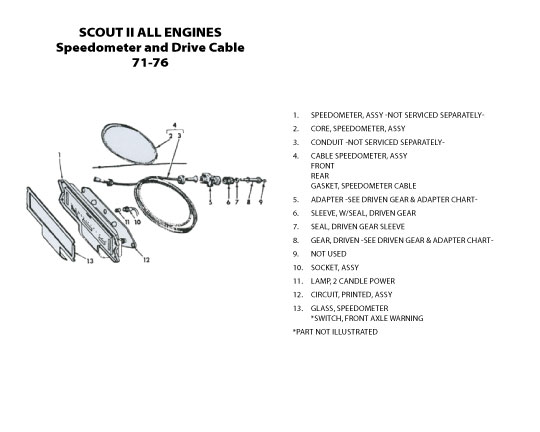

Speedometer and drive cable
1971-76
scout ii All Engines



Speedometer and Drive Cable
Click Image for Larger View
  1. Speedometer, Assy -Not Serviced Separately-
  2. Core, Speedometer, Assy
  3. Conduit -Not Serviced Separately-
  4. Cable Speedometer, Assy
    Front
    Rear
    Gasket, Speedometer Cable
  5. Adapter -See Driven Gear & Adapter Chart-
  6. Sleeve, w/Seal, Driven gear
  7. Seal, Driven gear Sleeve
  8. Gear, Driven -See Driven Gear & Adapter Chart-
  9. Not Used
  10. Socket, Assy
  11. Lamp, 2 Candle Power
  12. Circuit, Printed, Assy
  13. Glass, Speedometer
    *Switch, Front Axle Warning

*Part Not Illustrated



Return to Top
